Max. load range | 7200mm | Max. dumping height | 5250mm |
Max. loading weight | 1000kgs | Max.digging depth | 3880mm |
Max.digging height | 7282mm | Bucket capacity | 0.35m3 |
Length of movable arm | 3500mm | Length of bucket arm | 1900mm |
Gripper weight | 330kgs | Gripper dimension | 700*380*1300mm |
Gripper workload | 800kgs±10% | Working pressure | 21Mpa |

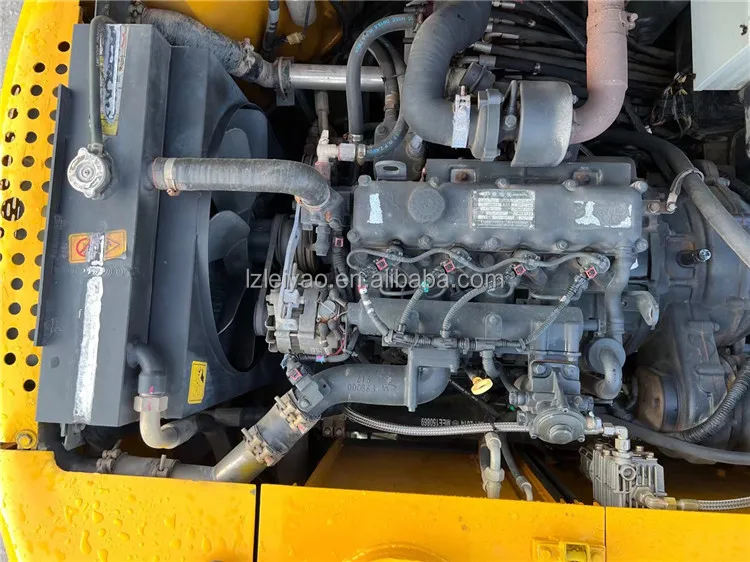

Power output(china brand engine) | Yunnei65KW/Yuchai60KW | Ground clearance of balance weight | 1005mm |
Rated flow | 2*55L/min | Min.Ground clearance | 280mm |
Rated capacity | 2*25ml/r | Track gauge | 1650mm |
Swing speed | 12rpm | Wheel base | 2330mm |
Travel speed | 0-38Km/h | Opening size | 1240mm |
Max. traction | 43.2KN | Plow width | 2020mm |
Max. torque | 250N.m/1800rpm | Plow high | 490mm |
Grade ability | 30° | Overall size | 6730*2900*2100mm |
Fuel tank | 125L | Total weight | 8000kgs |

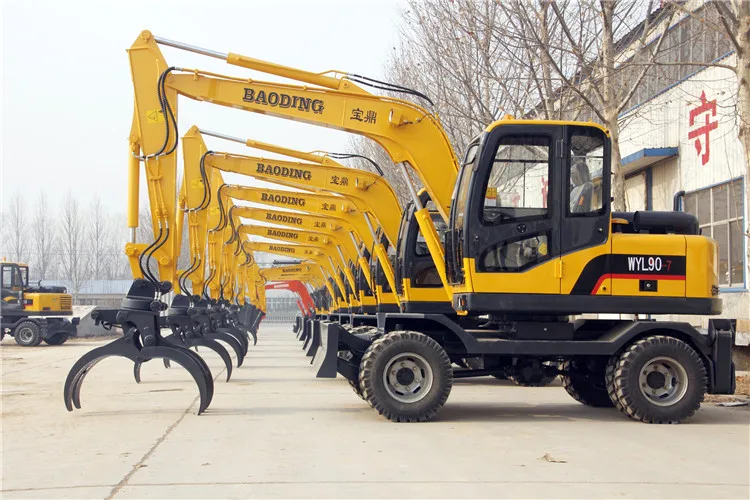

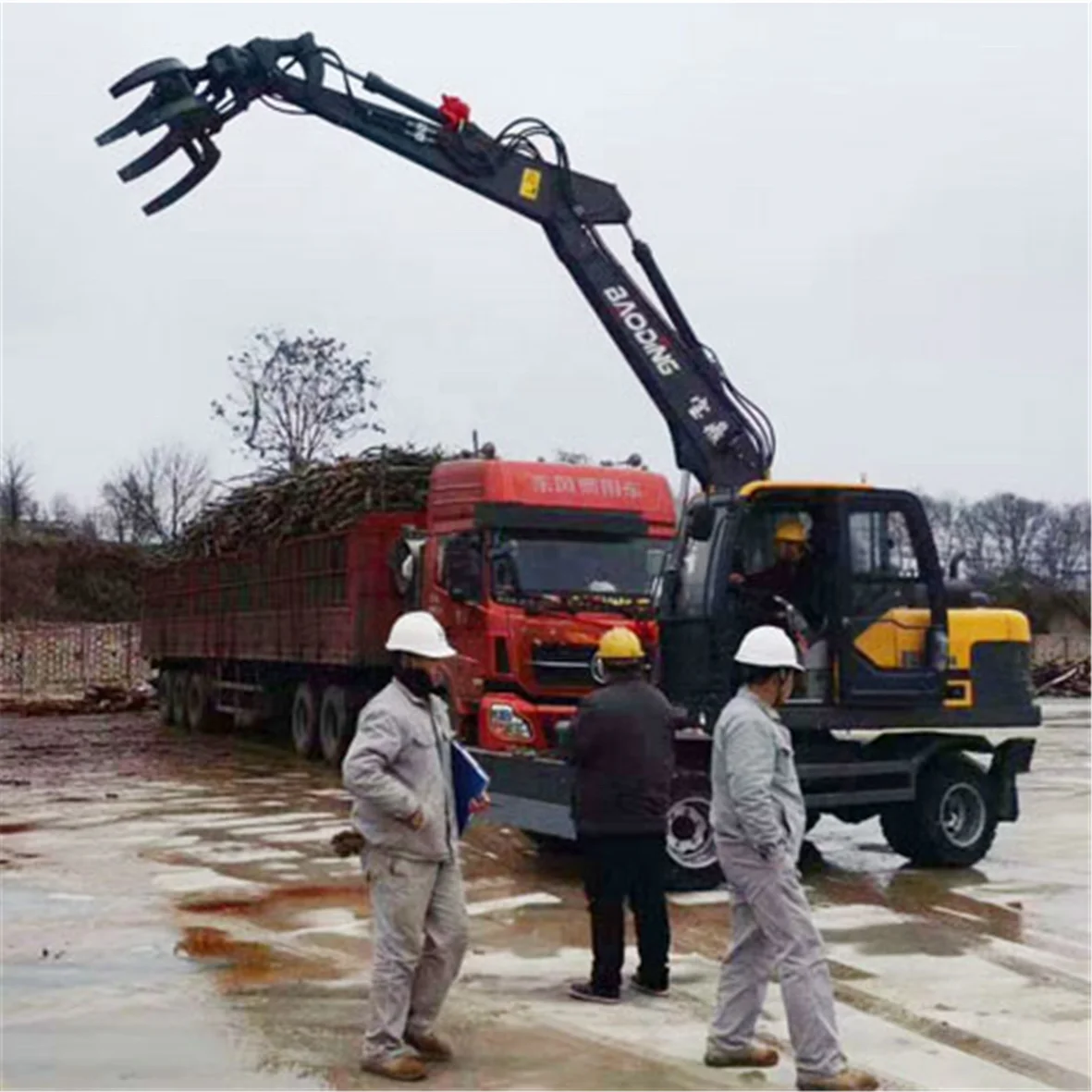

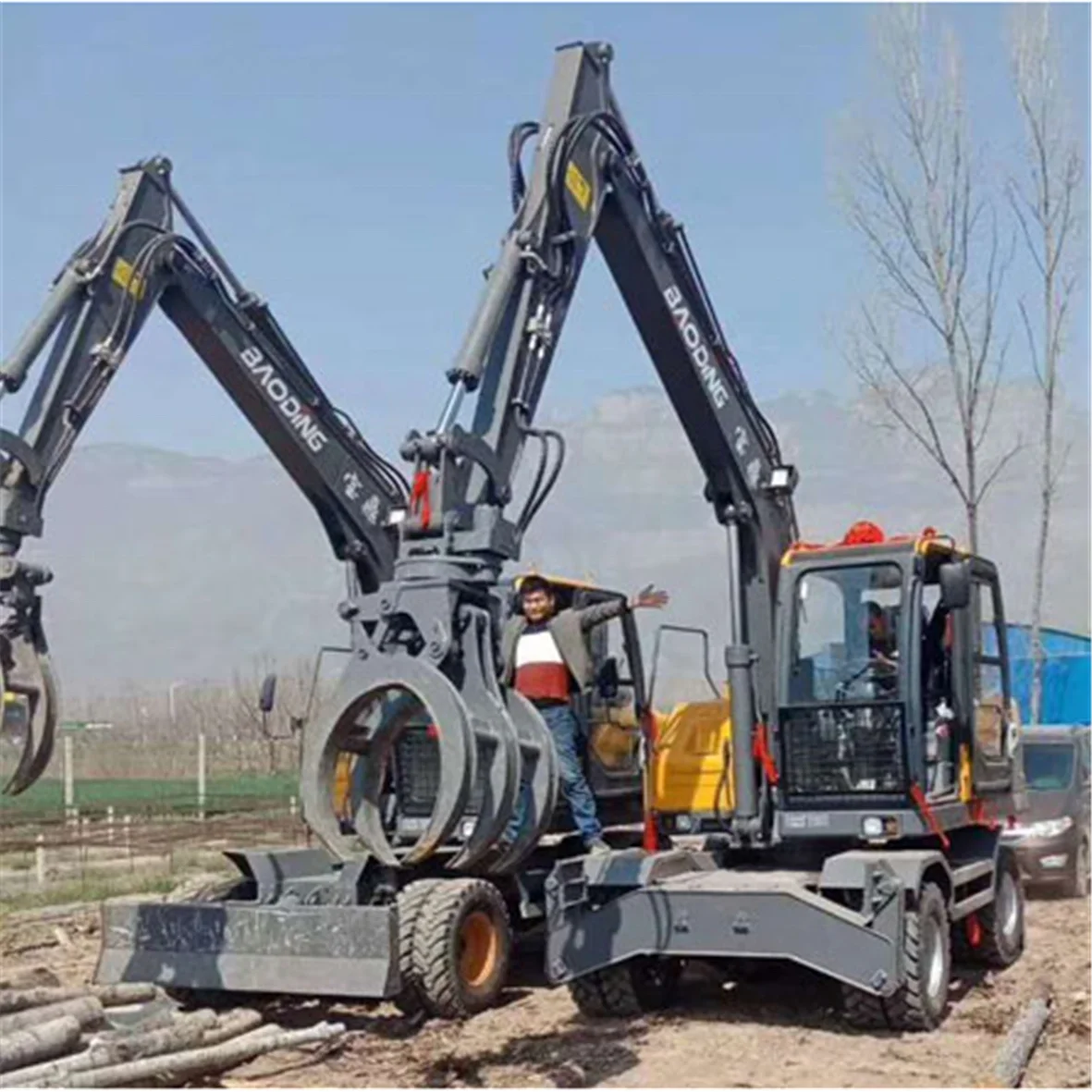

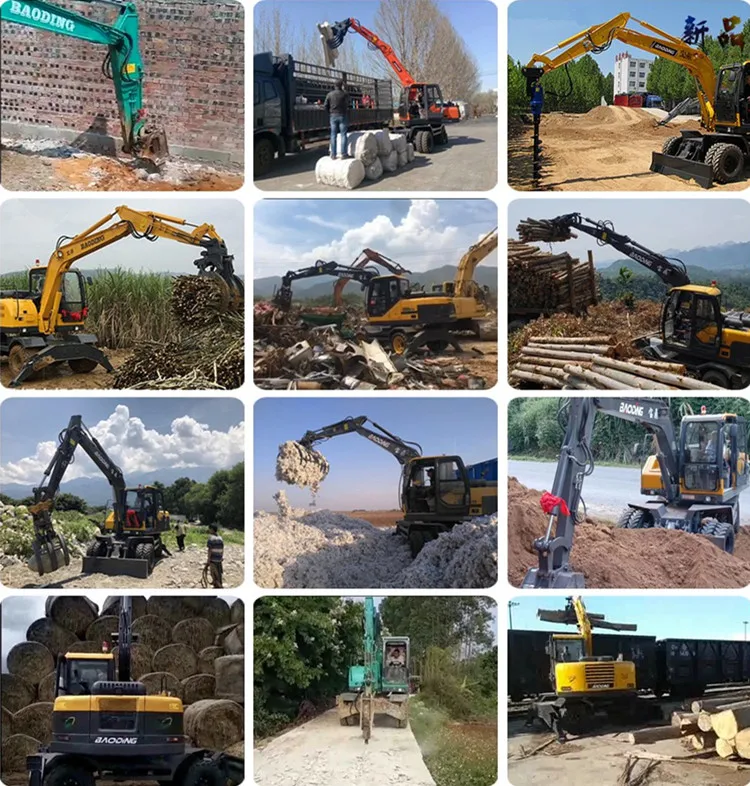

The characteristics of lifting high, fast speed, stable performance, and durable quality make Baoding wheel excavator become the favorite machine in China for logs/timber/wood loading and unloading, sugar cane loading, material handling, scrap iron loading and unloading.earthmoving,drilling,rock breaking etc
