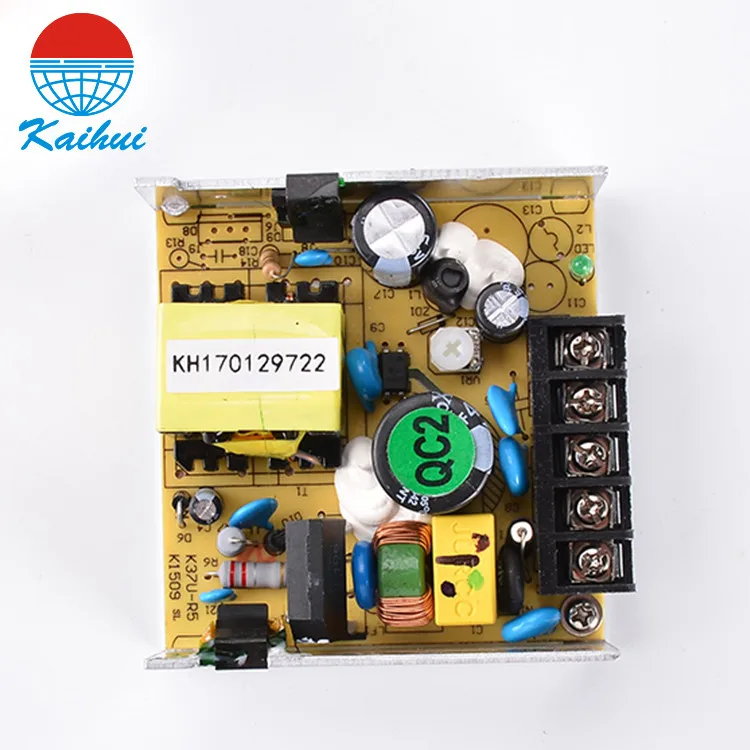

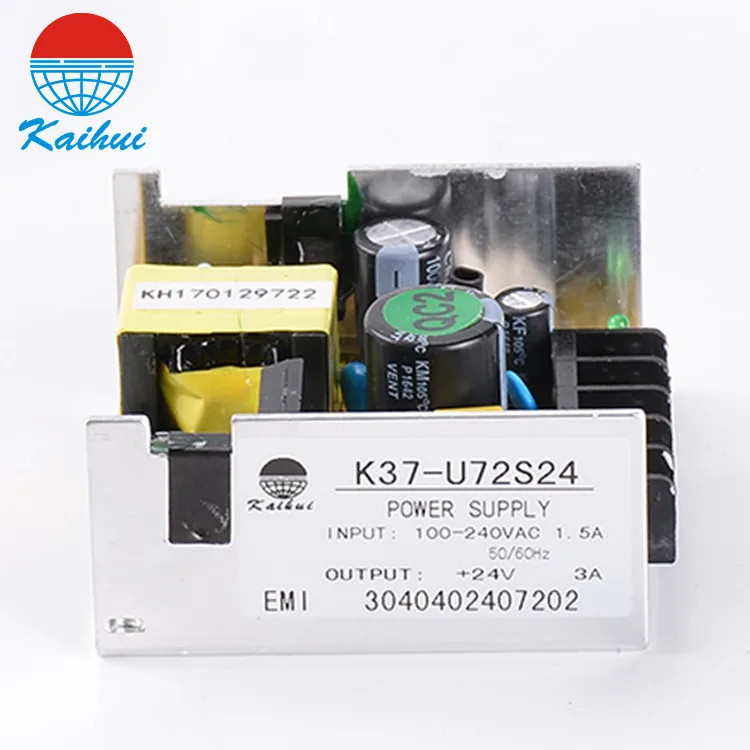

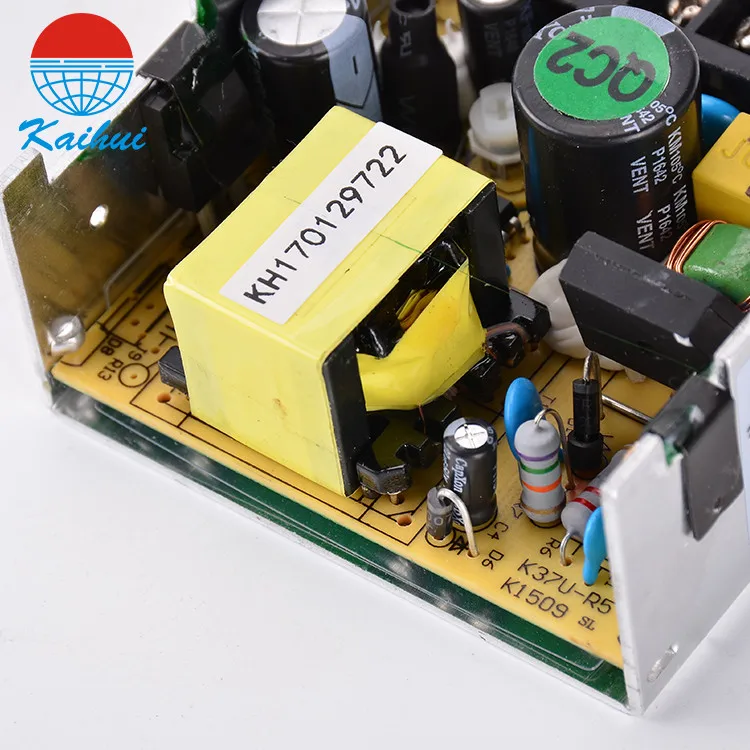

Блок питания KAIHUI с одним выходом 24 В 3 А переменный постоянный ток 24 В 72 Вт smps

1, Wide range AC input voltage;

2,short circuit, overload, overvoltage protection

 parameter           Item No.

OUTPUT

DC Output Voltage

Output Rated Current

Output Current Range

DC Output power

Ripple

150mVp-p

DC Voltage ADJ.

Output Accuuracy

±1%

Line Regulation

±1%

Load Regulation

±1%

INPUT

Input Voltage range

AC current

Input frequency

47~63Hz

Efficiency

86%

Over Temp.protection

ENVIRONMENT

Working Temp.,Humidity

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

SAFETY&EMC

Safety standards

 GB4943

Pressure resistance

I/P-O/P,I/P-FG:1.5KV;O/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

-----

OTHER

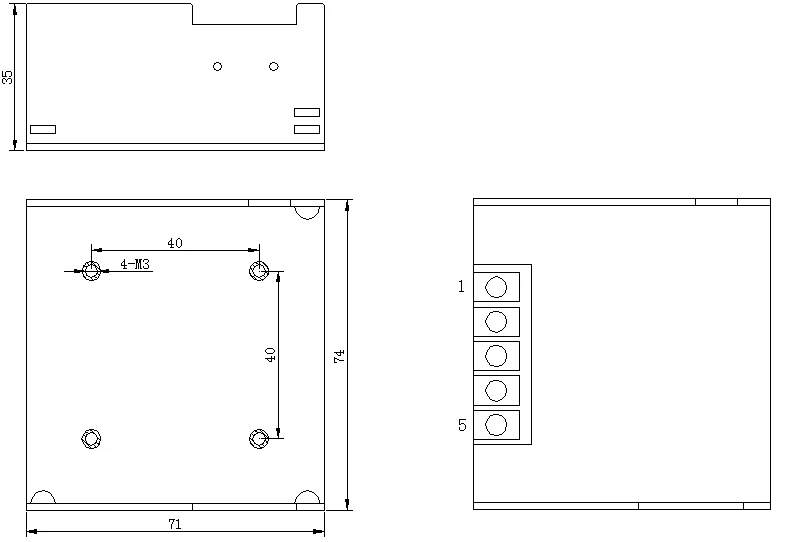

Dimension

Weight

0.3Kg

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.
