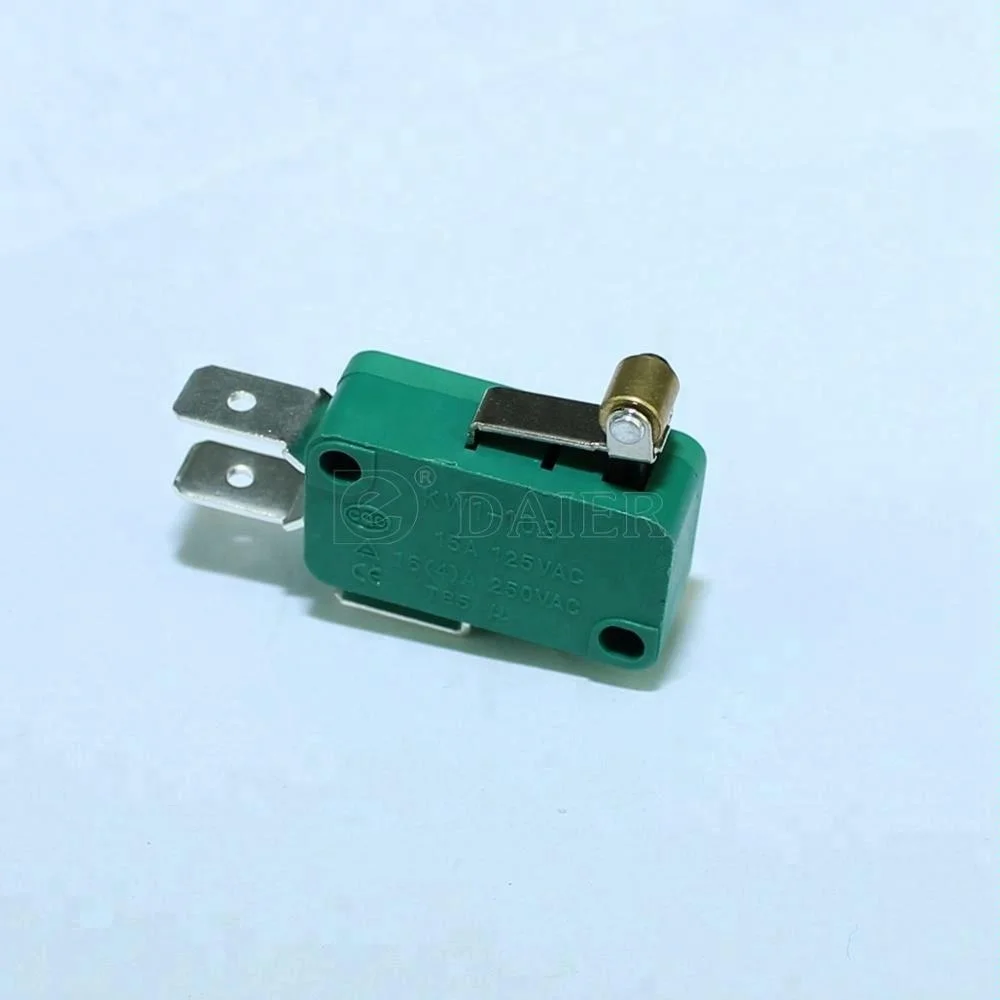

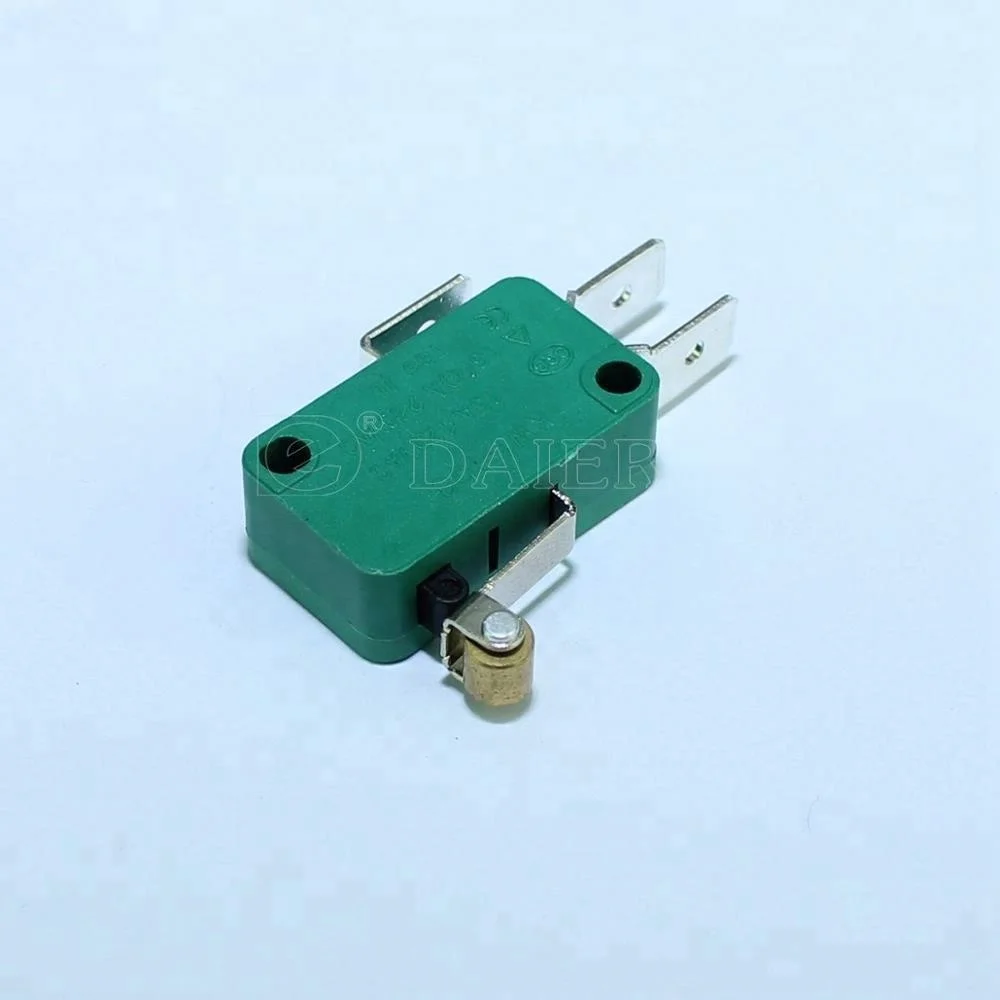

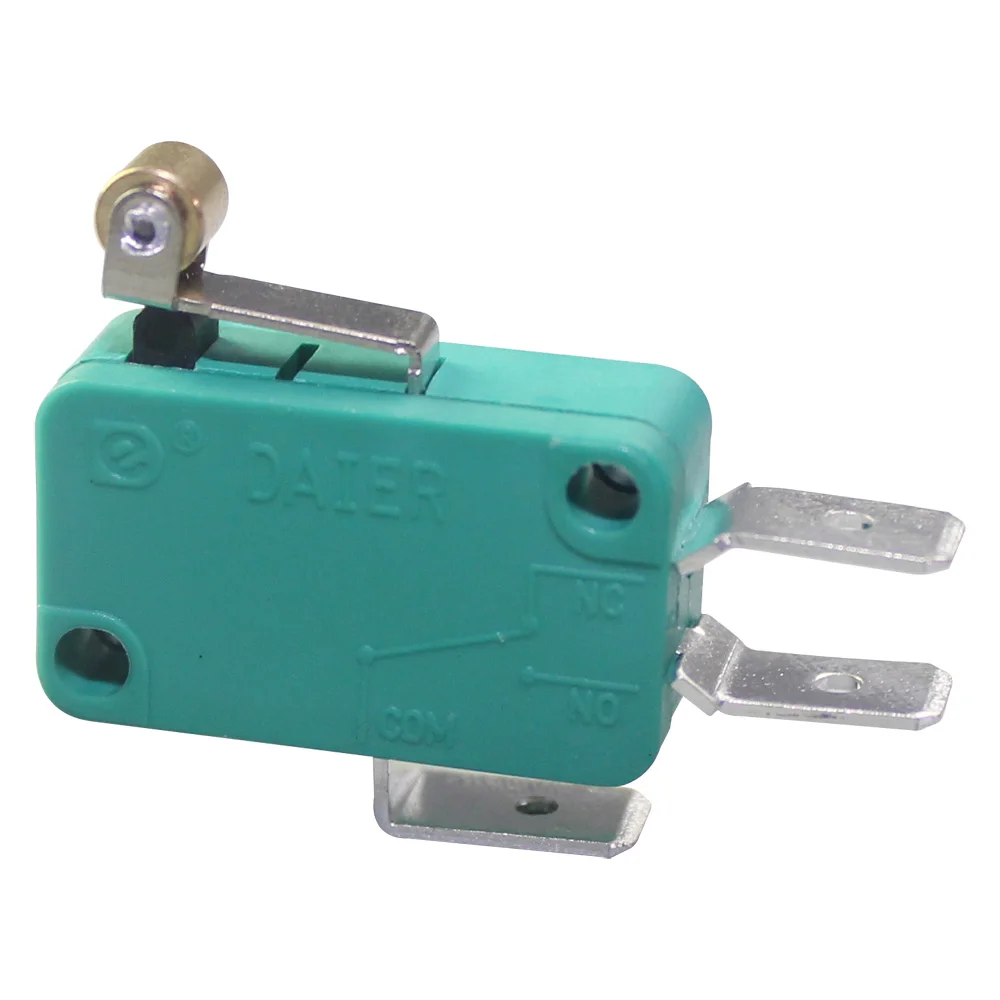

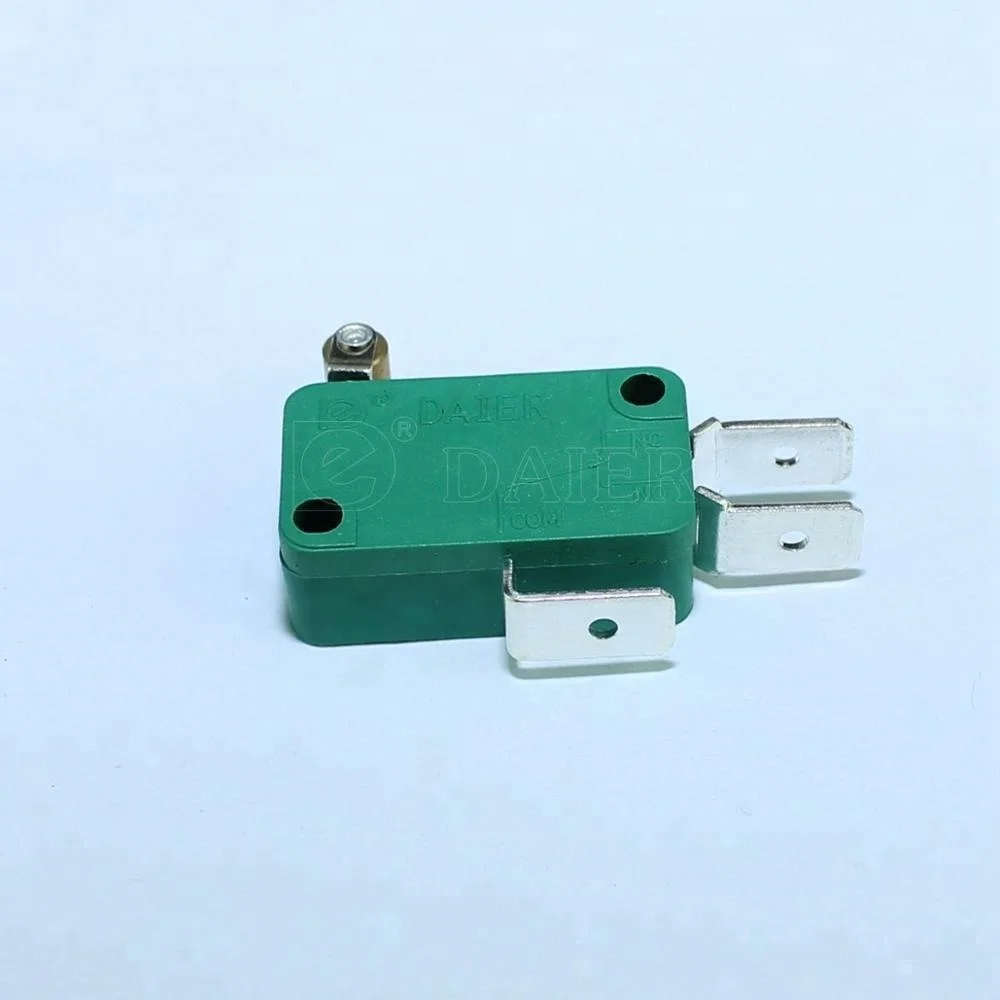

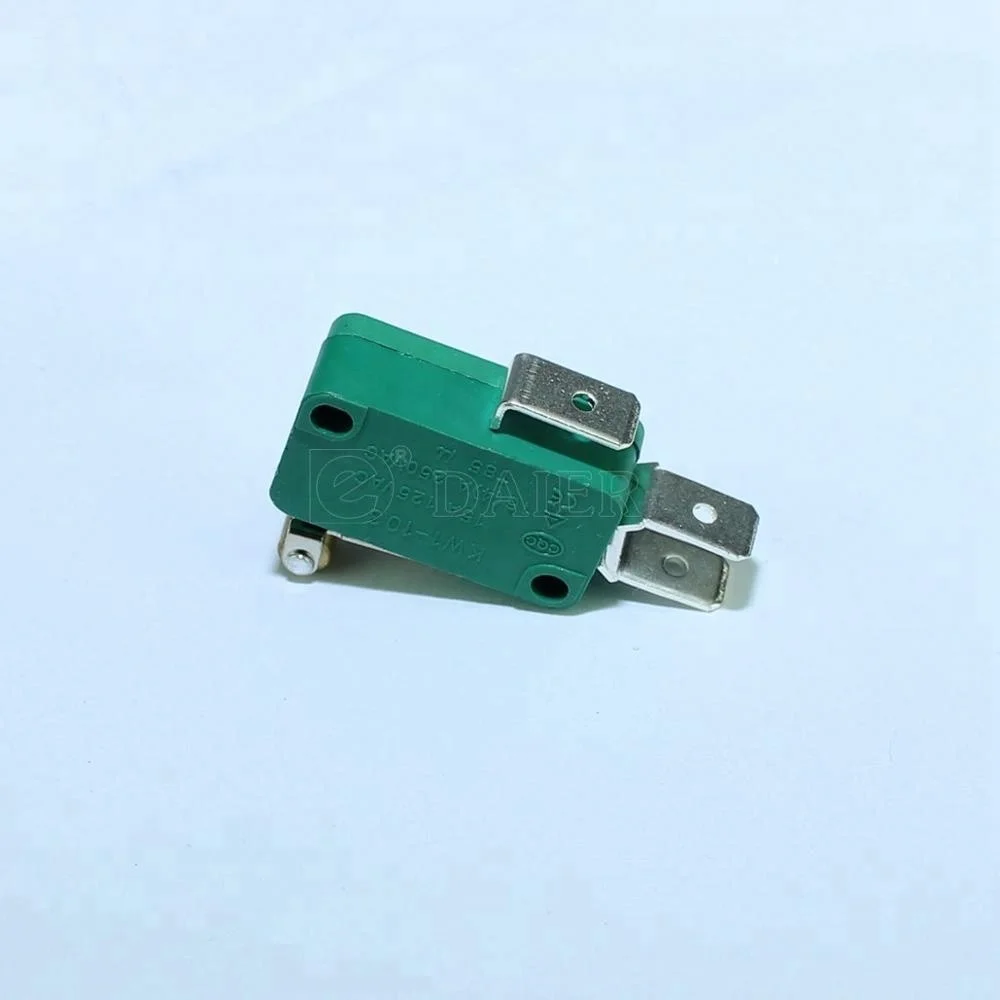

KW1 103 1NO 1NC Roller SPDT Lever Micro Switch 16A 250V T85 5E4
- Category: Micro Switches >>>
- Supplier: Yueqing Daier Electron Co. Ltd.
Share on (60771677902):
Product Overview
Description
Quick Details
| Electric life: | 10,000 Cycles |
| Protection Level: | IP40 |
| Operating Temperature: | T85 |
| Place of Origin: | Zhejiang China |
| Item number: | KW1-103-Z6A200 |
| Mechanical Life: | 10,0000 Cycles |
| Model Number: | KW1-103-Z6A200 |
| Terminal: | Quick-connect terminal #250 |
| Brand Name: | Daier |
| Function: | SPDT |
| Operating Force: | 200gf |
| Lever: | Roller Lever |
| Max. Voltage: | 250VAC |
| Max. Current: | 16A |
| Contact Resistance: | 30mΩ max |
| Operation Temperature: | -25°C~+85°C |
| Insulation Resistance: | 500VDC 100MΩ min |
| Packaging Detail: | 100pcs of KW1-103 1NO+1NC Roller SPDT Lever Micro Switch 16A 250V T85 5E4 |
| Selling Units: | Multiple of 100 |
| Package size per batch: | 20X10X10 cm |
| Gross weight per batch: | 1.5 KG |
| Package Preview: | https://sc01.alicdn.com/kf/HTB1emIlAL9TBuNjy0Fcq6zeiFXan.jpg_640x640.jpg |
