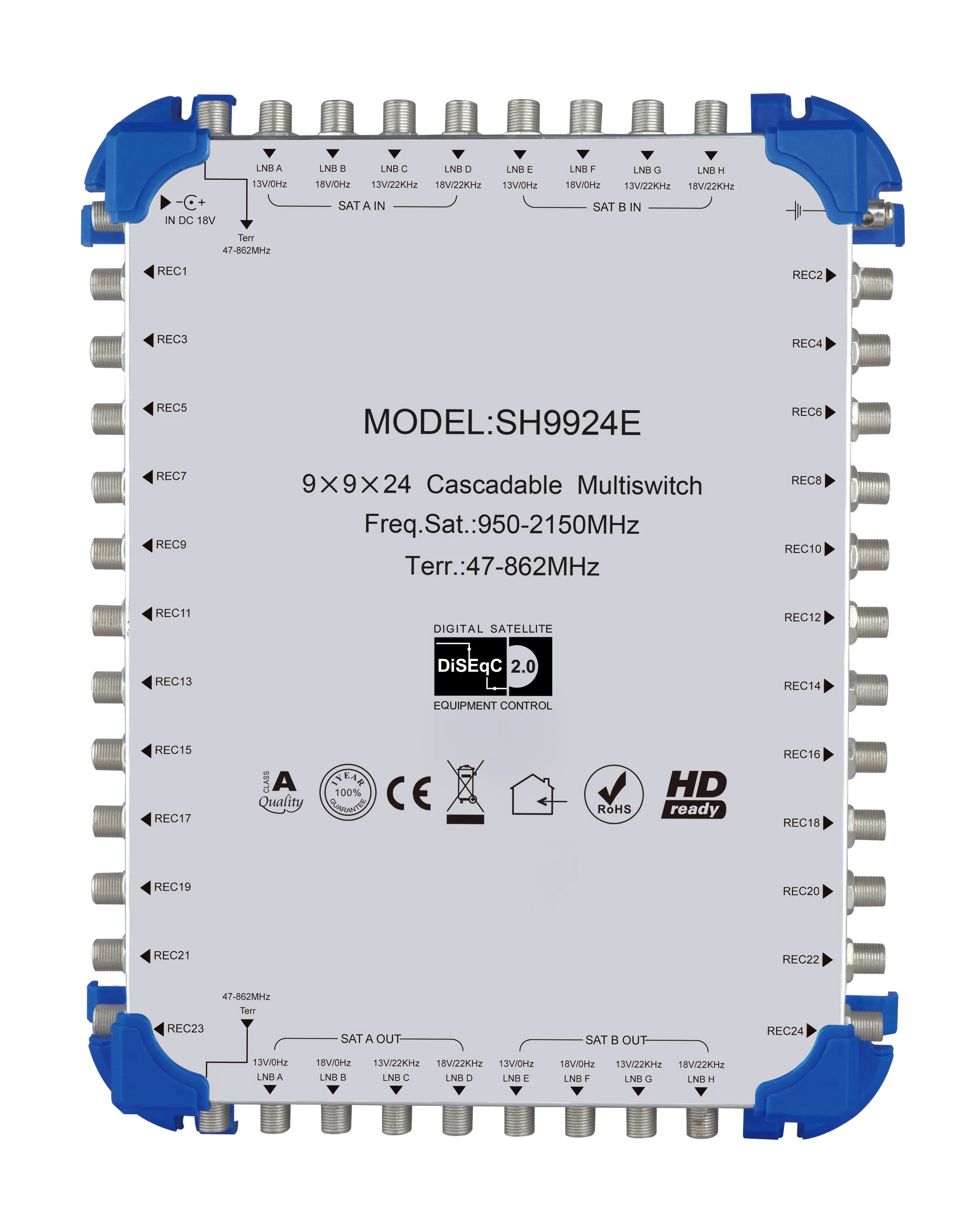

9X9X24 multiswitch 5in satellite multiswitch system Sistema SMATV 5x32 salida para CATV

a. 8 satellite IF and 1 terrestrial TV inputs for 4/6/8/12/16/20/24/28/32 satellite receiver.
b. 8 satellite IF inputs selected by 13V、18V、22KHz and DisEqC 2.0 signal.
c. Low insertion loss, high isolation and return loss.
d. SAT-IF-PATHs to the subscribers are active and supplied by the receiver.
e. Terr. passive.
f. Sheet metal housing with plastic holder.
g. Design good for indoor usage.

Inputs / Outputs: 8 Sat. + 1 Terr.
Tap Outputs: 24 Rec

Frequency Range: Terr.: 47~800MHz   SAT: 950~2150MHz
Trunk Loss: Terr.: 7 dB    SAT: 5 dB
Tap Loss: Terr.: 26 dB     SAT: 4 dB
Return Loss: Terr.: 10 dB     SAT: 12 dB

Stop Band Attenuation: Terr.: 45 dB    SAT: 35 dB

Isolation: H/V: 25 dB    REC-REC: 40 dB

Power Adapter: IN:100~240V   OUT: DC12V 1.5A

Dimensions (L, W, H): 242*300*43 mm

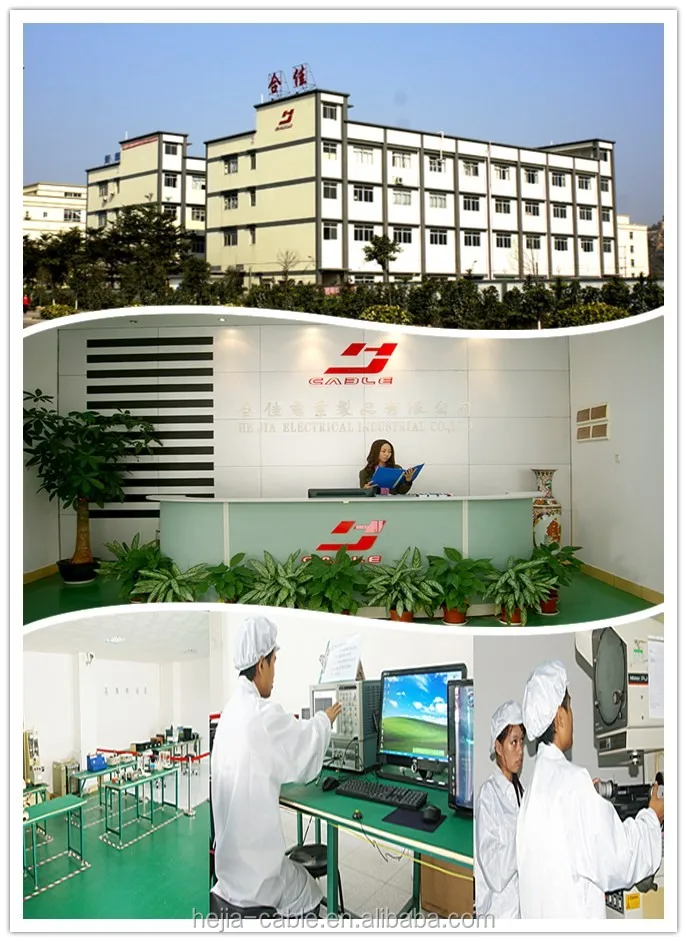

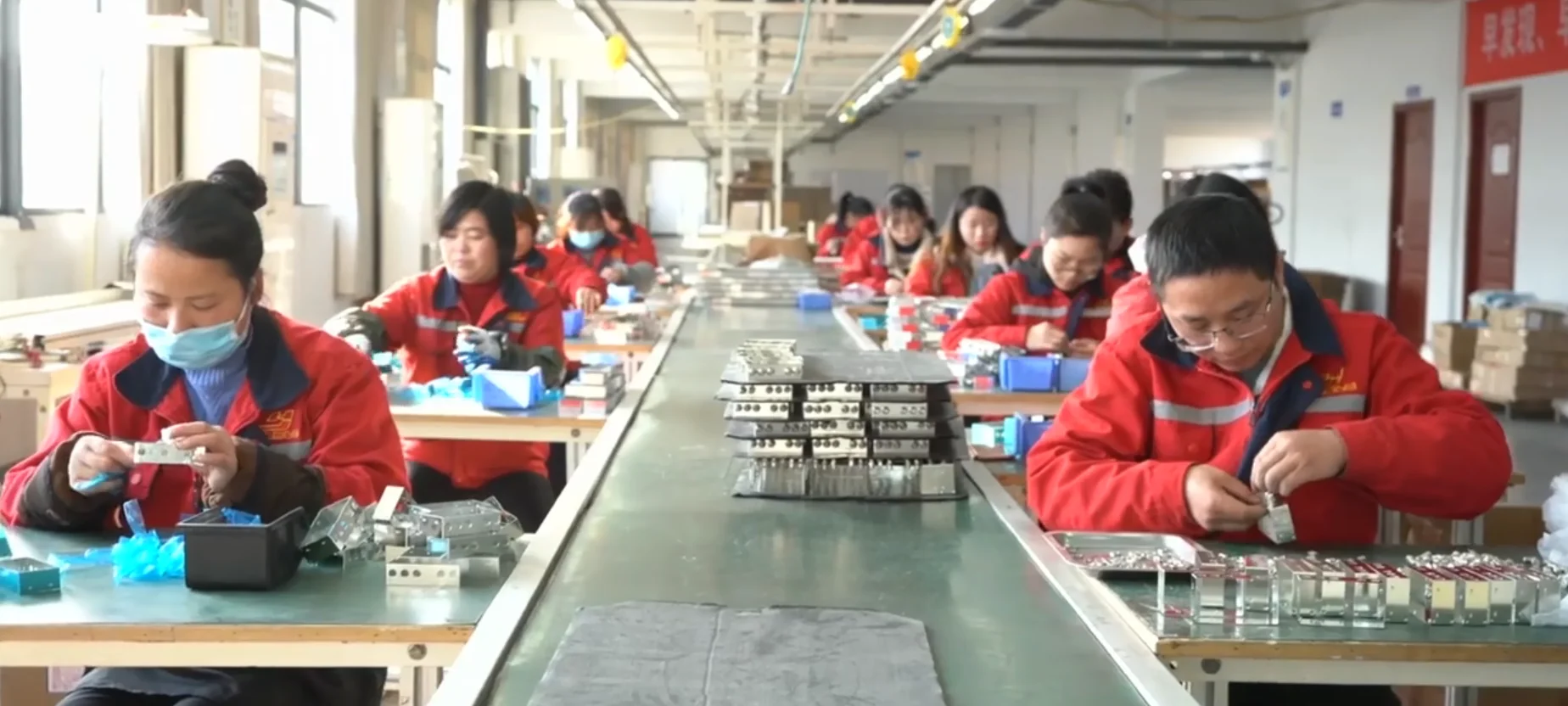

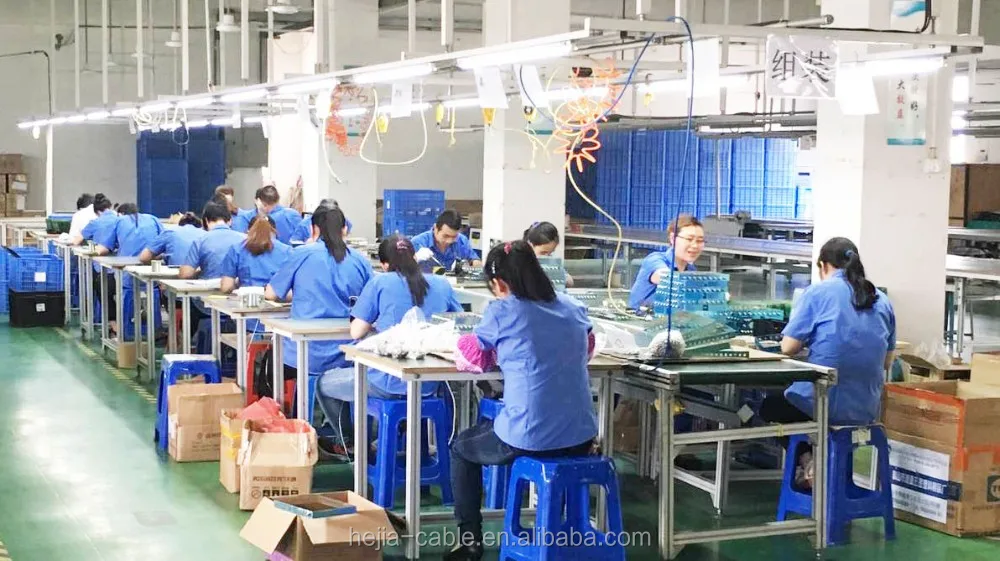

Hejia Group was founded in 2003 which located in Zhongshan city Guangdong province of China, is in the line of R&D, manufacturing and sales of cables (Vechicle charge cable, Solar cable, EV cable, Speaker cable, HDMI cable) and satellite accessories, extending switch accessories products, of high-tech enterprises for domestic and international market. In the year of 2013, Hejia group set up a subsidiary Jiangxi Hejia Technology Co. Ltd in Shangrao city, Jiangxi province.

Q: Can I customize items I like, such as to print our own logo or to alter the design?
A: Yes, we offer OEM/ODM service. Please contact us to check with details.
Q: Can you offer samples?
A: Yes, the sample fee will be 1.5 to 2 times the mass production.
Q: Can I visit your company and factory in China?
A: Sure, we are more than happy to receive you in Zhongshan or Shangrao and show you around our workplace.
