Product Overview
Description

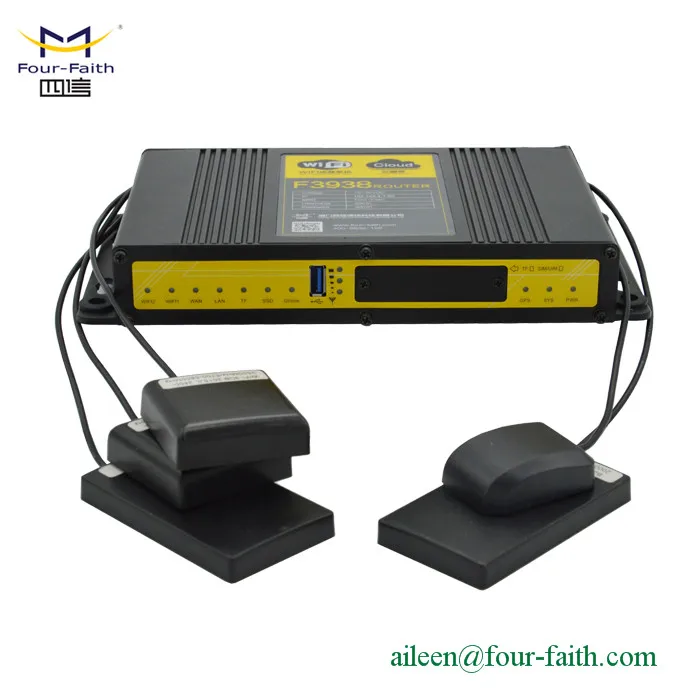

F3936-3436H 3G Mdeia WIFI Router for bus metro subway train
Product Description
| Cellular Specification | ||
| Item | Content | |
| Cellular Module | High-performance cellular module | |
| Standard and Band | UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12 | |
| Bandwidth | HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed) 5.76Mbps(Upload speed) | |
| TX power | <24dBm | |
| RX sensitivity | <-109dBm | |
| WIFI Specification | ||
| Item | Content | |
| Standard | IEEE802.11b/g/n, 2.4G, 2*2 MIMO,AP model, Station model(optional) | |
| Bandwidth | IEEE802.11b/g: 108Mbps (max) IEEE802.11n: 300Mbps (max) | |
| Security | WEP, WPA, WPA2, etc. WPS (optional) | |
| TX power | 20dBm(11n),21.5dBm(11g),26dBm(11b) | |
| RX sensitivity | <-75dBm@54Mpbs | |
| Hardware System | ||
| Item | Content | |
| CPU | High-performance 32bits CPU | |
| FLASH | 32MB(Extendable to 64MB) | |
| DDR2 | 256MB | |
| SSD | 128GB(Extendable to 2TB) | |
| TF | 32GB(optional) | |
| Interface type | ||
| Item | Content | |
| WAN | 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |
| LAN | 1 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |
| Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 8(optional 5, 6 ,7,) Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps | |
| Indicator | “PWR”,“SYS”,“SIM”,“Online”,“SSD”,“TF”,“LAN”,“WAN”,“WIFI”, "Signal Strength" | |
| Antenna | Cellular: 1 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 2 standard SMA male interface, 50 ohm, lighting protection(optional) | |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | |
| USB | Standard A type USB host interface,support USB 2.0 High-speed | |
| TF | Standard TF card interface | |
| Power | Aviation plug | |
| Reset | Restore the router to its original factory default settings | |
| Power supply | ||
| Item | Content | |
| Standard Power | DC 12V/1.5A | |
| Power range | DC 9~36V | |
| Working current | 3G:<750mA (12V) | |
| Standby current | 3G:<550mA (12V) | |
