full Automatic Ultrasonic Machine for Making Non Woven Carry Bags

full Automatic Ultrasonic Machine for Making Non Woven Carry Bags

Category: Packaging Material Making Machine >>>
Supplier: Ruian Novery Machinery Co. Ltd.

Price:$14,000.00 - $15,000.00

Quantity:

Product Overview

Description

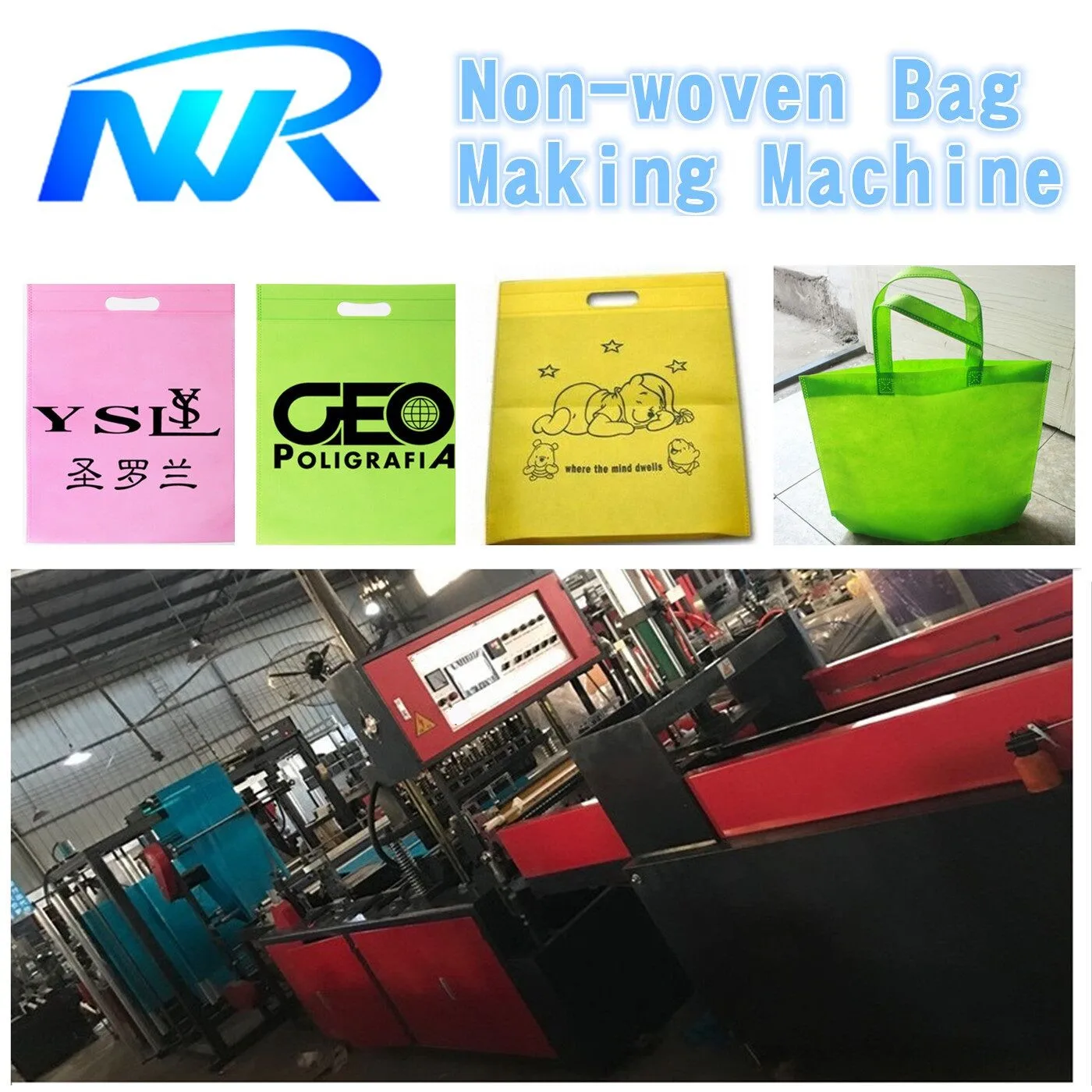

Full Automatic Ultrasonic machine for making non woven carry bags

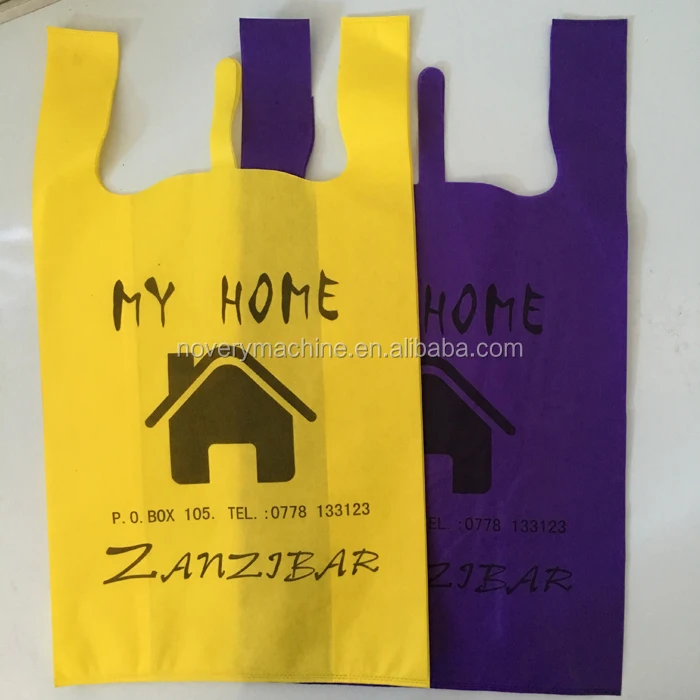

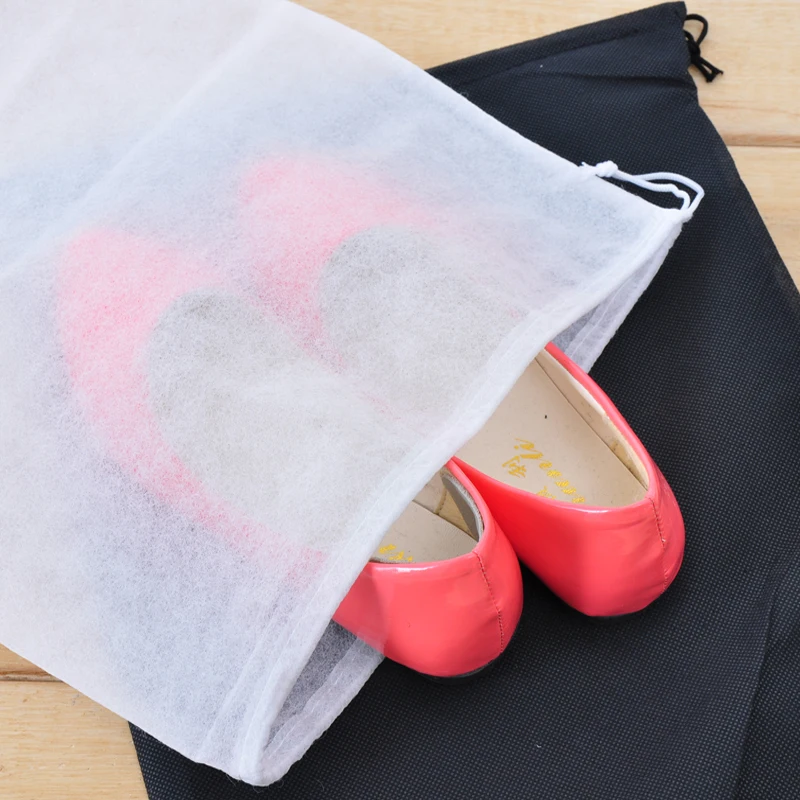

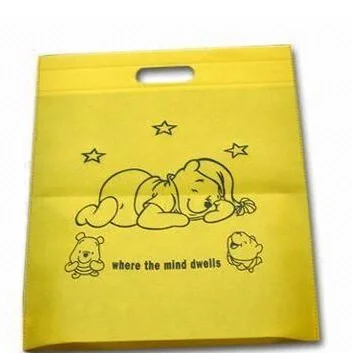

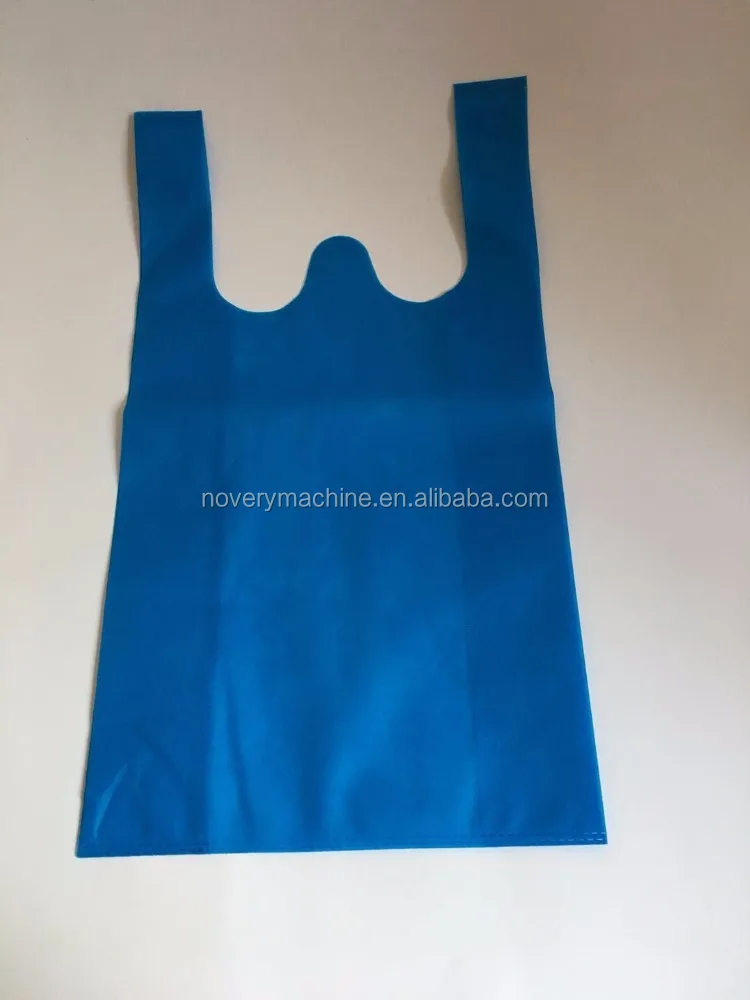

This machine is our new model, which can make box bag with handle, D cut bag, T shirt bag, shoe bags.

Description:

1.It has full-automatic computer control.

2. The stable photoelectric tracking can fix position and stop automatically.

3. The max width of the bag can be 600mm, the length is adjustable.

4. It has automatic accounting and automatic alarm.

5.It can seal handle automatically while making bag.

Feature:

1. The machine which is used for the raw materials of non-woven fabrics.

2. It can be operated with different specifications and can make different shape of three-dimensional bag ,non-woven bag, flat bag, hand bag, vest bag, and the rope bag according to your selection.

3. It collects photo and electricity and use LCD touch screen operation with steps of progress length setting. It has photoelectric tracking, computer automatic positioning and computer automatic recticifing system.

4. It can use such industail control device as automatic punching to make its products steadily and beautifully.

5. Using this machine you can rest assure of environmental protection for high quality bag making equipments.

Width of bag	NW-700
Width of the bag	Maxi 700mm
High of bag	Maxi 640mm(according to the style)
Precision of bag	+0.2
Speed of bag making	20-110pic/min(stereo bag with handle sealing 50-60pcs/min)
Maximum speed of machine	120pic/min
Feeding width	1400mm
Material thickness	30-120g
Volume diameter	Φ1000mm
Tension scope	0.2-1.5kg
Tension style	automatic tension(press roller sensor)
Air source	0.6-0.9Mpa
Volume deviation	synchronous motor drive infrared photoelectronic
Opening ruffled	R&L independence(hand adjustment)
Embossing style	ultrasonic & adjusted pressure
Folded deviation	reflected two-tone photoelectronic
Stereo triangle welding	independent welding with upper-lower layer
Stereo width	40-150mm
Embossing style	automatic rolling at one time
Punching style	air operated
Step length setting	One horizontal and two vertical(three stepping system)
Manipulating interface	Touch screen(brand :Taiwan Weilun)
Color code tracking	Three-colors intelligent color-code photoelectronic
Main motor power	1.5kw
Pressure	single stage 220V
Main power	6kw
Overall dimension of machine	11m1.85m1.85m(LWH)
Net weight	3700kg
