PSA Oxygen Generator Medical And Industry Use Oxygen Plant

 PSA Oxygen Generator Medical And Industry Use Oxygen Plant

PSA oxygen generator adopts high-quality zeolite molecular sieve as adsorbent and uses the principle of  pressure swing adsorption(PSA) to obtain oxygen directly from compressed air.

A full installation requires air compressor, refrigerated air dryer, filters, air tank, nitrogen generator and gas buffer tank.
We supply full installations but each component, and other optional supply like boosters, high pressure compressors or filling stations can also be bought separately.

 Thchnical Index:

Model :	BXO
Structure:	Skid installation
Capacity:	5~1000Nm3/h
Purity:	>80~95%(standard is 93%)
Pressure:	0.1~0.5MPa(adjustable)
Dew Point:	-40~-70℃(under normal pressure)
Function:	Producing nitrogen gas with designed flow  rate, purity and outlet pressure
Features:	1.Intelligent, automatic operation,  remote/automatic control  2.Special air distribution system, flow rate  control, compaction technology and  other technologies ensure stable  operation;  3.Oxygen purity, pressure, flow rate on-line  monitoring  4.Oxygen purity, flow rate are adjustable,  meeting customer flexible needs;



Product Parameters:

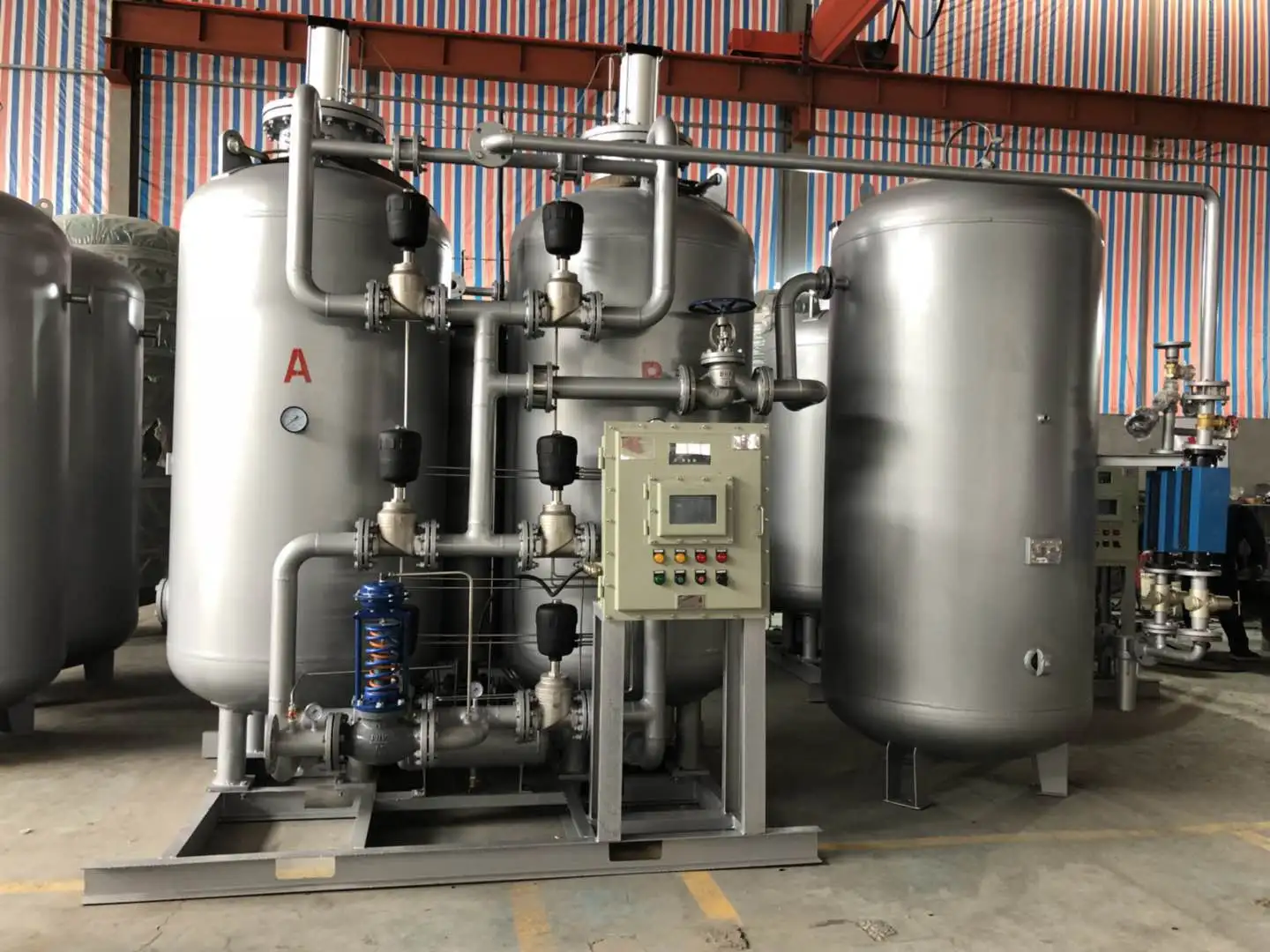

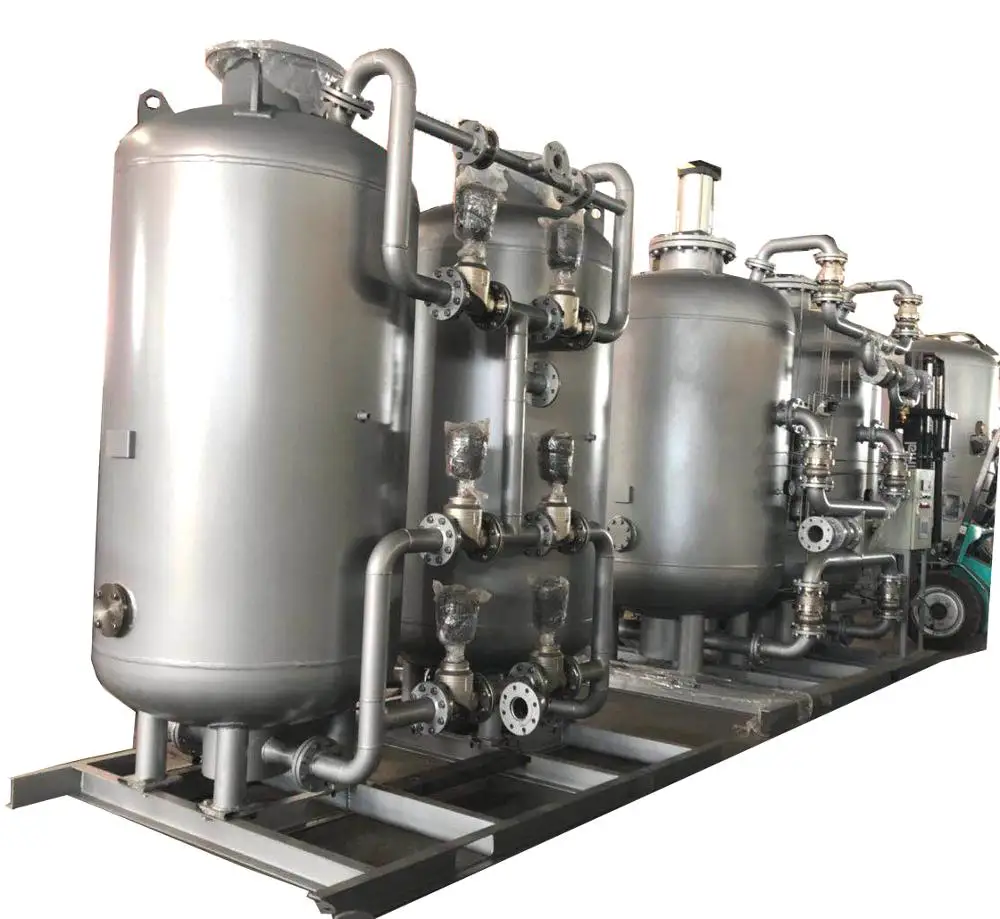

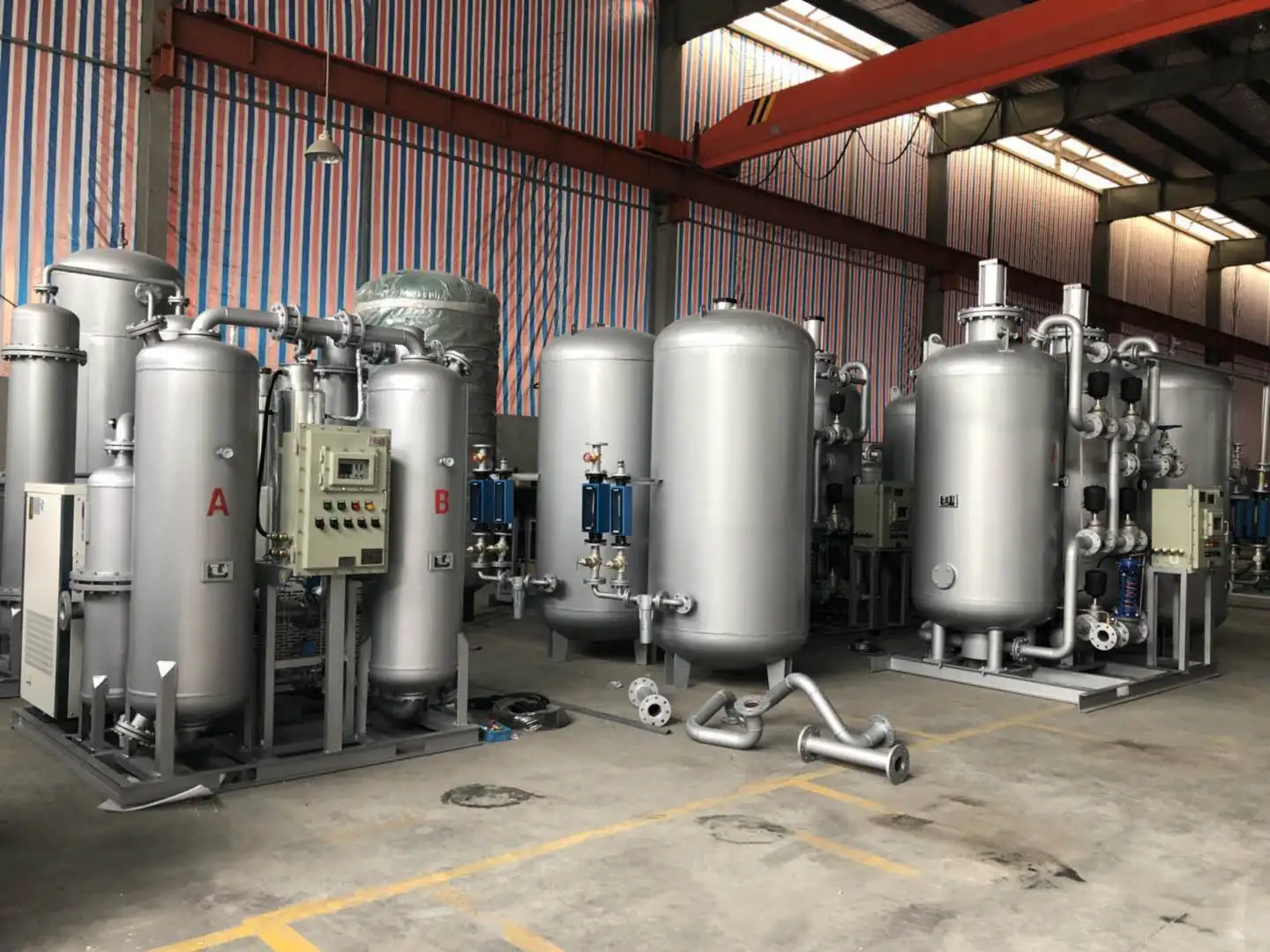

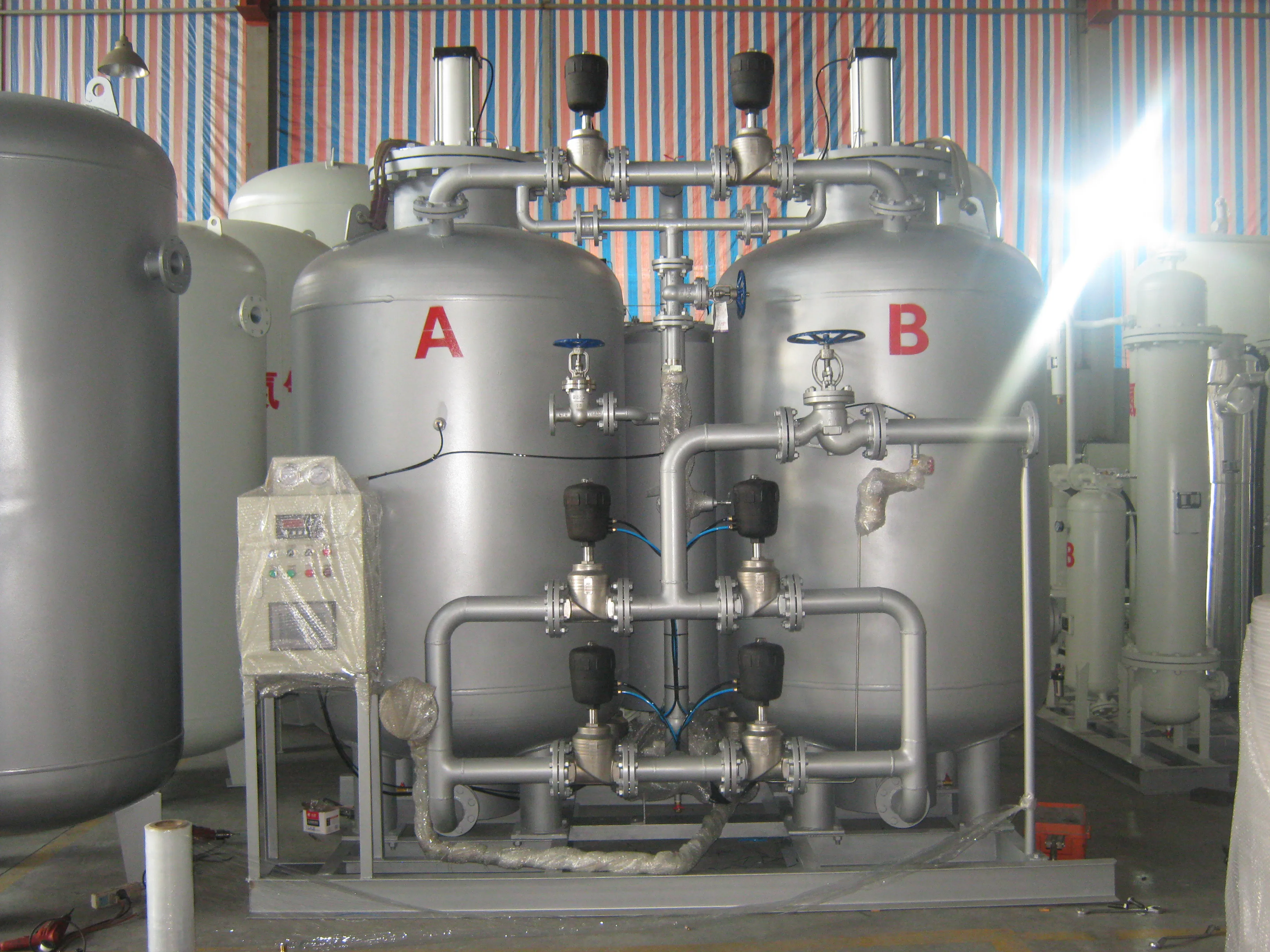

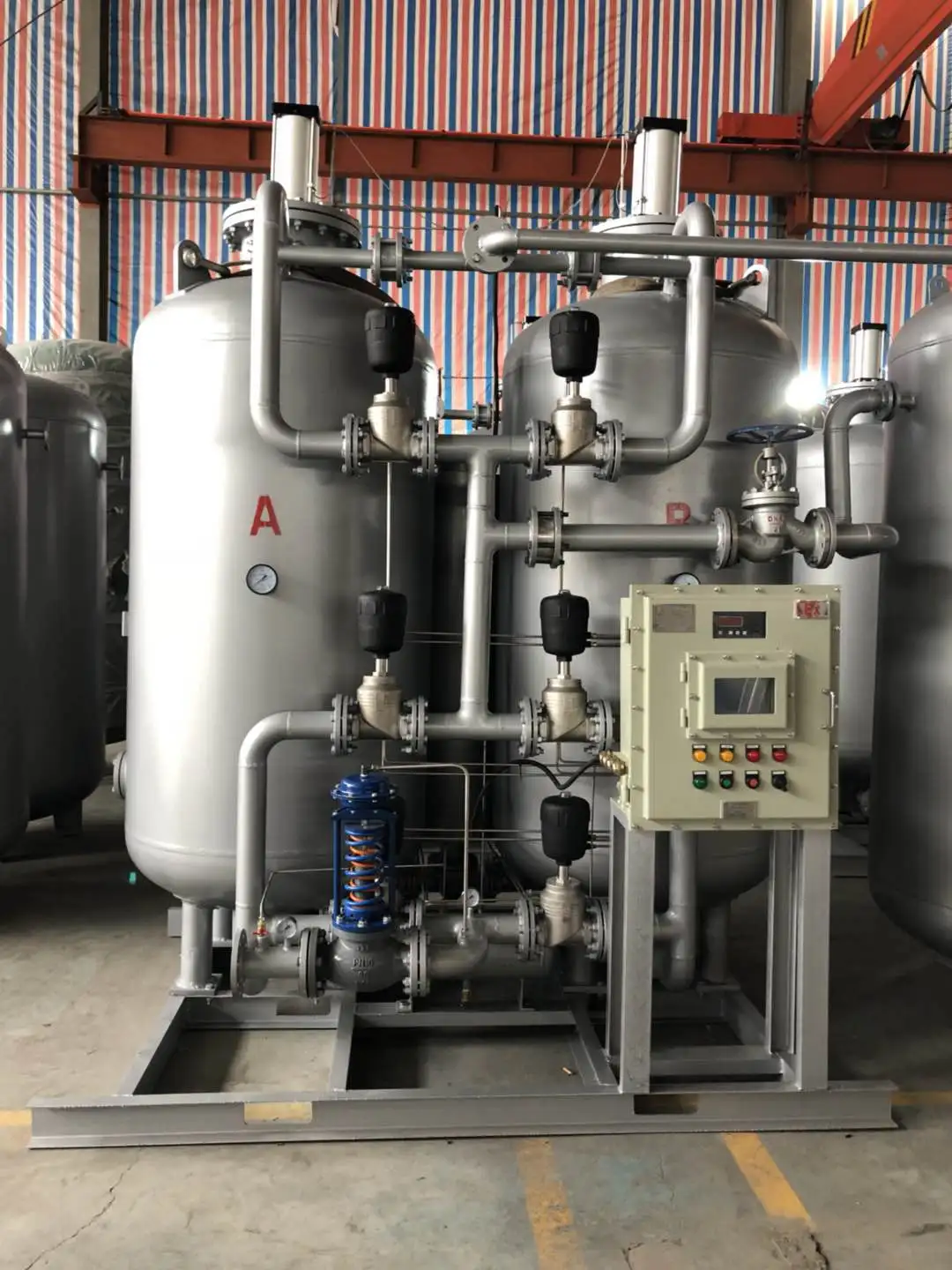

                                                       PRODUCT     SHOW









 According to the press swing adsorption theory,the high quality carbon molecular sieve as the adsorbent, under the certain pressure, carbon molecular sieve has different oxygen/nitrogen adsorption capacity,the oxygen is adsorbed largely by the carbon molecular sieve, and the oxygen and nitrogen is separated.
Since the adsorption capacity of the carbon molecular sieve will be changed according to different pressure, once lowering the pressure, the oxygen will be desorbed from the carbon molecular sieve. Thus, the carbon molecular sieve is regenerated and can be recyled.

We use two adsorption towers, one adsorb the oxygen to generate nitrogen, one desorb the oxygen to regenerate the carbon molecular sieve, cycle and alternation,on the basis of PLC automatic process system to control the pneumatic valve open and colse, thus to get the high quliaty oxygen continuously.
