The company has always been committed to professionally provide customers with projects including beer, wine, wine, spirits, distilled spirits and other areas of consulting, process research and development, application design, equipment manufacturing, engineering services, after-sales maintenance, etc. One-stop service, your satisfaction is our pursuit. Qi Hui equipment exports to the United States, Canada, Germany, Brazil, Australia, Scandinavia, Africa, South America and other countries and regions.
No.
Name&Specification
Parameters
1
Single head two tanks Manual Washer
CM1-22E-N-S-3
2
Double heads Two Tanks Manual Washer
CM2-22E-N-S-3
3
Double heads Three Tanks Manual Washer
CM2-33E-N-S-3
4
Single head semi-aotumatic Washer
CA1-22E-N-H-1
5
Single head semi-aotumatic Washer
CA1-32E-T-H-1
6
Beer Keg Two Heads Washer
CA2-22E-T-H-1
7
Beer Keg Two Heads Washer
CA2-32S-N-H-1
8
Beer Keg Two Heads Washer
CA2-33S-T-H-1
9
Beer Keg Two Heads semi-aotumatic Washer
CA2-22E-T-S-2
10
Beer Keg Three Heads semi-aotumatic Washer
CA3-33E-T-S-

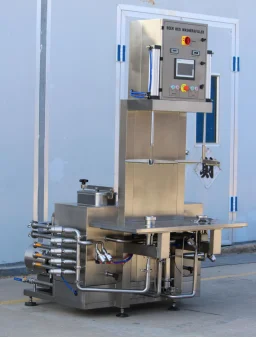

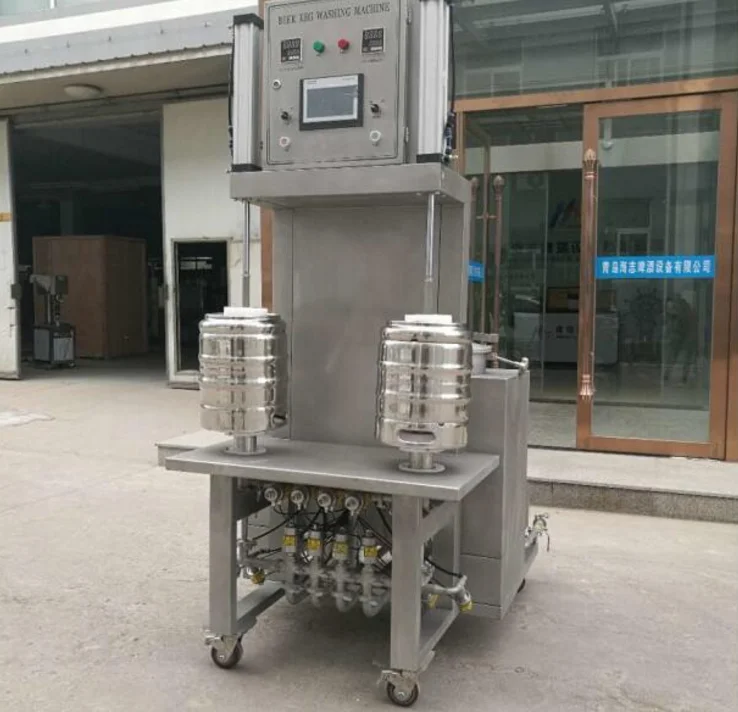

Single head Manual Washer(CM1-22E-N-S-3) For reference
Single head Manual Washer(CM1-22E-N-S-3)
Matching Parameter
Two pumps,two tanks without insulating layer is default choice.
This machine can change to double station
Tank Parameter
two tanks 100L without insulating layer
Heater Way
Electrical heater
The table can rise or not
No
Tank Insulating Layer
No
Spear Type
S/D/A/G type (Choose one of them)
Wheels or feet
Feet
Power
380V 3phase 50Hz 15KW
(According To Customers Power Standard)
Size(L*W*H)
1100*960*1330mm
Package
Composite Borad Box
Equipment explaination:
Put keg on the table, use the Micro-matic keg coupler connect with machine and keg. Use manual valve and button to control machine to wash keg. Suggestion washing program: Purge by air – City water washing –Purge by air– caustic washing / recycle in the caustic tank – Hot water washing – Purge by air – Hot water washing – Purge by air – (Steam Sterilize - Steam Pressure Sterilize) -Purge steam or Air by CO2 – CO2 Fill Pressured.
