Cosmetic Case Bottom Folding and Carton Erector

Product Overview

Description

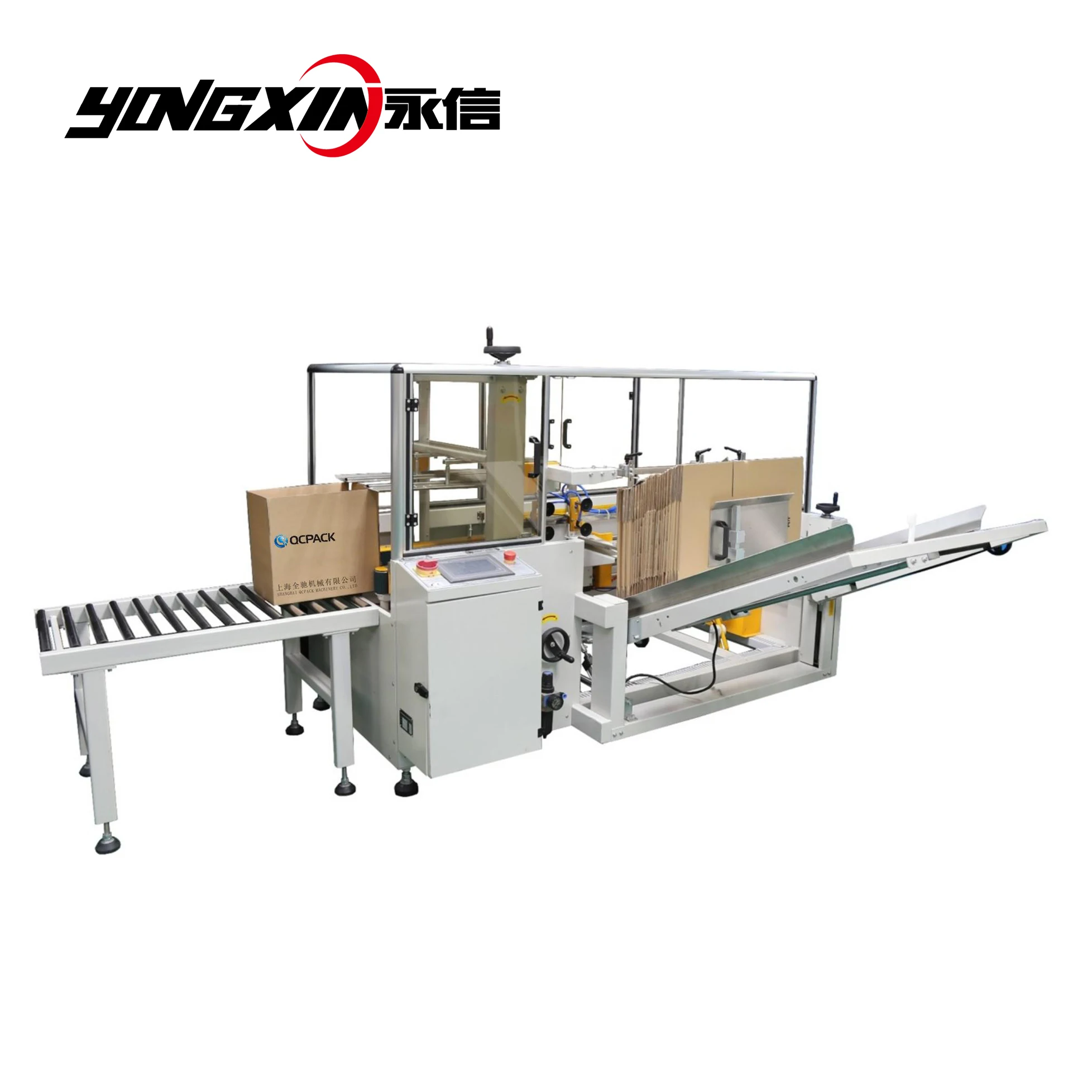

Cosmetic Case Bottom Folding and Carton Erector

Features of BTK-40 Carton Erector

1. Using international advanced technology and imported components, electrical components and pneumatic components.

2. Vertical storage board, and can be added at any time without downtime.

3. Suitable for the same kind of carton size packaging at the same time, if you need to change the carton size, you can manually adjust it, the time required 1-2 minutes.

4. Rational design, simultaneous suction molding, simultaneous molding of the bottom and the back cover.

5. Lightweight, precise and durable performance, no vibration during operation, stable operation for long time, high efficiency.

6. Can be used as a stand-alone machine or in combination with automatic packaging lines.



Technical Data

Model	BTK-40
Carton Size	(L)250~450mmx(W)150~400mmx(H)100~400mm
Table Height	Minimum 600mm, maximum 650mm
Sealing Speed	12ctns/min
Overall Dimensions	(L)2000x(W)1900x(H)1450mm
Electric Supply & Power	220V 50HZ 200W
Air Pressure	6~7KG
Applicable tape	W(48,60,72)mm×L1000y
Machine Weight	550Kg



Component list

No.	Items	Brand
1	Motor	LUYANG
2	PLC	SIEMENS(Germany)
3	touch screen	MCGS
4	Photoelectric switch	LEUZE(Germany)
5	Auxiliary relay	IDEC(Japan)
6	Switch and indicator Light	TAYEE
7	Electrical magnet valve	SHAKO(Taiwan)
8	AC contactor	SCHNEIDER(France)
9	vacuum generator	SMC(Japan)
10	Suction cup	CHELIC(Taiwan)
11	Bearing	HRB
12	blade	SKD11(Japan)
13	Belt	Imported from Italy
14	Double brake casters	GLOBE

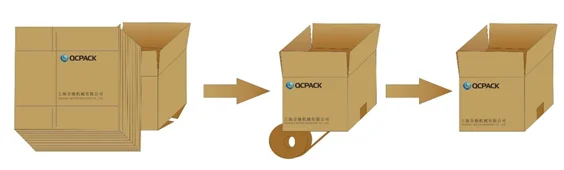

Carton forming diagram

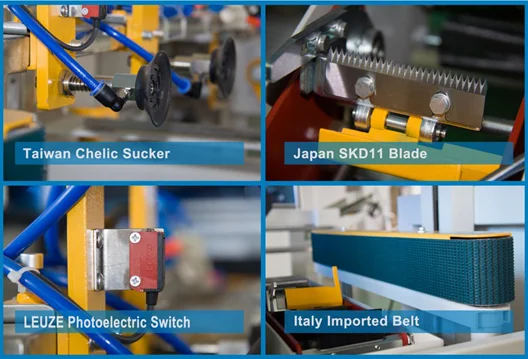

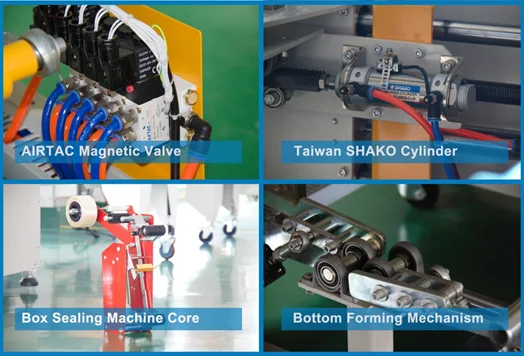

Partial picture



Shippment and Factory



If you want to know more information about our carton erector, welcome to contact us and visit our factory any time.
