Air Source Micro Chiller Miniature Comoression Refrigeration System

Product Overview

Description

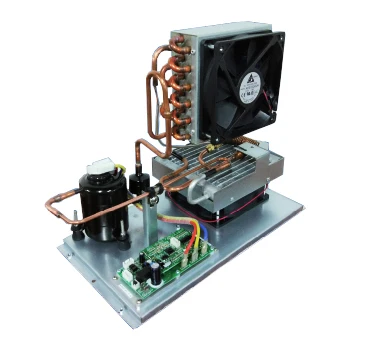

Air Source Micro Chiller



Product Brief

The product is a miniature compression refrigeration system,which includes micro compressor,microchannel heat exchanger,throttle structure,cooling fan and electronic control component.

The product can be embedded in the user's equipment,based on the compressor refrigeration cycle,producing cold air,so that the equipment can be kept in a constant low temperature environment.



Product Features

1.Small volume/light weight.

2.The efficiency of the refrigeration is 5 times as high as TEC.

3.Improve the reliability and safety test.

4.Wind outlet temp could be 3℃,no frost.



Specifications data sheet

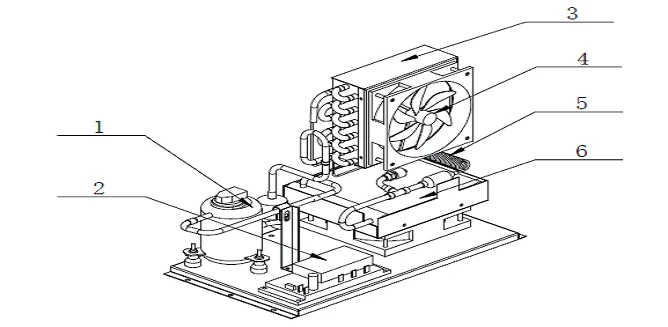

Structure of the cooling unit

1.Frequency conversion compressor;                2.Compressor drive plate;

3.Evaporator;                                                        4.Out surface of cold air;

5.Throttle mechanism;                                         6.Condenser.
