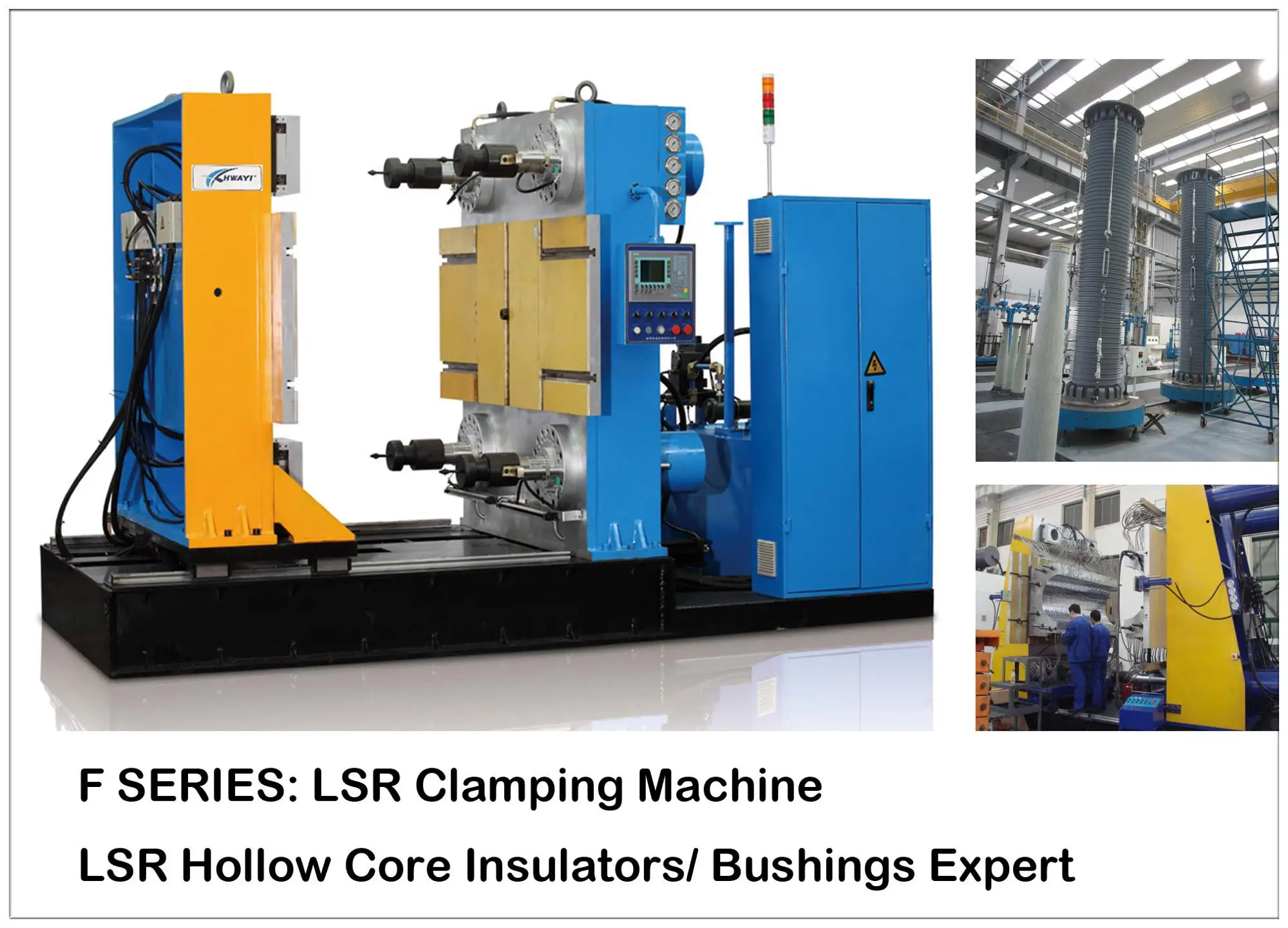

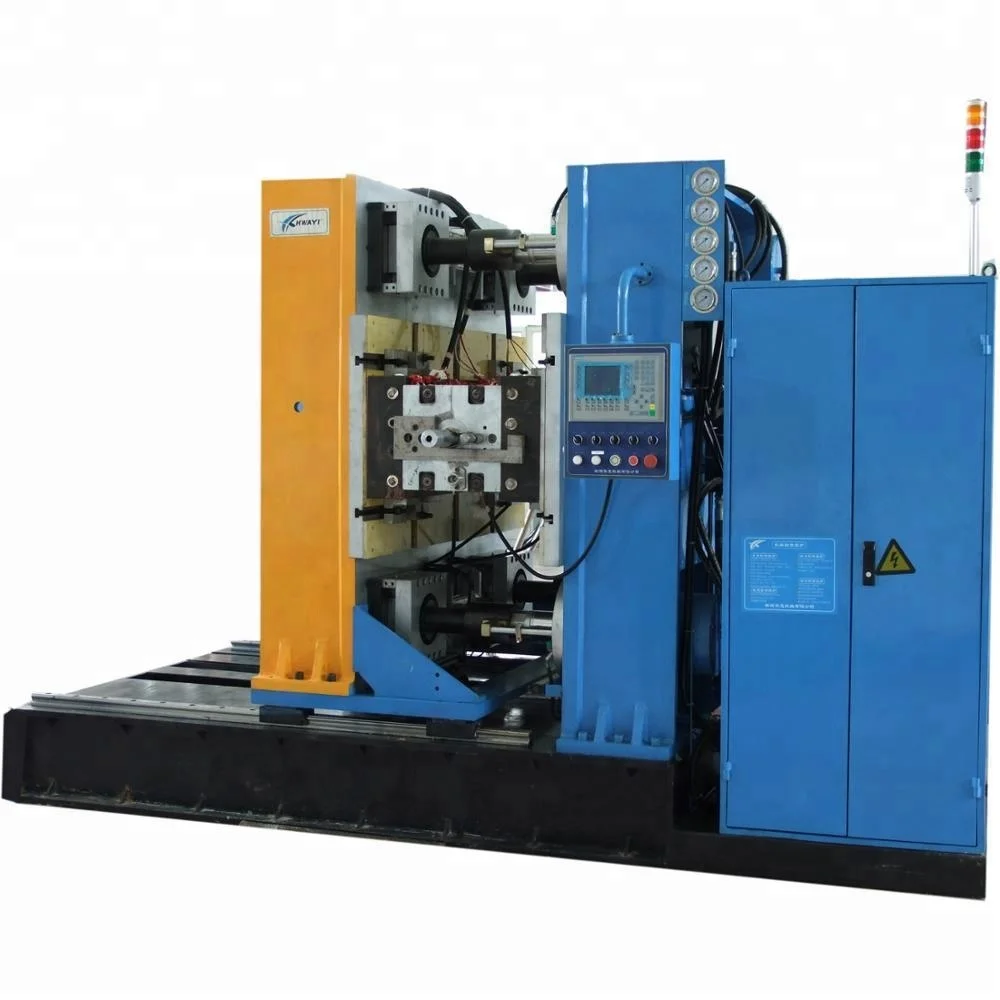

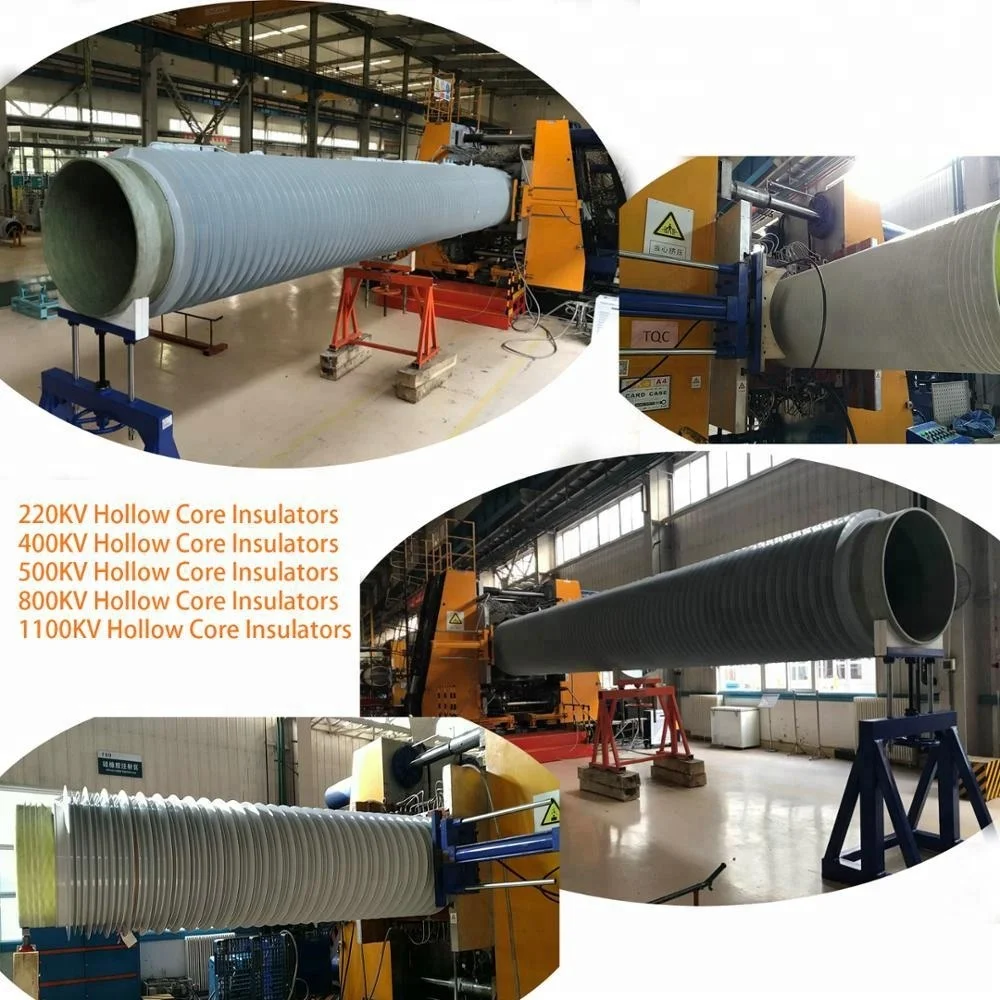

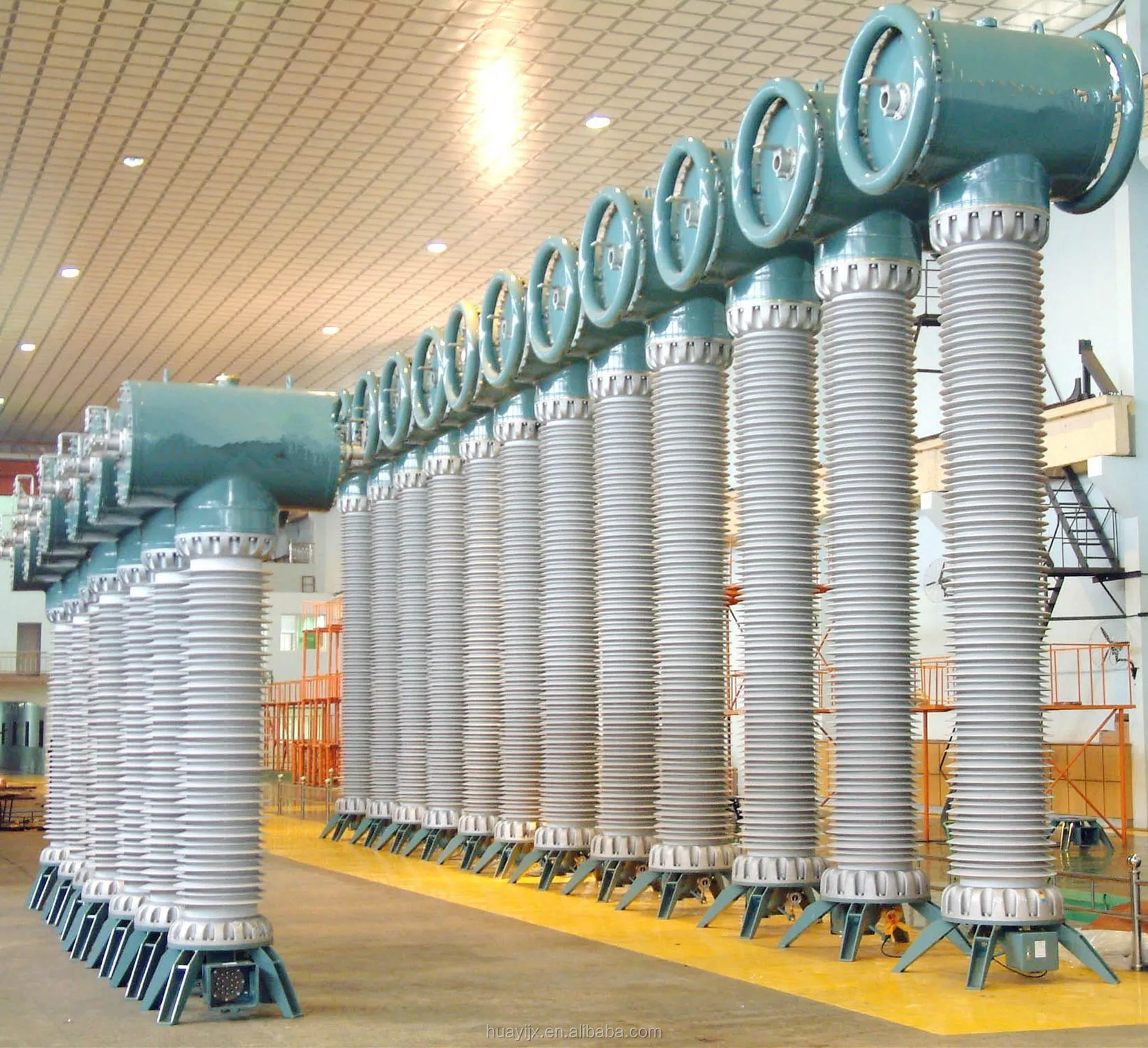

The Machine is designed for making liquid silicone rubber hollow core insulators, hollow core bushings.
Basic Parameters
Machine Model:
HYZ-200F
Machine PLC Brand:
SIEMENS
Injection Volume(CC):
50L
Other options:
Clamping Force(KN):
2000
With Sliding Function(Yes/No):
NO
Heating Platen Size(WxL)(MM)
800X1600
Sliding Stroke With Sliding Function:
NO
Space Btwn Platens(MM):
1600
With Side Ejector(Yes/No):
YES
Max.Clamping Stroke(MM):
1000
With Lower Clapper(YES/No):
NO
Min.Mold Thickness(MM):
600
With Lower Supporter(YES/No):
NO
Heating Power(KW):
46
With Tilting(YES/No):
NO
Motor Power(KW)
With Upper Lifter(YES/No):
NO
Total Power(KW)
40

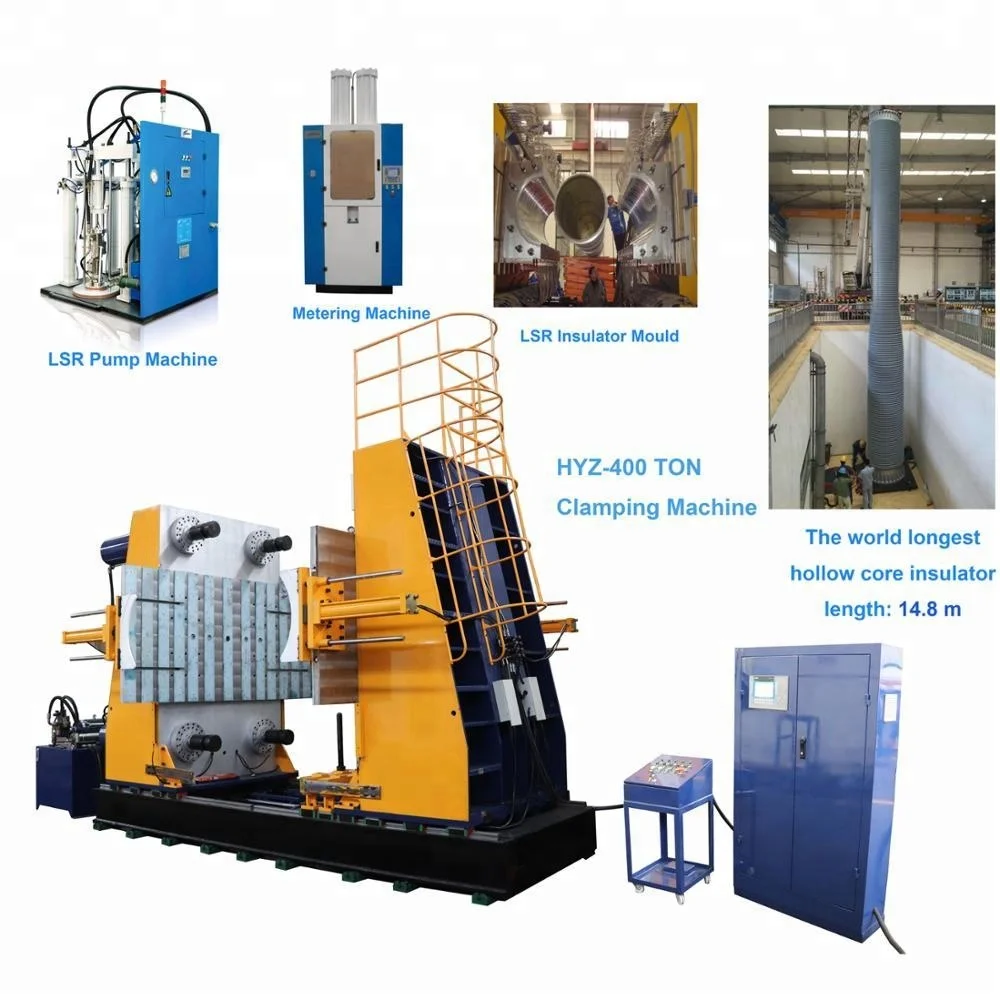

200 ton Clamping Machine need to equipped with

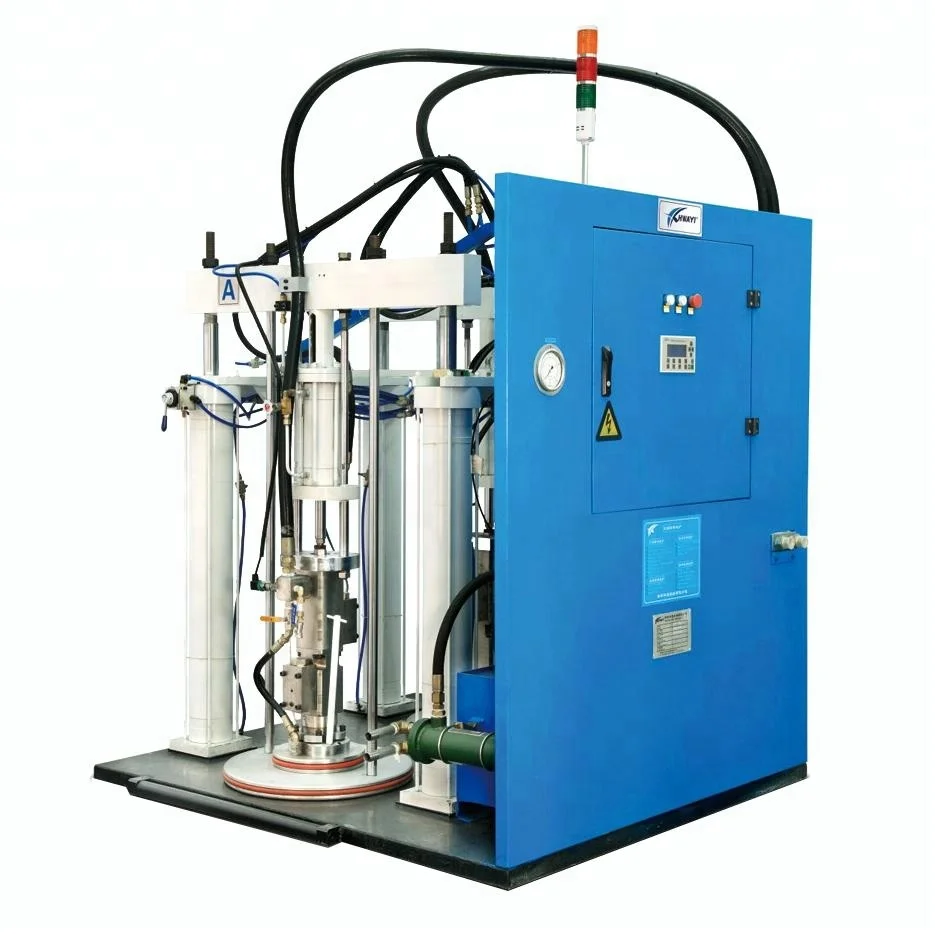

200L pump machine
System Pressure(Mpa)
16

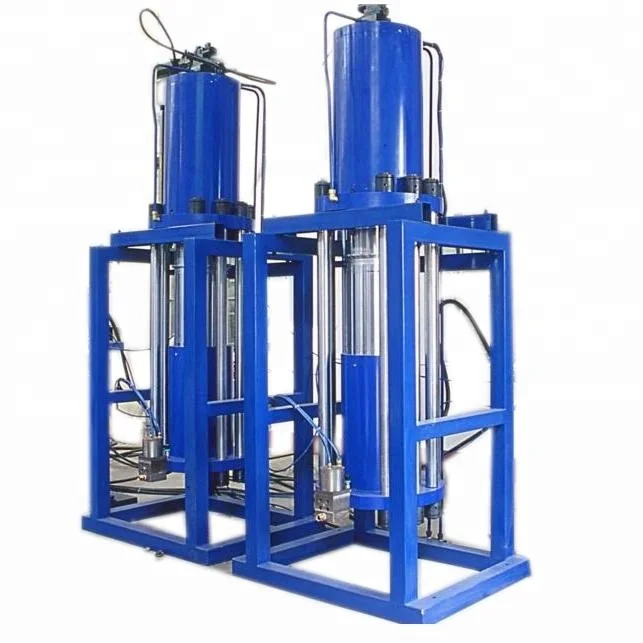

250Q metering machine
Machine Size(LxWxH)(MM)
3300X1800X2200
Water Chiller
Machine Reference Weight(Ton):
9
China biggest rubber injection molding machine maker, focus on rubber injection machine since 2001 !
Components Supplier
Component Name
Suppliers
PLC
Siemens
Germany
Screen
Siemens
Germany
Thermocouple module
Siemens
Germany
Digital module
Siemens
Germany
Analoge module
Siemens
Germany
Light Raster
SICK
Germany
Auto air switch
Schneider
France
AC contactor
Schneider
France
Oil Motor
Dongguan Motor
China
Proportional flux valve
YUKEN
Japan
Proportional pressure valve
YUKEN
Japan
Direction control valve
YUKEN
Japan
Oil pump
YUKEN
Japan
Seal
Sealtech
HK
Bearing
NSK
Japan
Screw/Barrel
Zhejiang Huayi
China
Columns
40Cr
China
Clamping cylinder/plate
QT600-3
China
Company Information
Hengyang Huayi Machinery Co., Ltd., a Hong Kong invested high-tech enterprises in Hunan Province, who have been concentrated on rubber injection molding machine R&D since 2001. We are the biggest manufacturer of rubber products making machineswith the excellent R&D and largest production capacity in China.
Now our machines are widely used in electric power, high voltage transmission, automotive rubber parts, railway infrastructure and mechanical seals and other industries.
Package & Shipping
Welcome to contact us liquid silicone rubber hollow core insulators production line, our machines are with below advantages:
1, Safe
The clamping platens of our machine is sliding on the guide rails on the machine base.
and the base was put on the flat floor, our platens is not hanging in the air.
2, Convenientoperation
The open structure has free upper space,
Firstly, it is very convenient for the operator to load molds and install them on the machine by crane
Secondly, it is very convenient to load the FRP Tube to inside the mold by crane
Thirdly, we did not need other assisted fixture or device to load the molds or FRP tube if you have crane.
3, The earliest clamping machine maker in China, reliable quality and company reputation
4, LSR Clamping machine, pump machine, metering machine can be made by us, mold is supplied by Wellwin mold company, machine and molds can be tested in Huayi company before delivery.
5. Huayi company can provide technical support for composite tube, flanges combination,preheating and combination fixture and combination procedures.
6, Huayi company provide free supplier information for composite tubes, flanges, silicone rubber, open mixing machine.
