Introduction of Offer Lychee fruit wine lychee juice 2000kg/h litchi processing plant

Litchi/ longan peeling pitting machine is mainly used for the pre-treatment for litchi wine and beverage, the major functions of litchi (longan) peeling and pitting machine are:
1. Break litchi which has been stemmed, cleaned and disinfected;
2. Separating peels and pits from pulps;
3. Conveying litchi pulps to juice refiner for the next processing procedure.

Working Flow of Offer Lychee fruit wine lychee juice 2000kg/h litchi processing plant:

The fruit firstly are fed into the crushing unit via the hopper to be cut open by a couple of rolls.The broken fruit will be separated into shell, pit and pulp in the rotating tanker. At last,the shell and pit are taken out from the machine with the action of rotating screw and the pulps are sent into the following process.

Main features of Offer Lychee fruit wine lychee juice 2000kg/h litchi processing plant:

1. Top lychee processing machine manufacturer to provide the high-end products.
2. No need of lychee classification treatment and ideal for industrial mass production.
3.Peeling and pitting simultaneously to reduce the production cost efficiently.
4. Apart from litchi, it can also be used to process longan. Because the shapes of them are similar. But the inner structures are a little differences due to the different sizes of fruits.

Remarks:

1.We offer different standard machines. .But we can also provide the customized solution for you.
2.For lychee or longan pulp, we can present several perfect solutions to meet your requirements. So, we suggest you had better contact us to develop further cooperation.

Specification of Offer Lychee fruit wine lychee juice 2000kg/h litchi processing plant:

Features for Litchi processing machines

1.  Large production capacity

2. Advanced technology from abroad counties

3. Beautiful apearance

4. Reasonable combination modes

Main machine introduction

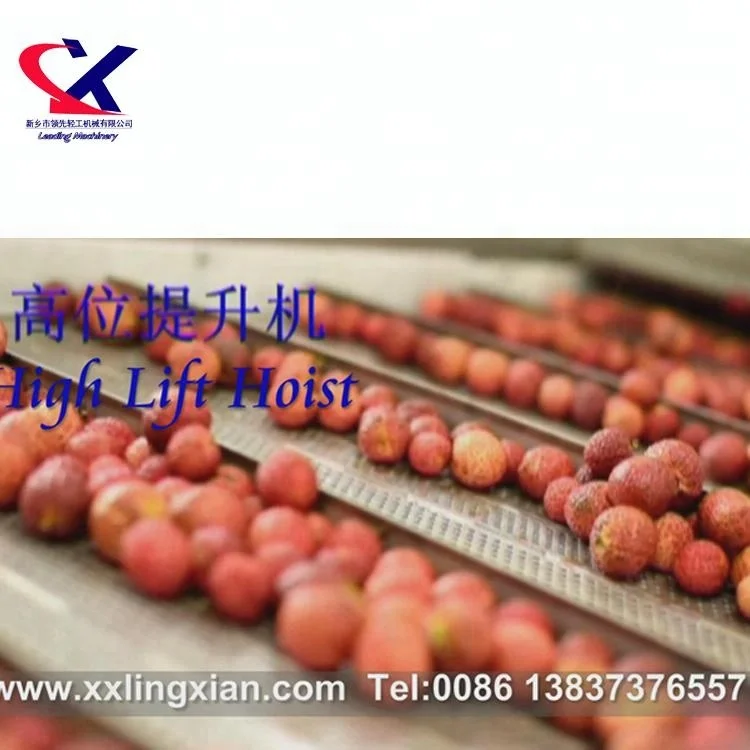

A1. Elevator

1. All contact part SS 304

2. Elevator mechanical stepless speed regulation.

3. The machine frame adopt 1.5-2 mm stainless steel 304, transmission shaft.

4. The chain wheel adopt 2Cr13 stainless steel

5. Lifting capacity: 3t / h

6. Lifting height: 1500 mm

7. Power: 1.1 KW

8. Dimensions: 2000 × 700 × 1500 mm

A2. Fruit selector

1. All contact part SS304

2. Elevator mechanical stepless speed regulation.

3. The machine frame adopt 1.5-2mm stainless steel 304, transmission shaft. Supporting structure adopt stainless steel welding.

4. The chain wheel adopt 2Cr13 stainless steel

5. Effective delivery Width: 500mm

6. Conveying length: 3500mm

7. Power: 1.5KW

8. Dimensions: 3500 × 710 × 1150mm

A3. Rinse washer

1. Stainless steel chain net, scraper blade elevation,mechanical stepless speed regulation.

2. Circulating water pump and circulating filter tank, high pressure water rinse washing.

3. Washing tank, elevator frame made by 1.5mm hairline finished stainless steel, the transmission shaft adopt 2Cr13 stainless steel.

4. Capacity: 3t / h

5. Power for lifting devices 1.1KW

6. Enhance width: 700mm

7. Washing tank length: 2500mm

8. Lifting angle: 35º

9. Dimensions: 3500 × 1000 × 1560mm

A4 Fruit brusher

1. High speed rotation brush roller.

2. Water pump to supply water to fruit rinse washer.

3. Stainless steel chain, drum type fruit conveying system, washing time stepless speed regulation.

4. Machine frame, water sink, and the protection shield all made by 2mm hairline finished stainless steel.

5. The chain and transmission shaft adopt 2Cr13 stainless steel.

6. Processing capacity: 3t / h

7. Power: 3.00KW brush roller drive; Push If the drive 1.1KW; Water pump 1.1KW

8. Brush Width: 600mm

9. Brush Length: 2000mm

10. Dimensions: 3020 × 1050 × 1500mm

A5. Elevator

1. All contact part SS304

2. Elevator mechanical stepless speed regulation.

3. The machine frame adopt 1.5-2mm stainless steel 304, transmission shaft.

4. The chain wheel adopt 2Cr13 stainless steel

5. Lifting capacity: 3t / h

6. Lifting height: 2050mm  width:400mm

7. Power: 1.1KW

8. Dimensions: 3200 × 600 × 2450mm

A6 Distributor

The distributor function is to evenly convey peeled lychee or longan to the peeler machine. There will be different guide slots according to the actual situation.

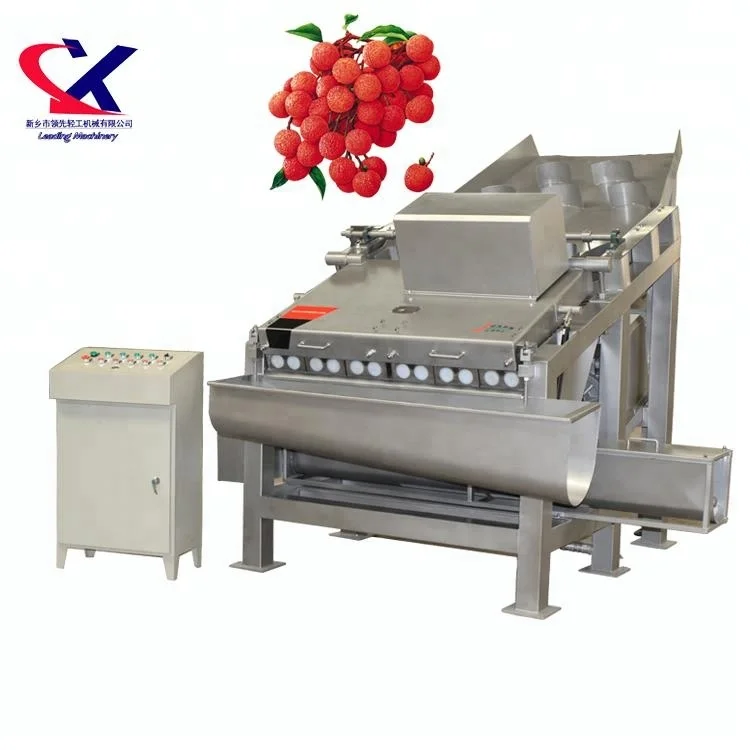

A7 Longan/lychee Peeler

The longan or lychee peeler adopt double roller to peel the skin of lychee or longan. The fruit meat will enter into pitting machine to pit the core. The debarking clean rate can reach 95% or above. It is the ideal equipment for lychee or longan juice processing. The peeler is equipped with spiral conveying channel.

1. The peeling roller and the press belt adopt food grade EPDM rubber. All other part adopt stainless steel 304

2. The peeling roller 8 pairs, motor power 3kw

3. Dimension: 2100×1900×1980mm

4. Spiral skin conveyor is at the bottom of the machine, the spiral diameter 200mm, motor power 0.55kw.

A8 Fruit Meat conveyor

1. The function of the fruit meat conveyor is to convey the pulp or fruit meat part to the next machine.

2. Capacity: 3 ton per hour

3. Power: 0.75kw

4. Conveying width: 500mm

5. Dimension: 3000*650*800

Complete Lychee Treatment Line
