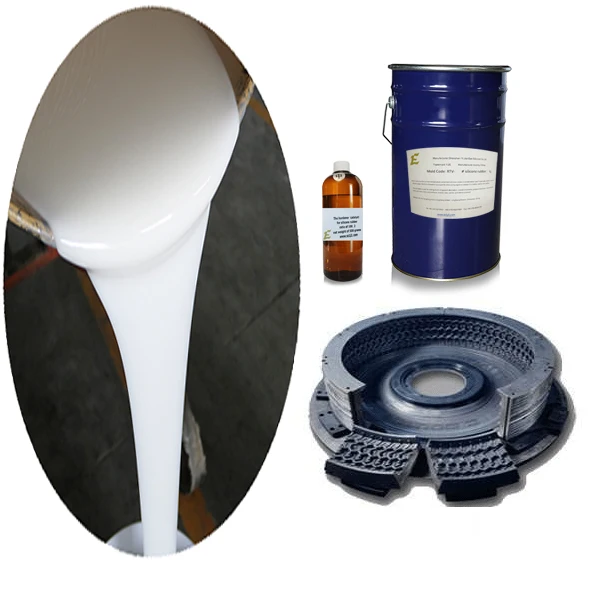

Hardness 20 shore a rtv 2 liquid condensation cure silicone rubber for tire molds making

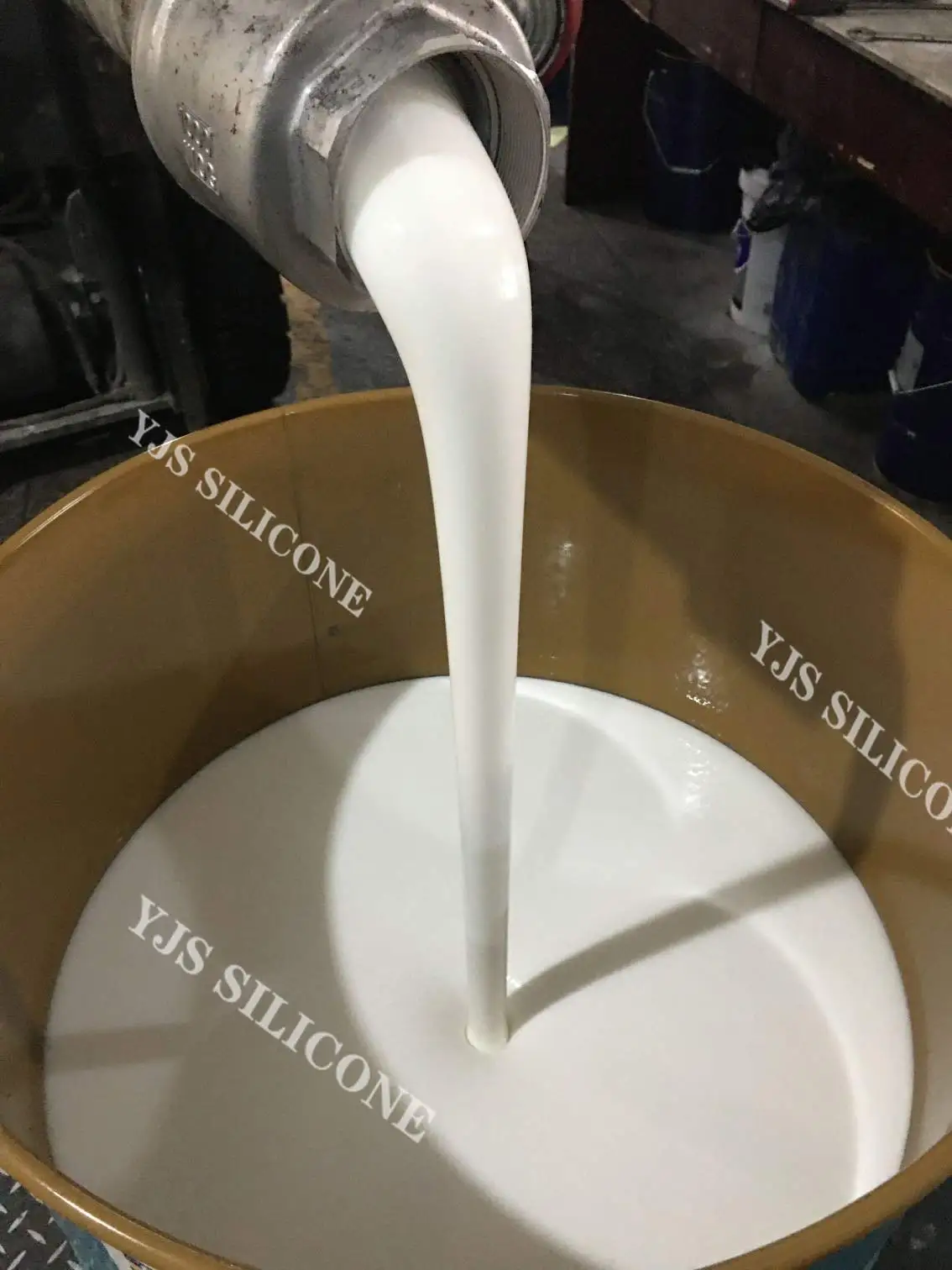

Hardness 20 shore a rtv 2 liquid condensation cure silicone rubber for tire molds making is a liquid white mass that solidifies at room temperature (in the presence of a catalyst) which mixing ration is 100:2 . It has exceptional fluidity, convenience and ease of use, easy molding. Has good extensibility, elasticity, tear strength, slight shrinkage.


It contains two components, one part is component A, flowing white silica gel, and the other part is liquid curing agent, also called catalyst. We just charge silicone base ,catalyst is free .

YJS SILICONE is your best choose !

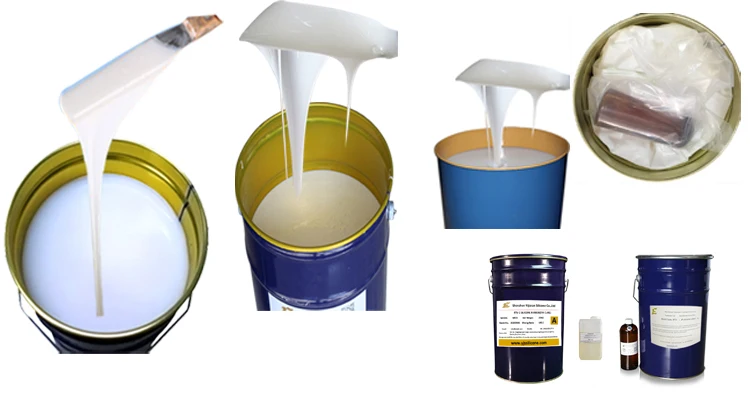

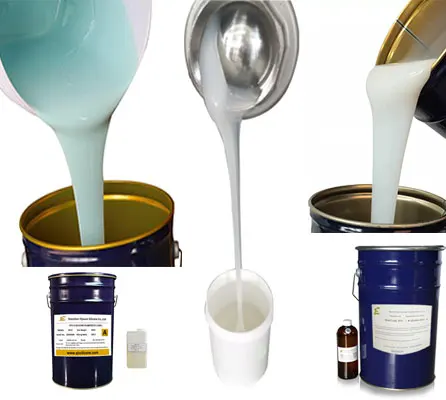

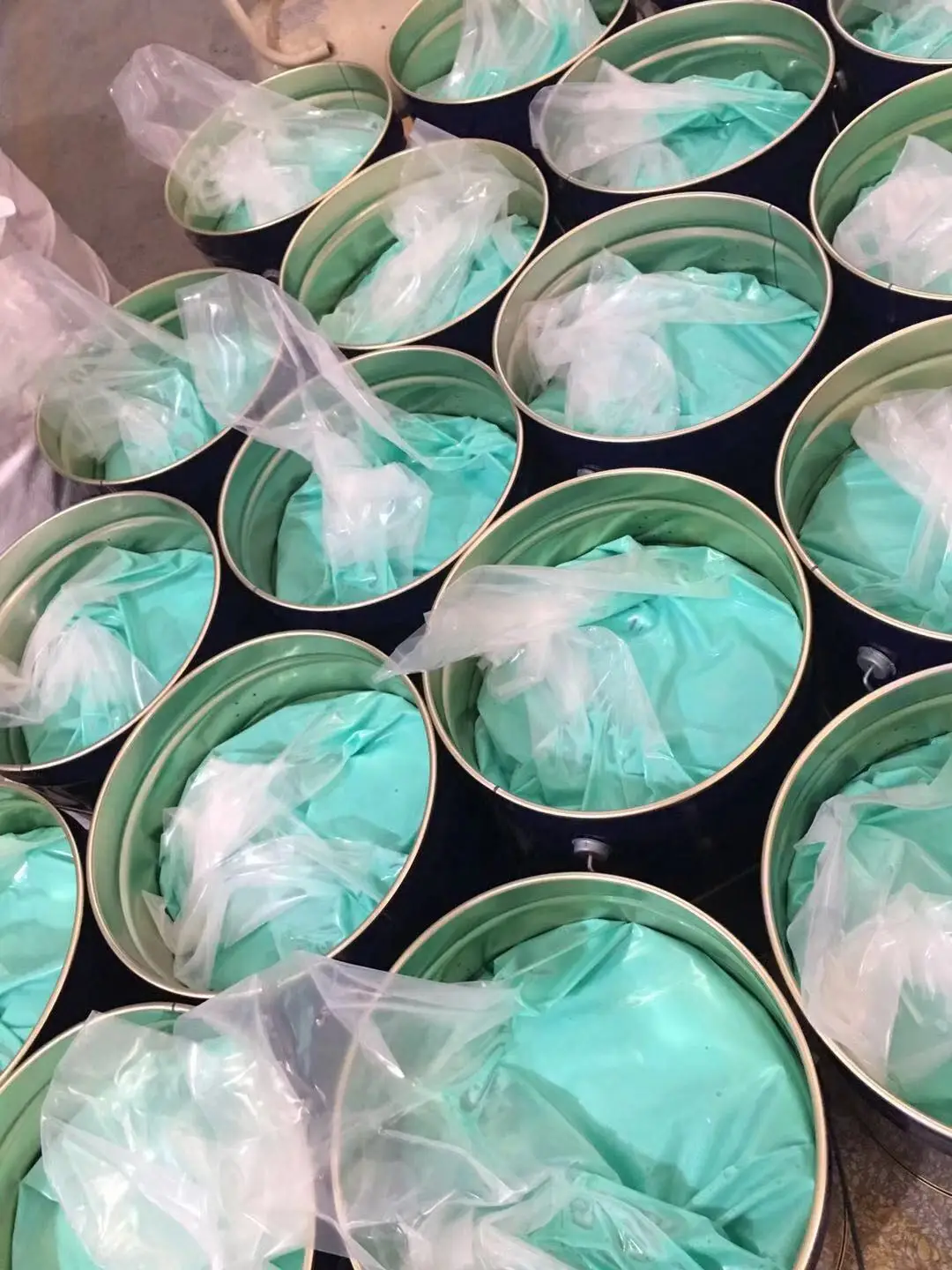

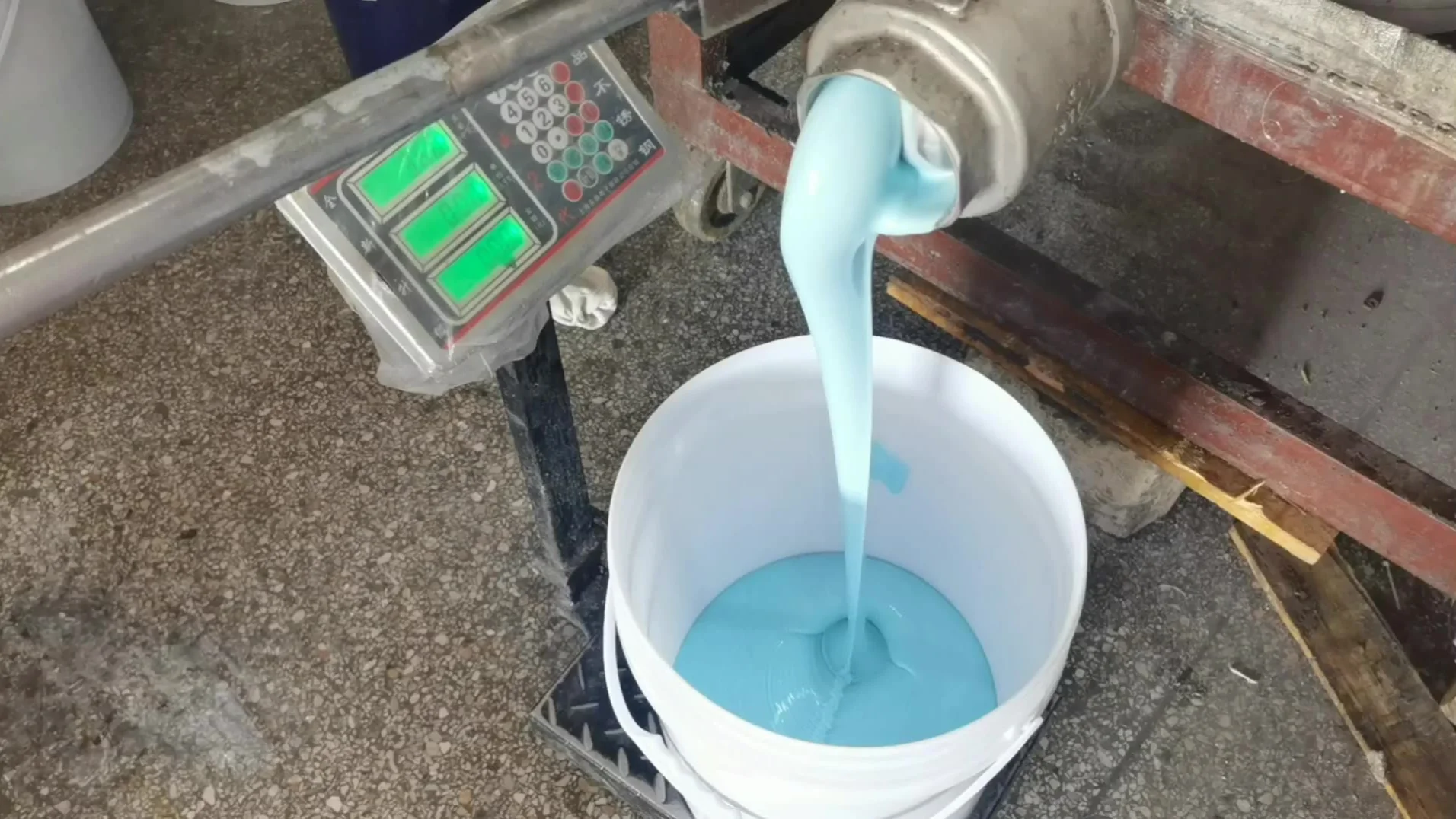

Detailed Images






Application


Hardness 20 shore a rtv 2 liquid condensation cure silicone rubber for tire molds making

Hardness 20 shore a rtv 2 liquid condensation cure silicone rubber for tire molds making YJS-520 is used for making molds of concrete stone,GRC, gypsum decoration, plaster ornaments,fiberglass products, polyester decoration, unsaturated resin crafts, polyresin crafts, polyurethane, bronze, wax, candle,and similar products .


It is a kind of soft silicone with good fluidity ,its suitable for small size product with detailed pattern by pouring operation, especially popular for the manufacturer of detailed resin crafts, candle and soap crafts .







Technical Datasheet


Typical general characteristics
Inspection Method
Value
Product data (Catalyzed A+B)
YJS-520
Hardness
Shore A
20±2
Mix Ratio
A:B
100:2
Color
/
white
Pot life
25 °C (77F)
30-40
Curing time
25 °C (77F)
3-4
Mixed viscosity
mPa.s
15500±1000
Tear-strength
kg/cm
≥25
Tensile-strength
M.pa
≥4.6
Elongation
%
≥500
Shrinkage
%
≤0.2%


Can we do the silicone according to your requirements ? Of course !
If you have any require of our silicone ,we can adjust them . Such as :
Mix ratio : 3% -5% acceptable
Pot life and curing time : can be less or more
Hardness : whatever you want ,we do it .
Tensile strength &Tear strength are alway in the improving
Viscosity : Low viscosity and high viscosity are acceptable
Elongation : We do this test by our own labe and technicial department
Do you want to lear how to test this performance ? Call shary :+13823584113


Characteristics
1.An exceptional fluidity and good operability, easy to demold
2.A kind of soft silicone
3.Good tensile strength and tear strength
4.Cure at room temperature
5.Good flexibility
6.Outstanding bubble releasing
7.Good duplication times
8.Operation instructions

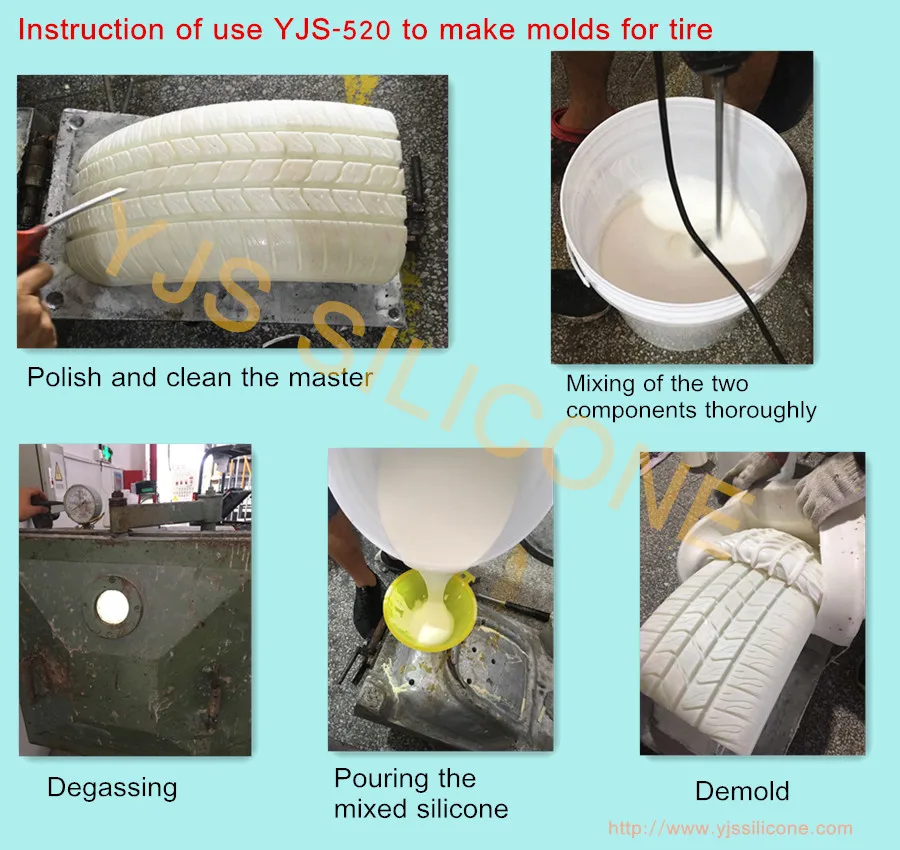

Operation instructions
Step 1: prepare the original molds
Make sure your original molds perfect. fix it on a board. And fix the original mold on a board , then used four piece of board to enclose the original molds .

Step 2: Take 100 G parts A and add 2G parts B and mix them evenly.
Notes: Mold making silicon rubber is a kind of flowing liquid ,it contains two parts. Part A is a kind of flowing white liquid and part B is the curing agent or catalyst .Pls follow the step strictly:
1.Weigh the two part exactly by electronic weight..
If not , for example add two much catalyst , the operation time will be too fast to operate ,which will cause inconvinience to operate .
2.Mix part A and part B evenly.
Otherwise the silicon rubber will be partly solidified and this will give birth to difficulties in your final operation. What's more, the finished molds will meet a short life. All of these will cause a waste of silicon rubber.

Step 3: Vacuum pumping

Without exception, this step takes less than 10 minutes. Otherwise, it will cause cross linking reaction, and no more further steps will be available.

Step 4: Pouring casting or Brush operation
Notes:1. For simple pattern products we suggest use pouring operation way , which will be very easy to operate and demould. Pourable silicone require light viscosity which will be easy to flow smoothly and easy to de-air .
2.For delicate pattern products we suggest use brushing operation way , which can copy the pattern exactly . Brushable silicone require high viscosity which won't be easy to flow away and easy to brush .
3. We sugges to set the silicone mold for another 12 hours after demould before put into large production .

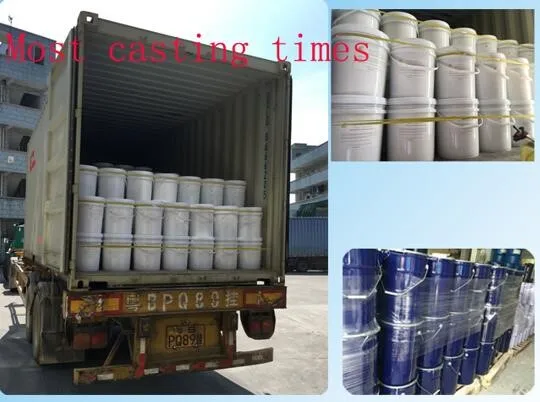

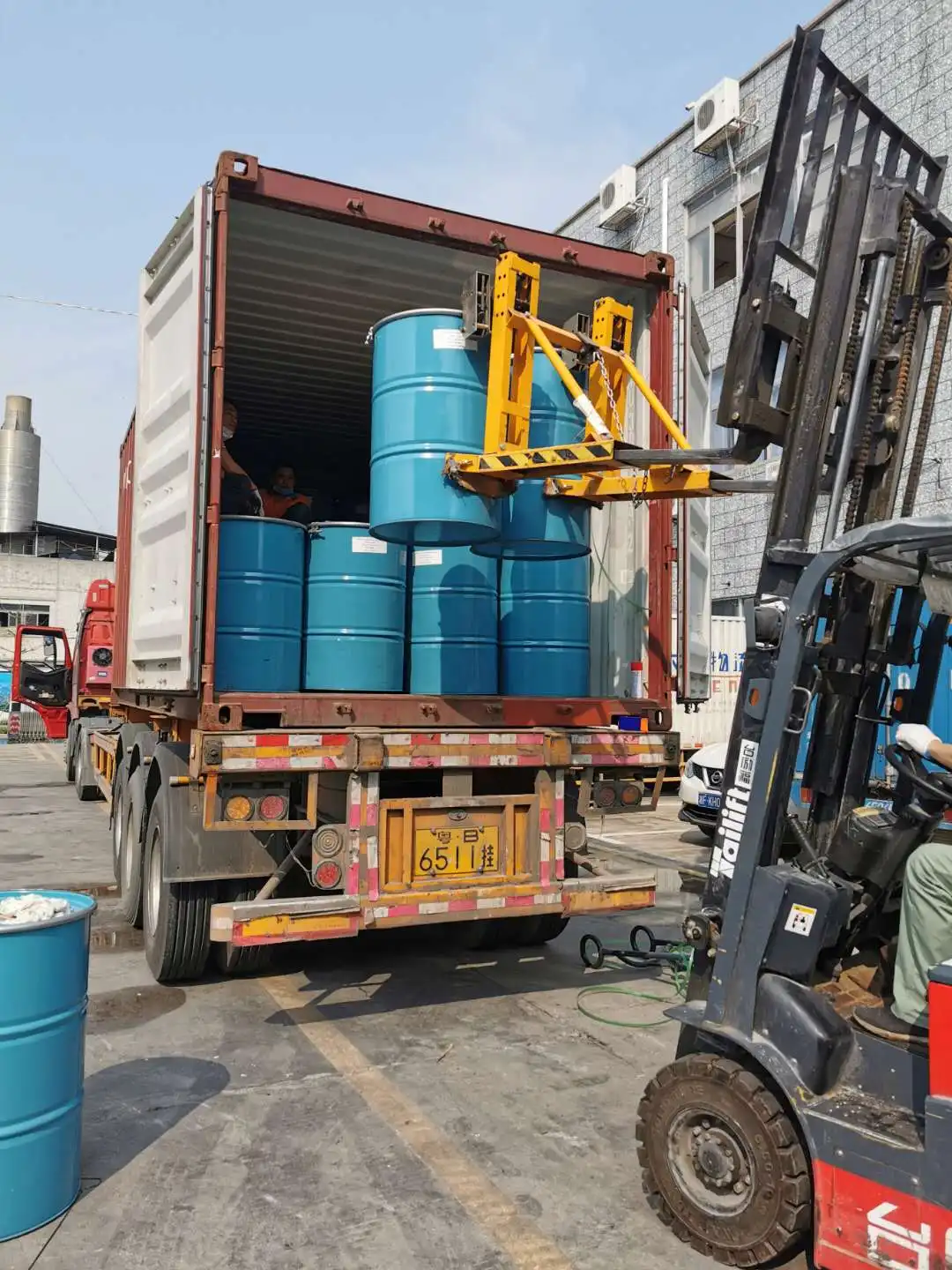

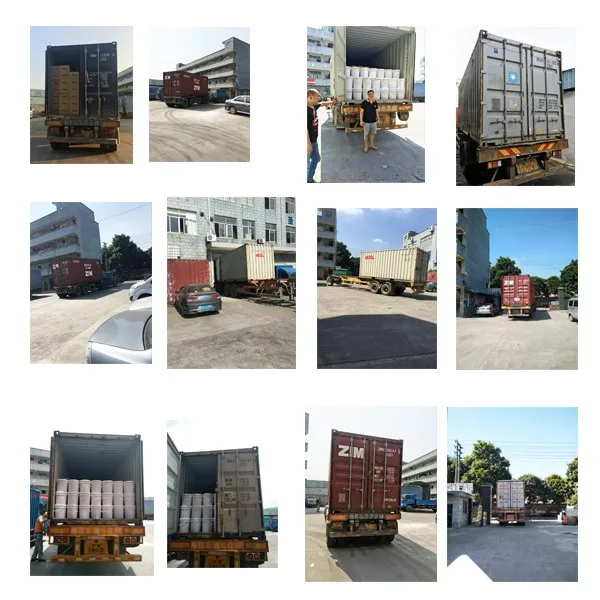

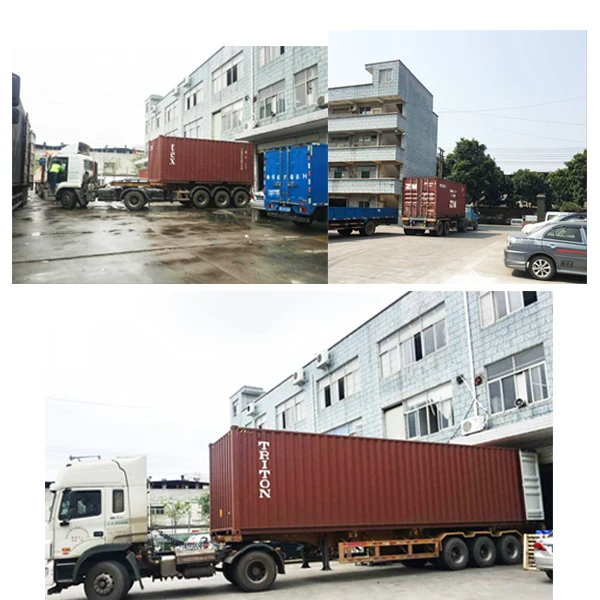

Packing & Delivery

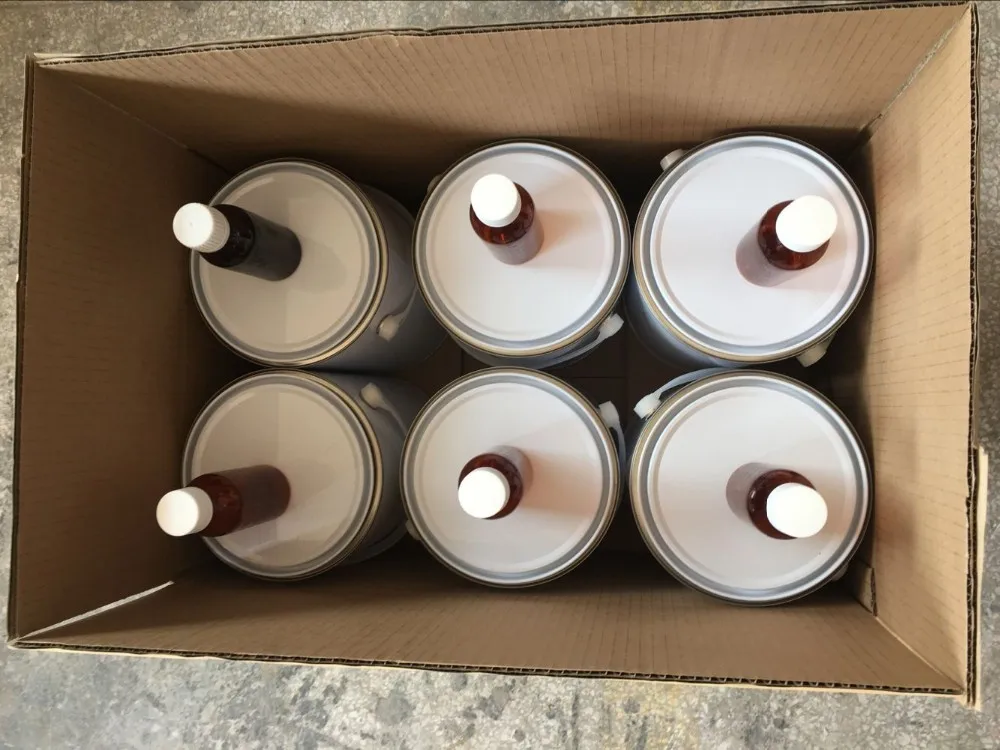

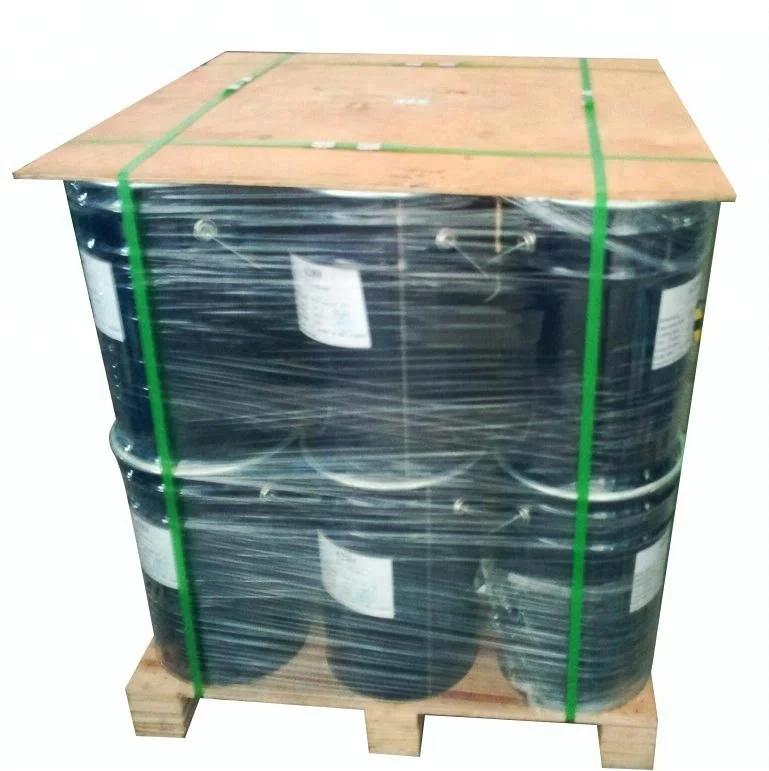

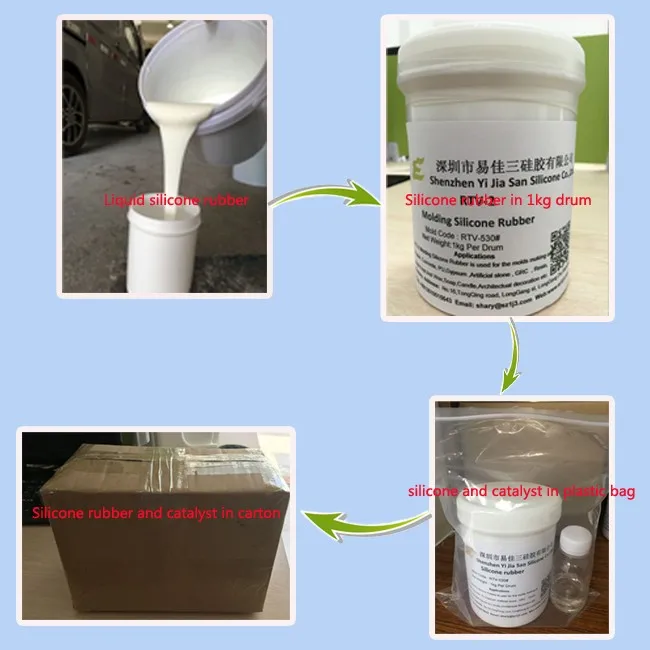

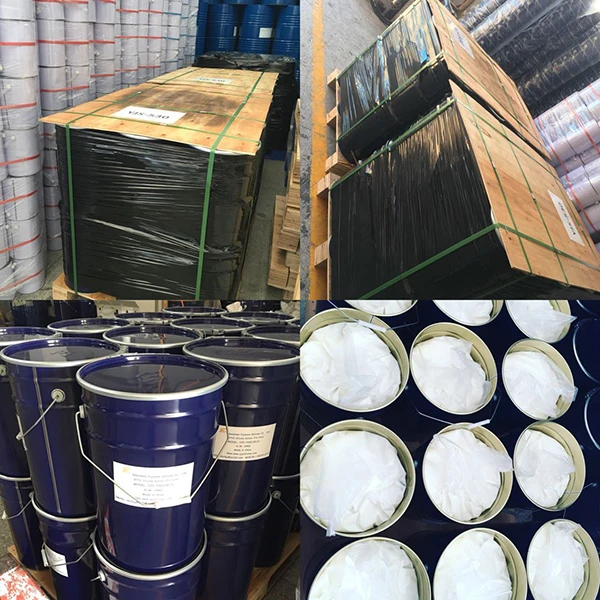

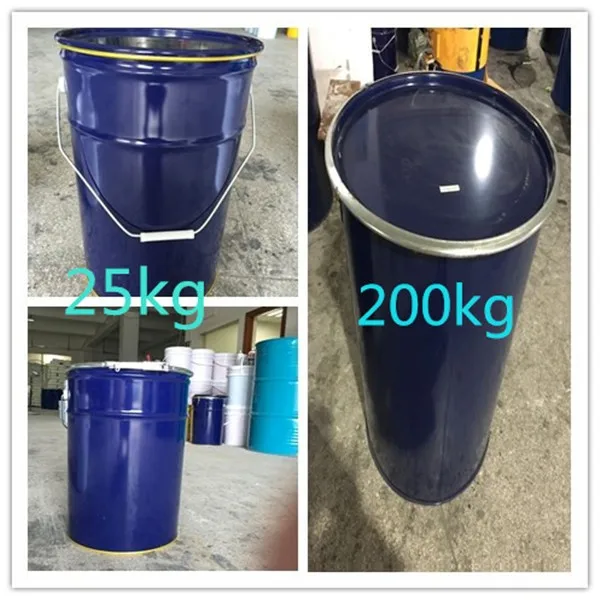

Package
Small size:1kg/jar, 5kg/jar,10kg/jar
General size:20kg/pail,25kg/pail,200kg/pail
Delivery Time
Depends on the express you choose and the destination
Via Express:General 3-7 business days worldwide
Shipping Cost
Based on the weight of the goods and the destination
Tracking No.
The tracking No. will be sent to you the next day after shipping

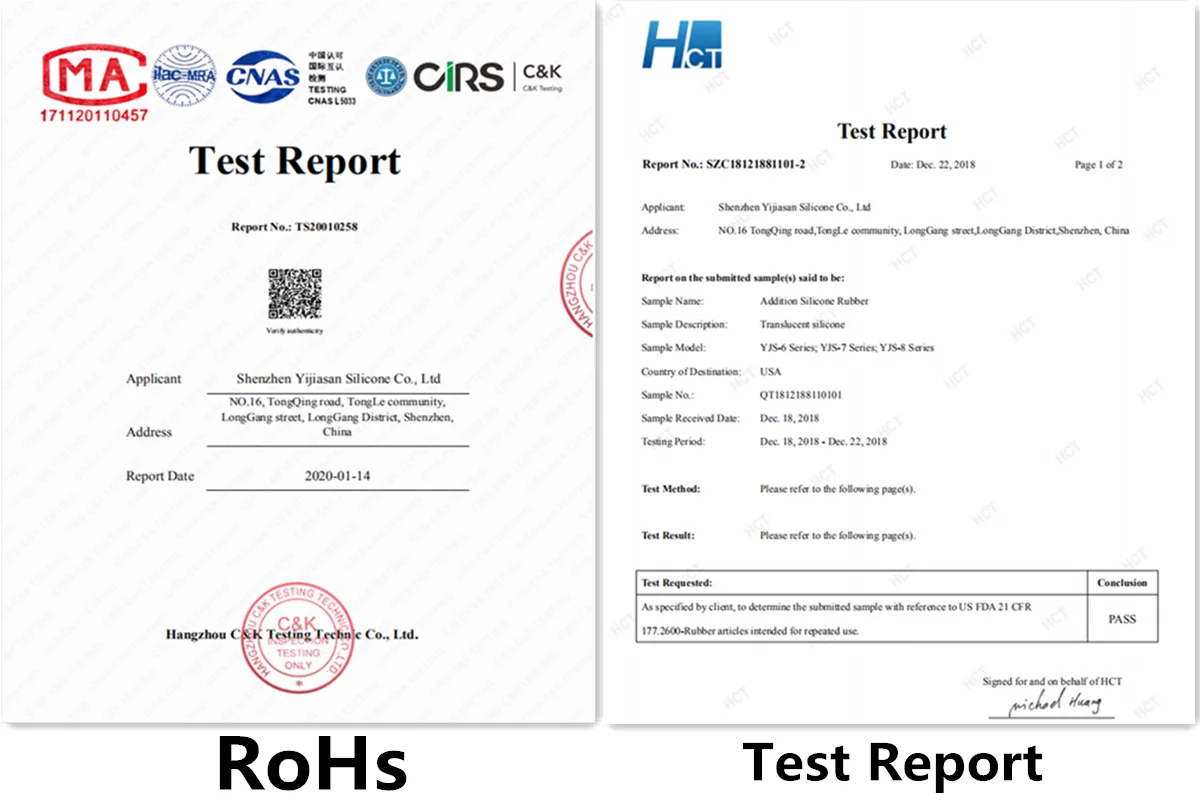

Certifications

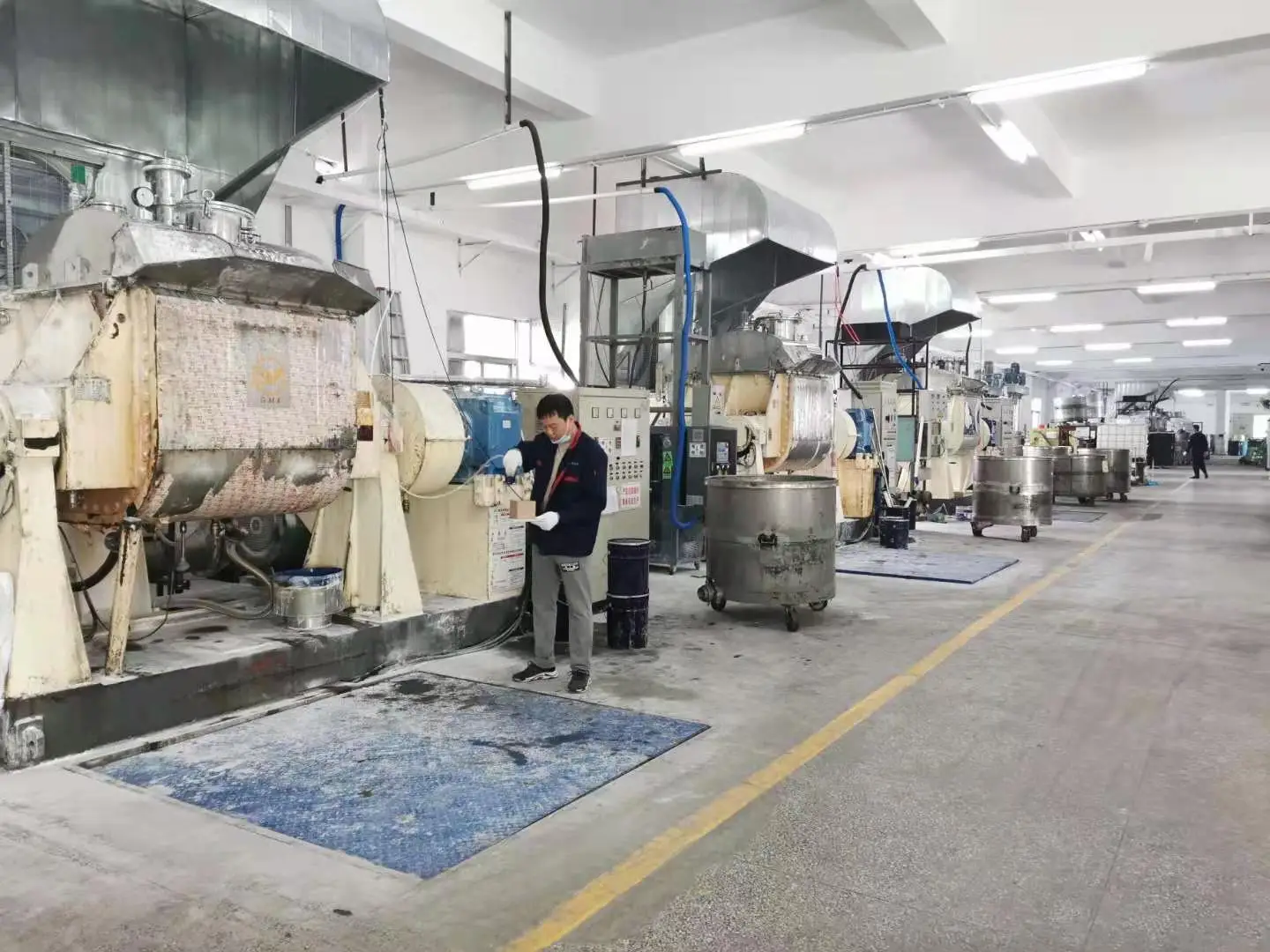

Our Company


Shenzhen YiJiaSan Silicone Co., Ltd., was founded in 2008, is a collection of organic silicone new materials research and development, production, sales and service in one of the major raw material manufacturer.

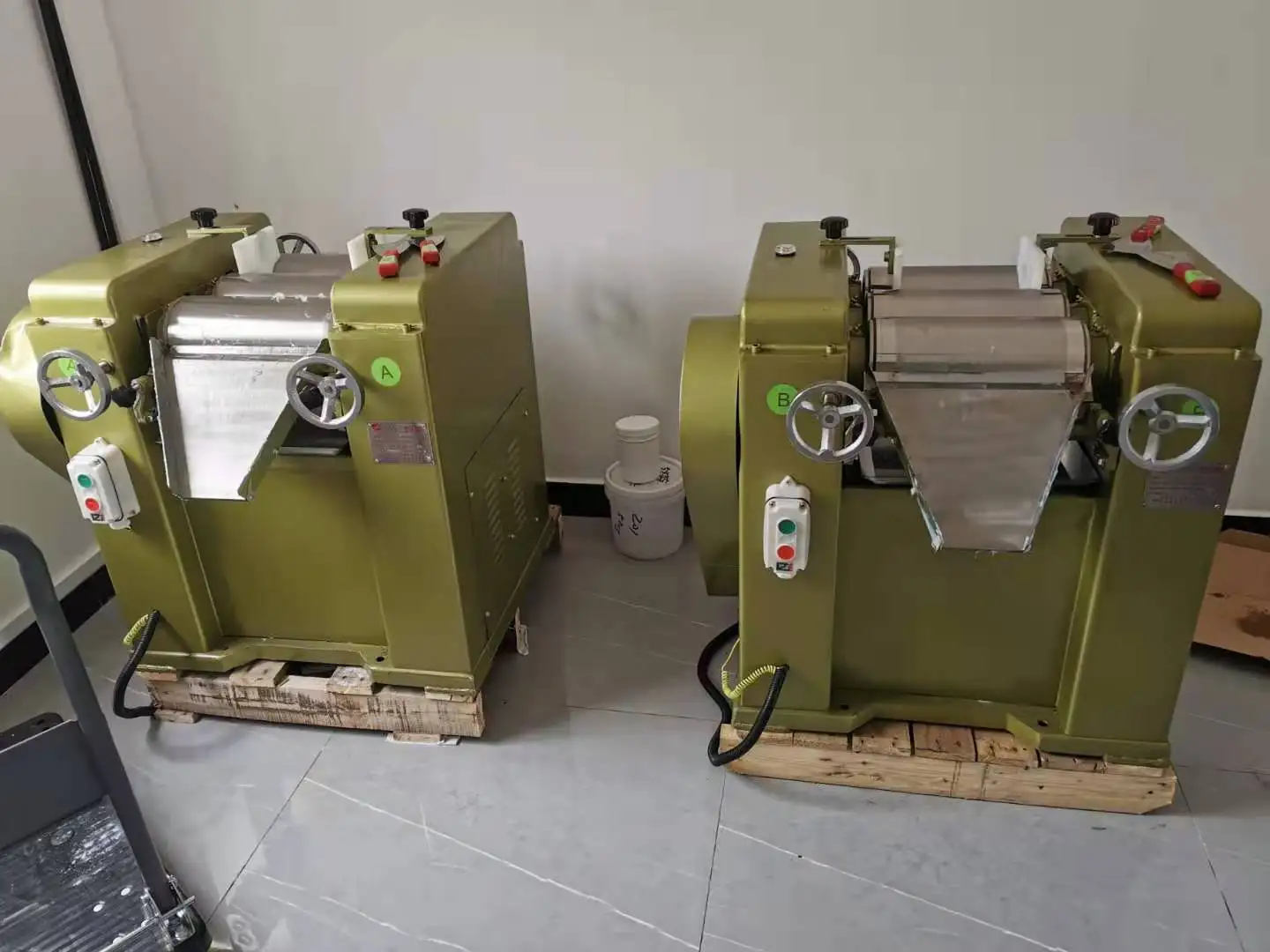

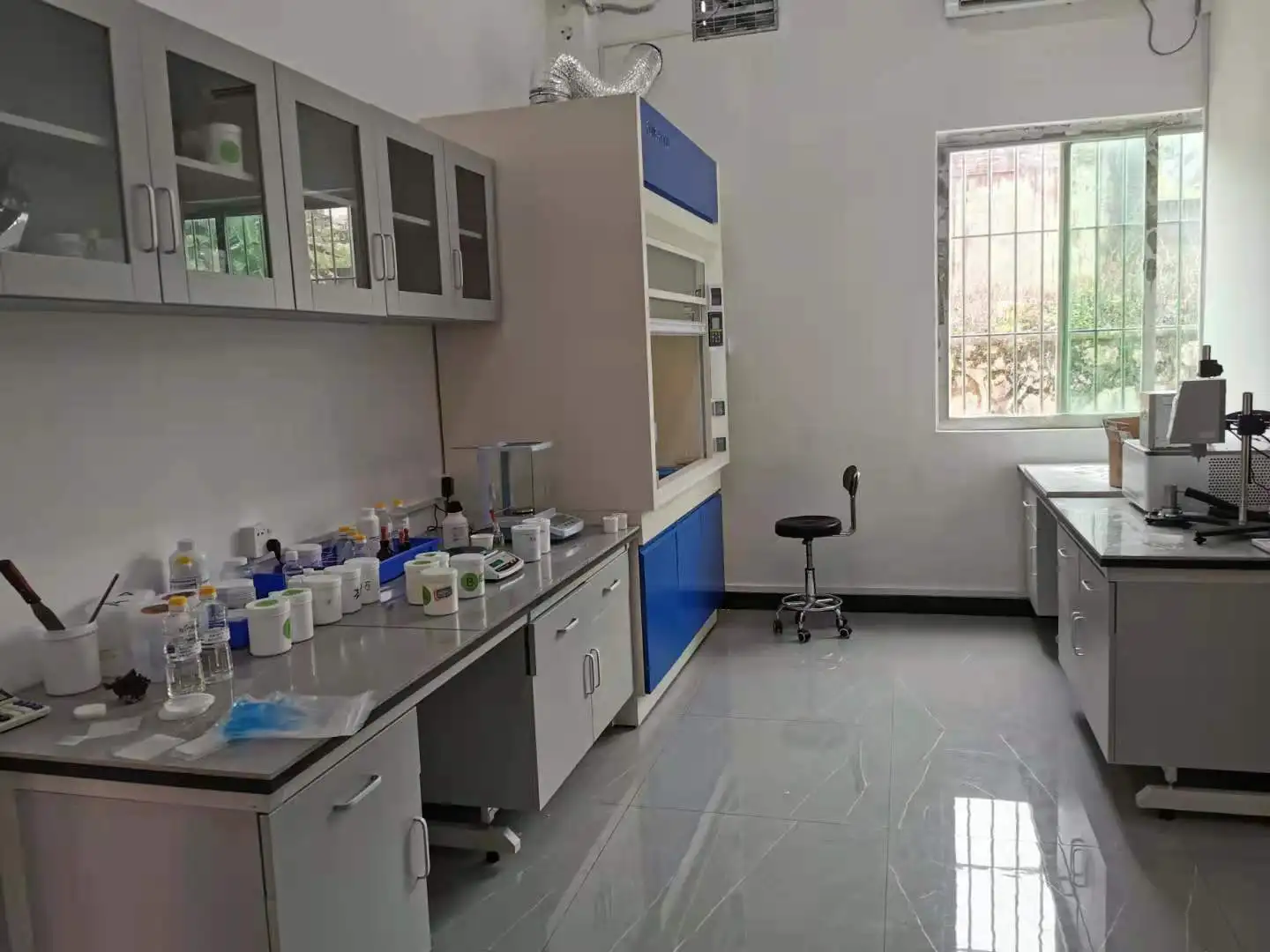

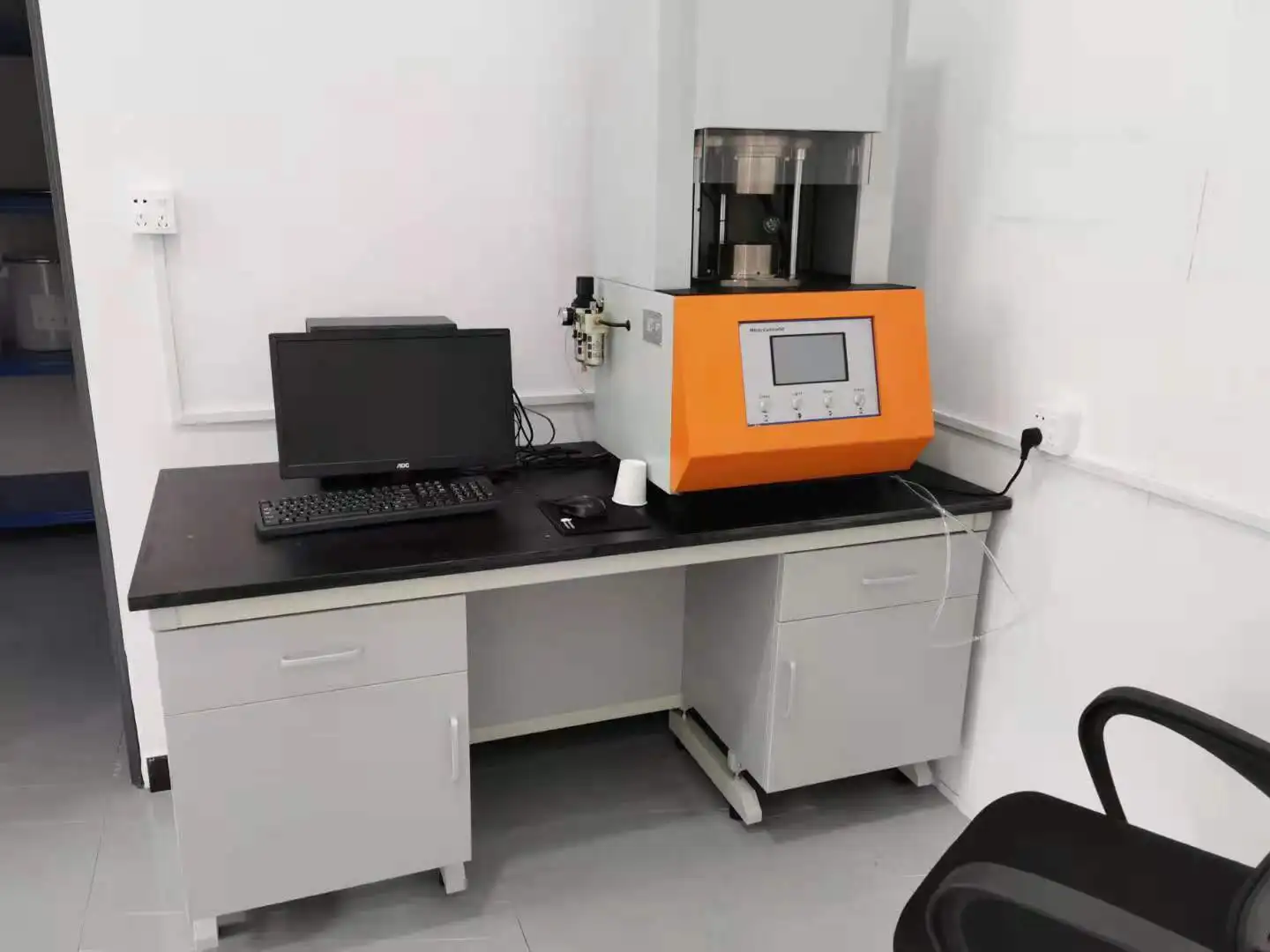

Over the years formed a product research and development, quality supervision, market operation, service and consulting, etc of a complete operation system. The company has advanced organic silicone production equipment, professional matching analysis testing scientific instruments and strong production technology, and has a number of highly qualified technical management personnel and with rich practical experience of skilled workers.
Products with stable quality and good services sold well all over the country and exported to Europe, America, Southeast Asia, more than 50 countries and regions, deeply the general customers the consistent high praise and trust.
