These series machines can process various complex geometry parts, and especially suitable for the manufacturing of tool, clamps, moulds and textile industry. The milling head of machine is installed in the front-end of the rocker can do the rotation of F-B±45ºand L-R ±90ºand the rocker can move front and back on the upper bed and can swing 360º. The three directions guide rail pairs of the machine all have wear-resisting measures with high accuracy stability and long service life

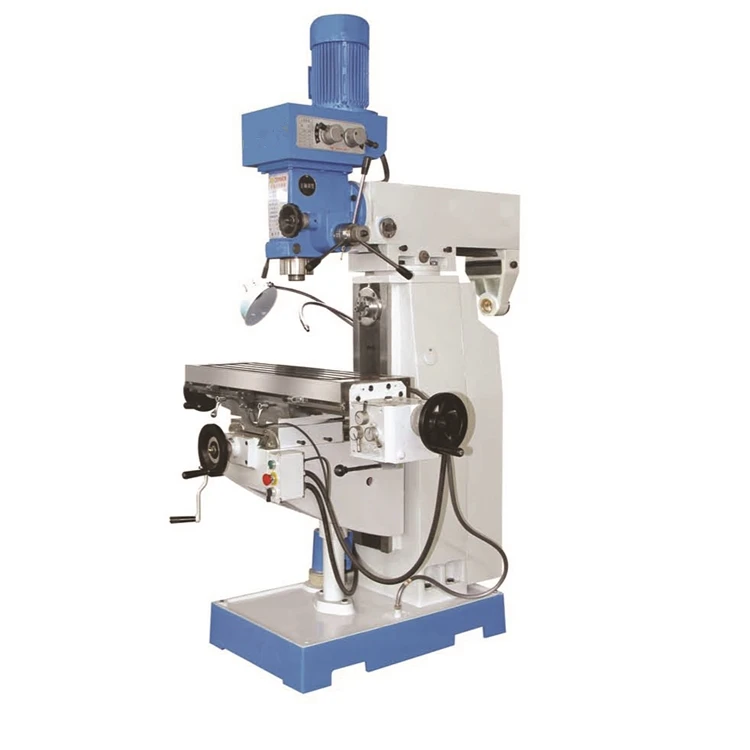

ZX7550 Milling Machine Feature
1. Gear driven; X axis auto feed
2. .Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
3. Can be add plug and swivel table
4. Milling and tapping function
5.Dovetail Table Guide ways Withstand Larger Overturning Moment
6.Head stock Swivels ±45
7. Can Add Horizontal Function
Specifications
ZX7550
Table size
900×250mm
Table travel
500×240mm
Vertical travel
380mm
Vertical milling capacity
30mm
Face milling capacity
120mm
Drilling capacity
50mm
Longitudinal feeds range
24-720mm/min
Vertical milling spindle travel
150mm
Spindle nose to table face
0-380mm
Travel of movable arm
300mm
Vertical milling spindle taper
MT4
Horizontal milling spindle taper
MT4
Vertical milling spindle speed
115-1750r/min 8steps
120-1520r/min 6steps
horizontal milling spindle speed
65-1790r/min
Vertical milling motor
1.5/0.85kw
Main motor
1.5kw
Overall dimensions
1340×1200×2360mm
Net weight
950kg
Standard Accessories
1.Drill chuck
2.Mill chuck
3.Inner hexagon spanner
4.Work light
5.Reduction sleeve
6.Draw bar
7.Spindle arbor
8.wrench
9.Machine vice
10.Horizontal milling arbor
Optional Accessories:
1.DRO on X, Y, Z--AXIS
2.Clamping kit
3.Universal dividing head
4.Rotary work table.
