Nitrogen/N2 Gas Station Equipment,N2 Generator,Nitrogen Generator
- Category: >>>
- Supplier: Hangzhou Boxiang Gas Equipment Co. Ltd.
Share on (60772032487):
Product Overview
Description
Product Description
Nitrogen/N2 Gas Station Equipment,N2 Generator,Nitrogen Generator
PSA Nitrogen generator is used as the principle of pressure swing adsorption, The nitrogen is obtained from compressed air directly by using high quality carbon molecular sieve as adsorbent.

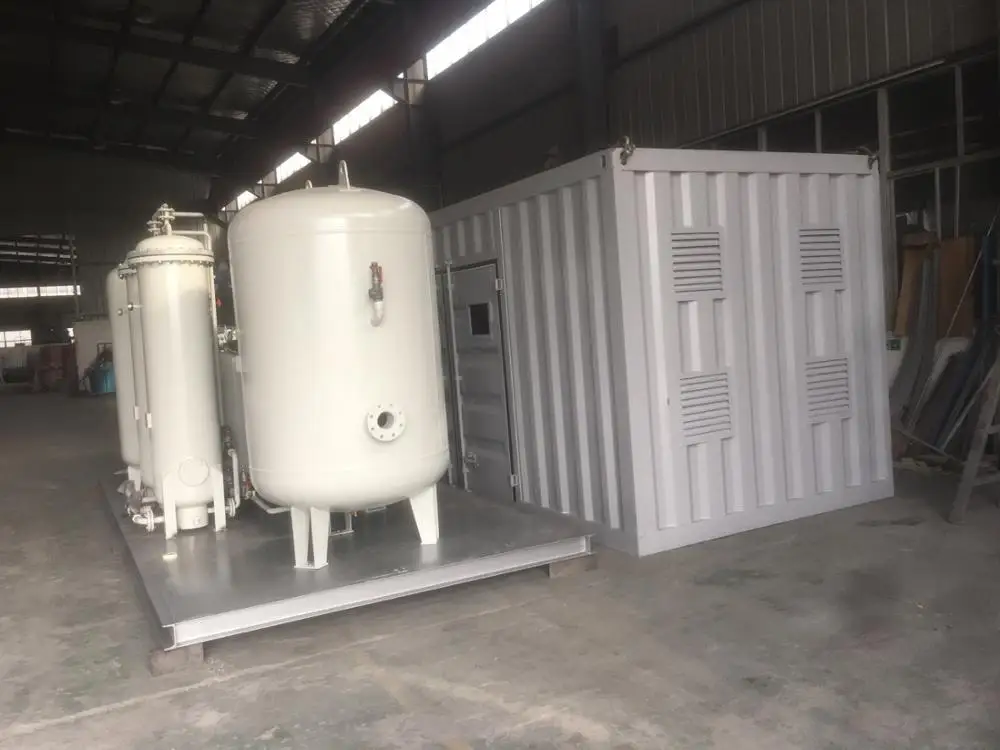

A full installation requires air compressor, refrigerated air dryer, filters, air tank, nitrogen generator and gas buffer tank.
We supply full installations but each component, and other optional supply like boosters, high pressure compressors or filling stations can also be bought separately.
Specifications
model | Purity(%) | Production flow(Nm3/h) | Pressuer(Mpa) | Dew point(℃) |
BXN97% | 97% | 5~3000 | 0.1-0.8 (adjustable) | ≤-40~-60(under nomal pressure) |
BXN98% | 98% | 5~2500 | ||
BXN99% | 99% | 5~2000 | ||
BXN99.5% | 99.5% | 5~2000 | ||
BXN99.9% | 99.9% | 5~1500 | ||
BXN99.99% | 99.99% | 5~800 | ||
BXN99.995% | 99.995% | 5~800 | ||
BXN99.999% | 99.999% | 5~500 | ||
BXN99.9995% | 99.9995% | 5~400 |
PRODUCT SHOW
Features
1. the press swing adsorption theory is very stable and reliable.
2. purity and flow rate can be adjusted in a certain range.
3. resonable inner structure, keep the balance airflow, alleviate the air high speed impact
4. unique molecular sieve protective measure, extend the working life of the carbon molecular sieve
5. easy installation
6. process automation and easy operation.
Working Principle
According to the press swing adsorption theory,the high quality carbon molecular sieve as the adsorbent, under the certain pressure, carbon molecular sieve has different oxygen/nitrogen adsorption capacity,the oxygen is adsorbed largely by the carbon molecular sieve, and the oxygen and nitrogen is separated.
Since the adsorption capacity of the carbon molecular sieve will be changed according to different pressure, once lowering the pressure, the oxygen will be desorbed from the carbon molecular sieve. Thus, the carbon molecular sieve is regenerated and can be recyled.

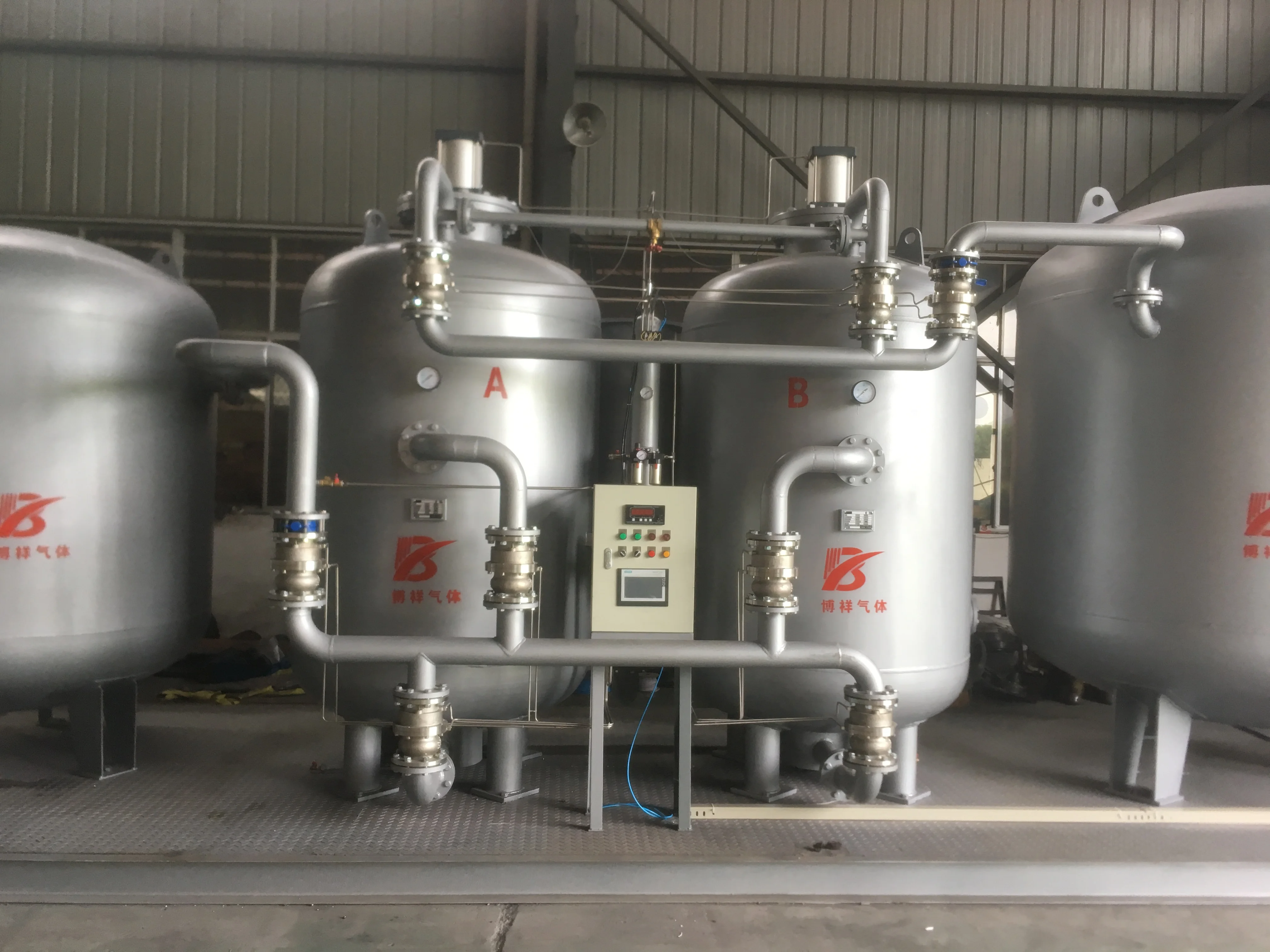

We use two adsorption towers, one adsorb the oxygen to generate nitrogen, one desorb the oxygen to regenerate the carbon molecular sieve, cycle and alternation,on the basis of PLC automatic process system to control the pneumatic valve open and colse, thus to get the high quliaty nitrogen continuously.
Application fields
| (1) | --Food packaging (cheese, salami, coffee, dried fruit, herbs, fresh pasta, ready meals, sandwiches,etc. ..) |
| (2) | --Bottling wine, oil, water, vinegar |
| (3) | --Fruit and vegetable storage and packing material |
| (4) | --Industry, tire, fire extinguisher, mineral industry, electronic industry and so on |
| (5) | --Medical |
| (6) | --Chemistry |
| (7) | --Lab |
Packaging & Shipping
Our Services
Company Information
RELATED PRODUCTS SHOW
FAQ
Q1. Are you manufacturer or trader?
A:We are professtioanl manufacturer in air separation plant area.
Q2.What's your main prosucts?
A:Our main products are high purity cryogenic air separation, psa oxygen generator, PSA nitrogen generator, VPSA oxygen generator, small-sized liquid nitrogen generator,
compressed air dryer and compressed filters.
Q3.What is the delivery time of your gas generator?
A: Generally 45days.
Q4.What is your payment terms?
A: TT and L/C are acceptable.
Q5.What's your advantages?
A:We supply excellent quality,favorable price, good pre-sale service and after-sales service.
Q6.Where is your port of shipment?
A:FOB Ningbo or Shanghai
Q7.How to get a prompt quotation?
A:Please tell us the usage, productivity, purity,pressure and your other requirements about the plant.
Q8.Your products are exported to which countries?
A:Our products are exported to Russia,Germany,The United States, Indonesia, Myanmar, Pakistan, Kazakhstan, Uzbekistan, Bangladesh, Malaysia, Brazil and Other Countries.
