2022 new design factory price pit type electrical heating vacuum annealing furnace for metal

Product Overview

Description

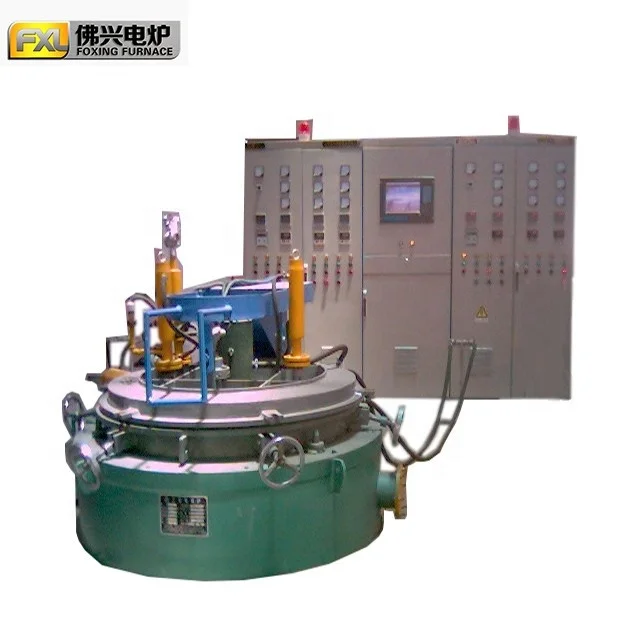

pit type electrical heating vacuum annealing furnace for metal

Introduction of well type furnace

Pit type furnace is cycle type furnace, apply to the pole, long axial parts heat treatment. The Wells of the furnace body is cylindrical, by special crane installed vertically within the charging heating workpiece. Pit type furnace is usually placed below the ground plane in the shop, also have placed above the ground plane, or each half of the under ground plane.

Feature:

1.Electric furnace has large fan device, furnace temperature uniformity.

2. Electric furnace more area and control, further improve the uniformity of furnace temperature.

3. The zone in the hearth stainless steel inlet bucket.

4. Furnace cover open-close used crane lifting or automatic hydraulic opening and closing mechanism, and with a guide column, ensure furnace cover opening and closing smoothly;

5. Furnace cover with furnace adopts high temperature resistant fiber cotton production, furnace heat preservation performance is good, save energy and reduce the production cost.

6. No pollution, good environmental benefits.

More about our well type furnace

1.Use for heat treatment in air of steel parts especially the long pieces .When the process requires, may pass into the protective atmosphere to reduce oxidation of the workpiece.

2.Two area control ,using intelligent digital display instrument with silicon controlled temperature control, also have heat preservation time relay, with the function of over temperature alarm.

3.The heating element is 0Cr21Al6Nb heating filament.

4.Lining by energy-saving light and aluminum silicate refractory fiber and diatomite brick.

5.Furnace cover open by leverage.

6.Equipped with heat resistant steel skirts in the middle.

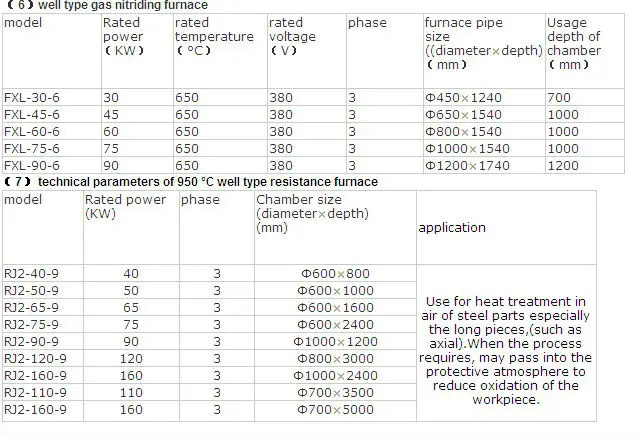

(1) technical parameters of 950 °C well type resistance furnace

model	Rated power (KW)	phase	Chamber size(diameter×depth) (mm)	application
RJ2-40-9	40	3	Φ600×800	Use for heat treatment in air of steel parts especially the long pieces,(such as axial).When the process requires, may pass into the protective atmosphere to reduce oxidation of the workpiece.
RJ2-50-9	50	3	Φ600×1000
RJ2-65-9	65	3	Φ600×1600
RJ2-75-9	75	3	Φ600×2400
RJ2-90-9	90	3	Φ1000×1200
RJ2-120-9	120	3	Φ800×3000
RJ2-160-9	160	3	Φ1000×2400
RJ2-110-9	110	3	Φ700×3500
RJ2-160-9	160	3	Φ700×5000

(2)technical parameters of 1200 °C well type resistance furnace

model	Rated power(KW)	rated temperature(°C)	rated voltage(V)	phase	Chamber size((diameter×depth) (mm)
RJ2-50-12	50	1200	380	3	Φ600×800
RJ2-75-12	75	1200	380	3	Φ600×1600
RJ2-90-12	90	1200	380	3	Φ800×1000
RJ2-120-12	120	1200	380	3	Φ800×2000
RJ2-160-12	160	1200	380	3	Φ1000×2400

(3)RQ3 series 1050 °C well type gas carburizing furnace

model	Rated power(KW)	rated temperature(°C)	rated voltage(V)	phase	furnace pipe size((diameter×depth) (mm)	Usage depth of chamber(mm)
RQ3-25-10	25	1050	380	3	Φ450×930	450
RQ3-35-10	35	1050	380	3	Φ450×1130	600
RQ3-60-10	60	1050	380	3	Φ650×1150	600
RQ3-75-10	75	1050	380	3	Φ650×1415	900
RQ3-90-10	90	1050	380	3	Φ800×1415	900
RQ3-105-10	105	1050	380	3	Φ800×1760	1200
