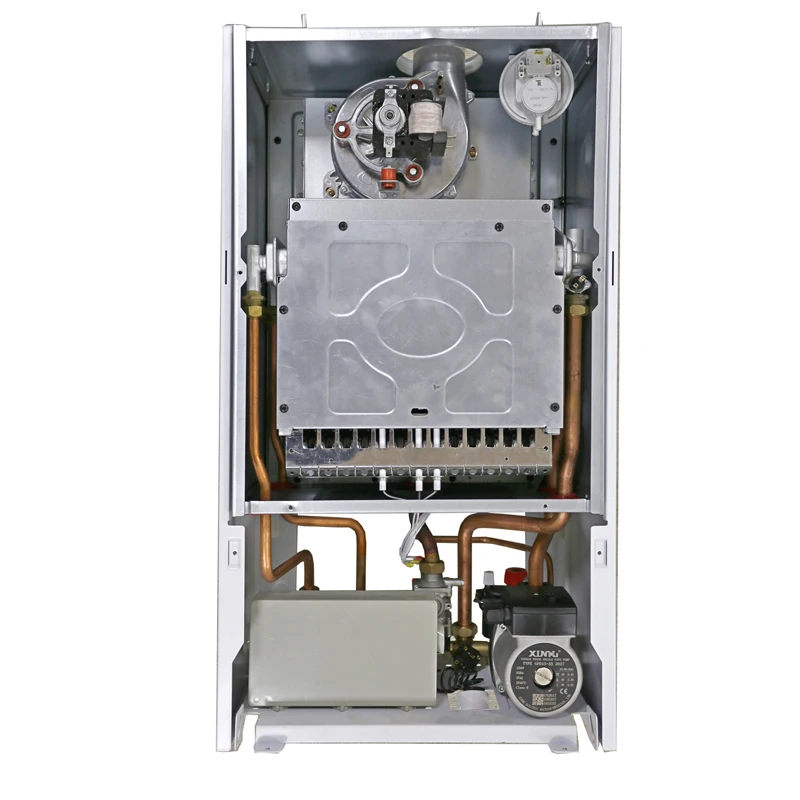

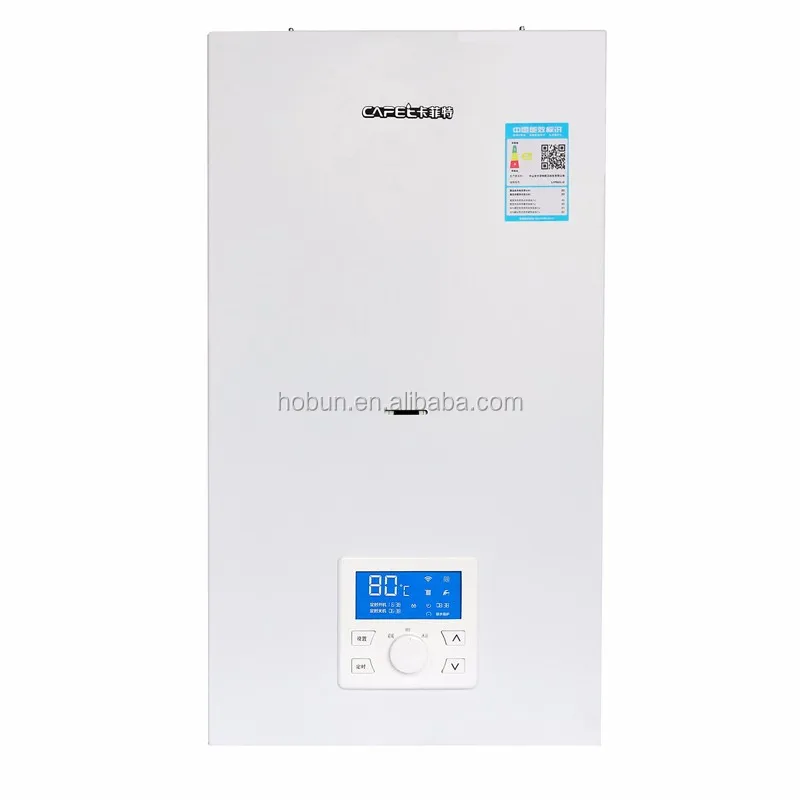

China 20 28KW balance exhaust type domestic natural gas wall hung gas boiler
China 20-28KW balance exhaust type domestic natural gas wall hung gas boiler
China 20-28KW balance exhaust type domestic natural gas wall hung gas boiler

China 20 28KW balance exhaust type domestic natural gas wall hung gas boiler

Share on (60772057135):


Price:$230.00-350.00

Quantity:


Product Overview

Description


Product Description

domestic natural gas wall hung gas boiler

\t
Model
\t
L1PB20
\t
L1PB24
\t
L1PB28
\t
Gas Type
\t
NG(natural gas )
\t
Rated Gas Pressure
\t
2000Pa
\t
Working gas pressure
\t
1500-3000Pa
\t
Gas flow(standard ressure)(m³/h)(max heat load)
\t
2m³/h
\t
2.4m³/h
\t
2.8m³/h
\t




Heating system
\t
Rated Heat Input(KW)
\t
20
\t
24
\t
28
\t
Rated Heat Output(KW)
\t
17.8
\t
21.3
\t
24.9
\t
Min. Heat Input(KW)
\t
8.2
\t
9
\t
9.4
\t
Min. Heat Output(KW)
\t
7.3
\t
8
\t
8.4
\t
Heating water temperature range
\t
30℃-80℃
\t
\t
\t
Max pressure
\t
0.3MPa(3bar)(80℃)
\t
\t
\t
Expansion tank
\t
6L
\t
6L
\t
7L
\t
Max water flow
\t
145L(80℃ 0.3MPa)
\t
145L(80℃ 0.3MPa)
\t
165L(80℃ 0.3MPa)
\t
Shower system
\t
Rated Heat Input(KW)
\t
20
\t
24
\t
28
\t
Hot Water Capacity with △T=30℃
\t
8.3kg/min
\t
10kg/min
\t
11.6kg/min
\t
Working water pressure
\t
0.015-0.4Mpa(3 bar)
\t
Heating water temperature range
\t
30℃-60℃
\t
Pipe connection
\t
Gas Input
\t
G3/4''
\t
Heating water input
\t
G3/4''
\t
Heating output
\t
G3/4''
\t
Cold water input
\t
G1/2''
\t
Shower hot water output
\t
G1/2''
\t
Heating reference area(㎡)
\t
≤120
\t
≤150
\t
≤200
\t
Max electric power(W)
\t
120
\t
120
\t
140
\t
Voltage/Frequency
\t
220V/50Hz
\t
Electricity And Water Protection Grade
\t
IPX4D
\t
Exhaust pipe(mm)
\t
ф60mm(outlet)/ф100mm(inlet)( 1m length)
\t
Product Dimensions(mm)
\t
740*410*313
\t
Packing Dimensions(mm)
\t
830*470*390
\t
N.W/G.W(kg)
\t
31.5/34
\t
32.5/35
\t
33.5/36
\t
Container Qty (20GP/40GP/40HQ)
\t
155/310/350
Detailed Images

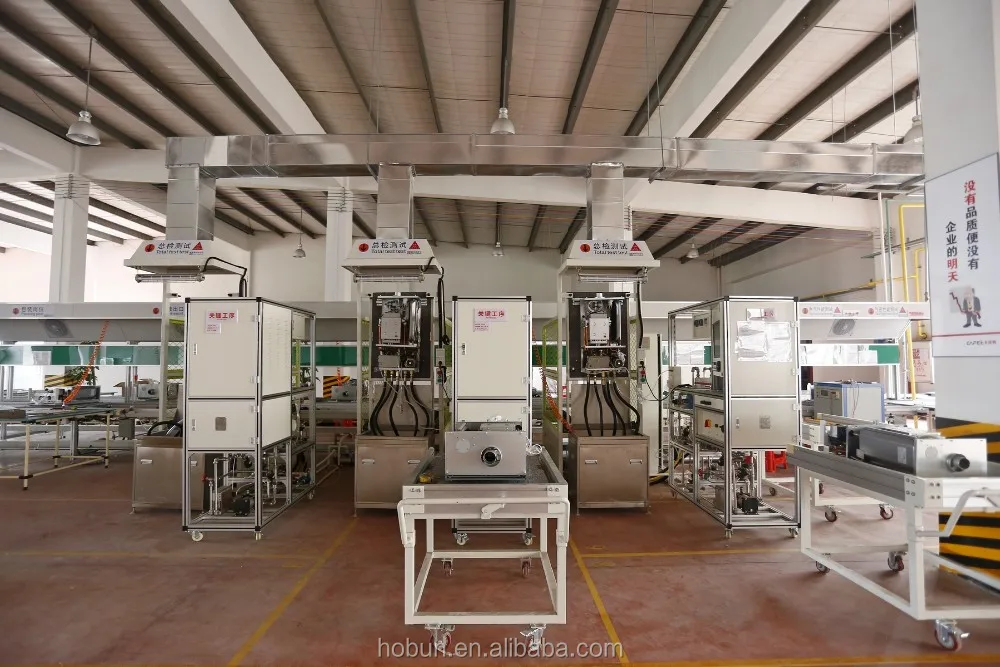

Our Company

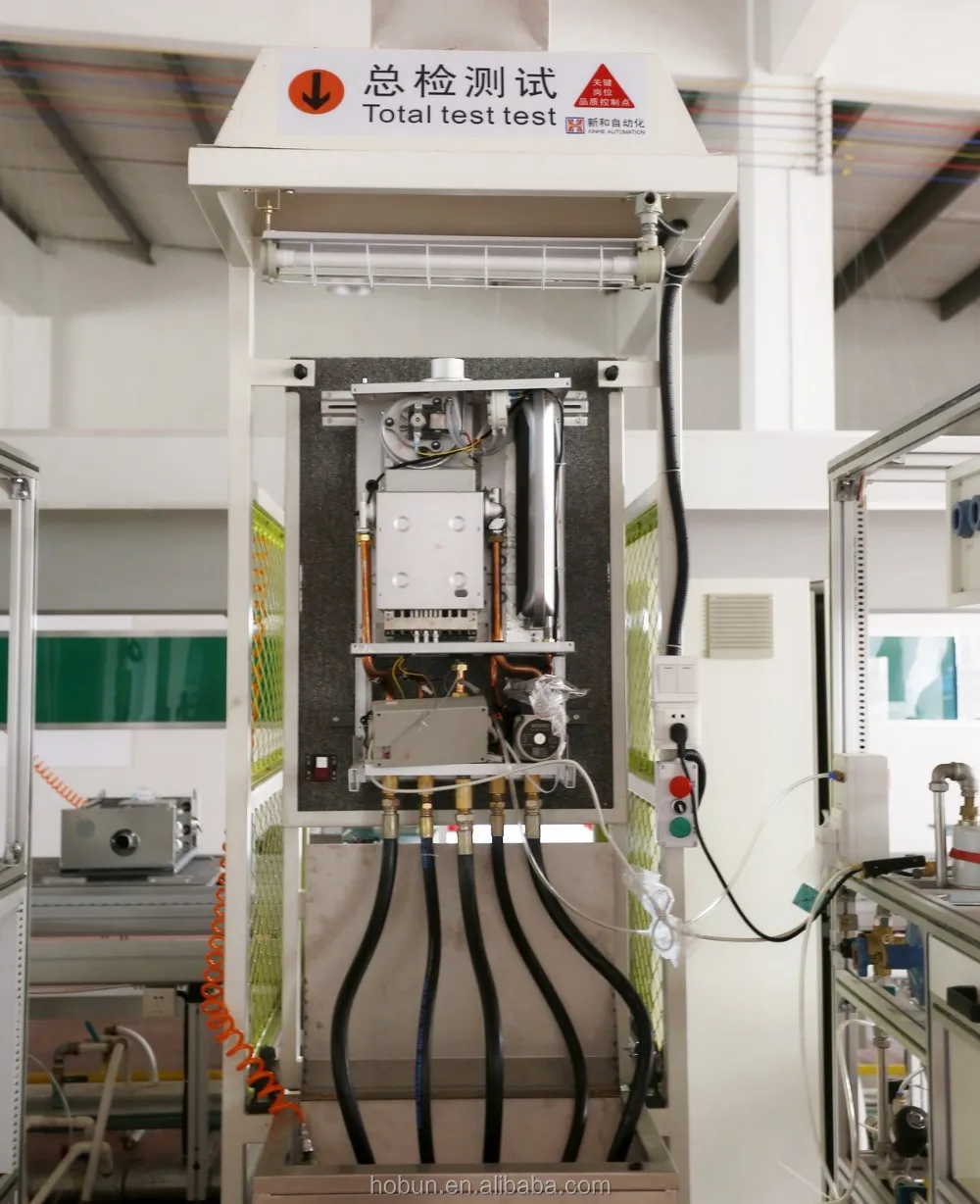

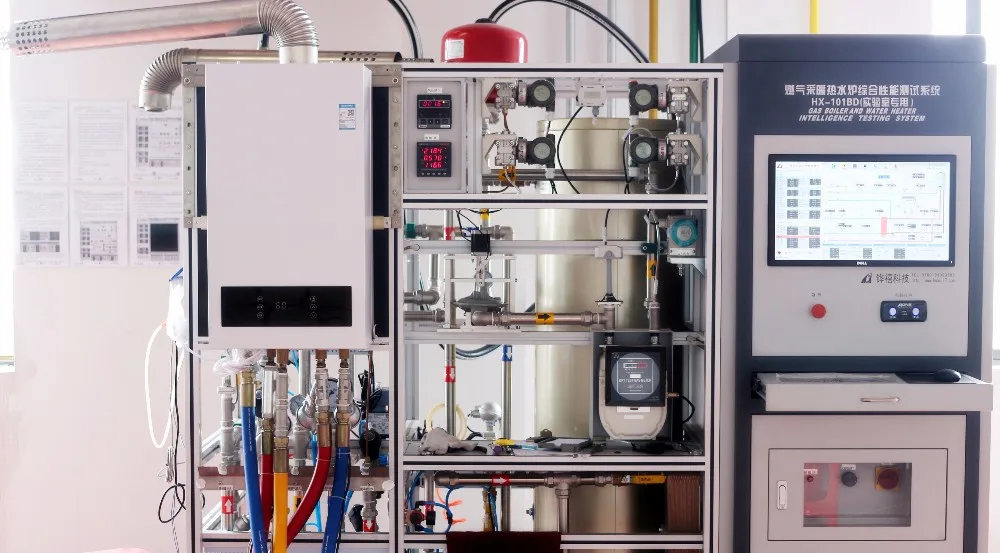

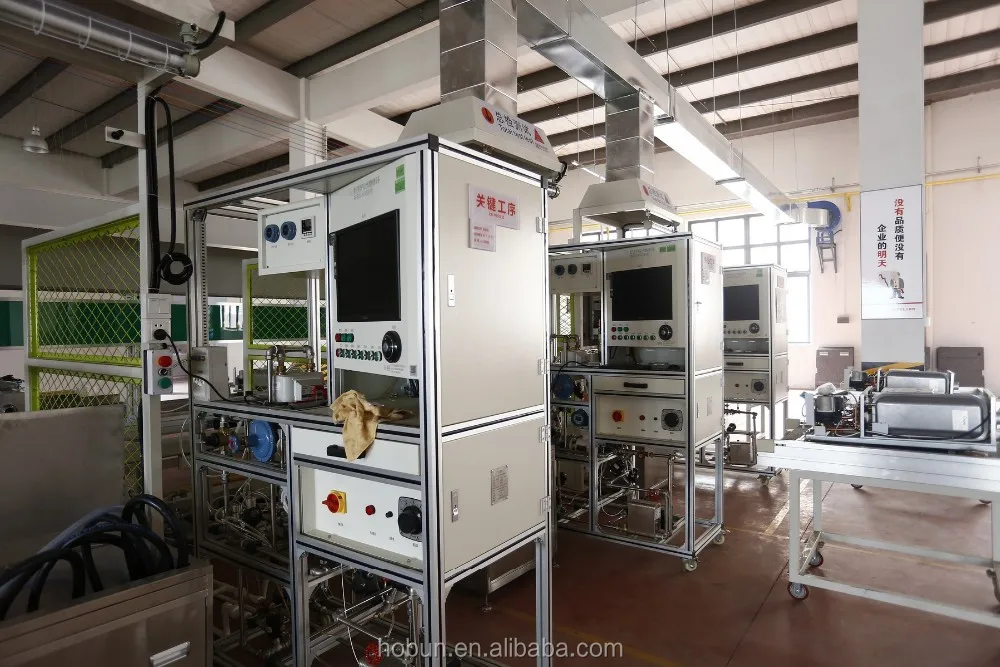

Gas boiler Testing
