Factory Supply Roll Paper Used Gravure Printing Machine Worldly

Product Overview

Description

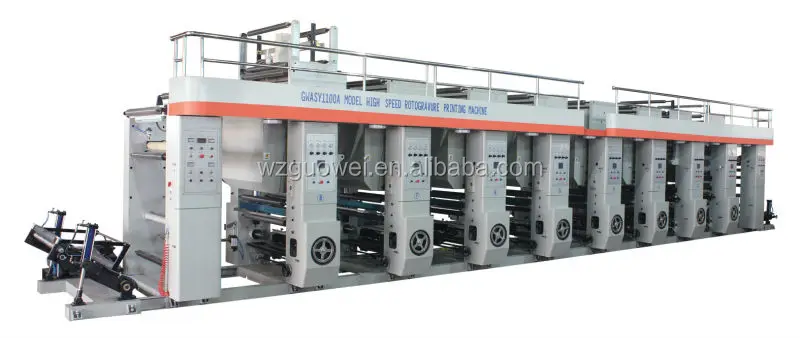

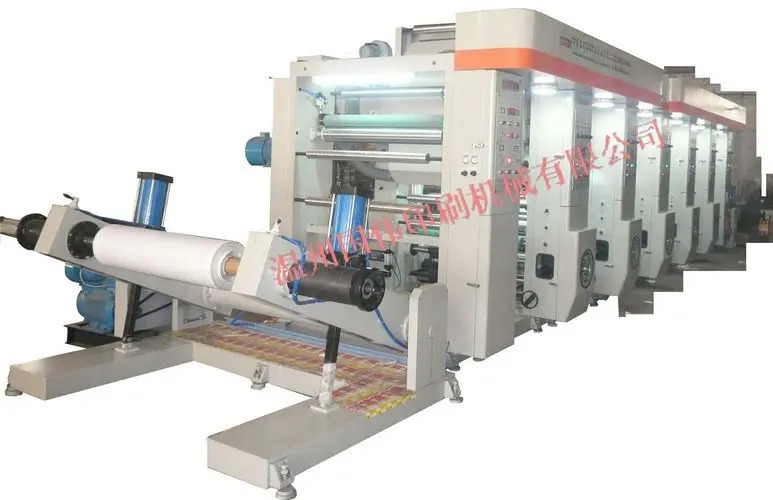

GWASY-PA   Roll Paper Gravure Printing Press

Main Structure Character ;



1. Unwind and Rewind: outside type Singlestep Hydraulic go up and down

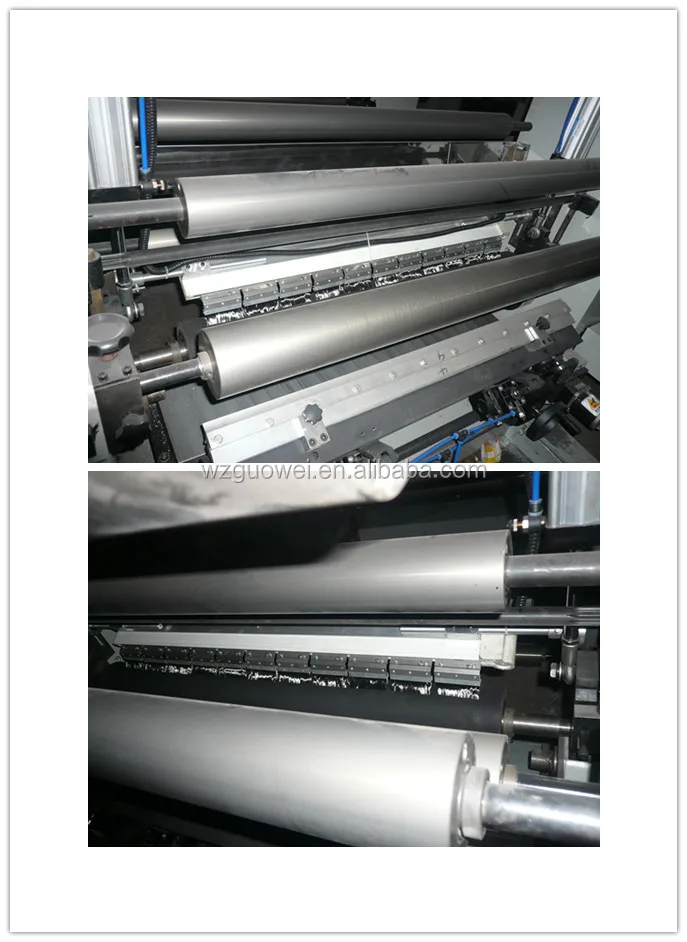

2. Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor.Optional electrostatic ink absorption, printing ink viscosity control, and so on device, greatly improving the quality of printing.



3. Dry oven:Patent technology,low consumption oven,high wind pressure high efficiency and energy saving system, several return air road, saves energy



4. Control:The main motor ABB + panasonic inverter, unwind ningxia magnetic powder,main components are imported brand



Applicable materials:  this machine is suitable for printing paper package material in roll for foodstuff, Drug packaging, tobacco package,wine,decorating paper,carton preprinting etc.(Paper thickness: 17 g to 300 g), widely applied in all kinds of high grade print.
