Most accurate portable proton precision magnetometer

Product Overview

Description

Main features:

Built-in GPS, coordinate record, navigation lights, and the connection is more simple, and the instrument is more reliable.
Full-scale automatic tuning or artificial manual tuning.
Built-in precision clock, GPS timing to ensure the clock of base stations and mobile stations is accurate synchronization.
Each point is stored with the information of the magnetic field result, point coordinate time and temperature etc., directly output all the data with a U disk.
English interface, and automatically displays the magnetic field value curve, the operation is more easier and convenient.
Portable and light, one person can finish all the work.

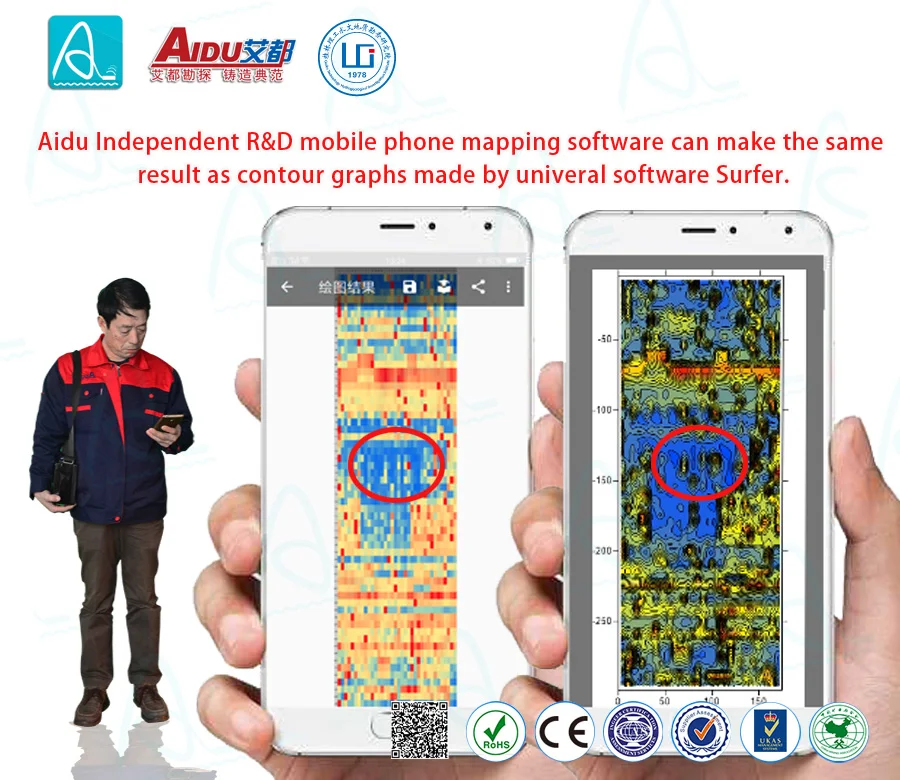

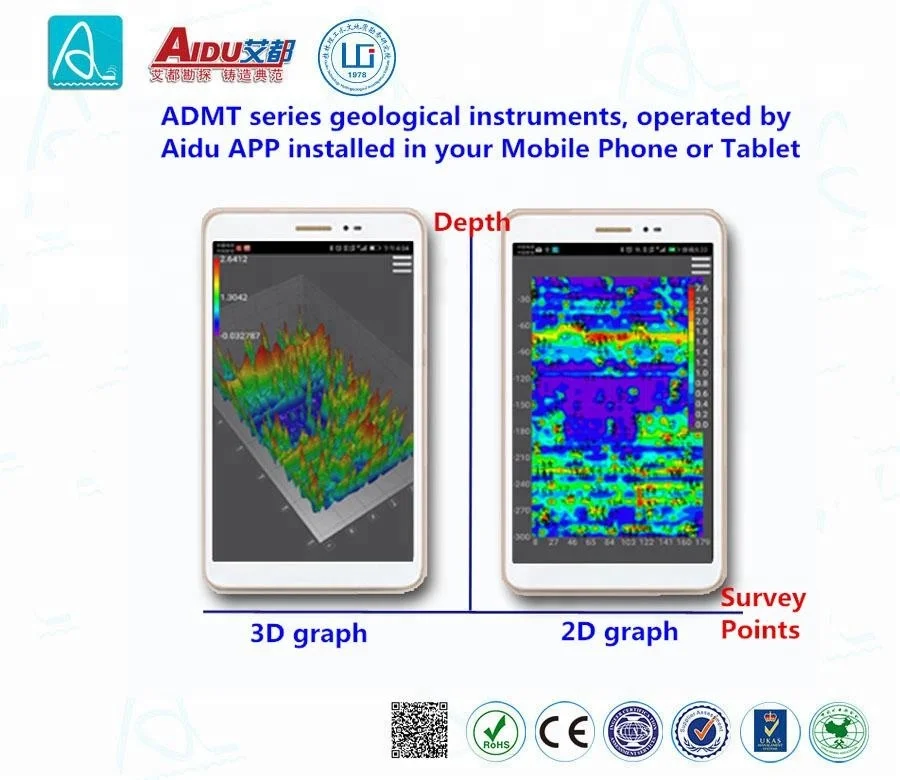

Equipped with the software to do the diurnal correction and create the contour map and profile map.





Model	ACZ-8
Measurement Range	20000nT ~100000nT
Resulotion	0.1nT
Measuring range accuracy:	±1nT (total field absolute strength is 50000nT)
Allowed gradient:	≤8,000n T/m
Measurement interval of the base station:	2~60s, set as your requirement
Data storage capacity:	100,000 points
GPS positioning accuracy:	≤2.5m

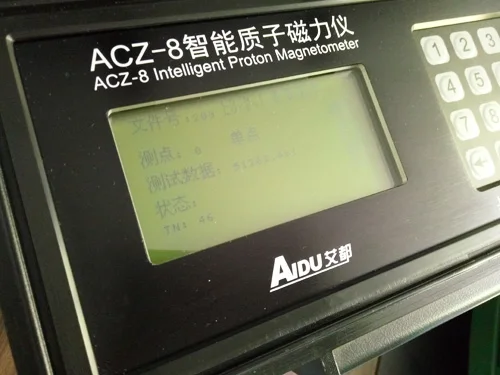

LCD:	320x240 graphic LCD with backlight
Input keyboard:	16 keys
Data transport:	USB
Power supply:	built-in big capacity recharge lithium battery
Working temperature:	-10℃~+50℃







Main Applications:



1. Widely used in mineral exploration(such as iron ore, lead and zinc, copper etc.).
2.With mining exploration, research the ore body’s buried depth, occurrence and continuity, and study the shape and size of the ore body, estimate the deposit, oil and natural gas exploration, research the geological structure and tectonics of oil and gas etc..
3. The diurnal correction of aviation and marine ground magnetic survey, fault location, archaeologic, engineering exploration, such as pipeline detection, earthquake precursor monitoring, and volcano observatory, as well as other environmental and disaster geological work.
