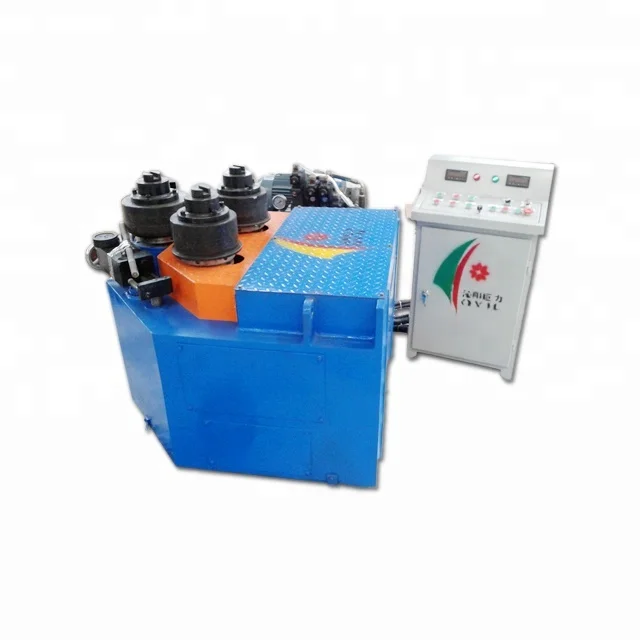

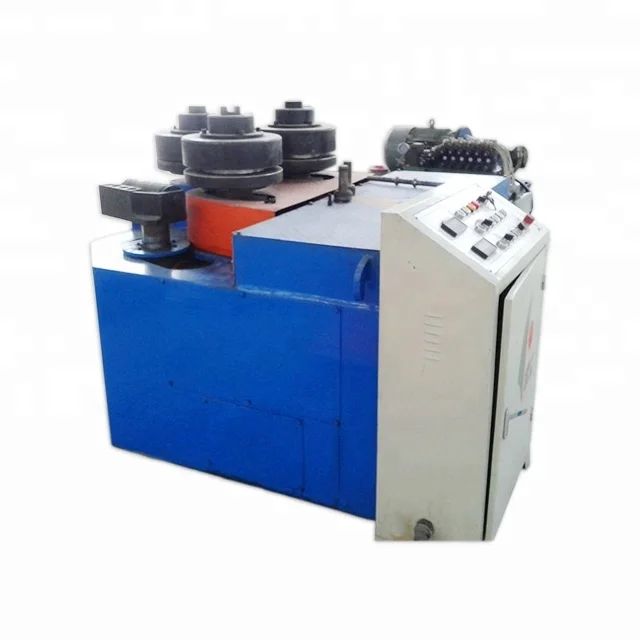

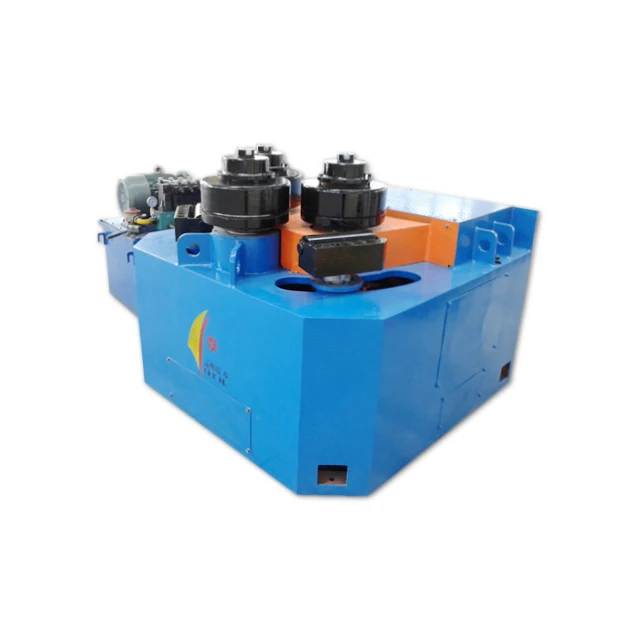

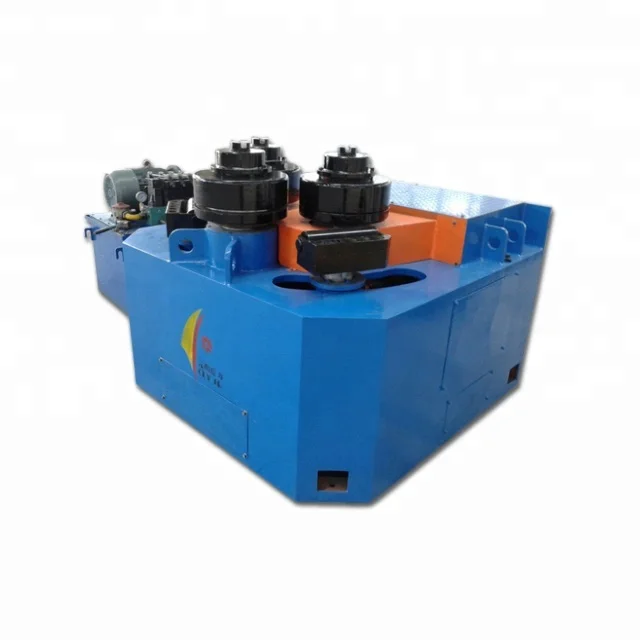

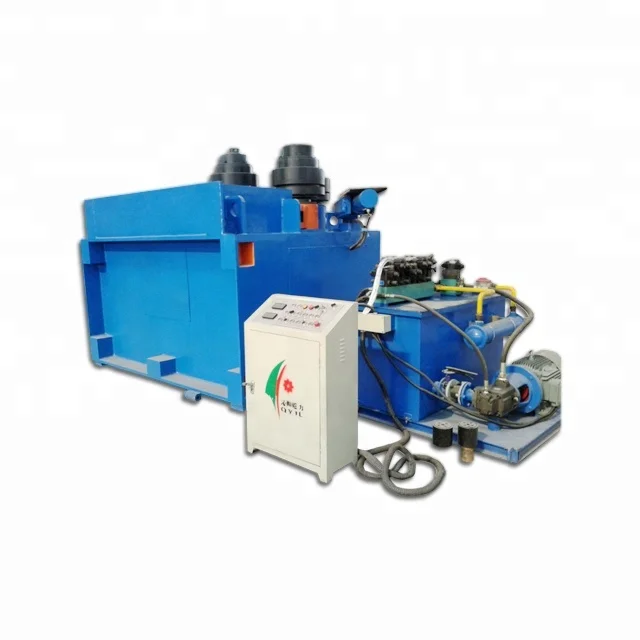

Pipe/tube Steel Bar Profile Bending Machine W24 320
Pipe/tube Steel Bar Profile Bending Machine W24-320
Pipe/tube Steel Bar Profile Bending Machine W24-320
Pipe/tube Steel Bar Profile Bending Machine W24-320
Pipe/tube Steel Bar Profile Bending Machine W24-320
Pipe/tube Steel Bar Profile Bending Machine W24-320

Pipe/tube Steel Bar Profile Bending Machine W24 320

Share on (60772126109):


Price:$28,888.00

Quantity:


Product Overview

Description


Product Description



More details please surf https://qyjljc.en.alibaba.com


We have different models of it, this is a big one. If you want other one, please CLICK HERE

Overview of structure

 · The profiles bending machine is a three roller arc downward structure. It composed of the machine body, side roller part, auxiliary device, main driving part, sensing device, mold parts, hydraulic parts, and electrical components etc. pipe/tube bending machine

\t
\t
The max cross section (mm)
\t
The min bending diameter (mm)
\t
The min cross section (mm)
\t
The min bending diameter (mm)
\t
inward bending of angle steel
\t
200×18
\t
3600
\t
70×6
\t
1500
\t
outward bending of angle steel
\t
200×18
\t
3600
\t
70×6
\t
1300
Detailed Images
\t
Model
\t
W24S-320
\t
Max bending modulus of section (cm3)
\t
320
\t
Bending speed(m/min)
\t
3.5
\t
yield limit of material (MPa)
\t
245

structure of inside

The machine body adopt plate steel structure, all mechanical parts are installed in the internal and external of machine body, constituting the main mechanical transmission part of machine. The main roller rotation is driven by hydraulic motor. Side rollers were driven by gear through hydraulic motor, to achieve the designed line speed and torque.pipe/tube bending machine

Usage

The profiles bending machine is a high efficiency equipment for bending profiles with various specifications, for example, channel steel, angle steel, H beam steel, I beam steel, flat steel, square and round tube and pipe steel, iron and stainless, can pre bend the end of profiles and bend to round, ring, arc, spiral work piece, once

Profile Maker

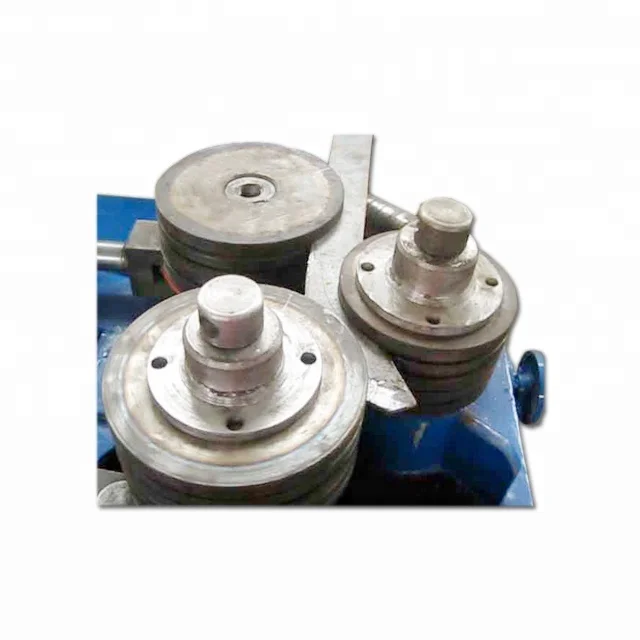

The machine can be equipped with additional device (mold) according to the work piece precision requirement and different profiles

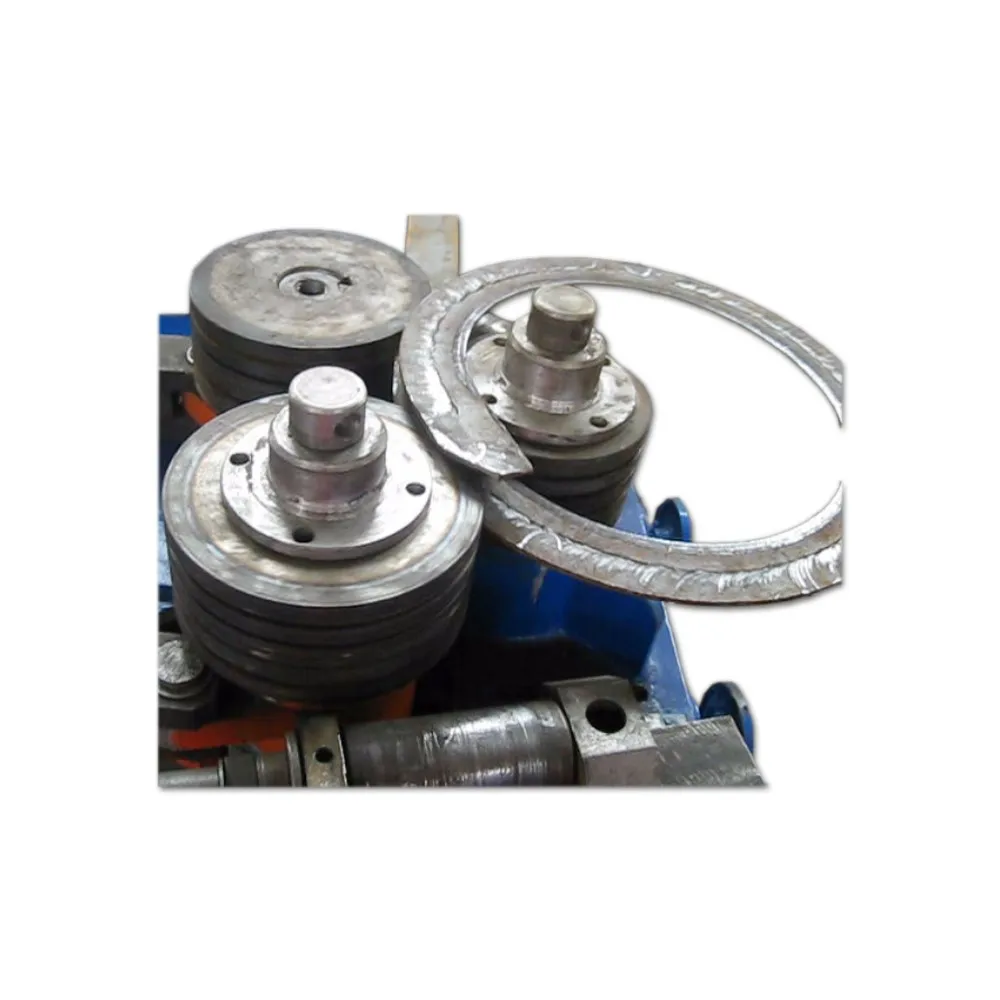

Profiles bending

Profiles bending has symmetric and asymmetric bending.pipe/tube bending machine

Worming pipe/tube bending machine

during the process of rolling, the user should not rotate three rollers and lift the supporting rollers at the same time, in order to avoid machine failure. After three rollers are installed with molds, supporting rollers can be lift up and down.

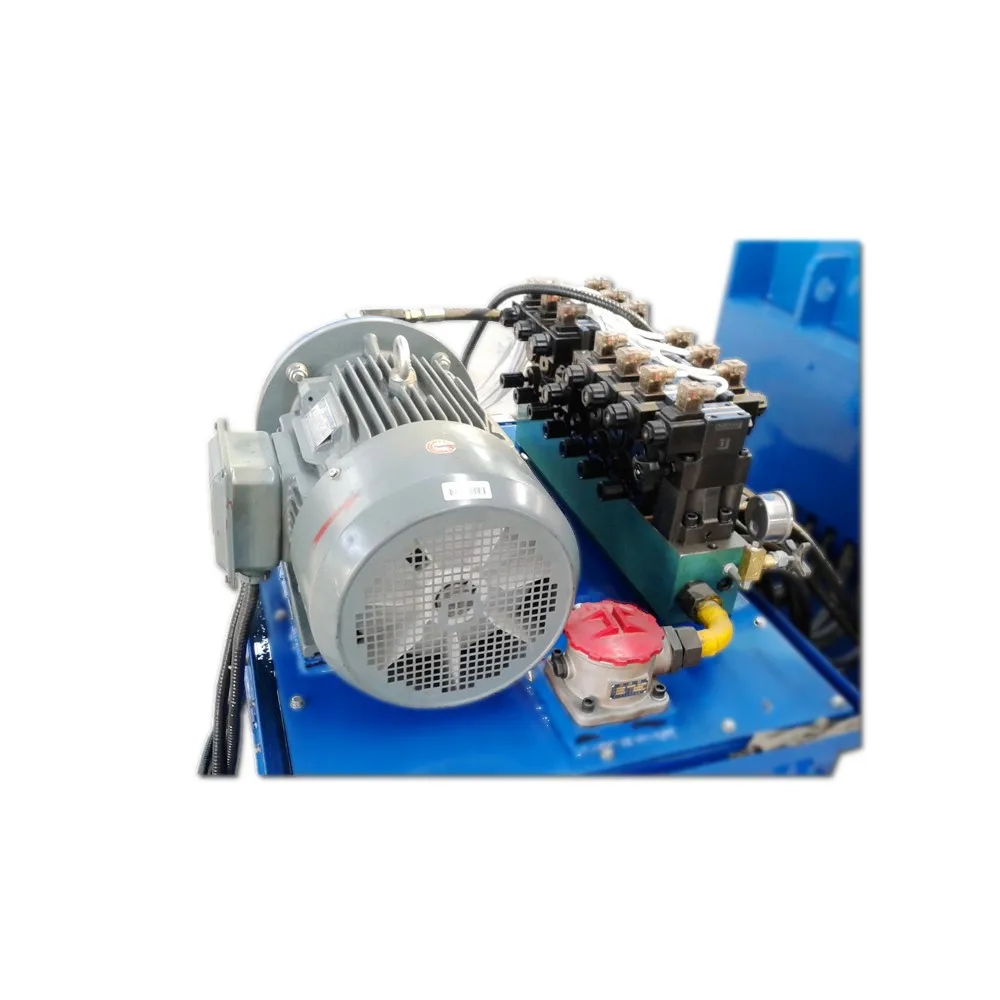

Driving by Hydraulic

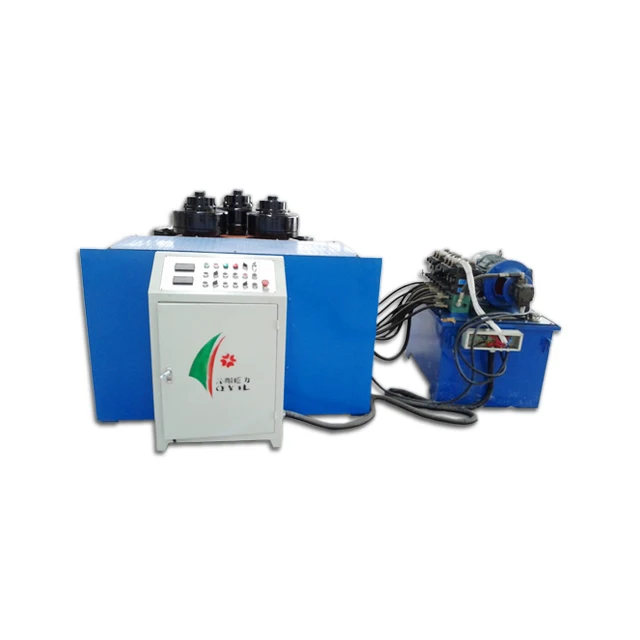

All movements of machine are driven by the hydraulic system, controlled by centralized electric control system, user operate machine through the button on the electric control cabinet pipe/tube bending machine
\t
\t
channel steel model (mm)/
The max cross section (mm)
\t
The min bending diameter/radius (mm)
\t
outward bending of channel steel
\t
40
\t
2000
\t
inward bending of channel steel
\t
40
\t
2000
\t
bending of round pipe
\t
42x4
\t
3000
\t
plane bending of Flat steel
\t
360×60
\t
2000
\t
vertical bending of Flat steel
\t
190×50
\t
2400
Company & Factory

Our company is the largest company of bending machine in the middle area of China.We had focus on it for over 10 years.Many State-owned Companies think highly of our product because it bring a good benefit to them

This is the Gate of company


This is Sale Department


Here are some picture of our factory

Certifications

Reward that we got/Certifications

Here are our Reward,Letter patent,Certification of quality.

FAQ
\t
Q: How does your factory do regarding quality control?
\t
A:Quality is our life. We always attach great importance to quality controlling from the very beginning to the end.
\t
Q: Are you a manufacturer or trading company?
\t
A: We are a manufacturer; JLJC is our group trade mark. We focus on metal pipe/plate processing machinery.
\t
Q:Where is your factory located? How can I visit there?
\t
A: Our factory is located in Qinyang .You can fly to Zhengzhou then we will pack you up there. All our clients, from home or abroad, are warmly welcome to visit us!
Related Products

Other machines

We have various kinds of bending machines which are used in different situation.

Plate Rolling bending machines


Upper roll universal bending machine


CNC 4 Roller bending machine


Profile bending machine


Large bending machine


Horizontal bending machine


Contact With Us
\t
Official website:www.qyjljc.com/main.php
Fax:+86 391 5299984
Tel:+86 391 5299885
WhatsApp:+86 15603918708
Packing & Delivery

Details of Packing

Steel pallet,Seaworthy packing
Delivery Time 15-45 days after confirming contract
