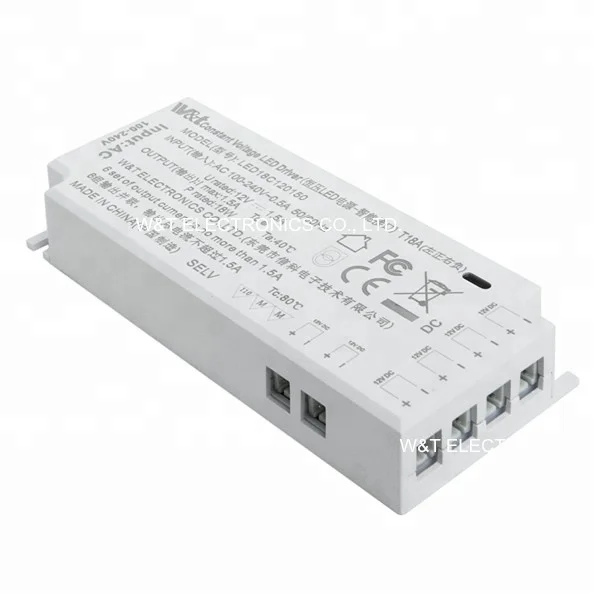

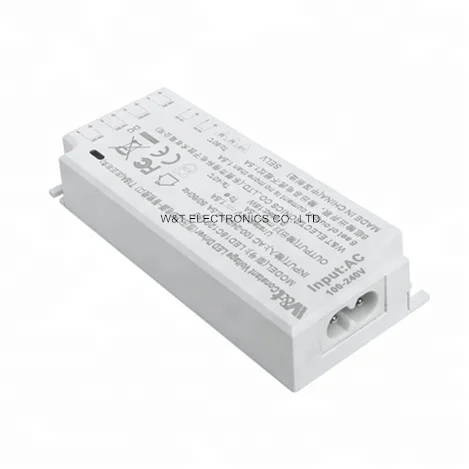

CE FCC CCC ROHS 12V 24V 1A 1.5A 2A 18W 24W indoor using Constant voltage led driver ic LED Power supply Driver

Input

Voltage

90-264VAC universal full range

Frequency

47-63Hz

Current

<1.5A@100V AC input, full load condition

Inrush Current

<COLD START 45A(twidth=440 s measured at 50% Ipeak) at 230VAC

Leakage Current

<2.5mA Max. at 240VAC input

Output

PART NO.

AD18W12

AD18W24

Voltage

12.0V

24.0V

Max Load

1.5A

1.33A

Range

11.4-12.6V

22.8-25.5V

Ripple Noise(MAX)

120mV

240mV

Efficiency(MIN)

≥80%

≥80%

Output MAX

18W

18W

Protection

Over Voltage

13.8~15.0V

26.5~28.0V

Shut down and latch off, recover after re-start up

Over Load &

Short Circuit

When power supply over 105%~150 max load or short circuit acted, power supply will be shutdown and recover automatically after the fault is removed

Over Temperature

Over 95℃,the power supply will shutdown.

Enviroment

Temperature

Operating:-20~70℃;De-rating:45~70℃:2.5%/℃;Storage:-40~+85℃

Humidity

Operating: 20%~90% RH(non condensing);Storage:10%~95% RH(non condensing)

Safety

Withstand voltage

I/P-O/P:3KVAC,I/P-PE:1.5KVAC,O/P-PE:0.5KVAC,1 minute

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG>100MΩ/500VDC at 25℃/70% RH

Safety standard

U L 60950-1 2nd,CSA C22.2 No.60950-1-07 2nd,TU EN 60950-1:2006, UL1310 Class 2.

IEC 60950-1:25005,standard,EN61347-1,EN61347-2,EN61347-13

EMC

EMI

EN 55032 CLASS B,FCC CFR 47 PART 15 CLASS B,CNS 13438 CLASS B

Compliance to EN55032,EN61000-3-2 Class A,EN61000-3-3, EAC TP TC 020
