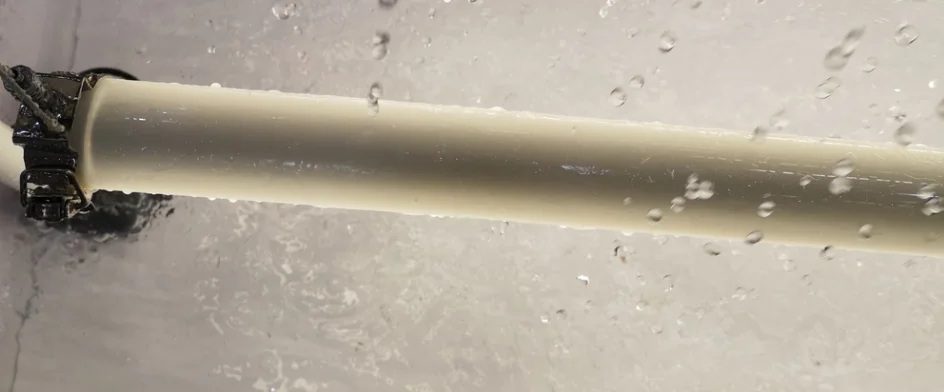

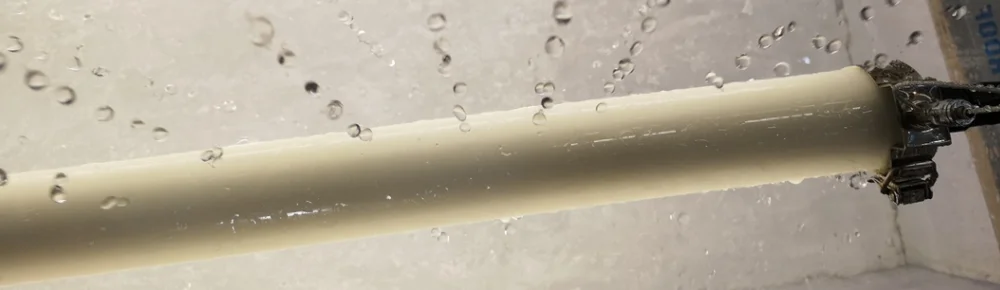

The IP69K rating provides protection against ingress of dust and high temperature, high pressure water. The IP69K rating is the highest protection available.
What are the advantages of IP69K?
In environments that require heavy washdown, such as in the food processing industry, the combination of water, chemicals, high pressures and temperatures can prove fatal for electronic circuits and instrumentation. The IP69K rating offers complete assurance that the piece of equipment that has undergone that tests is both durable and resistant and conforms to the highest protection rating on the scale.
Product Description
Some parameters:
Item NO.
LTP-201
LTP-301
LTP-401

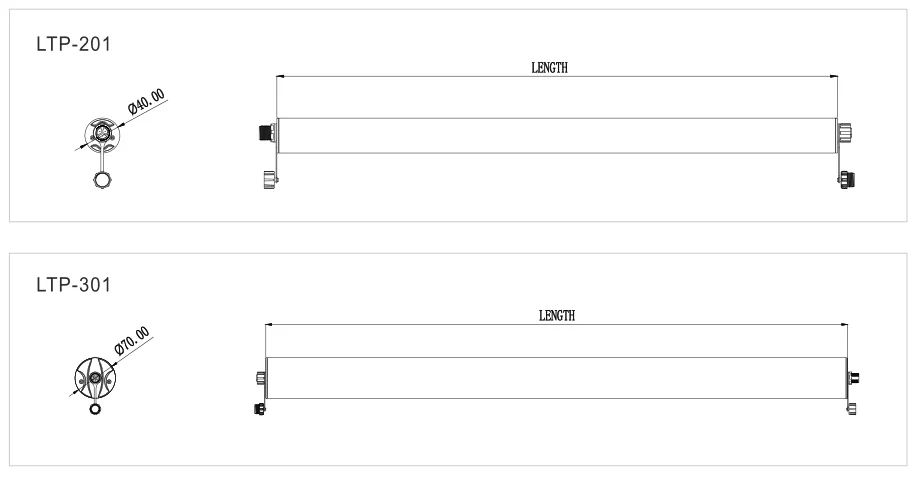

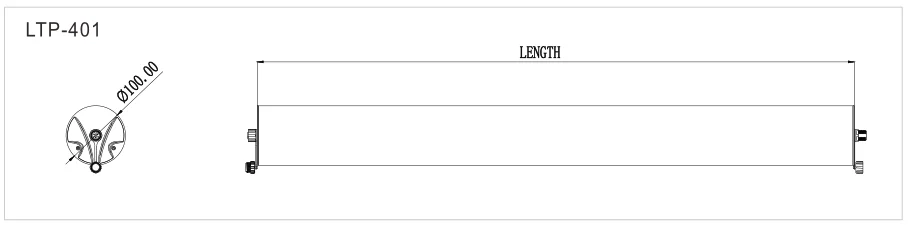

Size
600/900/1200/1500*φ40mm
600/900/1200/1500*φ70mm
600/900/1200/1500*φ100mm
Power
10W/16W/20W/25W
15W/24W/30W/35W
30W/40W/60W/70W
Input Voltage
AC100-270V/ AC230V/ AC120V/DC24V
LED light source
SANAN/ SAMSUNG SMD2835, CRI>80Ra, CRI>90Ra for Option

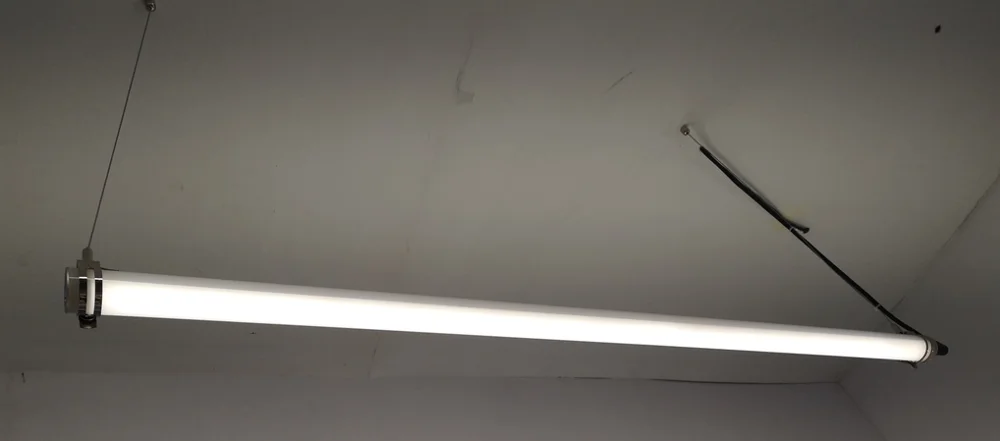

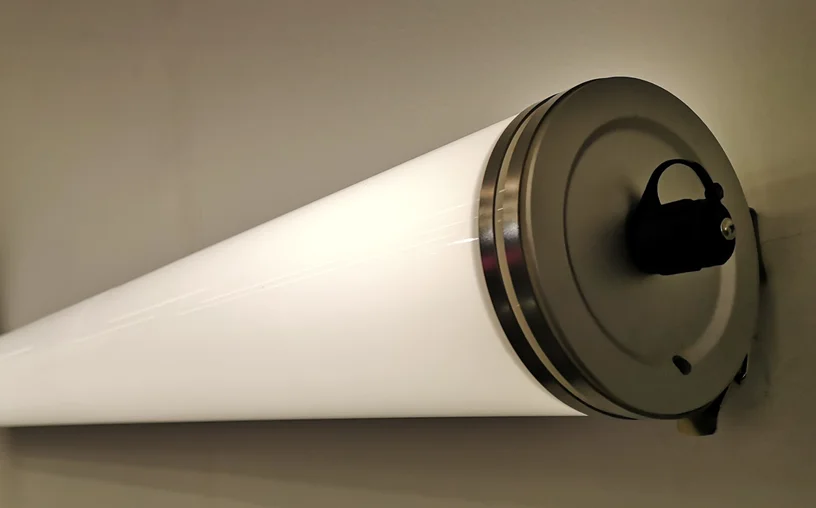

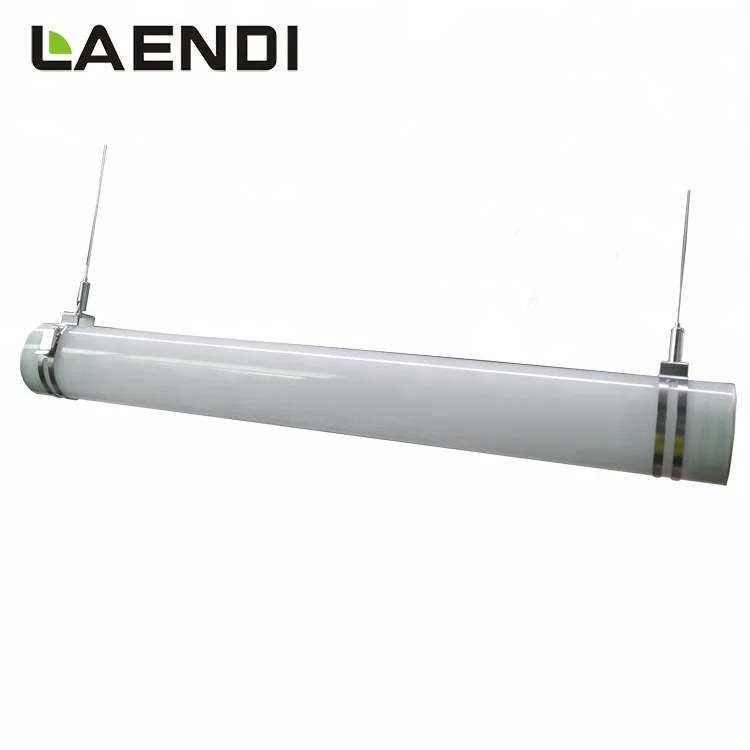

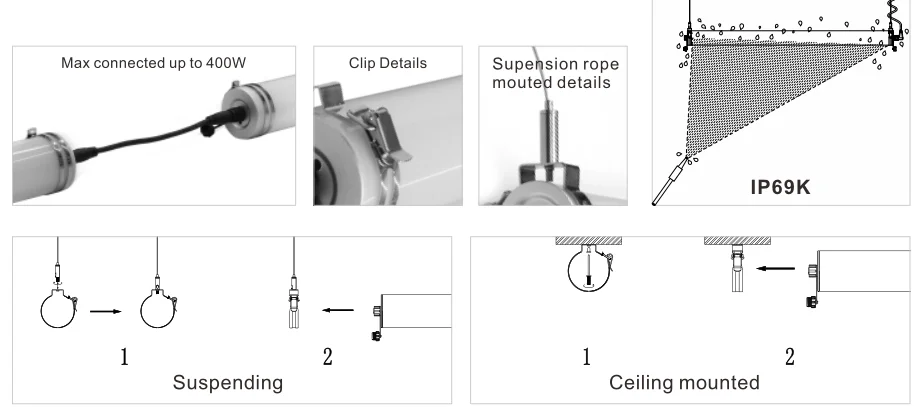

Available for ceiling mounted installation and suspended installation, Stainless brackets and suspended rope can be matched. Normal with IK10 metal connector and cable on one side, double sizes can be done.
2. PC & PE & Acrylic Cover material
1) PC Type : Anti-UV, IK10 High Impact resistance ,Anti weak base and weak acid .
2) PE Type : Anti-ammonia gas , Anti-chlorine gas, Corrosion-proof .
3) Acrylic Type: The light transmission rate is over 92%, good processing performance, harmless to human, and no toxic gas generated when the gas is burned.

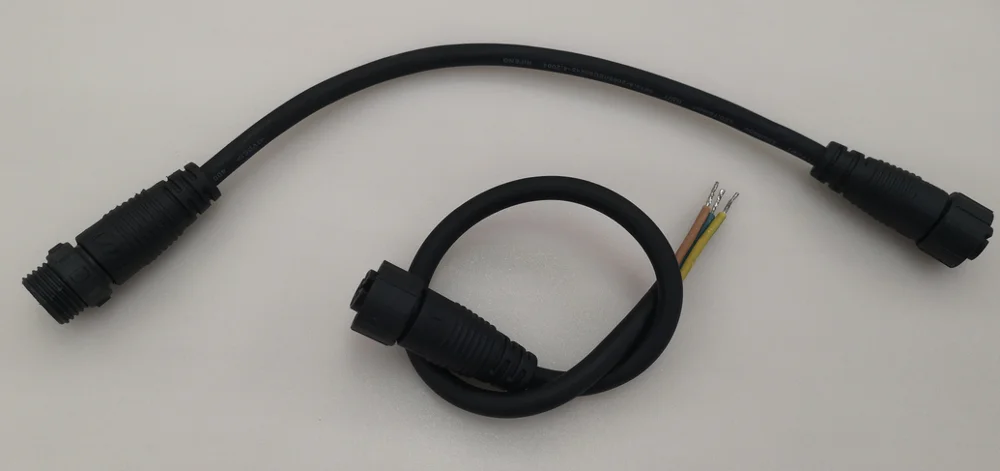

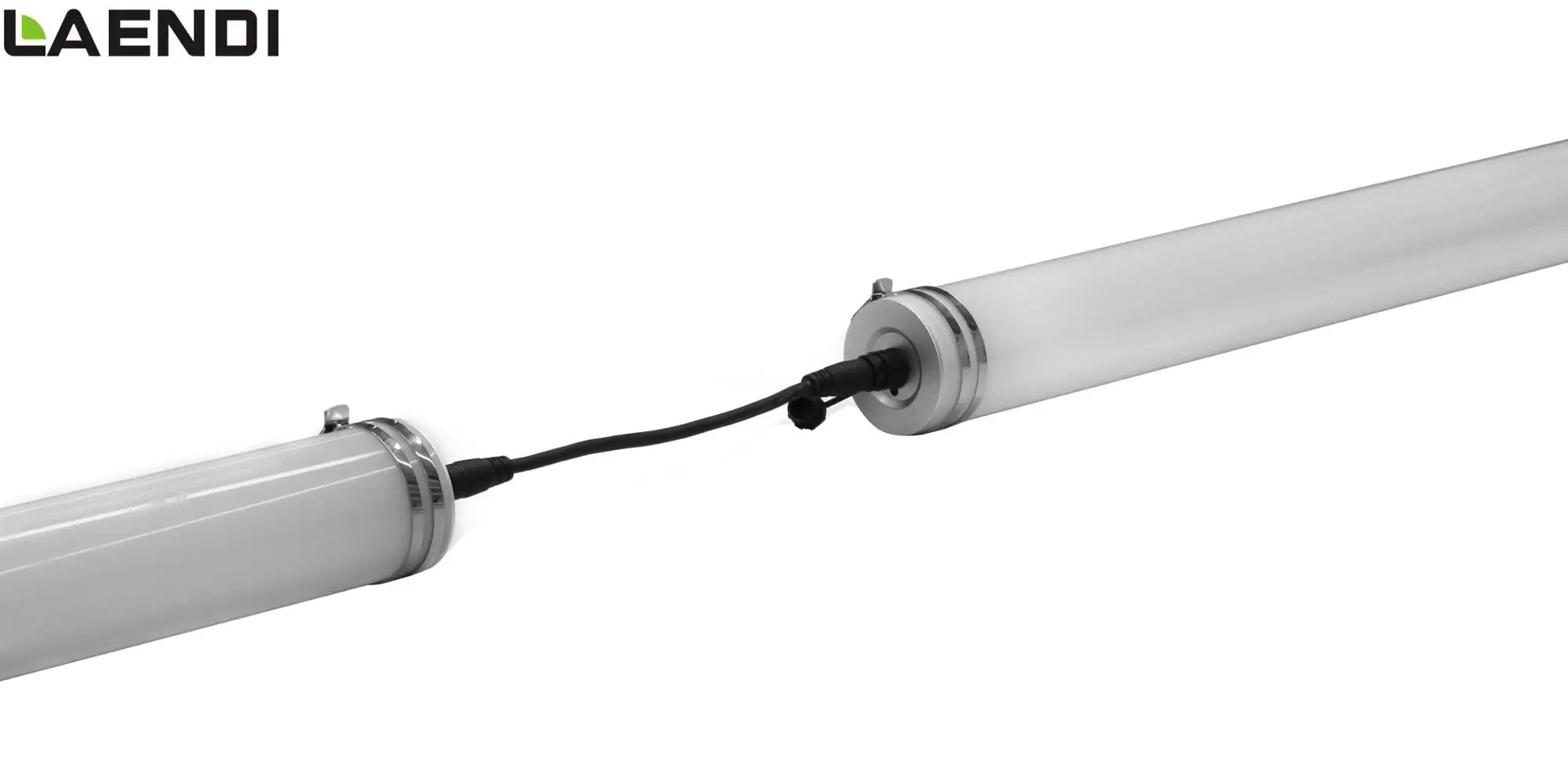

3. IP68 quick connector
Self-mounted cable connectors with own mould, Eesy for series connecting one by one, can be choose to connect one side or on both sides.

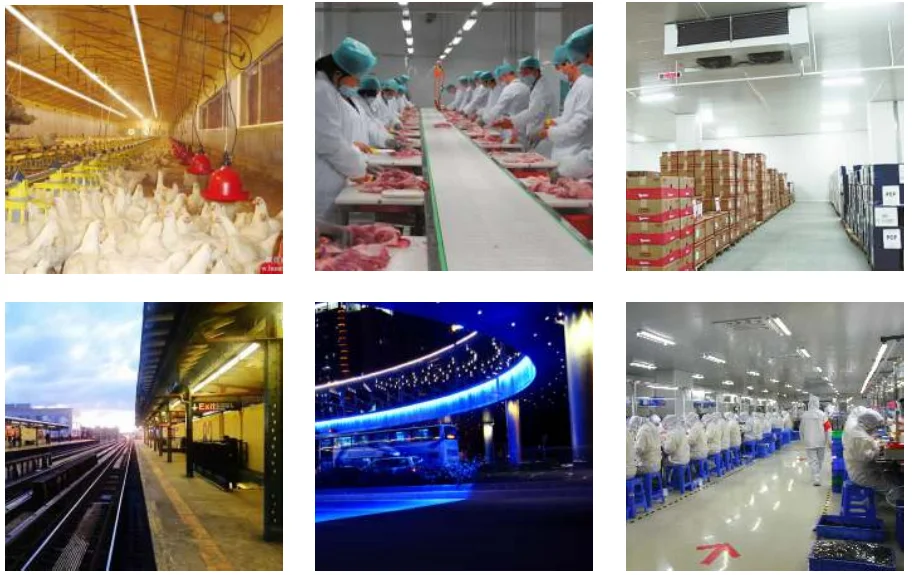

Product Uses
* Parking place * Tunnel / Corridor / Gallery * Railway / Bus / MTR Station * Warehouse / Factory * Food/Meat processing industry * Chicken sheds * Livestock farm * Gas station / Car Washes
* pharmaceutical factory
* ferry, boat

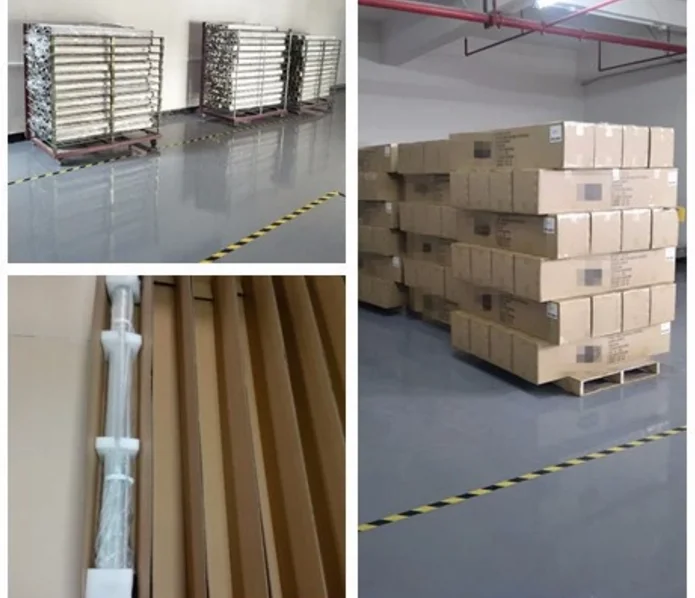

Packaging & Shipping

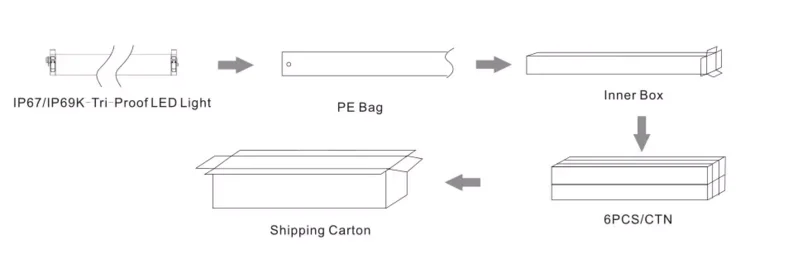

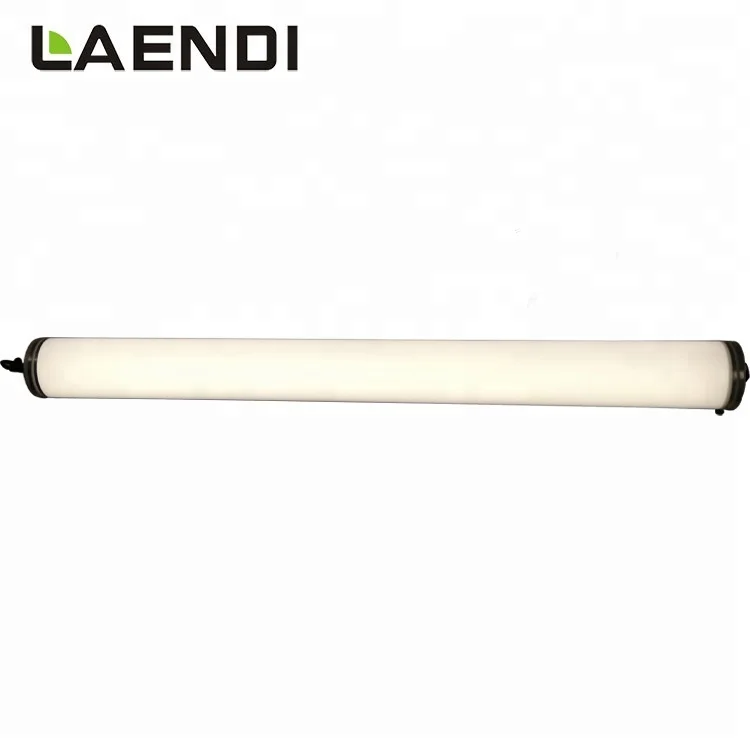

Packaging and Shipping of IP69K IP67 Circular Water Proof LED Light:
