Submerged shielding arc welding wire EH14

Product Overview

Description

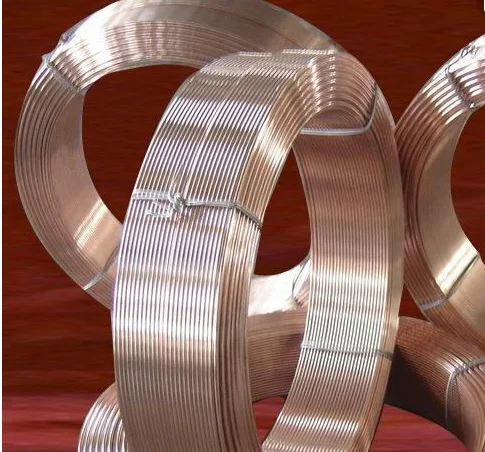

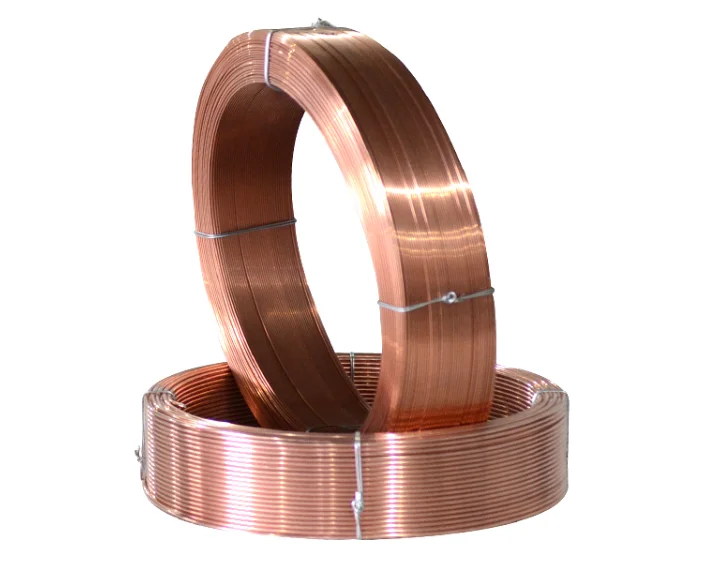

                            Submerged shielding arc welding wire EH14



Description

submerged arc welding products manufactured by our company have excellent welding and machinery performance and be used with many kinds of welding flux.



In the light of the characteristics of the submerged arc welding wire, our company has mainly developed products package from large heavy single package including products with special package style such as fine rond package products with single weight f250kgs,300kgs and 350kgs.



Submerged arc welding wire are widely used in ship building industry, large steel structure,pressure vessels, bridges and so on. Some products with special marks have been used in welding of vessels in the nuclear power station.



Product Details





Item	Specifications	Chemical Composition
		C	Mn	Si	S	P	Cr	Ni	Cu	Ti	Mo
AWS E112	2.0MM 2.5MM 3.2MM 4.0MM 5.0MM	≤0.1	0.3-0.6	≤0.03	≤0.03	≤0.03	≤0.2	≤0.3	≤0.35	-	-
AWS EM12		≤0.1	0.8-1.1	≤0.07	≤0.03	≤0.03	≤0.2	≤0.3	≤0.35	-	-
AWS EH14		≤0.12	1.5-1.9	≤0.07	≤0.035	≤0.035	≤0.2	≤0.3	≤0.35	-	-
AWS EM13K		≤0.14	0.8-1.1	0.6-0.9	≤0.035	≤0.035	≤0.2	≤0.3	≤0.35	-	-

Machanical Properties of Deposited Metal

Item	Machanical Properties of Deposited Metal		Application
	kv2(J)
	Temp(℃)	AKV(J)
AWS E112	-20	≥27	Suitable for welding structures fabricated by 450MPa grade steel, e.g. LPG cylinder or ship structures as same strength.
AWS EM12	-20	≥27	For welding 450MPa-500MPa grade structures, such as boiler, bridges, pressure vessels as well as LGP cylinder.
AWS EH14	-40	≥27	Suitable for fabricating 500MPa-550MPa grade strength structures, as ship hulls, bridges, pressure vessels and H-beam structures.
AWS EM13K	-20	≥27	For welding structures made by 500MPa grade carbon steels, such as boiler, bridges, pressure vessel etc.





Advantages

The electric arc is steady , deslagging process us easy , welding line is formed well and the welding speed is fast. There is no splashing and arc stimulation in the melting of welding wire. The welding line surface is bright and clean, and the welding quality is guaranteed and it is prone to realize mechanization and automatic welding.

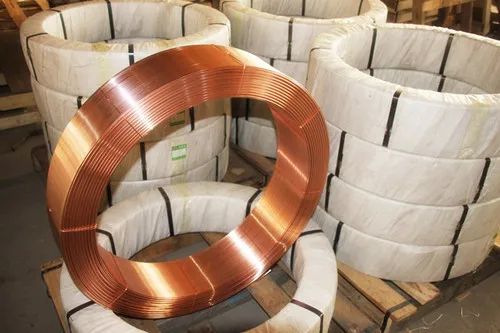

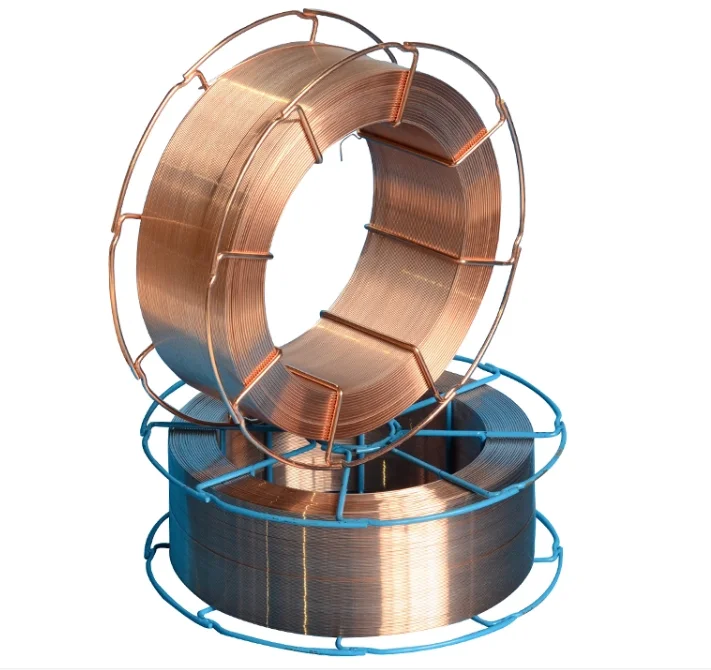

Packing & Delivery

Packing:  5kgs/spool

              15kgs/spool

              20kgs/spool



Delivery:15 days after order confirmed
