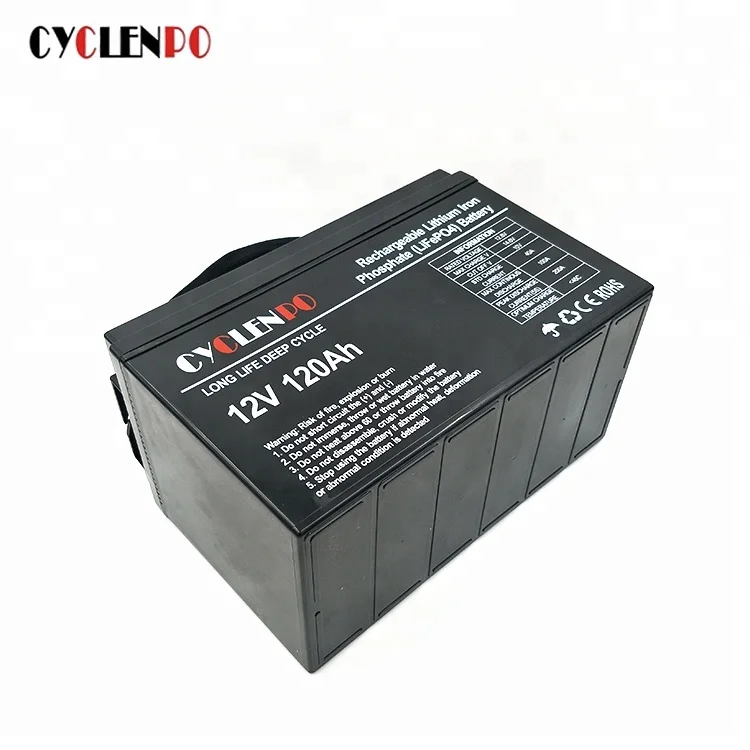

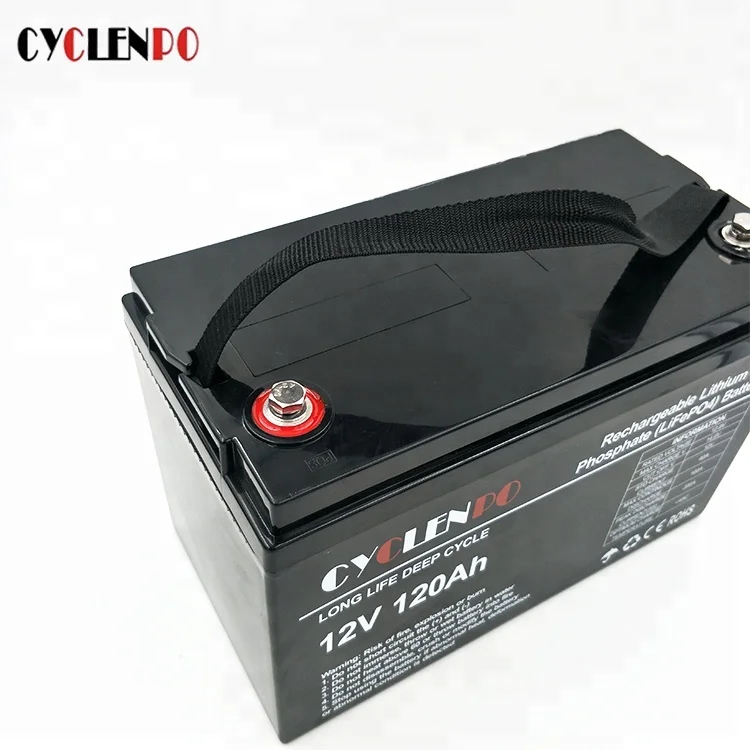

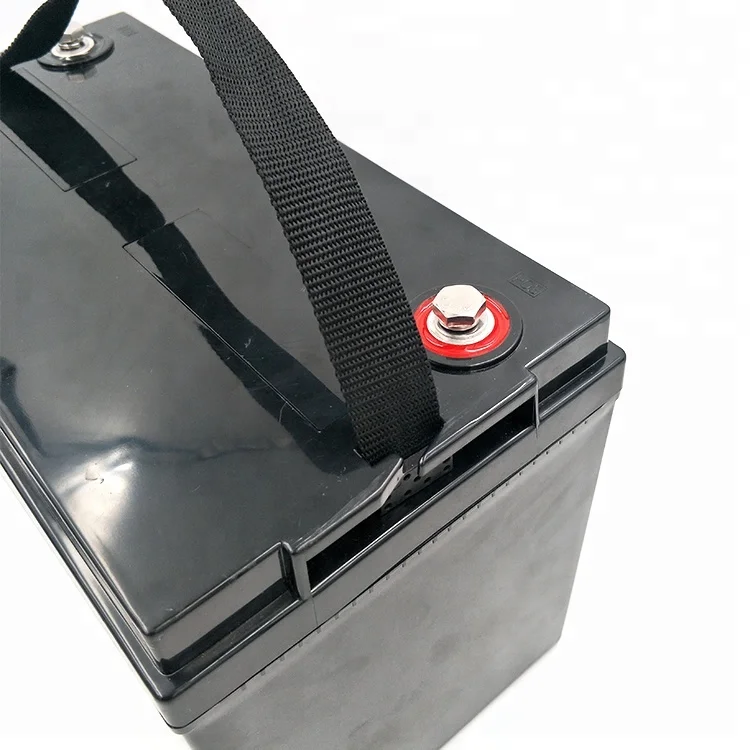

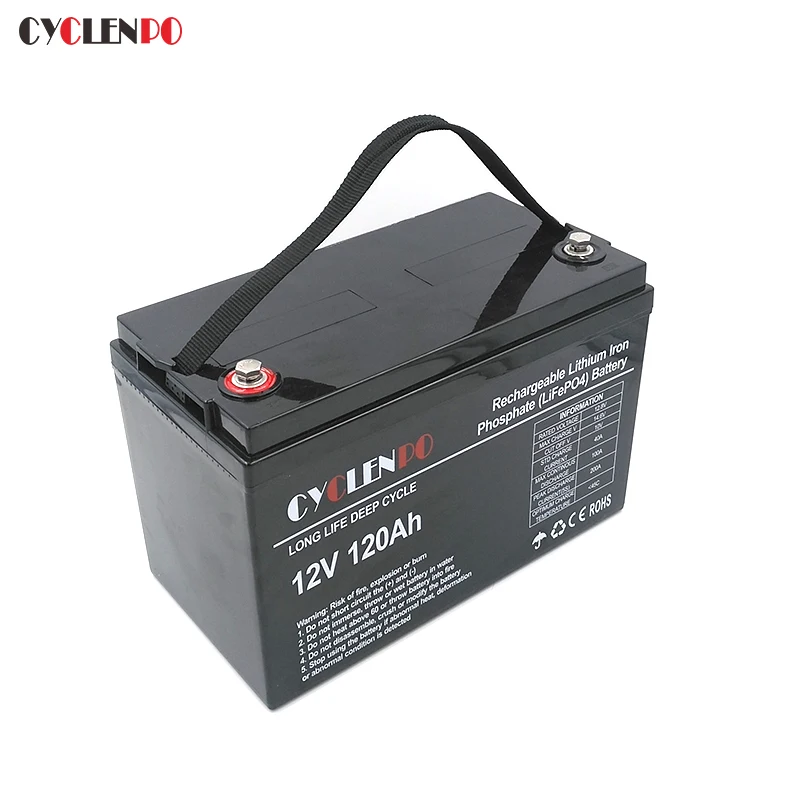

Factory direct supply deep cycle lithium lifepo4 12v 120ah battery pack for ev rv
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (60772283724):
Product Overview
Description
Product Description
Normal performance | ||||||
NO | Item | General Parameter | Remark | |||
1 | Model | 3.2V 120AH CATL | Single | |||
2 | Casing material for single cell | Nickel plated steel | ||||
3 | Standard capacity(0.2C5A) | 120Ah | ||||
4 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) | |||
5 | Max.Charge voltage | 14.6V | 3.65V(Single Ave. charge Voltage) | |||
6 | Cut-off voltage | 10V | 2.50V(Single Ave. Discharge Voltage) | |||
8 | Standard charge current | 50A | 0.5C | |||
9 | charging Time | About 5h | ||||
10 | Max Continuous discharge current | 120A | 10C | |||
11 | Peak discharge current | 150A | 1.25C 5 mins | |||
12 | Battery dimension | 328±1*171±1*215±1mm or customized | ||||
13 | (Approx.)Total weight(Approx.) | About 12kg | ||||
14 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 20mΩ | ||||
15 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~45℃ | |||
discharge | -20℃~45℃ | |||||
storage | -20℃~45℃ | |||||
Features
1. Lighter in weight, heavier on power
2. Excellent cycle life. Our battery has more than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 90% vs lead acid recommended 50% depth of discharge.
4. Maintenance free or automatic repair
5. Safer performance.Our batteries have passed different safety tests.
6. Bluetooth function and heated function can be added.
1. Lighter in weight, heavier on power
2. Excellent cycle life. Our battery has more than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 90% vs lead acid recommended 50% depth of discharge.
4. Maintenance free or automatic repair
5. Safer performance.Our batteries have passed different safety tests.
6. Bluetooth function and heated function can be added.
Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
Trail order, OEM orders are welcome!
Different voltage and capactiy pack is workable!
Please tell us your requirements, we will work it out
Different voltage and capactiy pack is workable!
Please tell us your requirements, we will work it out
