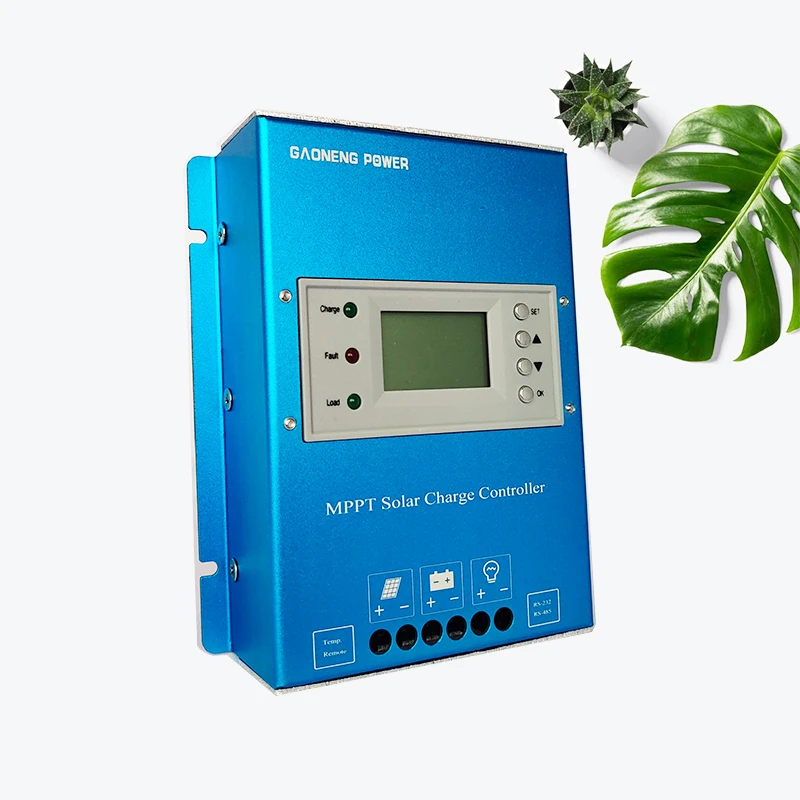

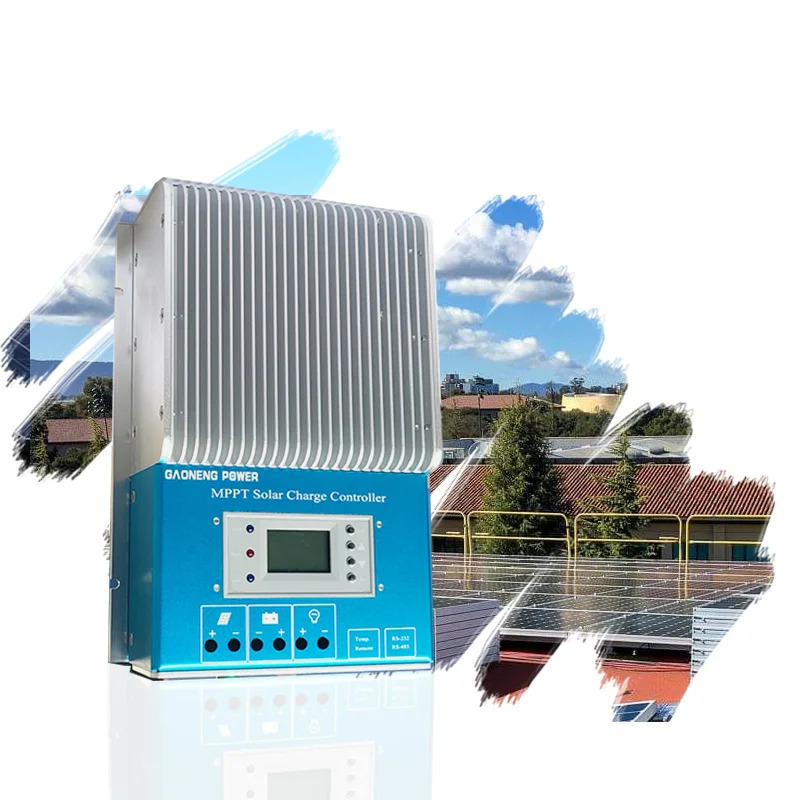

China Factory price 40A /50A /60A MPPT solar charge controller

GNMCSeries

20A

30A

40A

50A

60A

Product category

Controller Properties

MPPT (maximum power point tracking)

MPPT efficiency

≥97%

Standby power

0.5W~1.2W

System voltage

Automatic recognition

Heat-dissipating method

Intelligent fan cooling

Range of system voltage identification

12V system

DC10V~DC15V

24V system

DC18V~DC30V

36V system

DC32V~DC40V

48V system

DC42V~DC60V

Input

Characteristics

Max.PV input voltage(VOC)

DC150V

Start the charge voltage point

Battery voltage + 3V

Rated PV power

12V system

260W

390W

520W

650W

780W

24V system

520W

780W

1040W

1300W

1560W

36V system

780W

1170W

1560W

1950W

2340W

48V system

1040W

1560W

2080W

2600W

3120W

Charge Characteristics

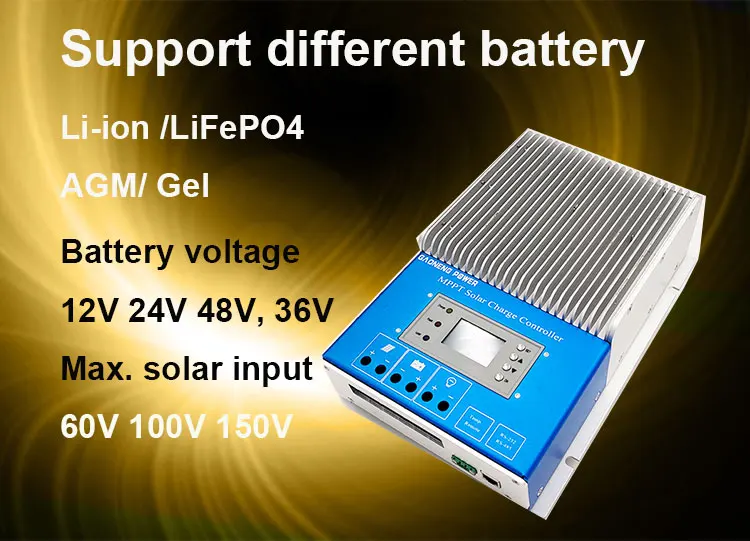

Selectable Battery Types

 (Default Gel battery)

Sealed lead acid, Gel battery, Flooded

(Other types of the batteries also can be defined)

Charge rated current

20A

30A

40A

50A

60A

Temperature Compensation

-3mV/℃/2V (default)

Charge Method

3-Stage: constant current(fast charging)-constant voltage-floating charge

Output Voltage Stability Precision

≤±1.5%

LOAD Characteristics

Load voltage

The same as the battery voltage

Load rated current

20A

Load control mode

On\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode

Low voltage protection

The default protection point is 10.5V, and it is restored to 11V (can be set)

Setup mode

PC software /APP/ controller display

Display &

Communication

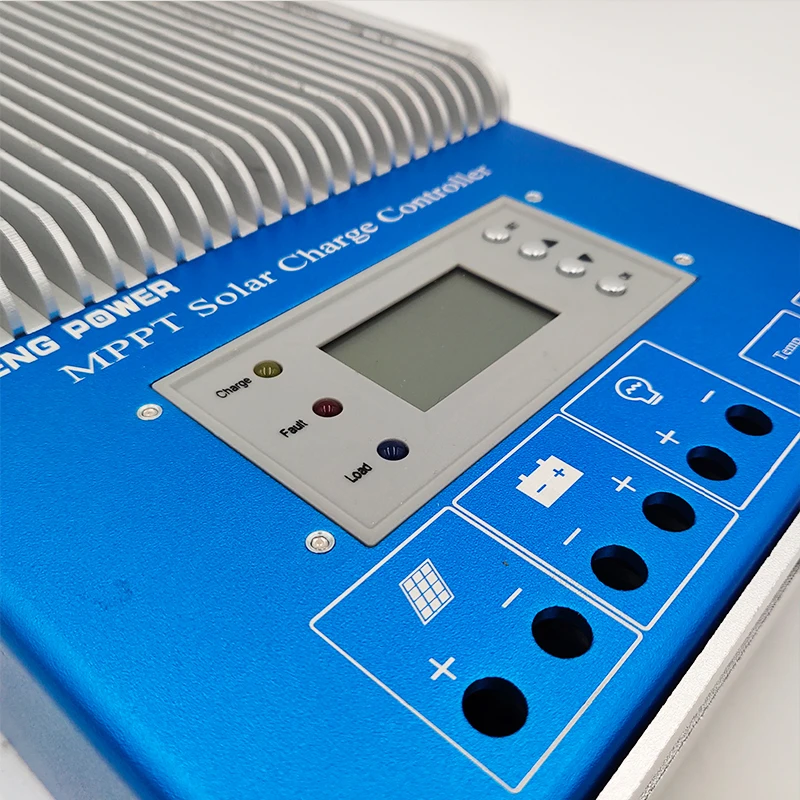

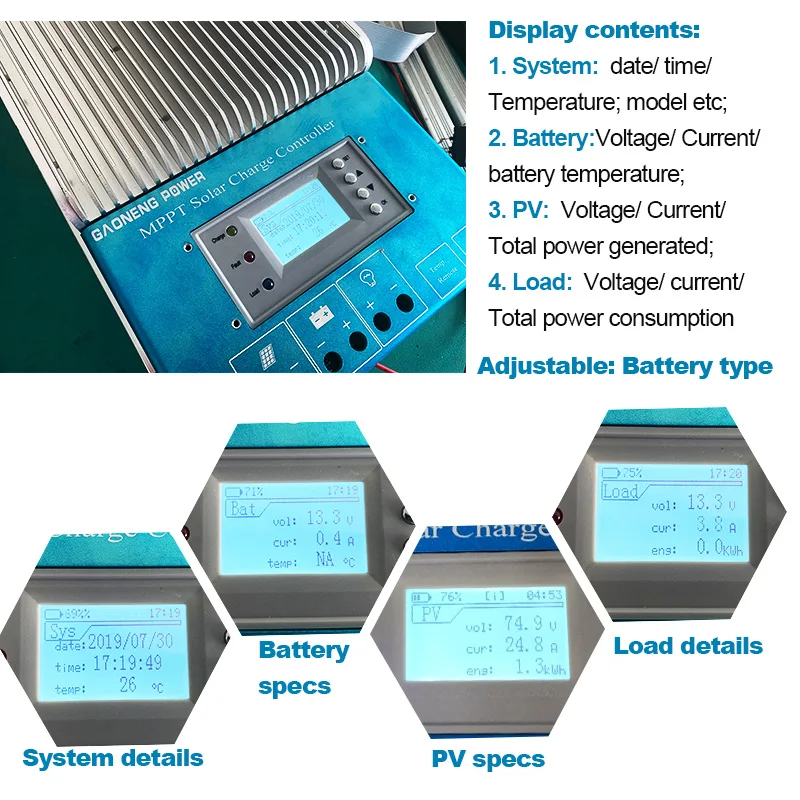

Display mode

High-definition LCD segment code backlight display

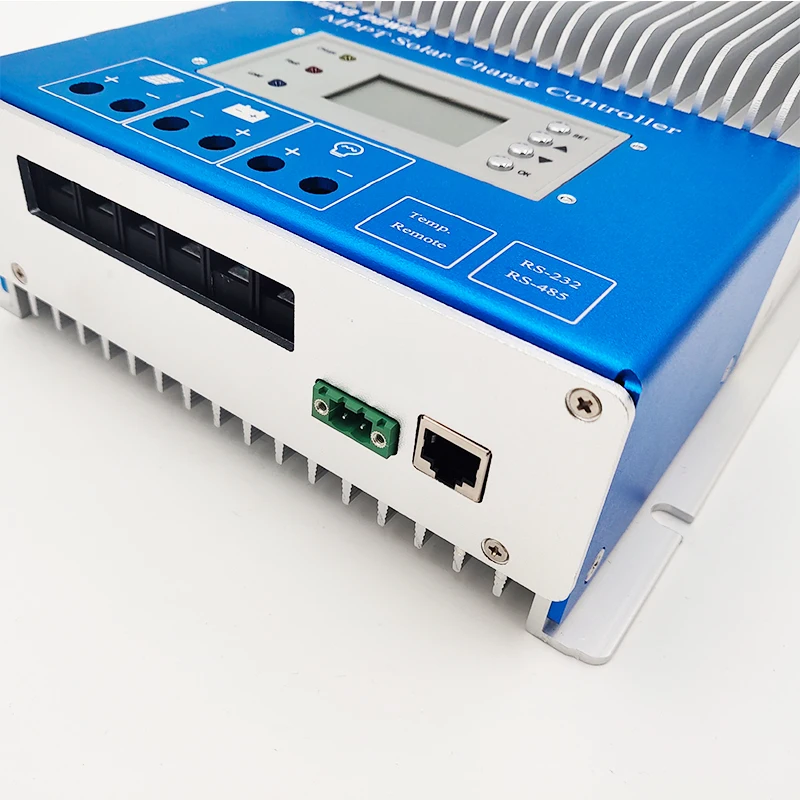

Communication mode

8-pin RJ45 port/RS485/support PC software monitoring/

support WiFi module to realize APP cloud monitoring

Other Parameters

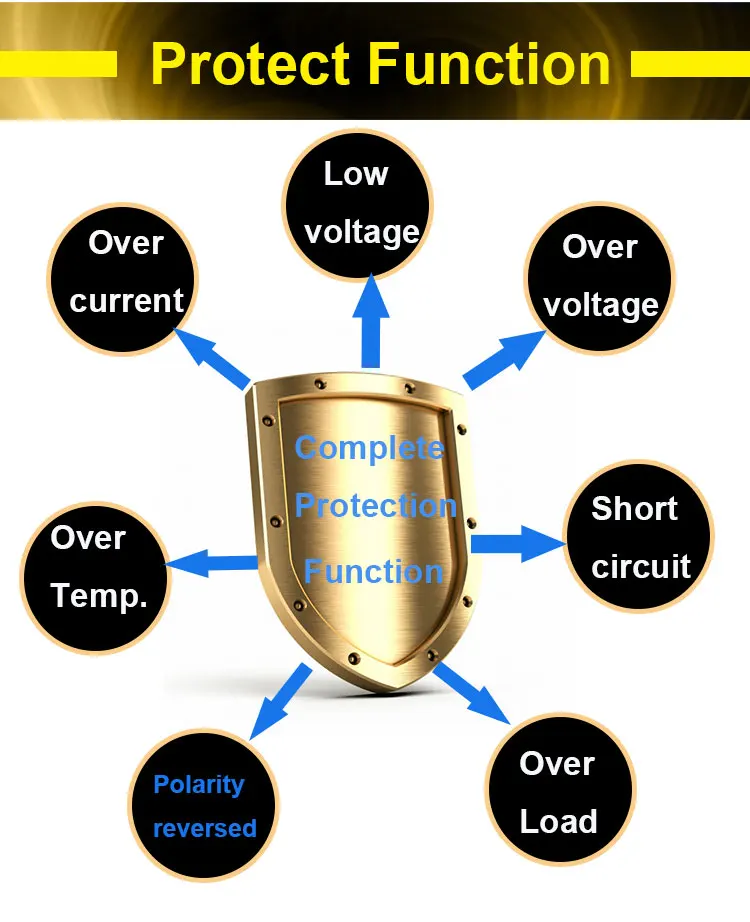

Protect function

Input-output over \ under voltage protection,

Prevention of connection reverse protection,battery shedding protection etc.

Operation Temperature

-20℃~+55℃

Storage Temperature

-40℃~+75℃

IP(Ingress protection)

IP32

Noise

≤40dB

Altitude

0~3000m

Max. connection size

20mm2

30mm2

Net Weight (kg)

1.5

3.1

4.6

Gross Weight (kg)

2.2

3.8

5.3

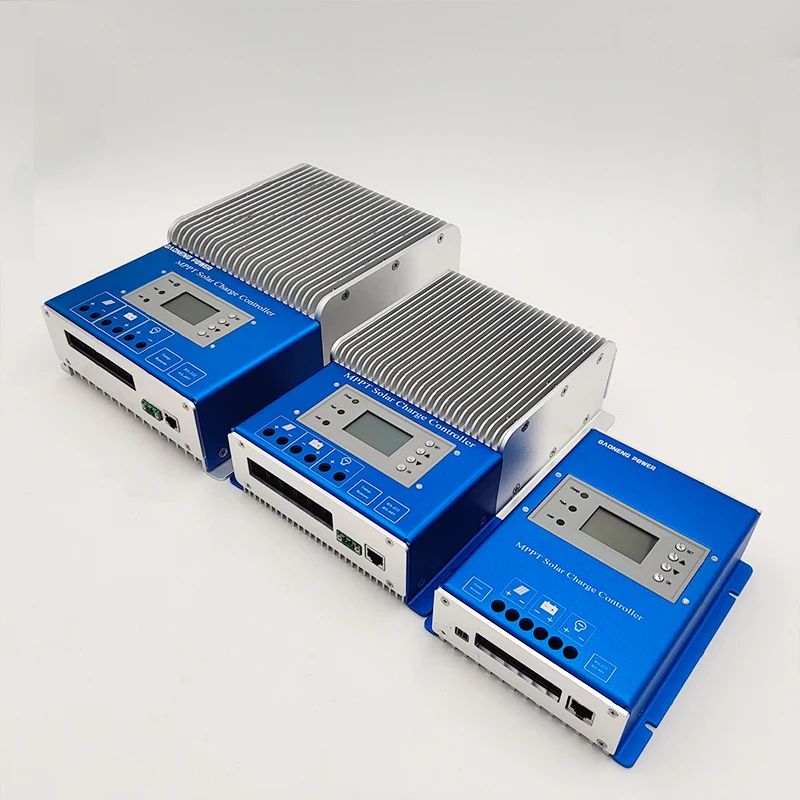

Product Size(mm)

183*145*52

256*188*76

306*210*90
