Product Overview
Description
Product Overviews

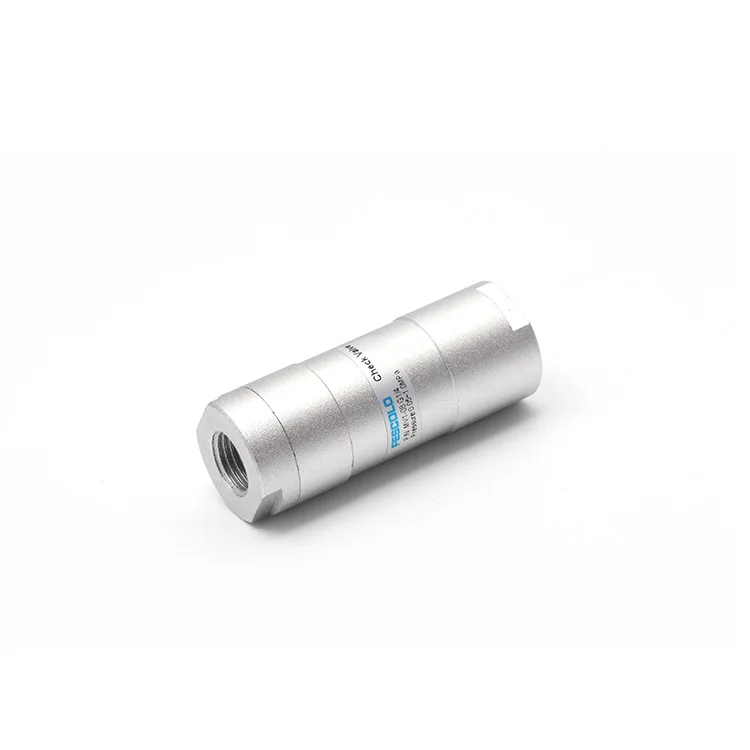

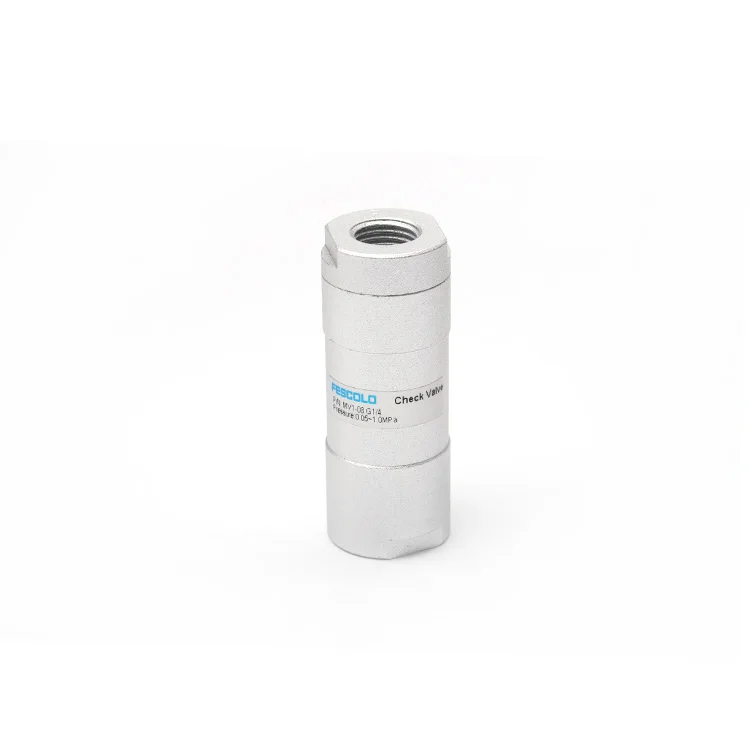

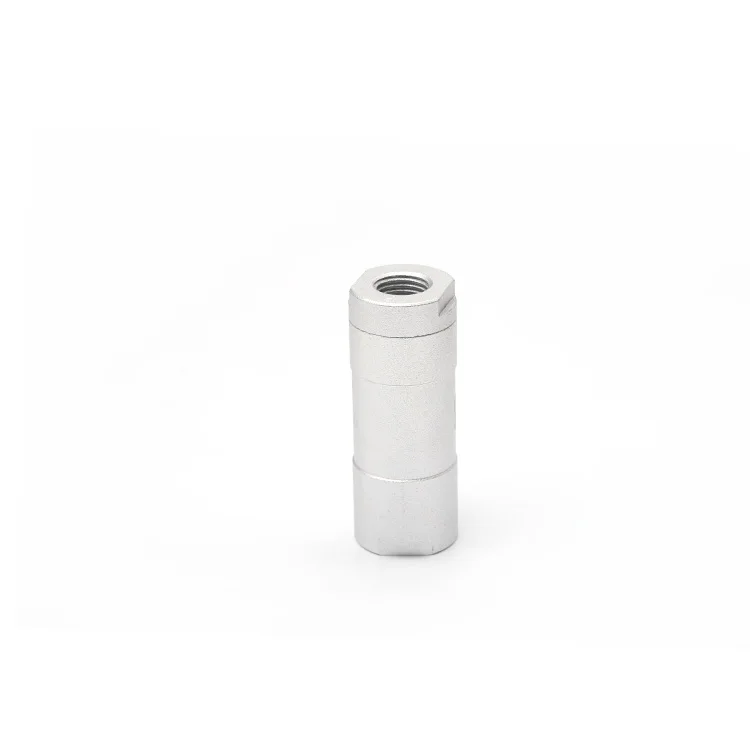

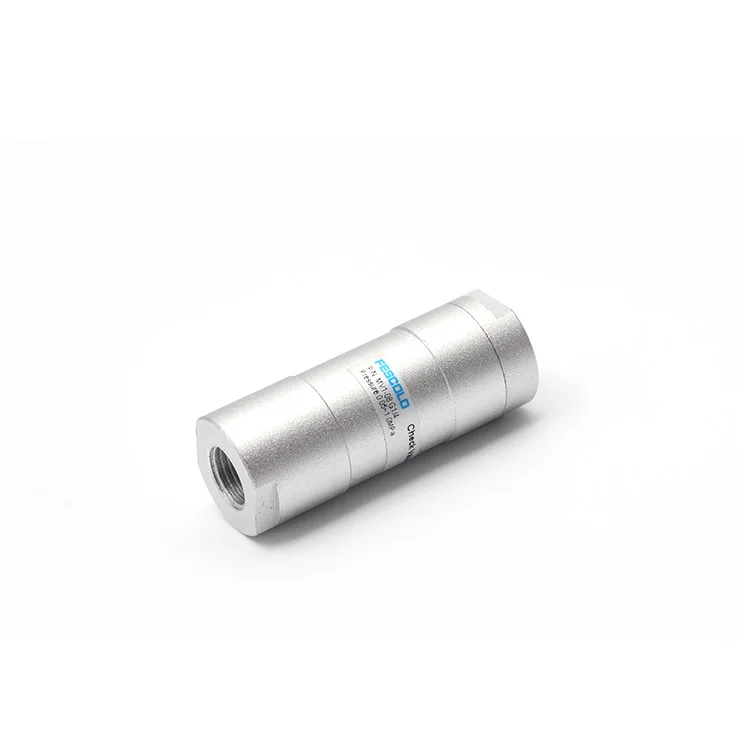

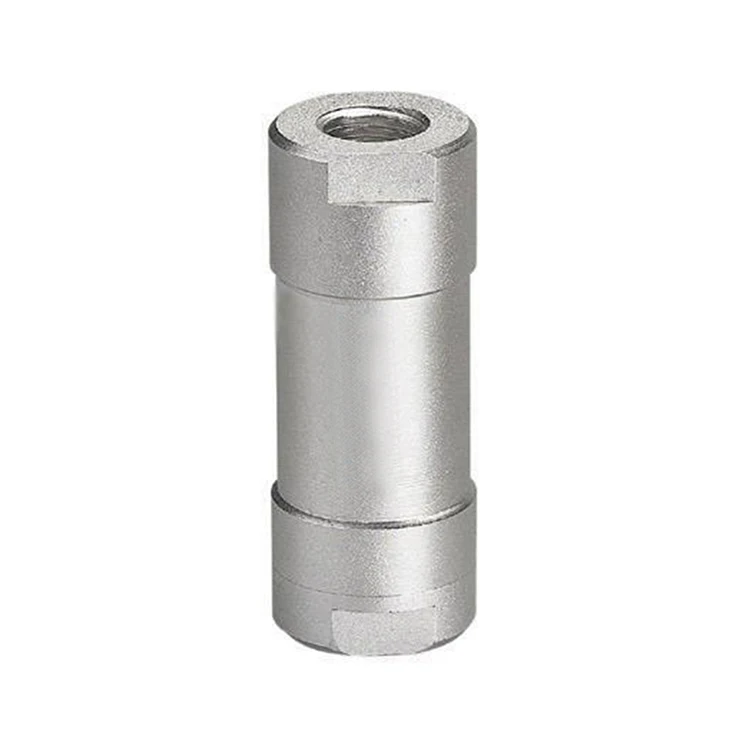

♦ Product name: KA-08 Series Check Valve:
♦ Ordering code:
KA - 08
Valve type Bore size
♦ Characteristic:
1) The KA series check valve is unidirectional control element.
2) When passing the valve, the working medium can only flow along a given direction.
3) In operation, when the medium pressure direction changes, the valve functions to stop the return of the medium in the system.
4) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT etc.
♦ Specification:
| Specification | Parameter | ||||
| Applicable medium | Compressed Air | ||||
| Pressure range | 0.05~0.8 MPa | ||||
| Proof pressure | 1.0MPa | ||||
| Negative range | -100kpa (10Torr) | ||||
| Temperature range | 0℃~55℃ | ||||
| Respond time | 0.03 seconds | ||||
Advantages
company profile
Certifications
FAQ
1) Can you provide a sample before a big order?
Answer: Yes, we can provide a sample.
2) What 's the delivery date?
Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.
3) Can you make NPT thread for the port size?
Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.
4) Are you able to make Non-standard or customized air cylinders?
Answer: One of our biggest advantage is for non-standard and customized products.
5) Which port can you delivery?
Answer: Ningbo, Shanghai, Guangzhou, Qingdao.
