Small variable speed woodworking lathe Item# CWL1018D

Product Overview

Description

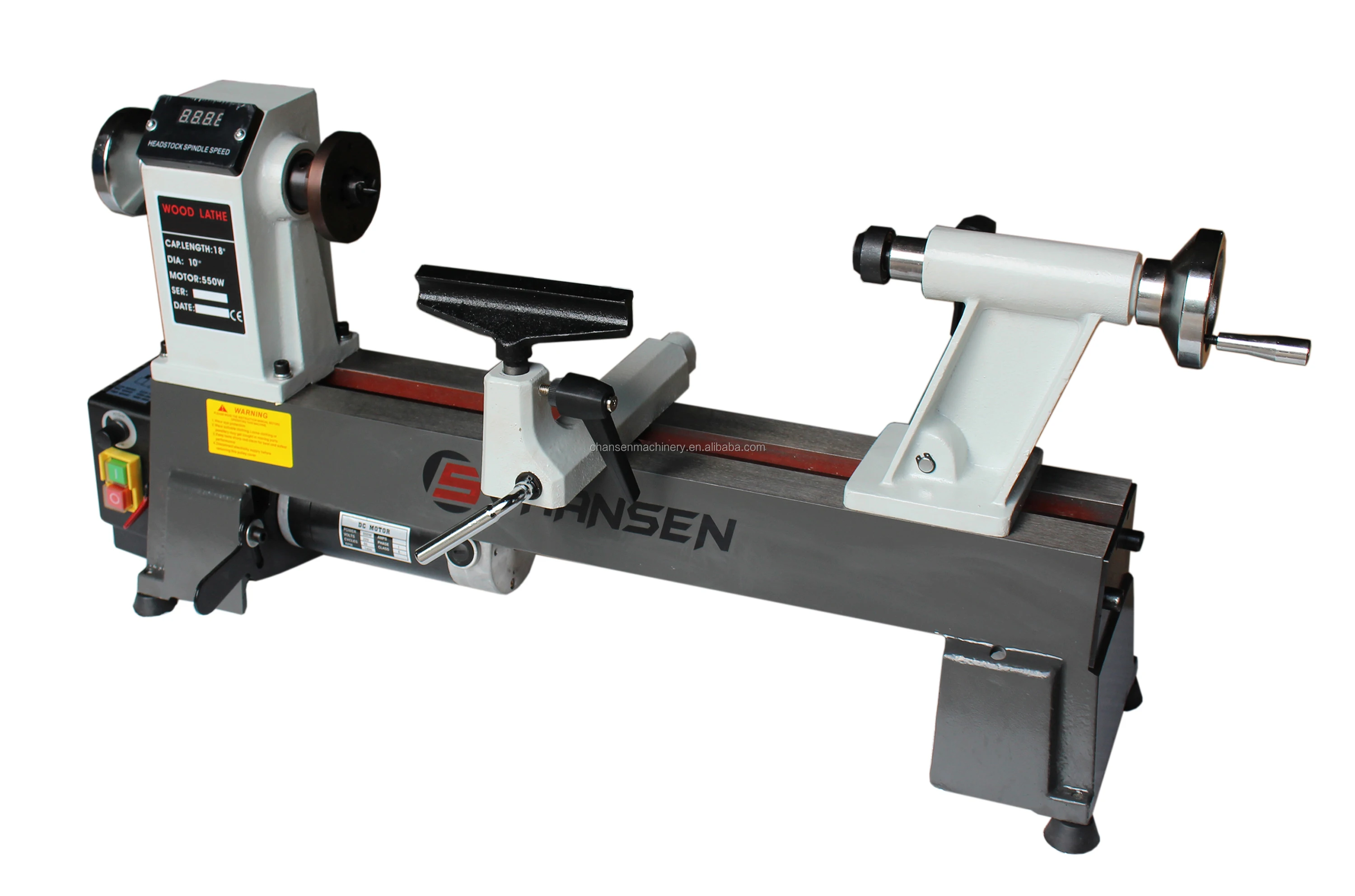

10"x18" Variable Speed Wood Lathe

Item# CWL1018D



 Description

The CWL1018D is a bench-top wood lathe for small projects. It features 254mm (10") Max. swing, and 457mm (18") center distance, variable speed (650-3800 rpm) with  digital spindle speed indicator, powerful 550w motor. The bed is precision ground for smoothness of operation. What’s more, the quick-release on toolrest and tailstock is easy for the adjustment. Standard with the spur center, live center, 3" face plate, 6" tool rest, safety magnetic switch. It’s the quality wood lathe at a good price.













Features

• Cast iron structure for excellent stability and good vibration during turning
• Powerful 550w motor

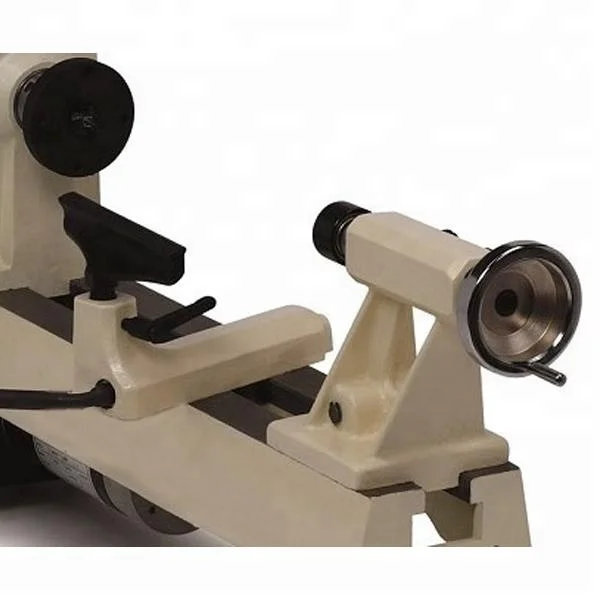

• Quick-release on rest & tailstock for easy adjustment
• Variable speed with digital spindle speed indicator
• Different speed ranges to maximize torque at all available speeds
• Spindle lock allows for ease of removing chucks and faceplates
• Indexing mechanism allows for efficient operations of fluting and veining
• Ideal for pen turning and small projects
• Safety magnetic switch
• Spur center
• Live center removable pin for boring through stock
• 6" tool rest
• 3" faceplate
• Tool kit





Specification

• Swing Over Bed: 254mm(10″)
• Distance Between Centers: 457mm (18″)
• Swing over tool rest base: 185mm (7-1/4″)
• Base mounting hole size: 8mm
• Spindle nose: 1″ x8 TPI
• Headstock taper: MT#2
• Tailstock taper: MT#2
• Taistock travel: 80mm
• Tool rest width: 150mm (6″)
• Face plate: 75mm (3″)
• Motor: 220v/1ph/550w
• Spindle Speed: 650 - 3800rpm, with digital spindle speed indicator
• Switch: Magnetic
• Overall dimensions: 915mm x290mm x380mm
• Net weight: 34kgs
• Gross weight: 36kgs
• Packing dimensions : 840mm x430mm x300mm
