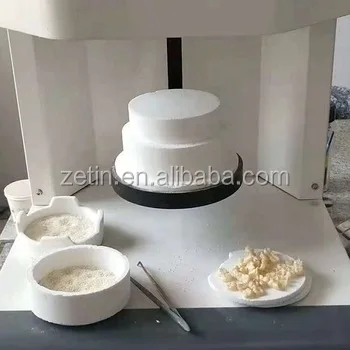

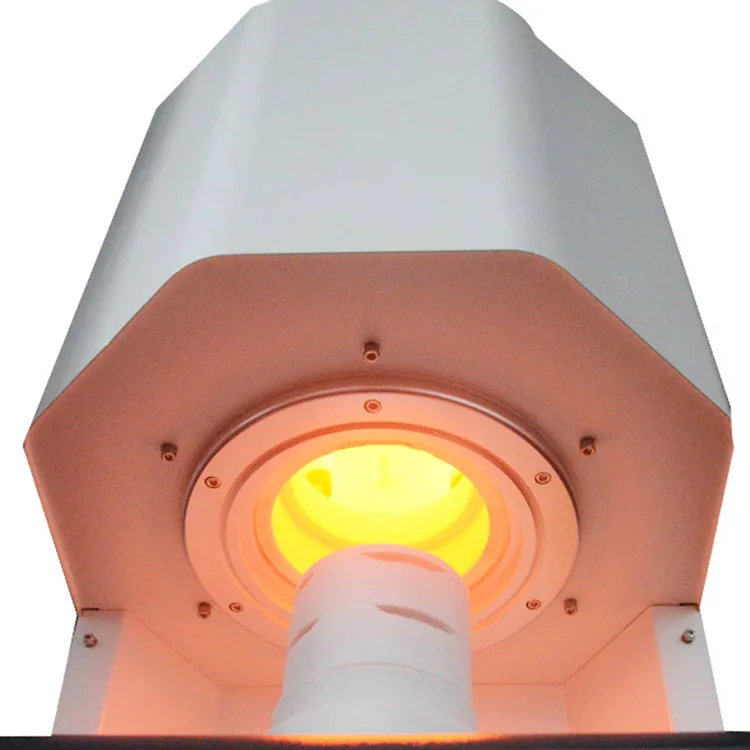

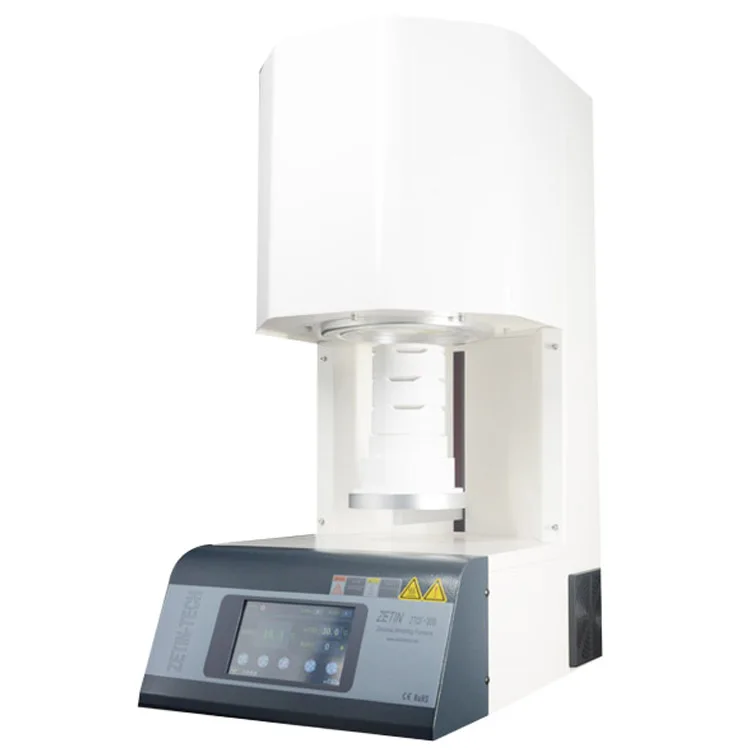

Продажа с завода ZETIN, 1700 градусов, электрическая печь, циркониевая спекающая печь

Product Overview

Description

Main features

1.Furnace temperature is uniform at high temperature.

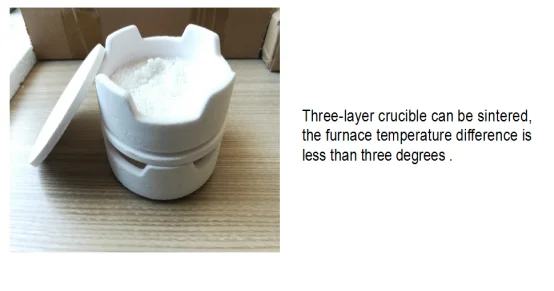

2.Three layer of crucible can be sintered.

3.Use new ring-type transformers,with light weight,good stability and long life.

4.PID intelligent temperature control,high accuracy of temperature control.

5.High-performance motor and belt,running stably,low noise,long life.

6.Effective insulators ensure the uniformity of temperature.

7.Pure molybdenum silicon rods,no pollution.

8.Splicing type of hearth design with long life.

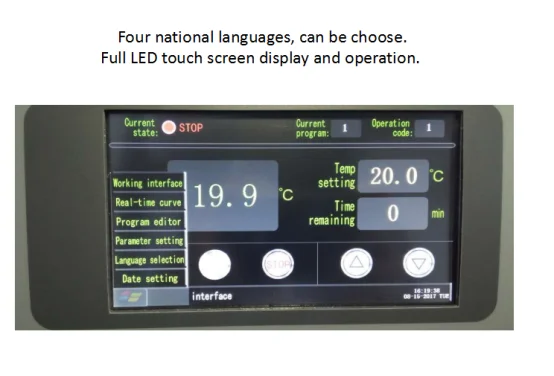

9.Large colorful LCD touch screen,simple operation.

10.Power off memory,can start from any program or any curve.

Technical parameters

Product name and model	Zirconia sintering furnace ZTCF-30B
Common use temperature	Less than 1650°C
The maximum temperature	1730°C
The furnace temperature uniformity	Lest than +/-3 °C
Temperature control accuracy	+/-1°C
The heating rate	0-40°C/min. It can rise to 1500 degrees from the room temperature within 40 minutes.

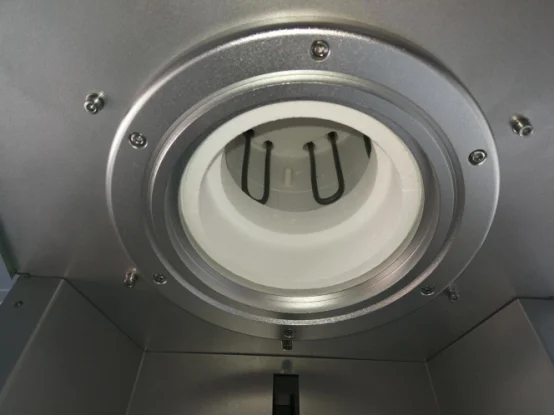

Heating element	Six high-purity molybdenum rods, evenly distributed around.
Furnace effective size	110*120mm diameter
Power	3KW
Power	220V 50HZ/60HZ
Programmable Number	40
Product Dimension	400*500*850mm
Product Net Weight	74KG

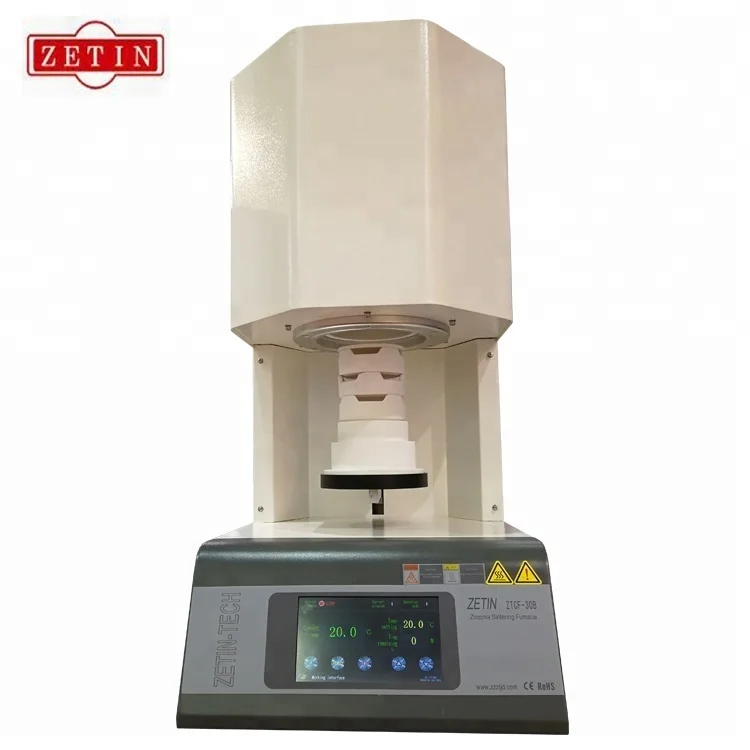

Product details





FAQ

Q: Are you a factory?

A: Yes. We are factory which integrates design,manufacture and sales for several years.





Q: What about the delivery time?

 A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.



Q: Which shipment is available?

A: By sea by air by couriers  DHL  TNT  EMS Fedex ups.

It's all depends on your need.



Q: What about the warranty period?

A: The warranty period is 1 year.

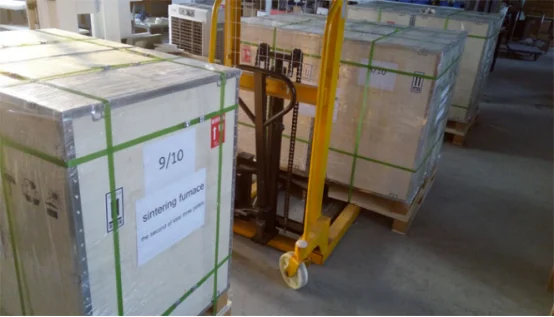

Packaging Details

Export fumigation wooden box.

Each piece of wood wrapped around the plastic film.

The size of the wooden box is 670*480*970mm(L*W*H)

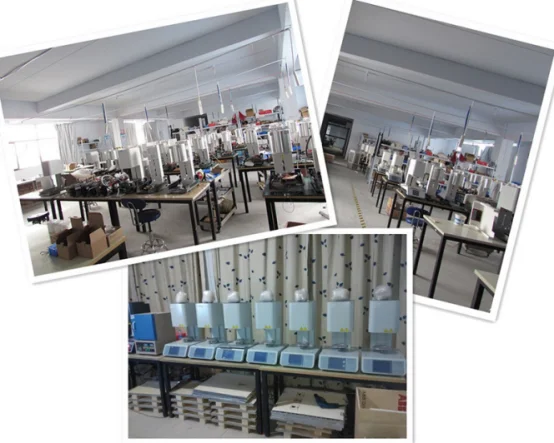

Company profile                                                                                                                        Zhengzhou Zetin Electromechanical Equipment Co., Ltd is a new and high technology manufacturer specializing in dental laboratory equipment production. Our factory is located in Zhengzhou high-tech zone nearby, within convenient transportation and beautiful environment. Our main products include vacuum porcelain furnace, zirconia sintering furnace, muffle furnace, oilless vacuum pump, etc. Our factory have a strong research and development team, establishes a long-term cooperation with Academy. We also set up high standards of quality management system, improve the system of international standards of production. The production process is in strict accordance with the 5S standards. Our products have been exported to dozens of countries and regions, product quality and service get high praise.
