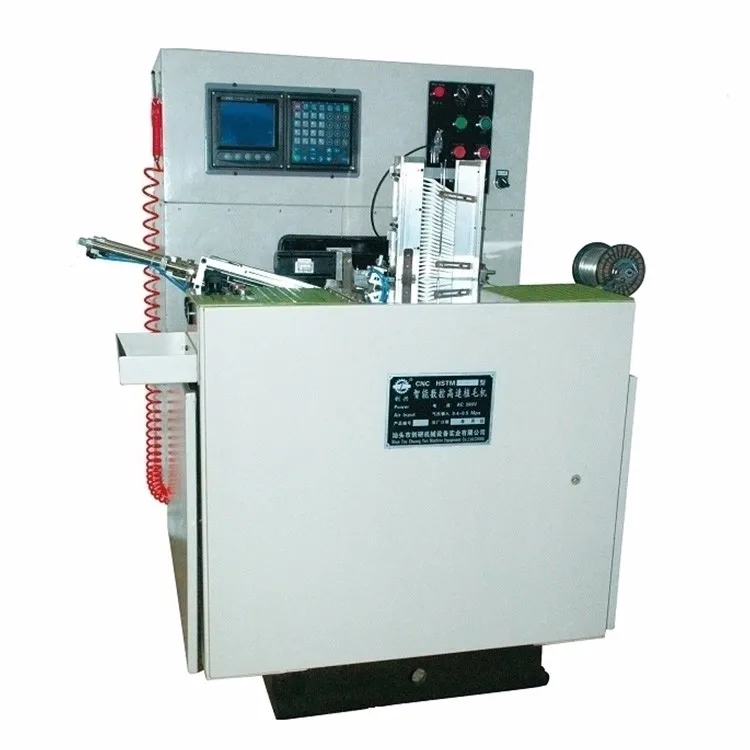

1) R&D automatic intelligent digital control scanning hole coordinate, touch / botton screen LCD computer based on German CNC technology . 2) Taiwan Taida 4 axis original servo motor available . 3) Trimming device can be installed to reduce trimming process according to your requirement. 4) The whole machine uses German imported AFG, DURBAL and Japan NSK, IKO and other brands of bearings. 5) Universal fixture and universal special-shaped handle box available. 6) Automatic cylinder pressure, nylon rolling handle-off hopper available. 7) Strong stability of the whole closed loop system, high precision of repeated positioning, easy to operate ,strong anti-interference capability .
Detailed Images
1) The introduction of Germany CNC technology research and development of intelligent numerical control touch screen LCD computer scanning hole coordinates. 2)Used the American import NC CPU chip, speed P4 and dual core. 3)Automatic tracking speed. 4) Positioning precision, convenient operation. 5)The system is stable and reliable, adapted to adapted to different environment. 6) The whole closed loop system, strong anti- interference ability. 7) Can be upgraded to the highest number of flocking 99 holes.(additional options) 8)Can be point to upgrade to add wool implement.(additional options)

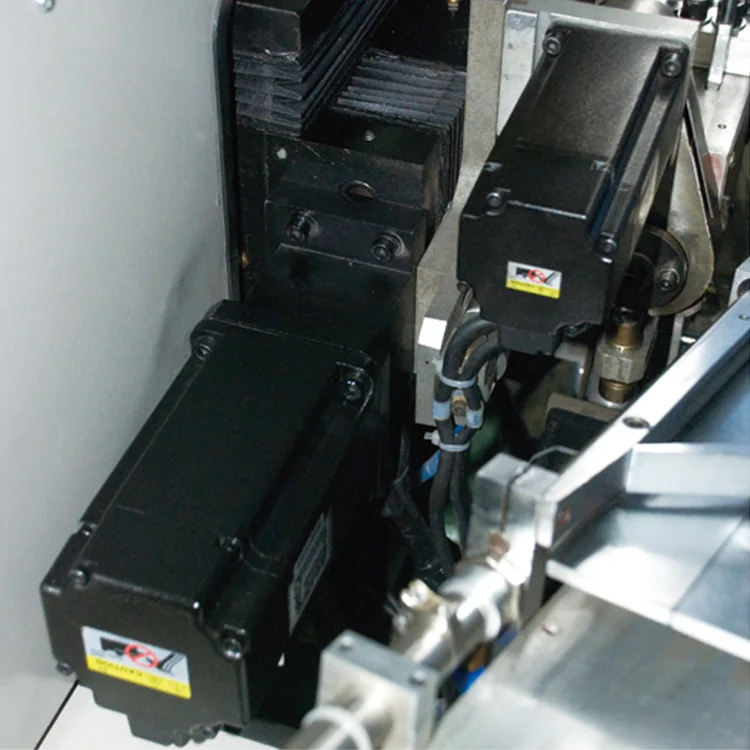

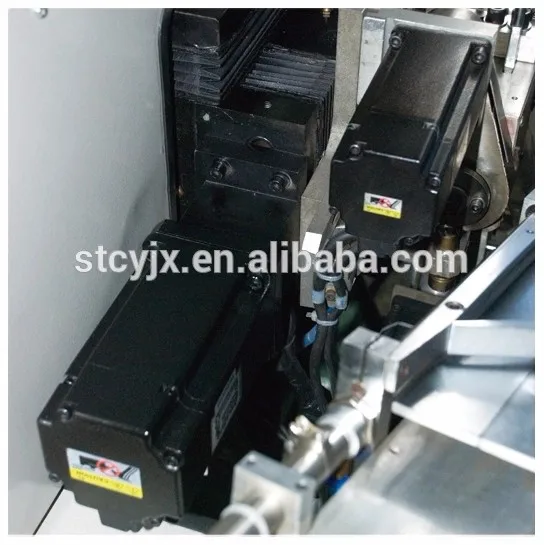

Servo Motor Parts
Features: 1)Adopted original high precision servo motor from Taiwan or imported from Japan for the worktable of X axis, Y axis and handle's change. 2)Use the German imported precision level C1 double thread ball screw. 3)Fast displacement: 750/minute,jumping hole distance can reach 8-10mm. 4)Rigid soft stability and reliability.
Automatic Scanning Holes Coodinate Parts
Features:
1)Hole coordinates are scanned automatically by high-tech infrared ray 2)High efficiency in changing product: it takes about 5 minutes for every 40 holes . 3)High precision positioning coordinates: tolerance +/- 0.02 mm. 4)Easy to operate and learn, high scanning speed. 5)Less tedious steps: manual measuring pitch error precision fine tuning.
High Speed Tufting Parts
Features:
1)The universal fixture is researched and developed on the base of introducing German technology 2)The tufting head ,bristle taken knife ,tufting rod are made with imported German material. 3)WIth Mirror Spark Technology of high precision , tufting mouth and tufting rod are manufactured with high hardness and good wear resistance . 4)Tufting machine process error value+/-0.01mm, tufting aperture: 1.2 to 3.0mm. 5)Strong stability , high efficiency and bristles won't get loosen .
Double Color Box Parts
Feature:
1) Based on German technology ,bristles are pressed by cylinder with auto cycle function .The pressure is uniform and the adjustblity is flexible . 2) Double dabbing cylinder available , convenient to make the bristles neat . 3)The color changed part adopts Japanese servo motor , 2 holes can be changed one color . 4)It adopts bristles added technology of electronic control . 5)High stability while taking bristles , bristles won't get loosen and sparse .
Trimming Parts
Feature: Trimming device can be added to reduce trimming process according to customer 's needs .
Nylon Rolling handle -off Hopper
Feature: Brush handles drop more easily .
Our Company
Certifications
Packing & Delivery
Packaging
Size
1400 (L)* 1400(W) * 1600(H) (mm)
Weight
900kg
Packaging Details
The normal package is use PE film for packing first and wooden box(Size: L*W*H). If it's exported to European countries,the wooden box will be fumigated, or pack it according to customers special request.
FAQ
1. Q: Are you a factory or trade company? A: We are a factory.
2. Q: Where is your factory located in? How can I visit there? A: Our factory is located in Shantou City, Guangdong Province, China, about 2 hours train from Shenzhen/HongKong. Warmly welcome to your visit!
3.Q: What is your terms of payment? A: T/T 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.
4.Q: How can I get some samples? A: We are honored to offer you samples.
5. Q: What is the advantage of your products? A: High-tech, pretty competitive price and superior service!
