Automatic Gate Opener Electric Lock
US $110.00-$156.00

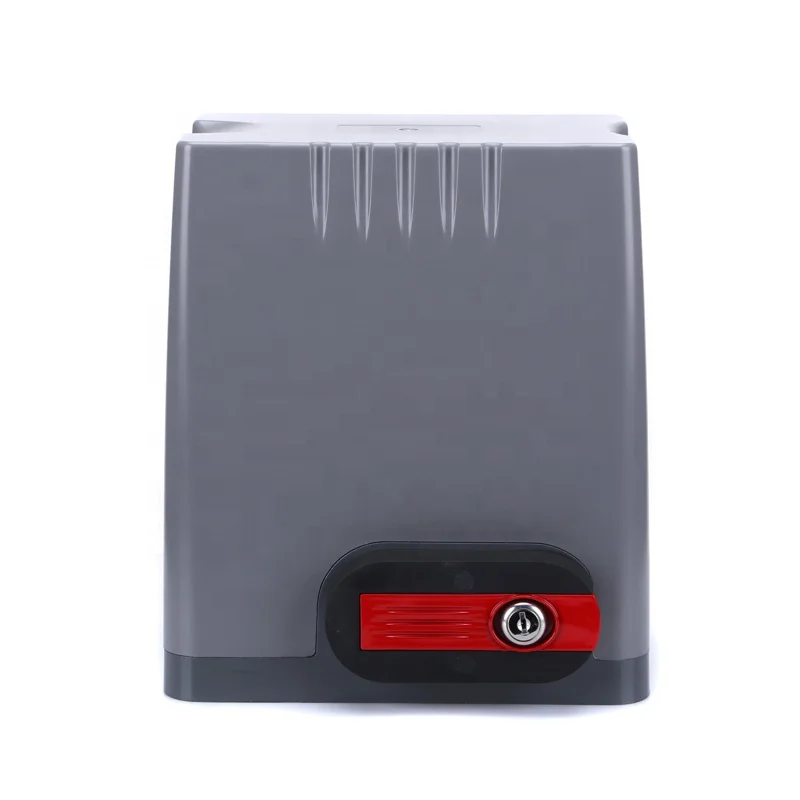

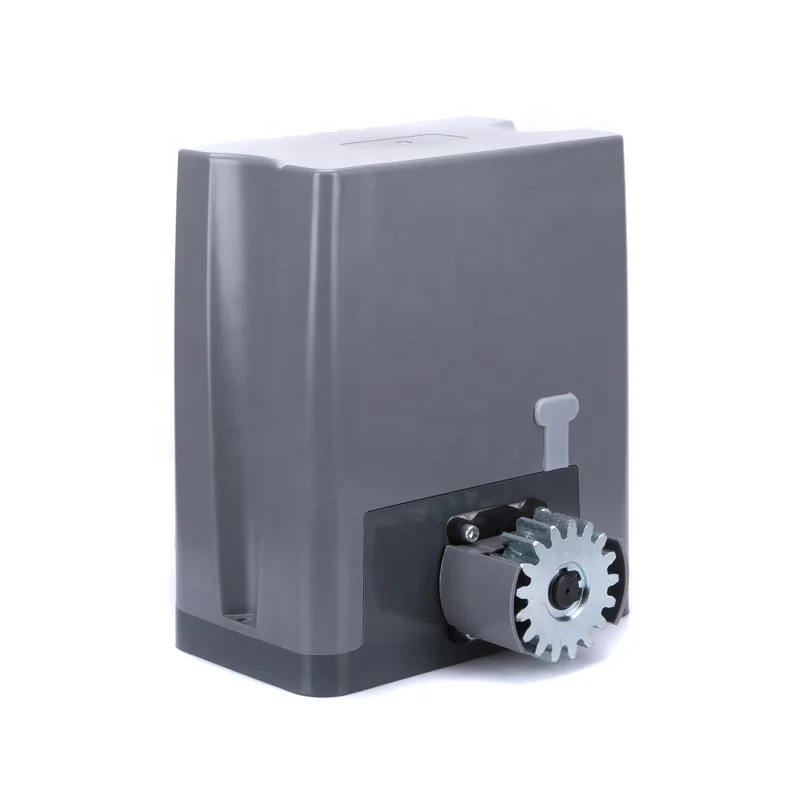

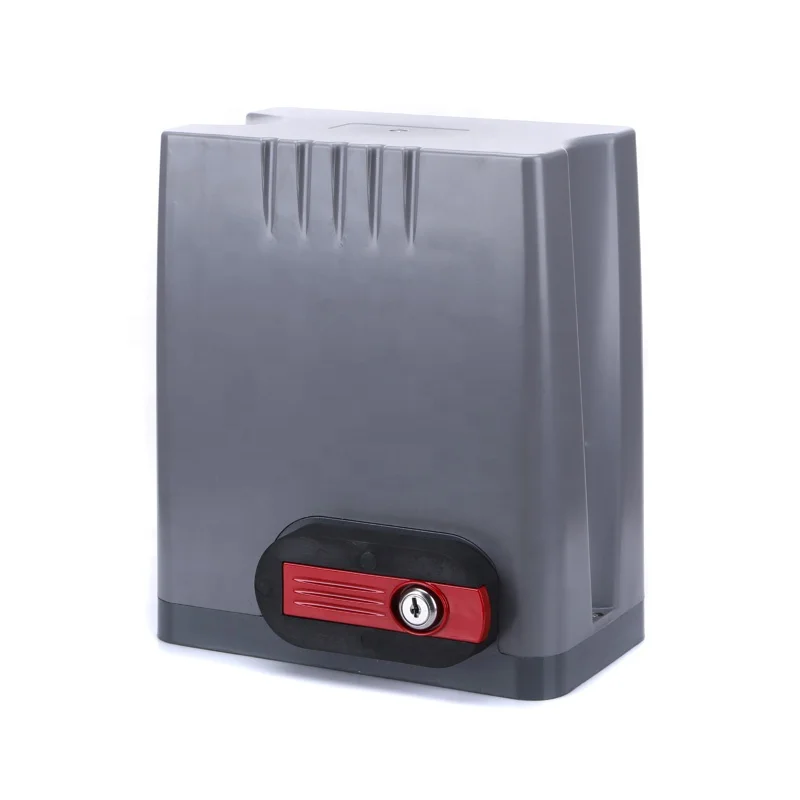

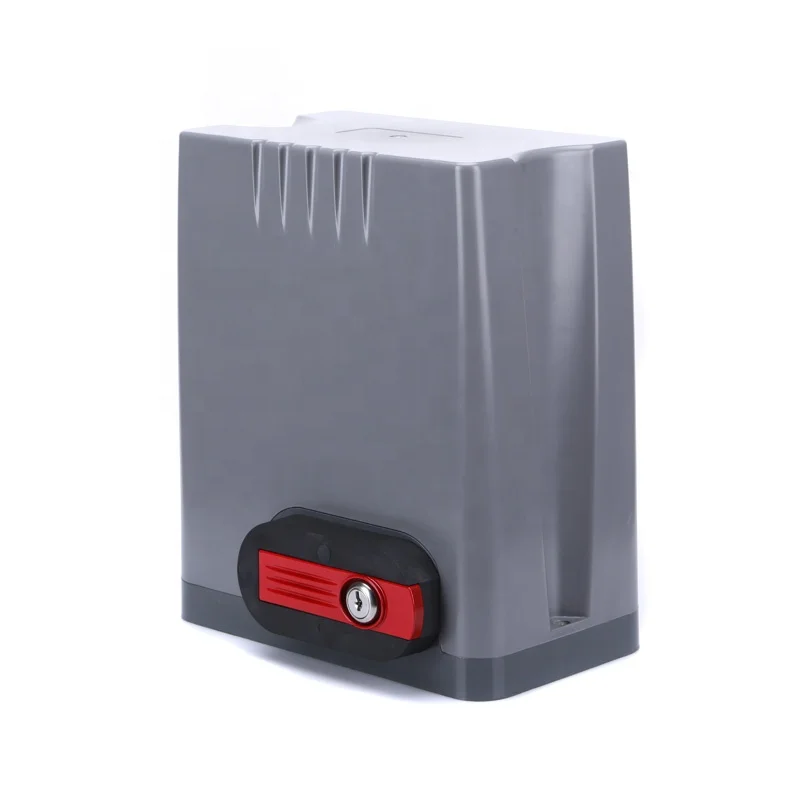

Factory Priced DC Solar Electric Sliding Door Motor 500kgs Capacity Automatic Gate Opener
- Category: >>>
- Supplier: Shanghai Range International Enterprise Co. Ltd.
Share on (60772414005):
Product Overview
Description
Main Features
DC24V motor with built-in control unit
Optional connect backup battery
Solar system compatible
Keypad/single button interface
Alarm lamp, photo beam and safety beam interface
User can select auto-close function
Soft start and slow stop(smart version, optional)
Auto-reverse function when hitting obstacle during closing(smart version, optional)
Manual key release design for emergency power failure
Specifications
Model Type Item No. | DKC500DC |
Output Torque | 14N.m |
Motor Power | DC24V/150W |
Work Duty | S2 20min |
Limit Switch | Magnetic limit switch |
Max. Gate Weight | 500KG |
Opening Speed | 13m/min |
Remote Control Range | ≥30M |
Driven Mode | Gear |
Recording of Up Remote Controls | 25 |
Frequency | 433.92Hz |
Noise (No Load) | ≤56dB |
Working Temperature | -20℃~70℃ |
Power Supply | AC220V/50Hz(Optional: 110V/60Hz) |
Weight | 11KG |

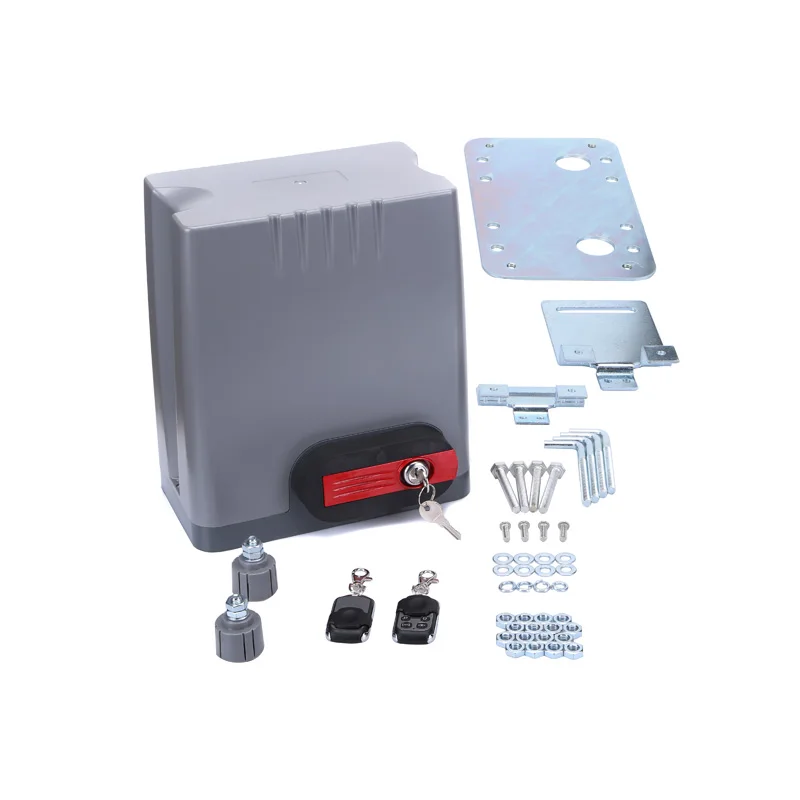

Standard Configuration | 1 motor, 1 built-in control board, 2 remote controls, 2 keys, 2 magnetic limit switch |
Optional Accessories | Photocell, steel gear rack, alarm wall lamp(20v/220v/110v), steel base plate, wireless keypad, wireless wall button |
Detailed Images
Best sellers
Company Information
Packaging & Shipping
Our Services
Pre-sales Service | After-Sales Service |
7*24 online service | One year warranty |
View our factory | Training how to install and use the machine |
OEM orders are welcomed | Engineers available to service machinery overseas |
FAQ
Q1: What is Minimal order quantity?
A1: No MOQ. One PC of Sample is available. Would advice deliver by Express such as DHL, FEDEX, TNT, etc.
Q2: How about your quality control?
A2: Each motor with quality control (testing) before packing. IQC, IPQC,PQC, FQC, all are tested.
Q3: Any certificate you have?
A3: CE, IS9001.
