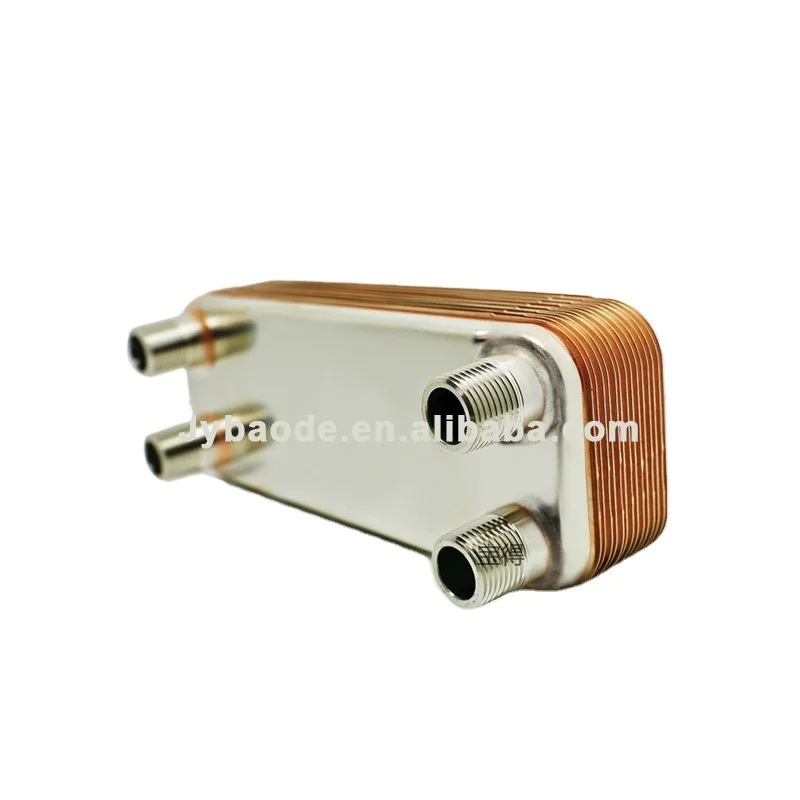

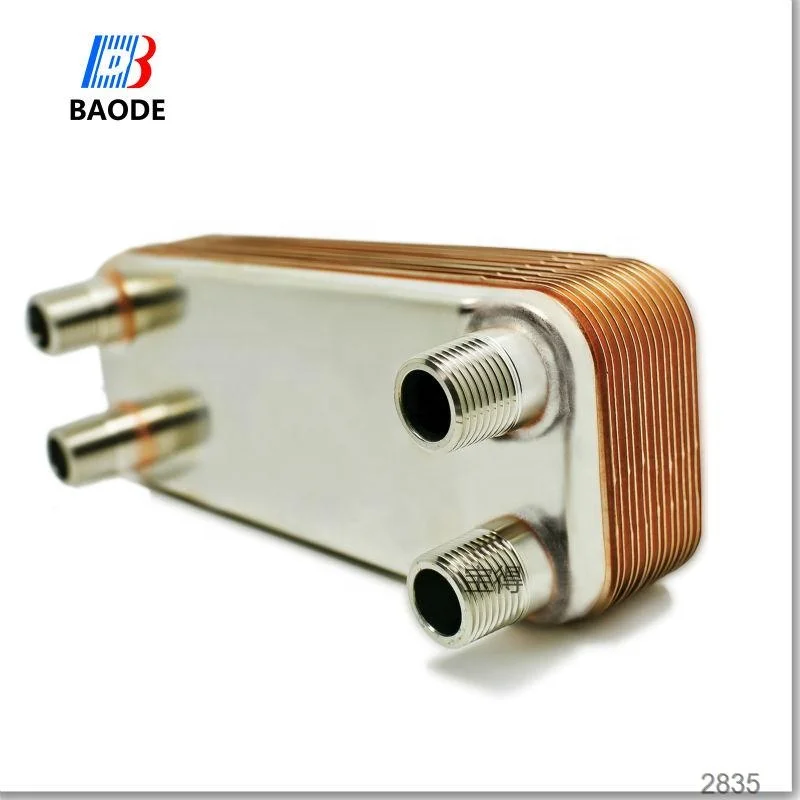

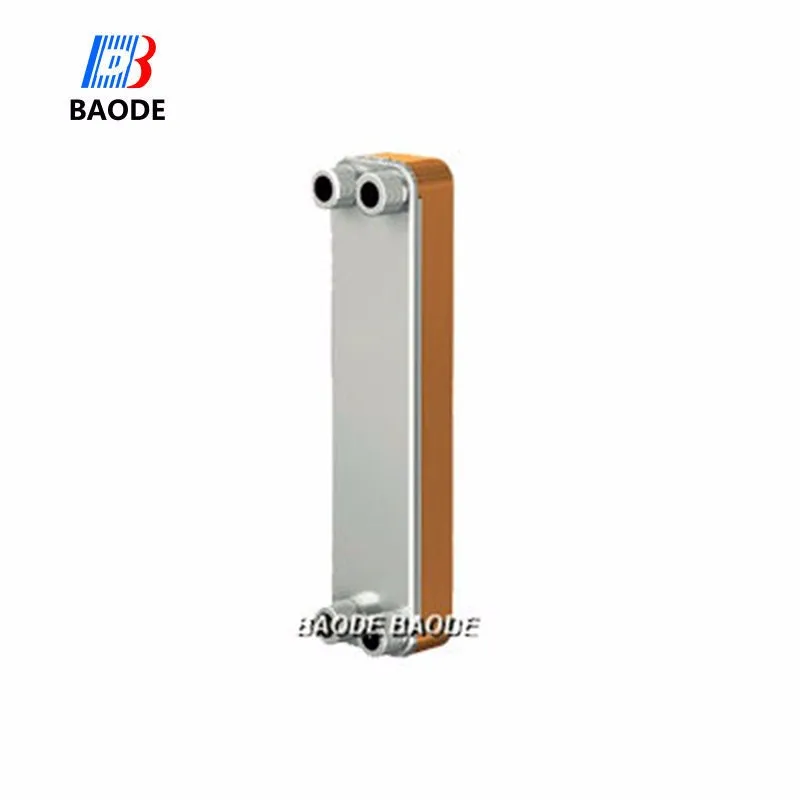

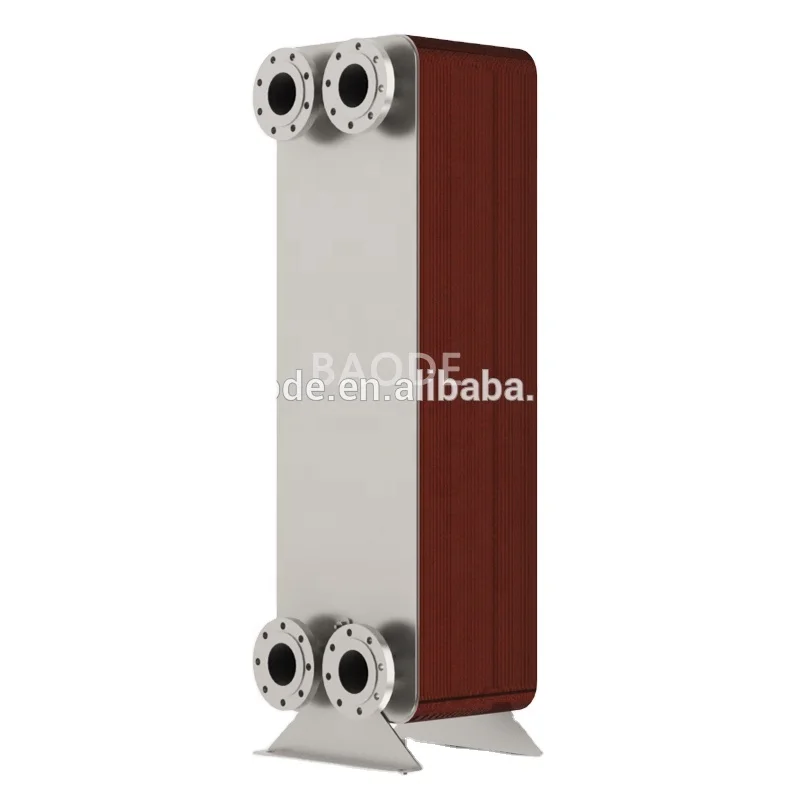

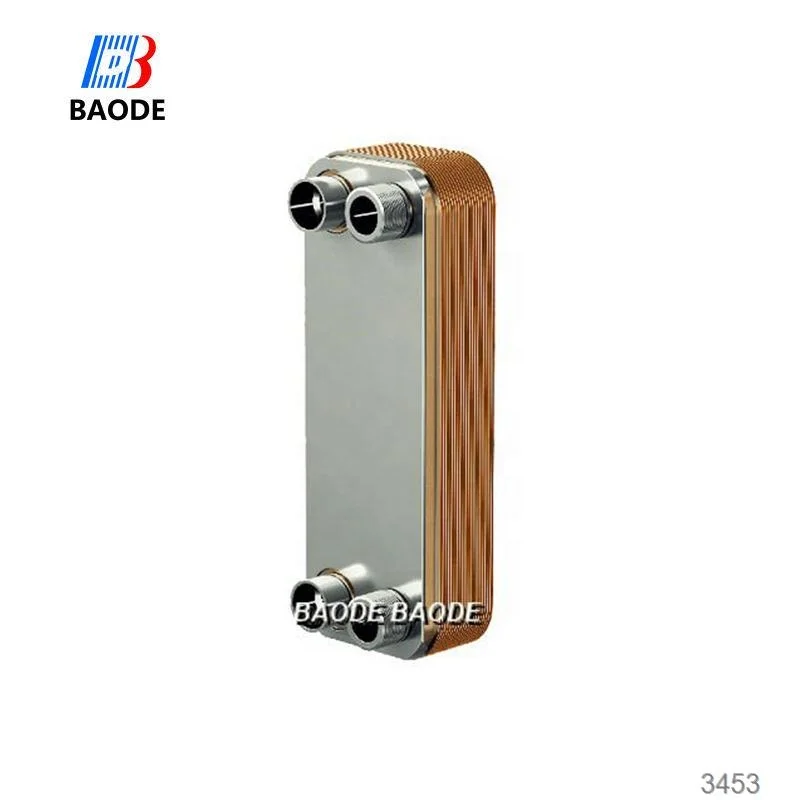

heat pump pool heat pump all in one high pressure steam heat exchanger
- Category: >>>
- Supplier: Jiangsu Baode Heat-Exchanger Equipment Co. Ltd.
Share on (60772428698):
Product Overview
Description
heat pump pool heat pump all in one high pressure steam heat exchanger
| Brazed plate heat exchangers specification | |||
| Model | BL14 | BL20 | BL26 |
| Width (mm) | 78 | 76 | 111 |
| Height (mm) | 206 | 310 | 310 |
| Length (m) | 9+2.3n | 9+2.3n | 10+2.36n |
| Horizontal port distance (mm) | 42 | 42 | 50 |
| Vertical port distance (mm) | 172 | 282 | 250 |
| Max pressure [Mpa] | 3 | 3 | 3/4.5 |
| Max flowrate (M3/h) | 3.6 | 3.6 | 8.1 |
| Weight(kg) | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n |
| Model | BL26C | BL50 | BL95 |
| Width (mm) | 124 | 111 | 191 |
| Height(mm) | 304 | 525 | 616 |
| Length (m) | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance (mm) | 70 | 50 | 92 |
| Vertical port distance (mm) | 250 | 466 | 519 |
| Maxpressure(Mpa) | 3 | 3/4.5 | 3/4.5 |
| Max flowrate (M3/h) | 8.1 | 12.7 | 39 |
| Weight[kg] | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 |
| Width (mm) | 246 | 307 | 321 |
| Height(mm) | 528 | 696 | 738 |
| Length (mm) | 13+2.36n | 13+2.75n | 13+2.7n |
| Horizontalportdistance (mm) | 174 | 179 | 188 |
| Vertical port distance (mm) | 456 | 567 | 603 |
| Max pressure [Mpa] | 3 | 3 | 21 |
| Max flowrate [M3/h] | 42 | 100 | 100 |
| Weight[kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n |
| Model | BL600 | BL100 | BL210 |
| Width [mm] | 429 | 248 | 322 |
| Height [mm] | 1398 | 495 | 739 |
| Length [mm] | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontalportdistance[mm] | 220 | 157 | 205.2 |
| Vertical port distance [mm] | 1190 | 405 | 631 |
| Max pressure [Mpa] | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 300 | 42 | 100 |
| Weight[kg] | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
Certifications
Related Products
Company Information
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of heat exchanger flate plate for fireplaces. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger flate plate market and has developed a big range of heat exchanger flate plate for fireplaces for any task
Our main products are Brazed heat exchanger flate plate for fireplace & Gasket heat exchanger flate plate for fireplace & Air cross heat exchanger flate plate for fireplace (Flat heat exchanger flate plate for fireplace and frame and heat exchanger flate plate for fireplace, welded heat exchanger flate plate for fireplace). Braze heat exchanger flate plate for fireplace include Copper brazed heat exchanger flate plate for fireplace and Nickel brazed heat exchanger flate plate for fireplace.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the heat exchanger flate plate for fireplace industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Packaging & Shipping
FAQ
FAQ
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
