Explosion proof Non Sparking Safety Tools Flex Ball Joint

Share on (60772435814):


Price:RUB 1,486.55 - RUB 5,574.54

Quantity:


Product Overview

Description

Explosion-proof Non Sparking Safety Tools Flex Ball Joint

Product Overviews

There are more than 100 famous international energy enterprises using our explosion-proof tools.

Long-term supplier to the world's top 500 companies

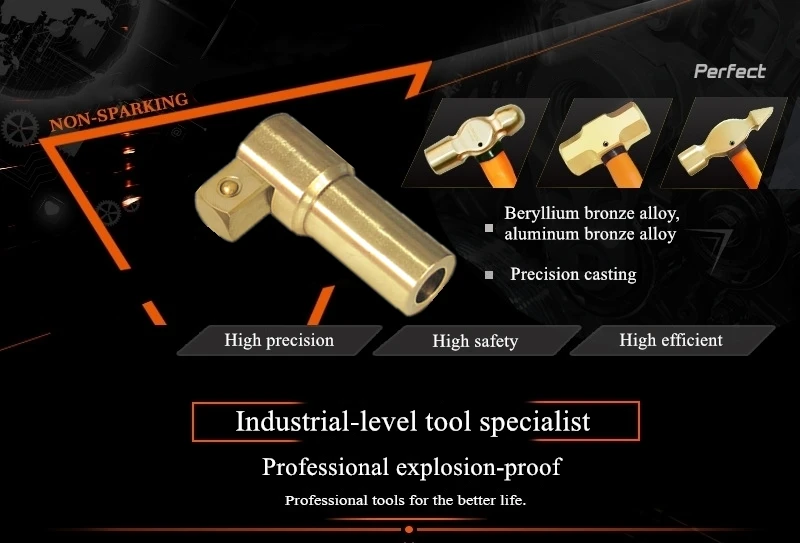

 flex ball joint 4.jpg

Product Explosion-proof Non Sparking Safety Tools Flex Ball Joint:

Used for turning 90 degree up or down,The force bar can be put in the hole.

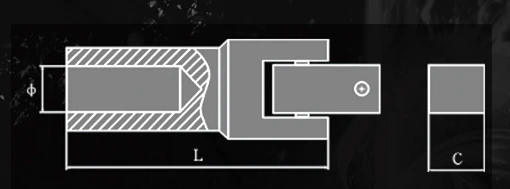

 flex ball joint size.jpg

SPECIFICATIONS of Explosion-proof Non Sparking Safety Tools Flex Ball Joint:



Model

S/mm

L/mm

Be-Cu/g

Al-Cu/g

Model

TK111-02

3/4

120

21

880

800

TK111-04

1

120

21

1160

1050

Detail picture of Explosion-proof Non Sparking Safety Tools Flex Ball Joint:

Material
Specification of Explosion-proof Non Sparking Safety Tools 1-3/16'' Electric Pneumatic Socket Head

Beryllium copper: GBEx ⅡC
Be: 1.8% - 2.3%            Ni: 0.2% - 0.5%
Others: < 0.5%               Cu: Rest
Hardness: 35-40 HRC (HB283-365)
Tensile Strength: 1117 N/mm2 ~ 1326 N/mm2

Aluminum bronze: GBEx ⅡB
Al: 10% - 12%                    Ni: 4% - 6%
Fe+Mn: < 5.8%                         Cu: Rest
Hardness: 20-30 HRC (HB229-291)
Tensile Strength: 782 N/mm2 ~ 989 N/mm2

Standard:DIN3129 ,ISO2725-2
Main Features of Explosion-proof Non Sparking Safety Tools Flex Ball Joint:

1) High strength, light structure, beautiful appearance, durable.

2) Effectively prevent the mutual friction between tool and workpiece, inflammable explosive impact.

3) Applied to oil chemical industry, mines etc which have dangerous operations,the safe production of special tools.



Related Products

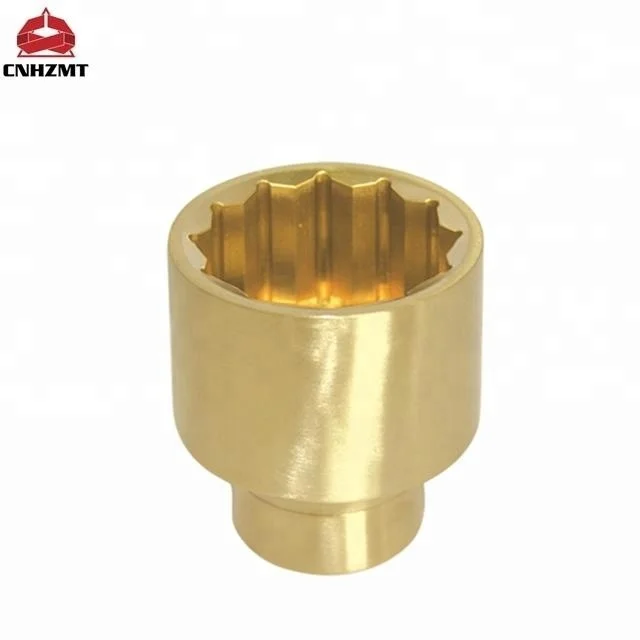

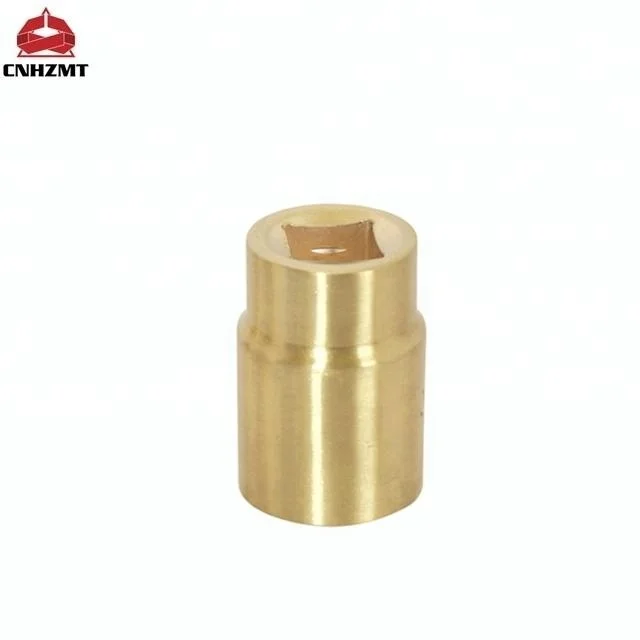

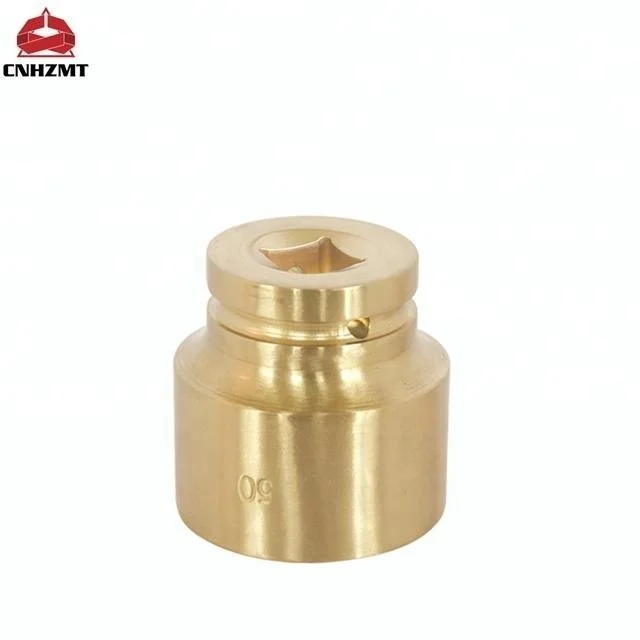

socket head 10.jpgsocket 3.jpgsocket 1.jpg
