endo dental microscope similar instrumentos odontolog medical microscope dentistry microscopio binocular 520 C
- Category: Optical Instruments >>>
- Supplier: Chengdu Corder Optics & Electronics Co. Ltd.
Share on (60772459619):
Product Overview
Description
Recommend Products
Products Description

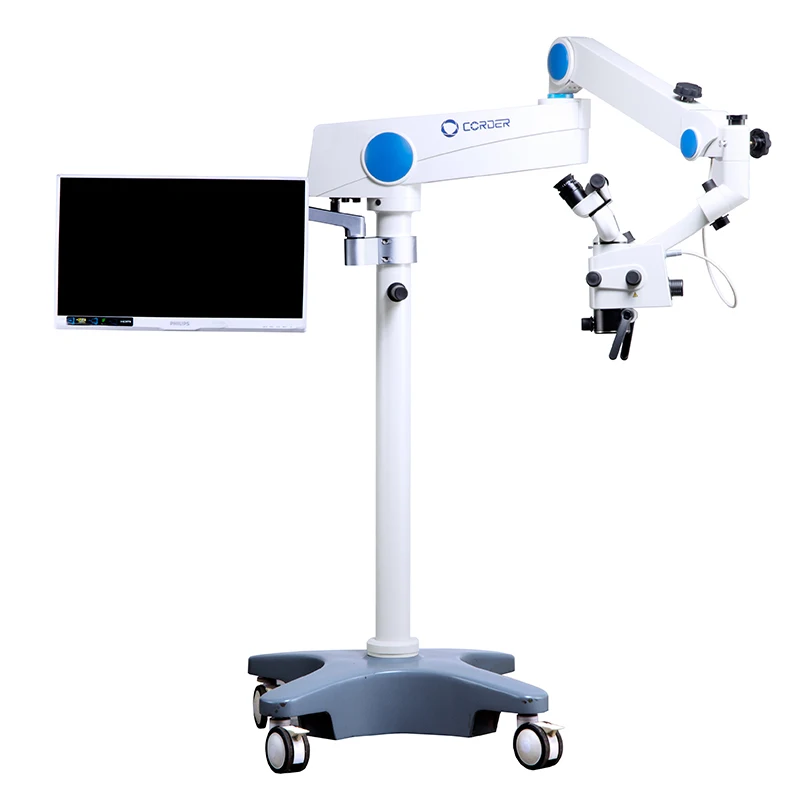

520-A high performance microscope is the perfect combination of excellent optical quality and comfortable handling.
Corderprofessional surgery microscope, you see a fashionable, smooth lines, beautiful shape with a sense of modern design of high-end microscope, and modern consulting room perfect fit.
Under the fashionable appearance is full of excellent optical quality, you have upgraded to a higher level of clinical treatment,bringing you a higher quality, more efficient work experience.
Treatment of dental pulp disease，Periodontal disease， restorative dentistry
Under the fashionable appearance is full of excellent optical quality, you have upgraded to a higher level of clinical treatment,bringing you a higher quality, more efficient work experience.
Treatment of dental pulp disease，Periodontal disease， restorative dentistry

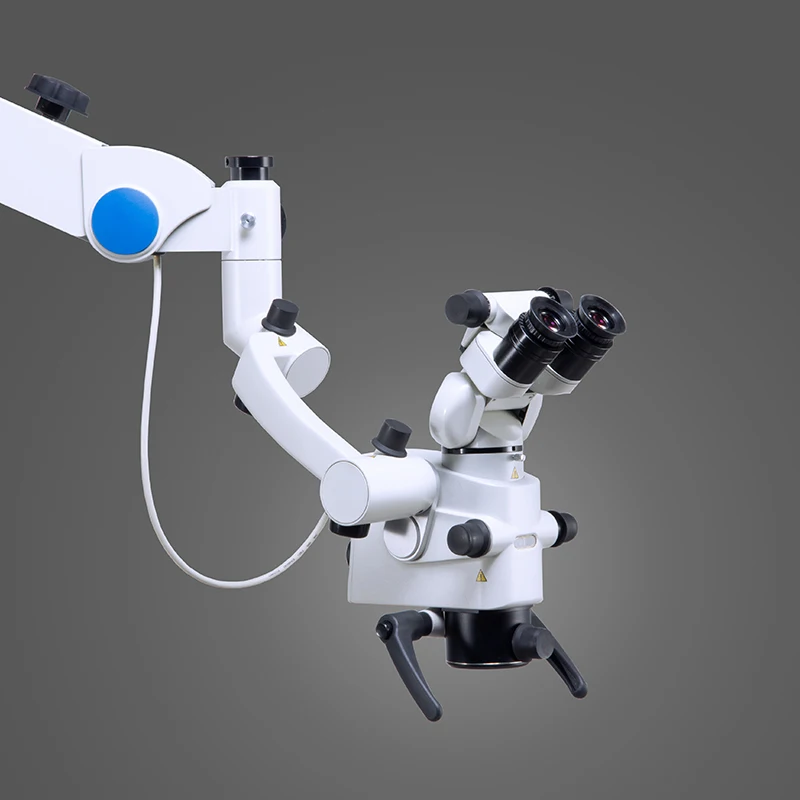

The operating range of the professional-grade operating microscope zoom objective is 180-300mm, and the zoom objective lens has a
zoom range of up to 180mm, covering almost all the operating range required for oral treatment. By adjusting the zoom knob, you
can easily tighten the focus anywhere without changing the position of the microscope or your seat, making your job very easy.
zoom range of up to 180mm, covering almost all the operating range required for oral treatment. By adjusting the zoom knob, you
can easily tighten the focus anywhere without changing the position of the microscope or your seat, making your job very easy.

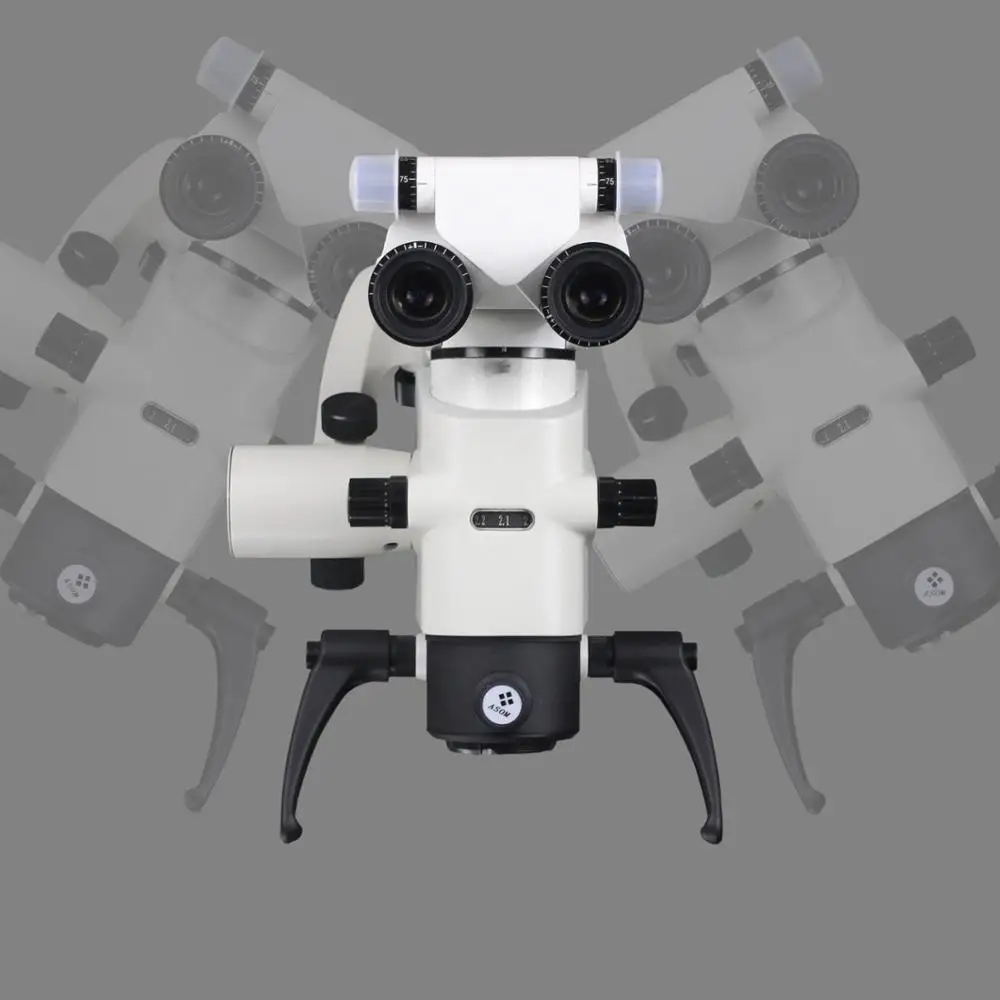

German imported gas spring, the optimized force word structure enables you to move microscope any desired working Angle
conveniently and precisely.
Handle control switch, can be in progress at any time to take hd pictures.

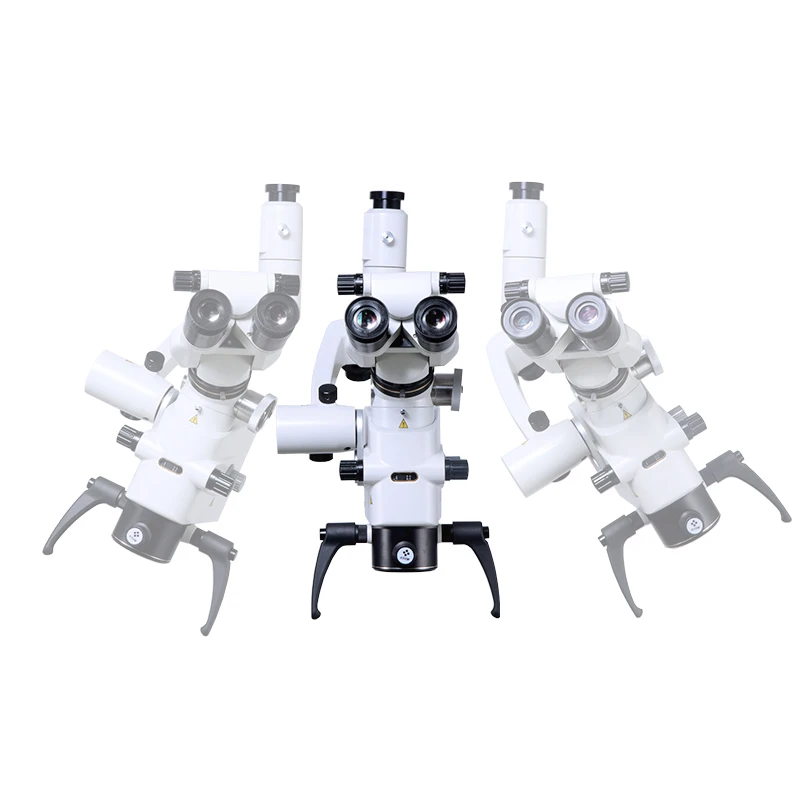

A modular solution to fit your needs
Microscope sysems oter o brond new dimension in perormance, lexbilily and economy in diagnosics and surgery. Corder microscope packs a high level of performane in is smll pckage. lis compact design is tailored to oplimize use of imited operating room spoce.
1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.
Equipped with LED lighting system, to provide you with high-quality lighting, whether color resolution or color temperature are close to natural daylight, cost-effective, no maintenance. Less heat, less noise. You can also use the knob to control the brightness of the light and adjust it to an orange filter (to prevent curing of uv-curable resin materials and to extend the operating time).
Product Paramenters
Model | ASOM-520-A | |
Function | Dental | |
Electrical data | ||
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ | |
Power consumption | 40VA | |
Safety class | class I | |
microscope | ||

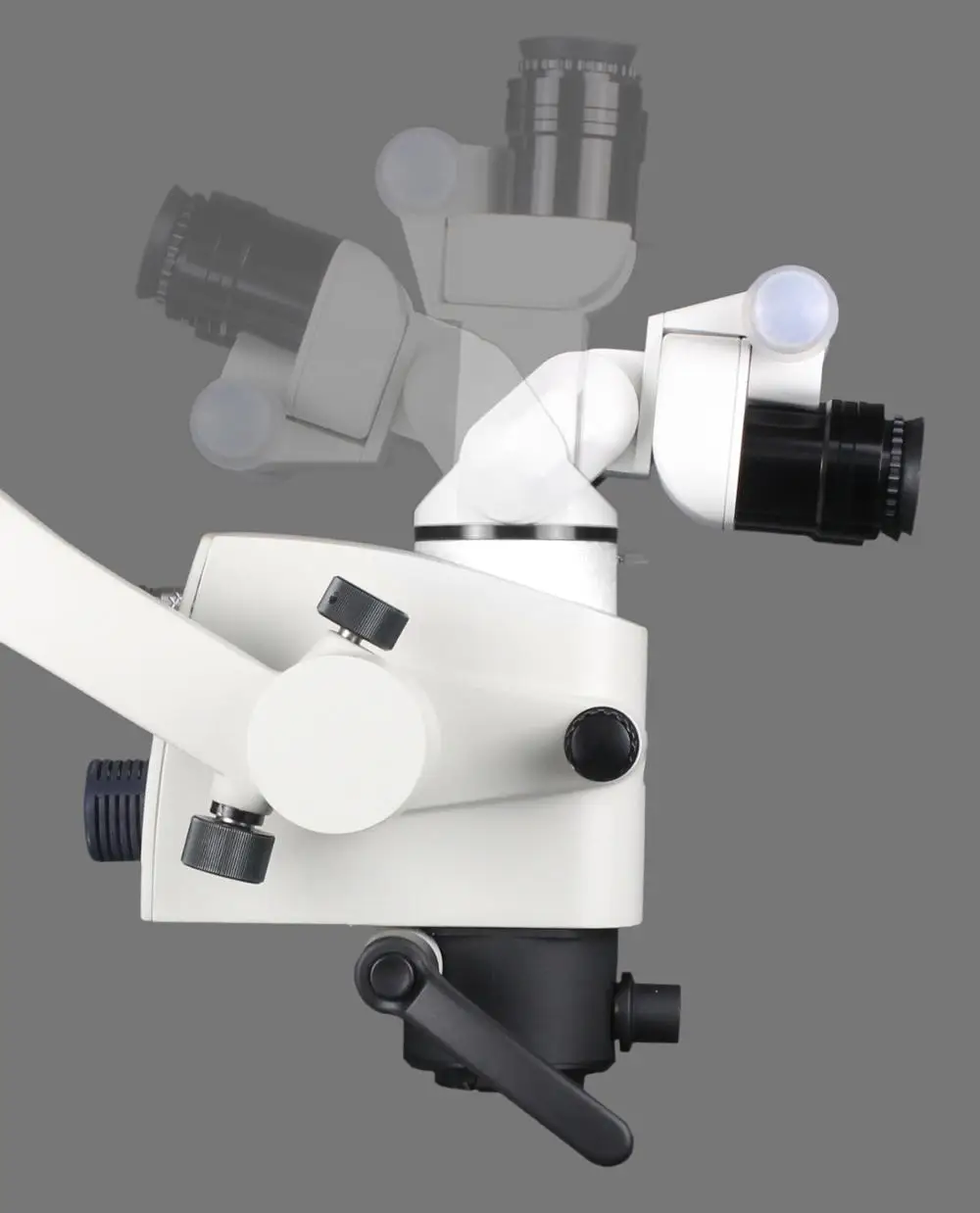

Tube | 0-200 degree inclinable binocular tube | |
Magnification | Ratio 0.4X~2.4X ,total magnification 2.5~21x ( F 180-300mm) | |
Stereo base | 22mm | |
Objectives | F= 180mm-300mm | |
Objective focusing | 120mm | |
Eyepiece | 12.5x/ 10x | |
pupil distance | 55mm~75mm | |
diopter adjustment | +6D ~ -6D | |
Feild of veiw | Φ78.6~Φ9mm | |
Reset functions | yes | |
Light source | LED cold light with life time >80000 hours, brightness >60000 lux , CRI>90 | |
filter | OG530, Red free filter, small spot | |
Banlance arm | 120° Banlance arm | |
Automatic switching device | Built-in arm | |
Light intensity adjustment | Using a drive knob on the optics carrier | |
Stands | ||
Max extension range | 1100mm | |
Base | 680 × 680 mm | |
Transportation height | 1476 mm | |
Balancing range | Min3 kg to max 8 kg load on the optics carrier | |
Brake system | Fine adjustable mechanical brakes for all rotation axes with detachable brake | |
System weight | 68 kg | |

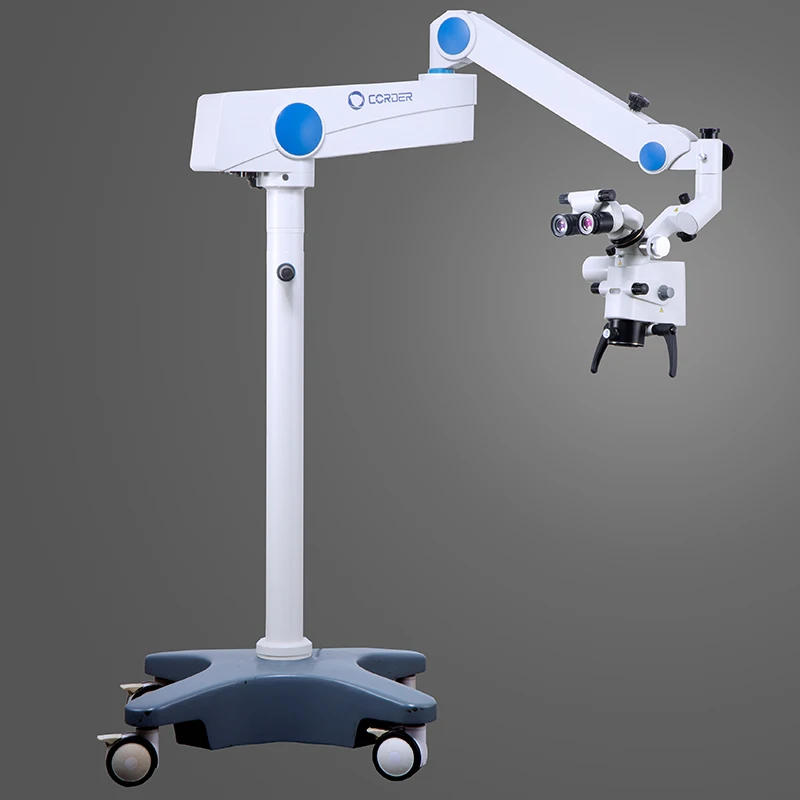

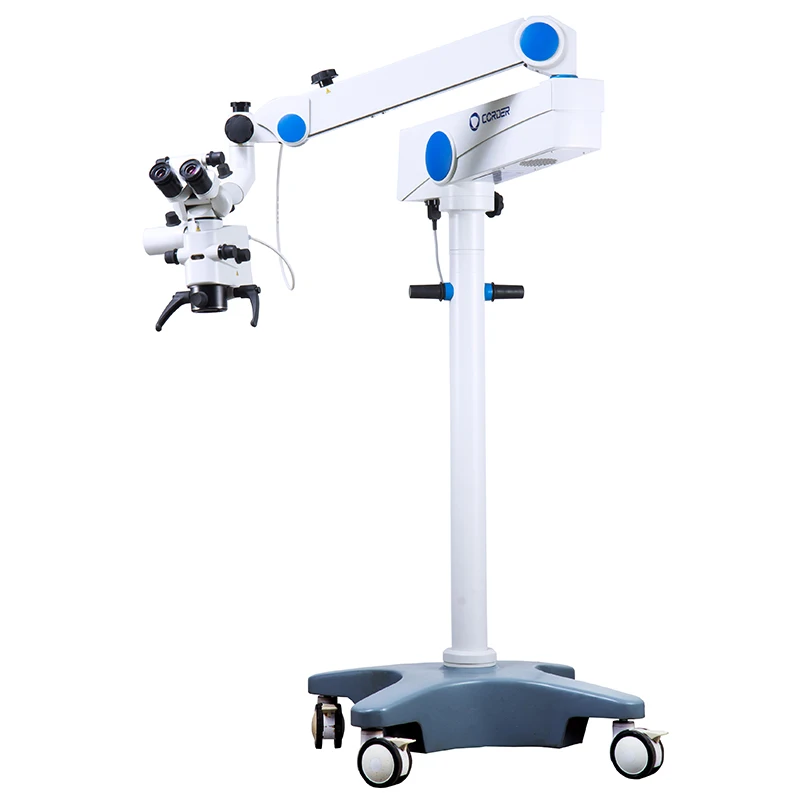

Stand options | Ceiling mount,Wall mount,Floor plate,Floor stand | |
Accessories | ||
Knobs | sterilizable | |
Tube | 90°binocular tube + 45°Wedge splitter, 45° binocular tube | |

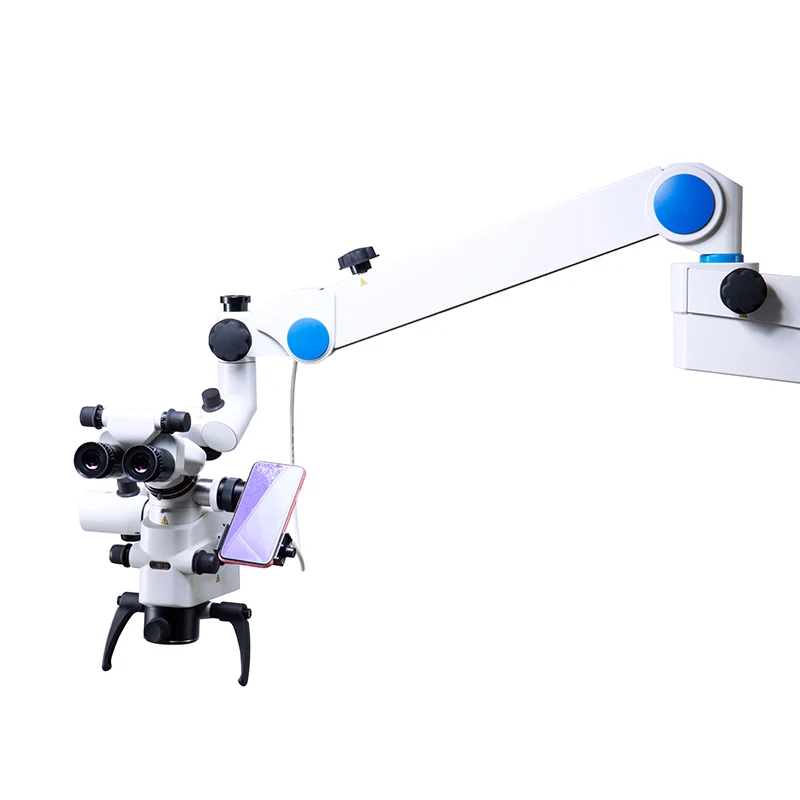

Video adapter | Mobile phone adapter, beam splitter, CCD adapter, CCD, SLR digital camera adaper,camcorder adapter | |
Ambient conditions | ||
Use | +10°C to +40°C | |
30% to 75% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Storage | –30°C to +70°C | |
10% to 100% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Limitations on use | ||
The surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill microscope specifications | ||
Company Profile
Company Profile
Chengdu Corder Optics and Electronics Co., Ltd. is one of the subsidiary companies of Optoelectronic Technology Research Institute of Chinese Academy of Sciences (CAS).
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our goal is to be a global market leader in life science and medical microscopy products with the highest price-to-performance ratio.
reflected through product innovations.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Captures the essence of optical and mechanical perfection.
With the clarity of vision to respond to evolving needs in modern microscopy, Corder was founded on its unique abilities to deliver high precision microscopes and optical instruments. From design concepts to finished products, the Corder brand captures the essence of optical and mechanical perfection.
MANUFACTURING TECHNIQUE
Optical wool glass is made from a patented raw material formulation
30 production processes are completed by hand
60 quality control checks by experienced technicians to ensure consistent quality
Obtain durable high quality optical glass.
We have more than 30 years experience of QC team and strictly quality control system in our production process.
