Manual Visual Inspection Machine for Vial, Bottle, Bag CE GMP approved /EU cGMP Standard

Product Overview

Description

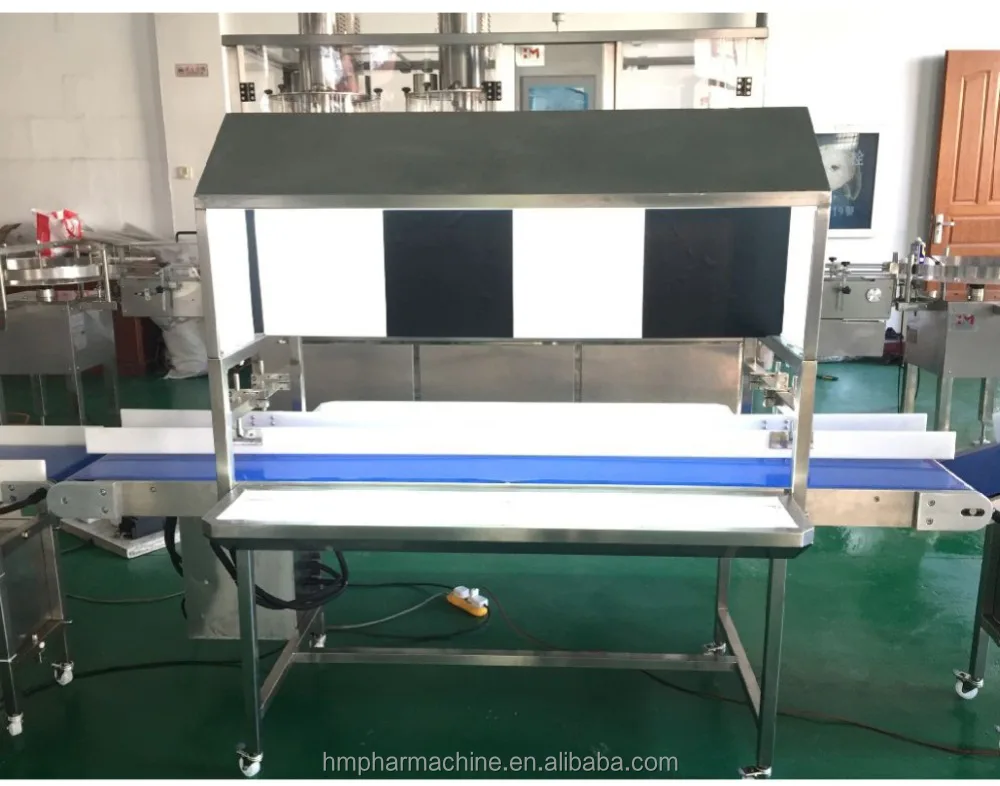

HM LI-M series Manual Visual Inspection Machine

for Vial, Bottle, Bag



Usage:This machine is a manual light visual inspection equipment for vial and bottles or bags etc.



Main Features:

The vial feeding through one conveyer belt and stop at the end, the operator take the vial and bottle from the conveyer belt with a clip or by hand of 1-10 pieces once, with the black/white background and fluorescent/LED lamp, manual visual checking the particles inside the vials. If the vial is good, then put the vial on the side outlet conveyer belt to come out, if found some defective vials, then select the defective vial out by manual.  The reasonable structure ensures 100% of all vials will be visual checking before it comes out.  The speed is adjustable regulated by the operator.



Technical Parameters:



Model	HM LI-M200	HM LI-M400	HM LI-M600	HM LI-M800
Inspection stations	2 stations with 2 persons	4 stations with4 persons	6 stations with6 persons	8 stations with8 persons
Max. speed	100-200pcs/min	200-400pcs/min	300-600pcs/min	400-800pcs/min
Overall dimensions	1200x600mm	2400x600mm	3600x600mm	4800x600mm
