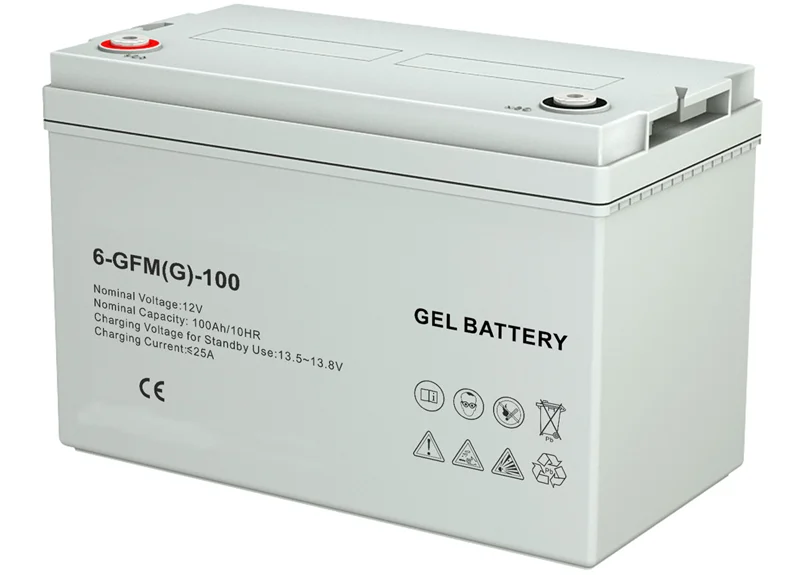

12V 100AH Deep Cycle Lead Acid GEL battery energy storge battery safe installation for power inverter and solar system
- Category: >>>
- Supplier: Ningbo Cinco Solar Co. Ltd.
Share on (60772520637):
Product Overview
Description
GEL Solar Battery
GEL series battery by combining the newly developed nanometer GEL electrolyte, high tin content cathode plate and AGM separator,this series battery enjoys excellet discharging performance,long cycle life and stable performance at high and low temperature surrounding.
Application range: solar energy storage, solar Power system, wind energy systems, UPS, EPS, telecommunication /communication systems,electricity power systems etc.
Application range: solar energy storage, solar Power system, wind energy systems, UPS, EPS, telecommunication /communication systems,electricity power systems etc.
Products Description
2. Designed floating service life:12 years(2V),10 Years(12V) as 25℃
3. Wide operating temperature range from -40℃ to 60℃
4. Nnometer gel electrolytes eliminate the acid stratification and proling cycle life
5. Low self-discharge rate:≤3%/month
Product Paramenters
Model | 6-GFM(G)-100 | |||||||
Nominal Voltage | 12V | |||||||
Nominal Capacity | 100Ah | |||||||
Design life | 10years | |||||||
Dimension | Length | 330mm | ||||||
Width | 171mm | |||||||
Height | 216mm | |||||||
Total Height | 219mm | |||||||
Reference weight | 30.8kg | |||||||
Charateristics | ||||||||
Rated Capacity | 10Hour rate | 100AH | ||||||
3Hour rate | 78.9AH | |||||||
1Hour rate | 64.2AH | |||||||
Interal resistance(Full charged at 25℃) | 5.2mΩ | |||||||
Self-discharge (at 25℃.) | 3％ of the capacity per month | |||||||
Discharge Temperature | -40～60℃ | |||||||
Charge Temperature | -20～50℃ | |||||||
Storage Temperature | -20～50℃ | |||||||
Cyclic charging voltage (at 25℃) | 14.4～15.0V | |||||||
Initinal current (at 25℃) | 25.0A | |||||||
Temperature Compensation | -30mV/℃ | |||||||
Float Use (at 25℃) | 13.5-13.8V | |||||||
Temperature Compensation (at 25℃) | -20mV/℃ | |||||||
Dimension | ||||||||
Rate Capacity | Lengh(mm) | Width(mm) | Height(mm) | Total Height(mm) | ||||
AGM 12V 38AH | 197 | 165 | 170 | 170 | ||||
AGM 12V 45AH | 197 | 165 | 170 | 170 | ||||
AGM 12V 50AH | 229 | 138 | 212 | 215 | ||||
AGM 12V 65AH | 350 | 166 | 175 | 175 | ||||
AGM 12V 70AH | 260 | 168 | 212 | 215 | ||||
AGM 12V 80AH | 260 | 168 | 212 | 215 | ||||
AGM 12V 90AH | 330 | 171 | 216 | 219 | ||||
AGM 12V 100AH | 330 | 171 | 216 | 219 | ||||
AGM 12V 120AH | 407 | 170 | 220 | 233 | ||||
AGM 12V 150AH | 483 | 170 | 241 | 241 | ||||
AGM 12V 200AH | 522 | 240 | 219 | 222 | ||||
AGM 12V 220AH | 522 | 240 | 219 | 222 | ||||
AGM 12V 250AH | 520 | 268 | 220 | 223 | ||||
