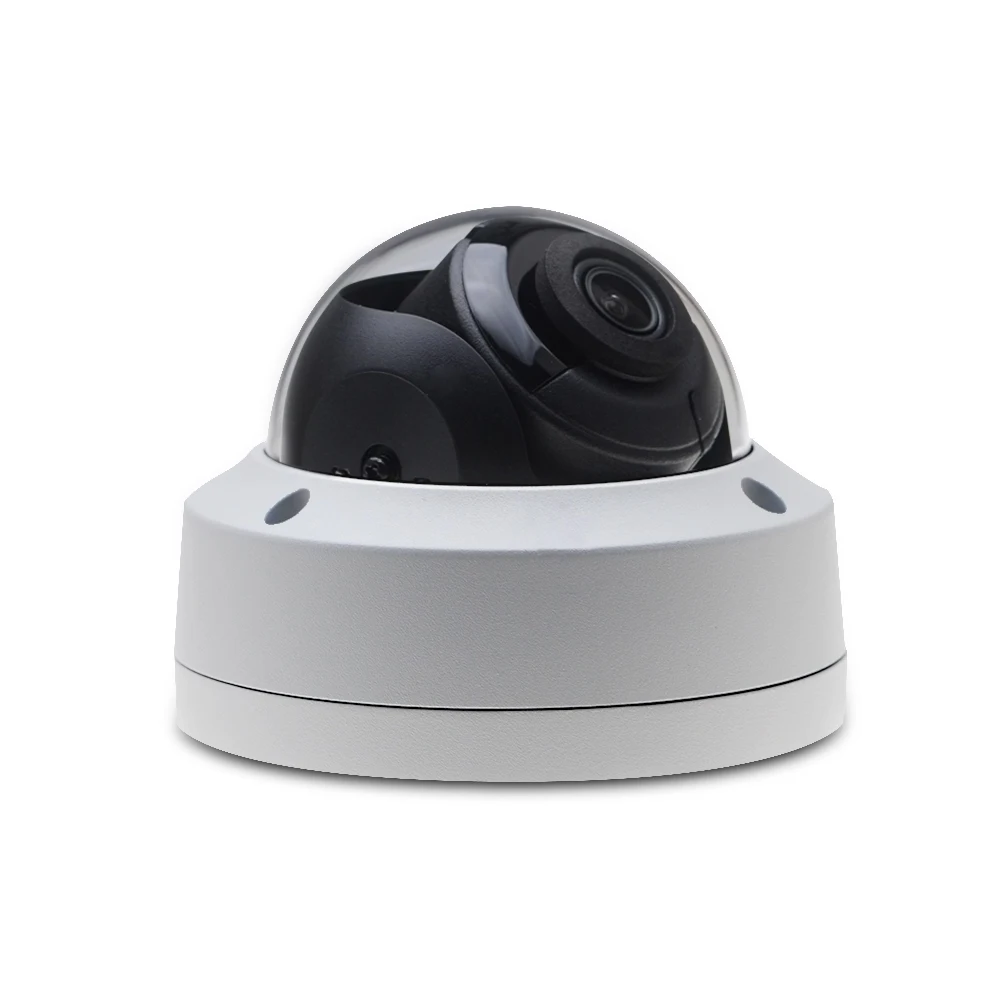

4MP Outdoor WDR POE IP Camera Fixed Dome Network Camera CCTV Surveillance Mini Camera DS-2CD2143G0-IS
* High quality imaging with 4 MP resolution
* Efficient compression technology
* Clear imaging against strong back light due to 120 dB true WDR technology
* -S: audio and alarm interface available
* Water and dust resistant (IP67) and vandal proof (IK10)
* Robust structure design with full metal materials
Camera | DS-2CD2143G0-I 4MP Face Detection 30m IR Dome IP Camera DS-2CD2143G0-IS Support SD Card And Audio/Alarm camera IP |
Image Sensor: | 1/3" Progressive Scan CMOS |
Signal System: | PAL |
Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter time: | 1/3 s to 1/100,000 s |
Slow shutter: | Support |
Lens: | 2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114° |
4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° | |
6 mm: horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54° | |
8 mm: horizontal FOV: 37°, vertical FOV: 21°, diagonal FOV: 44° | |
Lens Mount: | M12 |
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Day& Night: | IR cut filter with auto switch |
Wide Dynamic Range: | 120 dB |
Digital noise reduction: | 3D DNR |
Compression Standard | |
Video bit rate: | 32Kbps~16Mbps |
Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2/PCM |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
Triple Streams: | Yes |
Image | |
Max. Image Resolution: | 2560 × 1440 |
Frame Rate: | 50Hz:25fps (2560 × 1440, 2304 × 1296, 1920 × 1080) |
60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080) | |
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement: | BLC/3D DNR |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Target Cropping: | No |
ROI: | 1 fixed region for main stream and sub-stream |
Day/Night Switch: | Auto/Schedule/Triggered by alarm in (-S) |
Network | |
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
mask, Watermark, IP address filtering | |
System Compatibility: | ON-VIF (Profile S, Profile G),ISAPI |
Interface | |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button: | Yes |
Audio | With RS485 |
Environment Noise Filtering: | Support |
Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz |
Smart Feature-set | |
Behavior Analysis: | Line crossing detection, intrusion detection |
Line Crossing Detection: | Cross a pre-defined virtual line |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
Recognition: | Face Detection |
General | |
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption: | 12 VDC ± 25%, 5W |
PoE(802.3af, class 3), 6.5W | |
Weather Proof: | IP67 |
IR Range: | Up to 30m |

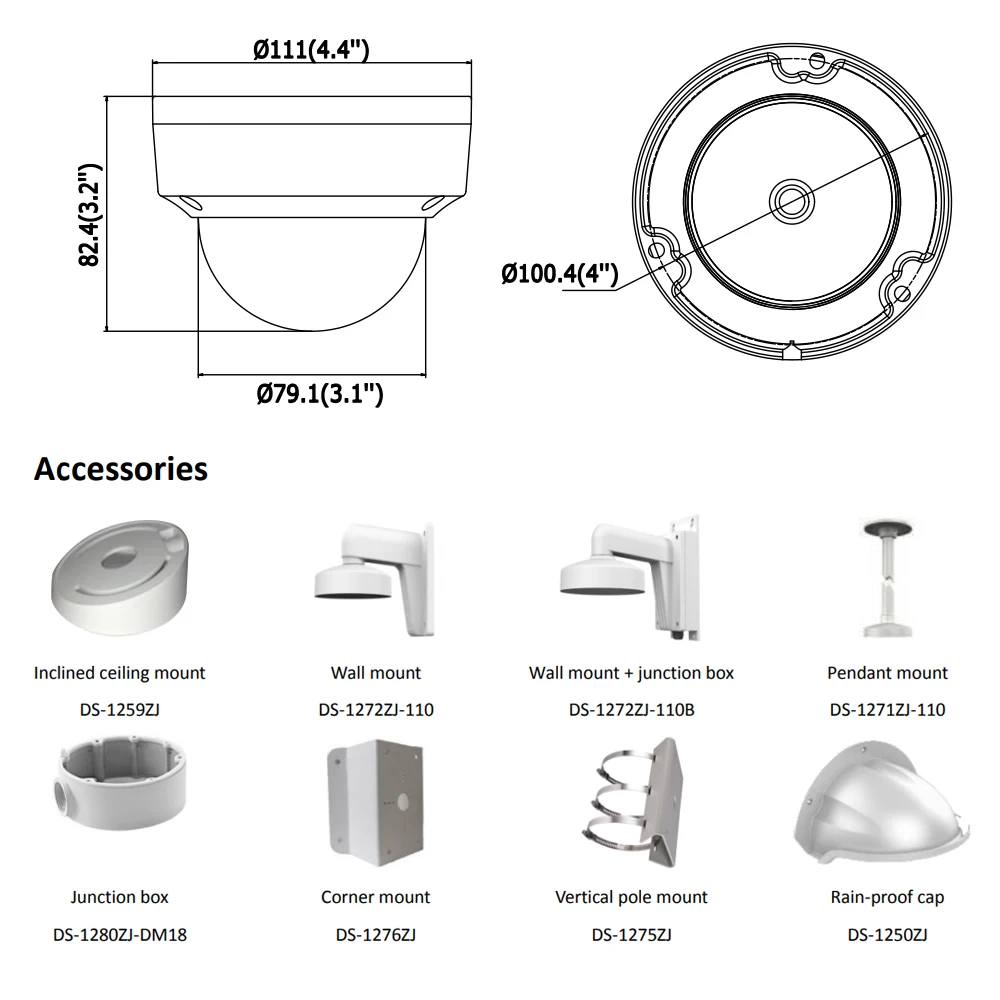

Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) |
Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) | |
Weight: | Camera: 500 g (1.1 lb.) |
Company Profile
Shenzhen Lin Wei Kexun Technology Co., Ltd. is located in Longhua New District, Shenzhen. It enjoys advantageous geographical position and convenient transportation. It is a company that specializing in design, development, production, sales, installation and service of traffic safety facilities and equipment.. Over the past few years, we guided by science and technology, aim at quality and service. We are rising rapidly in the fierce market competition and we firmly believe that we will be the best with low price, high quality, excellent service and high credibility.country.
Why Choose Us
Choosing us and you will definitely feel
the value. If the same product, we compete with Quality, if the same quality we compete with Price, if the same price
we compete with Service, if the same service we compete with Consistency
We sell Dahua and HIK vision all the network products. Please contact us
freely.
the value. If the same product, we compete with Quality, if the same quality we compete with Price, if the same price
we compete with Service, if the same service we compete with Consistency
We sell Dahua and HIK vision all the network products. Please contact us
freely.
FAQ
Q. What's the actual products I can get?

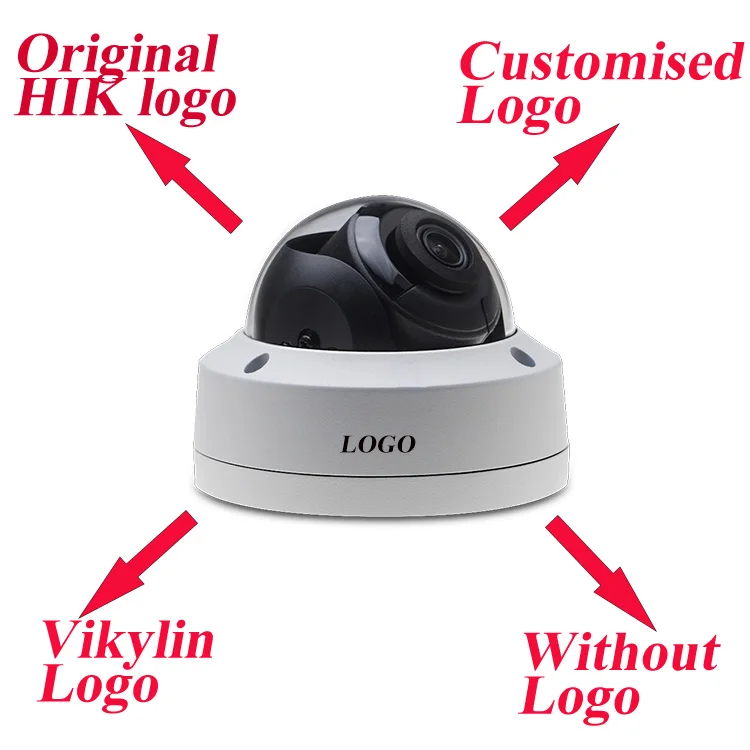

A: Usually OEM made by Hik/Dahua(no logo on the products). Customs order is welcome here. Pls contact with the sales for more details for you need.
