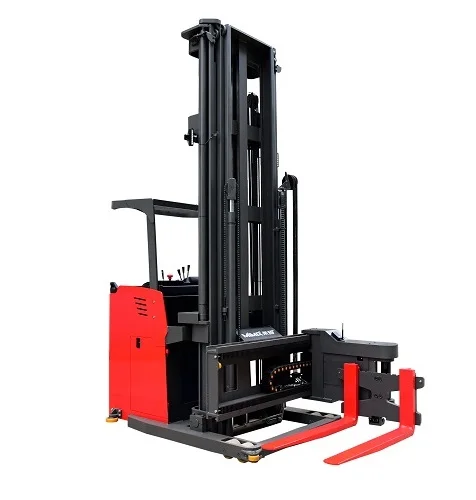

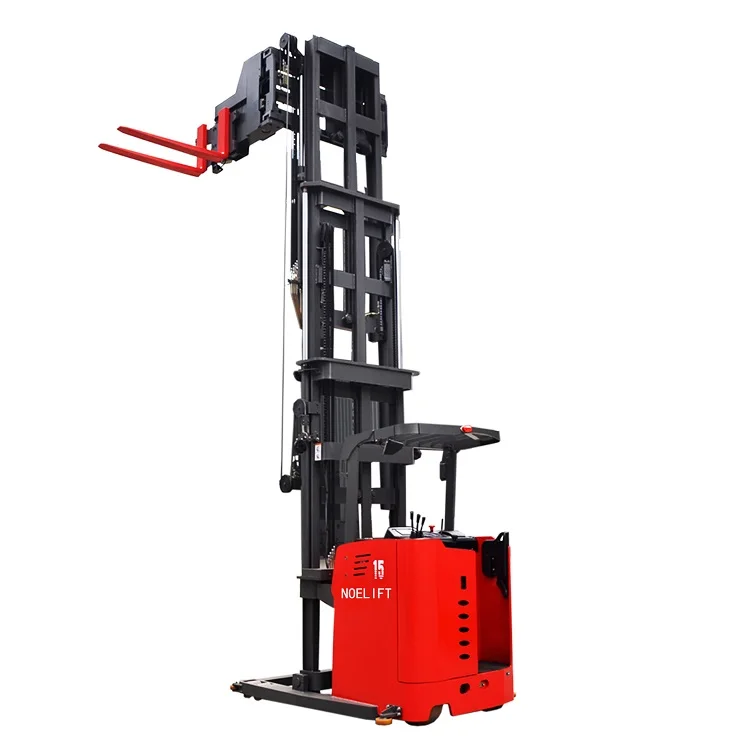

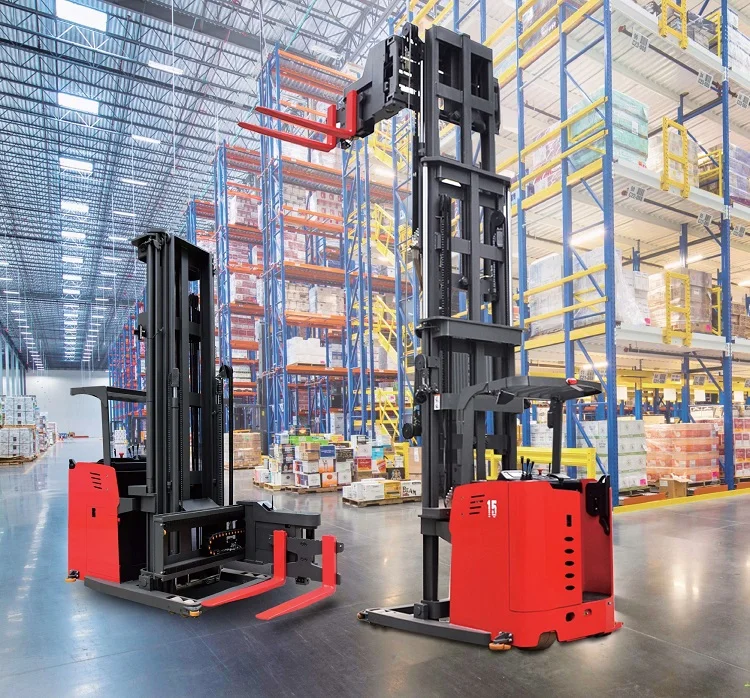

1.0Ton 1.5 Ton Narrow Aisle 3 Way VNA Electric Pallet Stacker Forklift Up to 9 Meters High

Product Overview

Description



Working video : https://www.youtube.com/watch?v=brTHt3lapeY

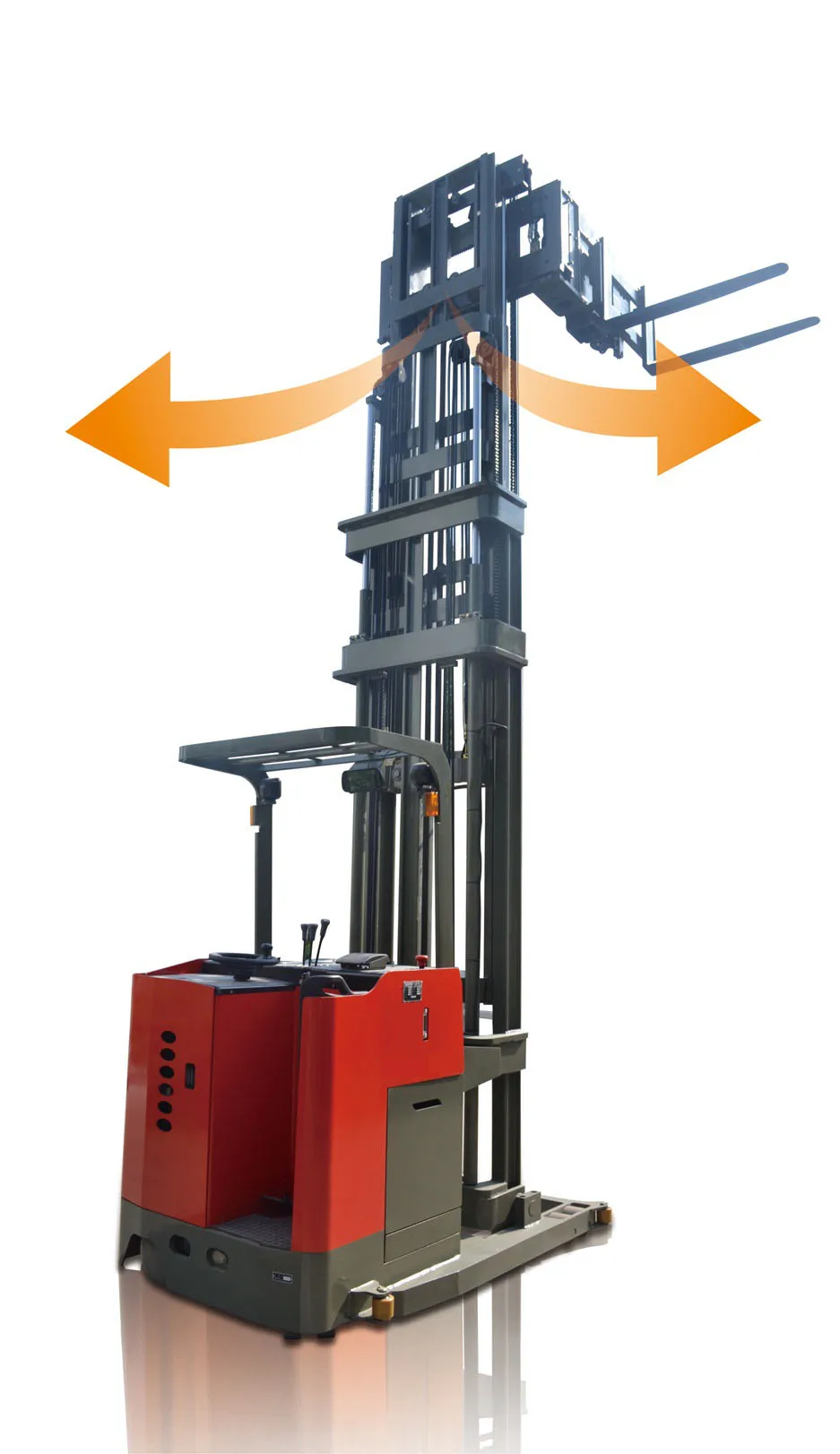

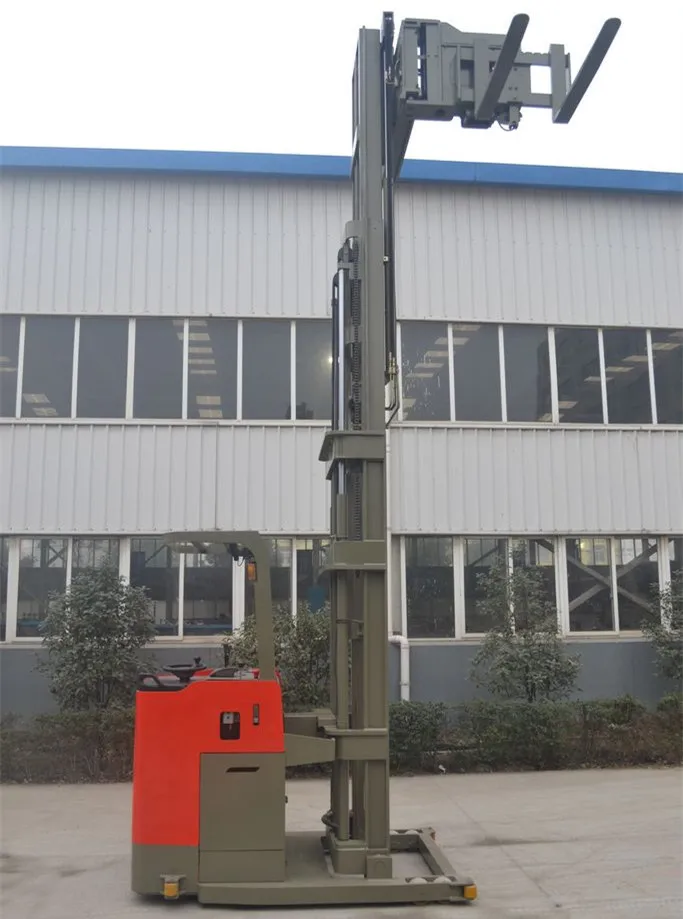

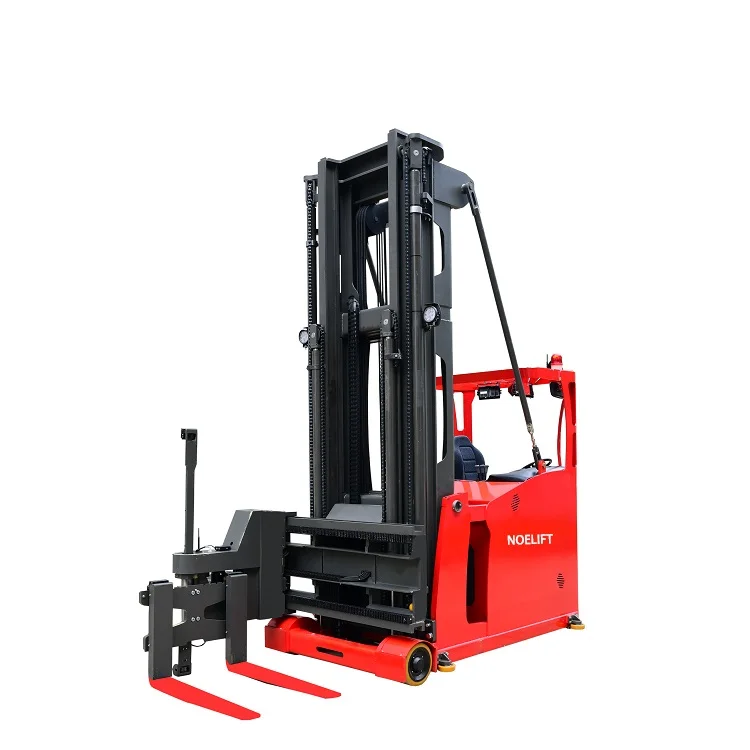

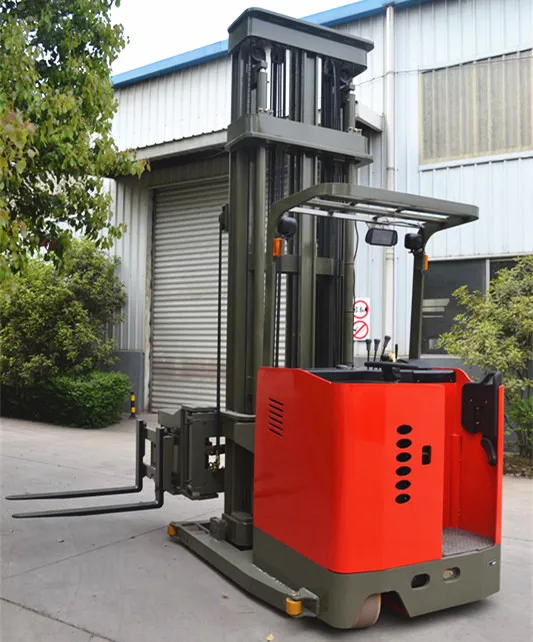

3-WAY ELECTRIC PALLET STACKER FEATURES

Specifications
1, stand on type opertaion.

2.  TC10-75 3-way electric pallet stacker; 1000kg/1500kg load capacity , 7500mm lift height

3,  3 - 7.5M lifting height, duplex/triplex/container mast.

4,  Different lengths forks and solid tyres is optional

5, Wide vision mast, soft and comfortable design.

6.the Min.width of aisel just need 1480mm!!!

7. When lift height is or more than 4.5m, the equipment with the camera and colored monitor.











Technical details :



1.0T ELECTRIC 3 WAY ELECTRIC PALLET TSACKER
1		Brand				NOELIFT
2		Model				MC10-75
3		Power Type				electric
4		Rated Capacity			kg	1000
5		Max Lift Height			mm	7500
6		Load Center			mm	600
7		Wheel		Type		PU
8				Load		φ140×100
9				Drive		φ380×165
10				Balance		φ204×76
11				Number		4 /1X+2
12		Mast type				2 - stage mast
13		Free Lift Height			mm	3735
14		Mast Lowered Height			mm	3750
15		Mast Extened Height			mm	8500
18		Overhead Guard Height				2260
19		Fork Size			mm	1000/125/50
20		Fork Width			mm	400~780
21		Aisle Width(1200*1200)			mm	1480
22		Turning Radius			mm	1880
23		Speed		Travel (full/no load)	km/h	8/9
24				Lifting(full/no load)	mm/s	230/300
25		Drive Motor Power			kw	5.5 AC
26		Lift Motor Power			kw	8.6 AC
27		Battery			V/AH	48/400
28		Controller				Curtis
29		Max Grade Ability			%	≤10
30		Battery  Weight			Kg	675
31		Steering System				EPS
32		steering system				Electronic power steering
33		camera with height indicator				more than 4.5m will be yes
34		Forklift Dimension   L*W*H			mm	2906*1450*2595
35		Weight			kg	4260
36		HS code				8427102000
37		Delivery time				45 days
Working video				https://www.youtube.com/watch?v=brTHt3lapeY















Other very Narrow Aisle forkift (VNA)

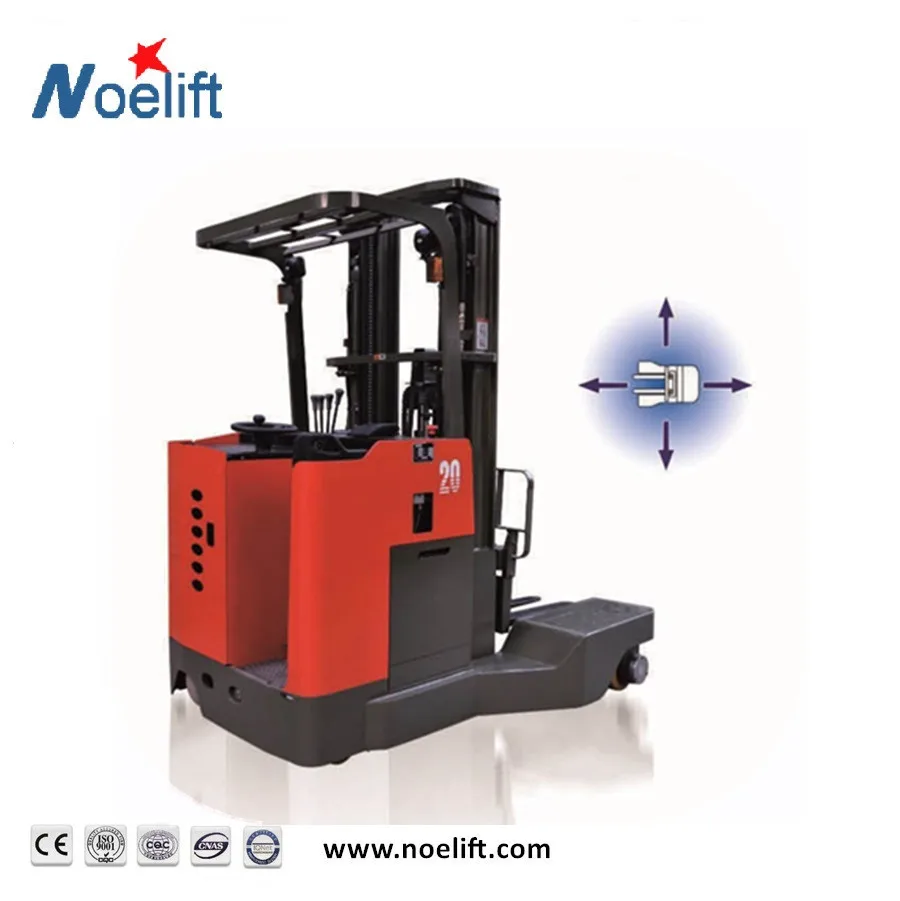

Multi directional forklift truck  loading capacity : 2.5T/4.0T  lift hieght : 3.0 - 7.0m	Side loading reach forkift truck  Loading capacity: 1.5t - 2.5t  Lift height  :3.0-7.2m	4-dirctional  rach forklift truck  Loading capacity: 1.5t - 2.5t  Lift height  :3.0-7.2m



1. One-stop solution service.

2. Customized-service is available.

3. Customer service is in time.



Any questions and suggestions please feel freely to contact us!
