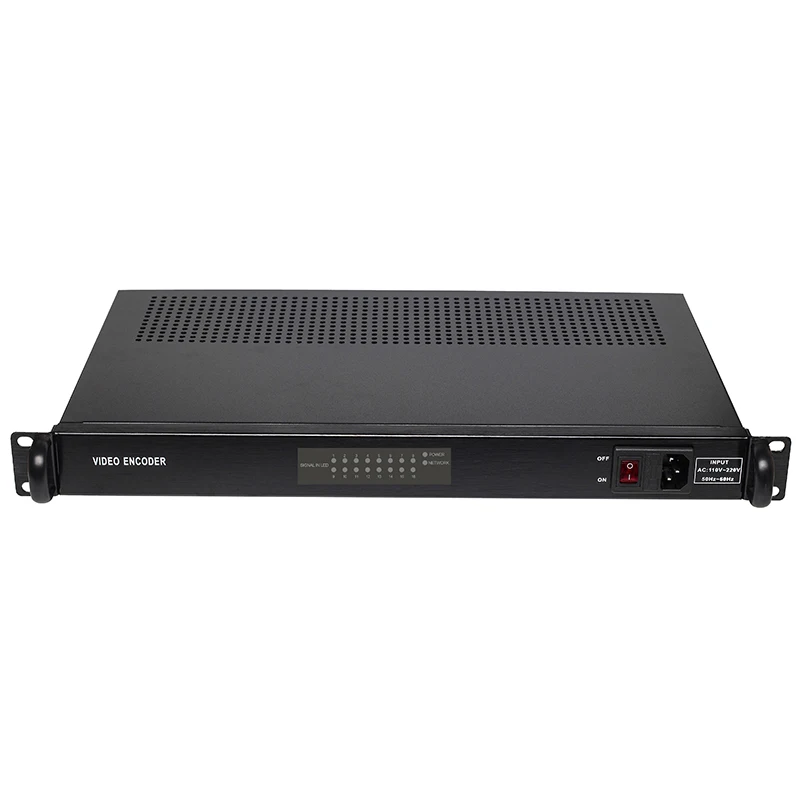

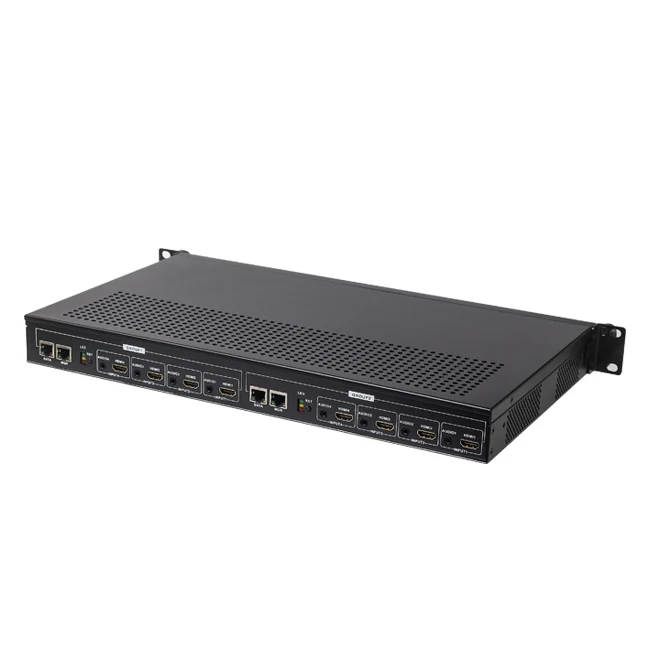

Y530L 8 Channels H.264 HDMI Digital Video Encoder for IPTV Live Broadcast support RTMP RTSP UDP HTTP and Facebook YouTube Wowza
- Category: >>>
- Supplier: Shenzhen Haiwei Vision Technology Co. Ltd.
Share on (60772597910):
Product Overview
Description
8 HDMI FHD ENCODER IPTV
Professional-Class Live Broadcast Encoder
Product model | Y530 8*HDMI Encoder | ||||||
Input | 8 Channel HDMI input, 8 Channel audio input | ||||||
Output | 2 channel IP output, 2 network management port.8 streams output | ||||||
Input resolution | Up to 1920x1080p 60FPS | ||||||
Coding standard | H.264/ AVC | ||||||
Encoded size | 640*360~1920*1080（Can customize） | ||||||
Video bit rate | Rate control: CBR/VBR 16KBIT/S~12MBIT/S | ||||||
Video frame rate | 5-60 FPS | ||||||
OSD | Text, images | ||||||
Input selection | 8 channel embedded audio hdmi, 8 channel 3.5MM independent audio, support audio gain | ||||||
Audio coding | AAC/MP3/ G.711 | ||||||
Audio bit rate | 64Kb/s~384Kb/s | ||||||
Sampling rate | 32000,44100 etc | ||||||
IP Output | 1000M Ethernet for transmission, 1RJ 100M port for configuration Dual bitrate standard TS stream. | ||||||
Network protocol | Supports HTTP, RTSP, RTMP, RTMPS, ON VIF, UDP, multicast, unicast | ||||||
Product Details
Haiwei is leading video streaming solutions provider in China
H.264 HDMI Video ENCODER

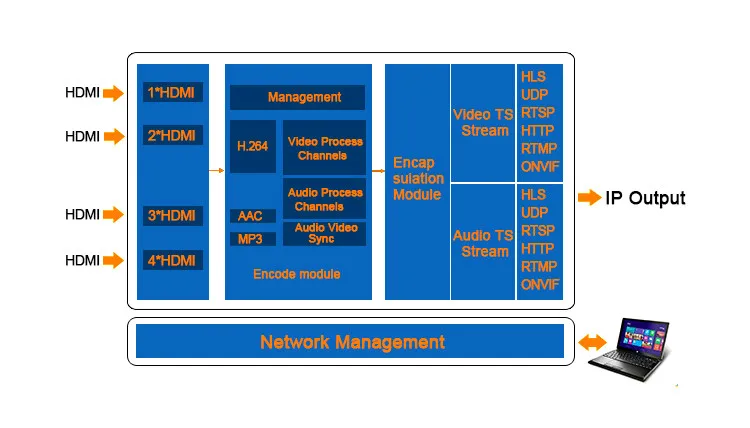

The H.264 HDMI video encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 8 channel HDMI input supporting H.264/AVC high profile /main profile /baseline profile coding format which is streaming by HTTP, RTSP, UDP, RTP, RTMP, RTMPS, ON VIF, HLS, FLV. HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps .
Its high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc. Not only single channel, we also produce multichannel HDMI video encoder which is packed with 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.
● High-performance hardware encoding
● Support image parameter settings

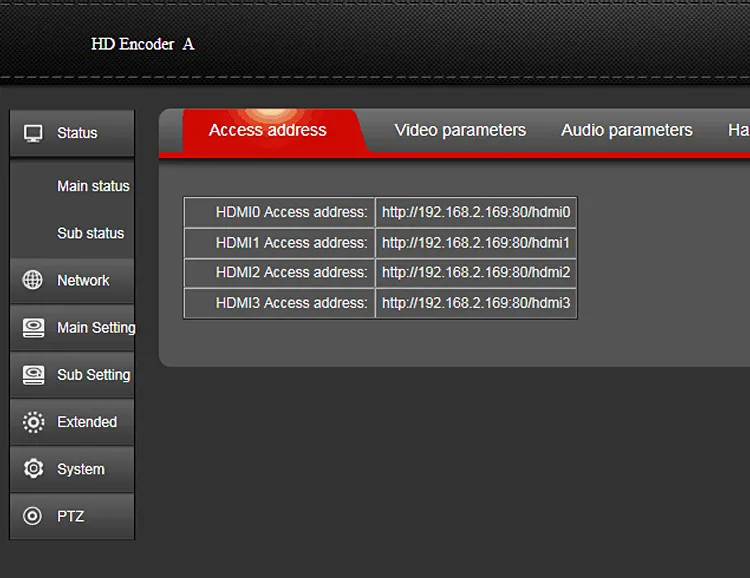

● WEB interface, English, and Chinese is optional for configuration interface
● WEB interface management authority
● Support remote management in WAN(WEB)
● Support resolution customized settings
● Support one key to restoring the factory configuration
● Support SDK, secondary development
Recommend Products
H8110 H.264 IP Video Encoder Mobile APP Controling
K3 PRO WIFI 4K ABR Encoder with 5.0 Inch Touch Screen
K3 PLUS 3 SIM Card 4G Bond WIFI 4K Encoder
Why Choose Haiwei ?
Haiwei is leading video streaming solutions provider in China
8 years experience in R&D and production.
Delivery fast as source manufacturer.
SDK offered for integrated project.
Certifications:CE,FCC,KC,ROHS,CCC.etc.
OEM supported.
In 2018, Haiwei obtained the “high-technology enterprise certification”（National certification）.

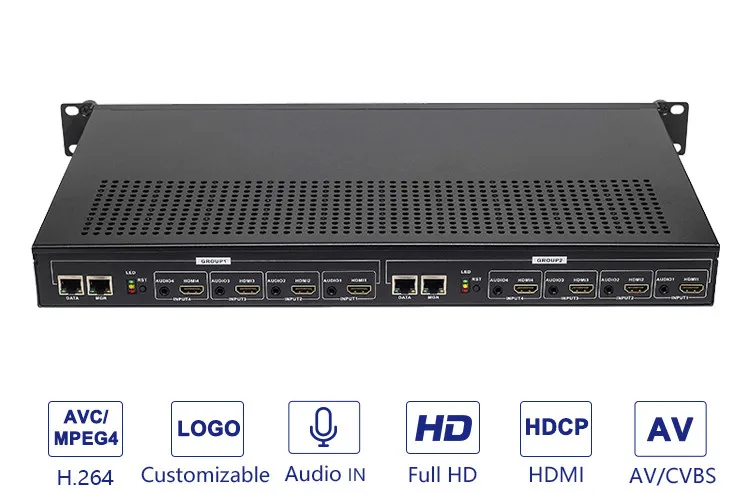

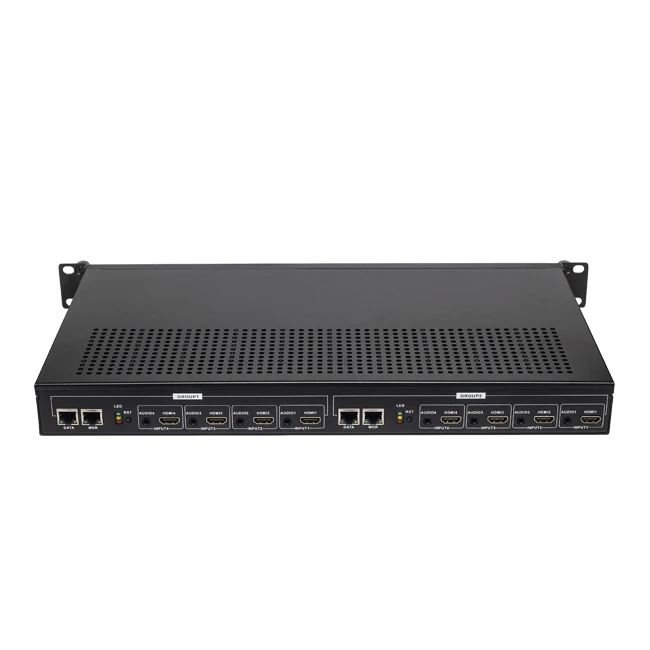

Transmission & Management
Simultaneous data transmission and network management
Gigabit port: data transmission
100M port: Management
Support B frame
FHD 1080P Live Video Quality
Real-time 720P/1080P@60 frame hd uncompressed picture quality, even complex, fast moving video picture quality, can easily deal with.At the same time, the software can realize recording and support HDMI video signals output by cameras, SLRS, drones, DV, medical devices, set-top boxes and other devices.
Support Most Live Streaming Platforms
Multi-protocol, multi-platform, all-round live marketing
Support HLS/RTSP/RTP/RTMP/P2P,DHCP, ON VIF, HTTP, UDP unicast, multicast and other protocols, as long as the live broadcast platform, support the above protocol, you can be broadcast

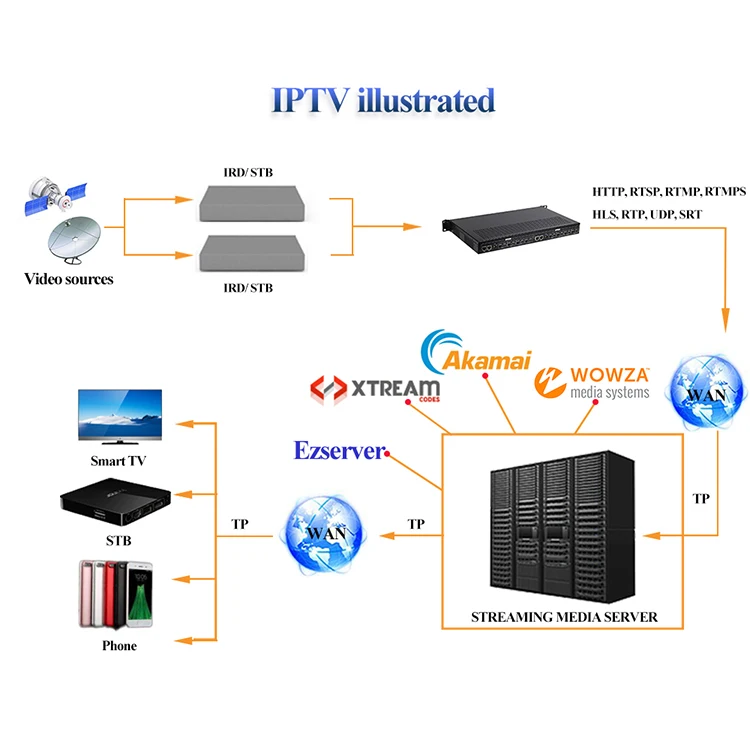

Application
Hotel IPTV System
Digital TV Broadcasting System
IPTV & OTT system
Internet TV
Digital Signage Project
Remote Video Conference
Video Monitoring
Live Streaming
Digital TV Broadcasting System
Digital TV Programs Transmission
Head-end system of Digital TV branch network
CATV Broadcasting system
Edge side of Digital TV backbone network

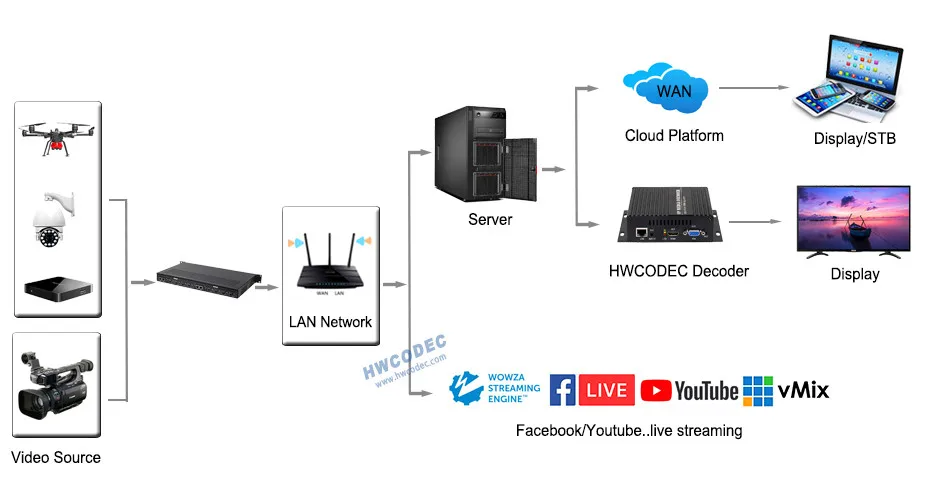

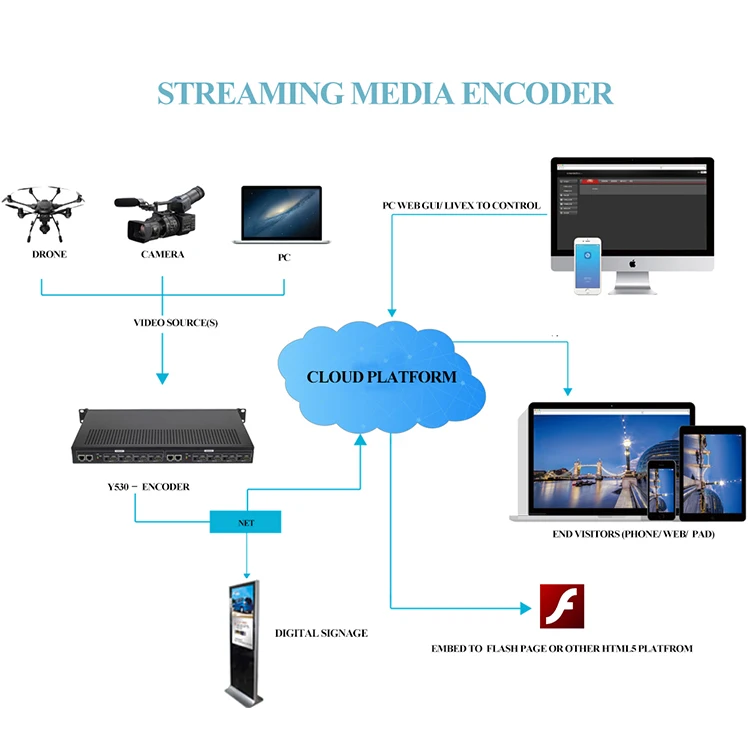

Connection Schematic Diagram
OSD（On-Screen Display）
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
FAQ
1.Q: How fast can I get the quotation?
A: We usually quote within 18 hours after we get your inquiry.
2.Q: Can we do LOGO-Customized product?
A: No problem. please contact with us and send your logo.Shipping within 5 working days when we received payment.
3.Q: Do you offer guarantee for the products?
A: We offer 24 month guarantee for the goods.
4.Q: When is your lead time?
A: 2-7 days after for production comfirmation of order
5.Q: Are you accept Paypal?
A: Yes, we are.
