1717inch DR or CR digital x ray system
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (60772632785):
Product Overview
Description

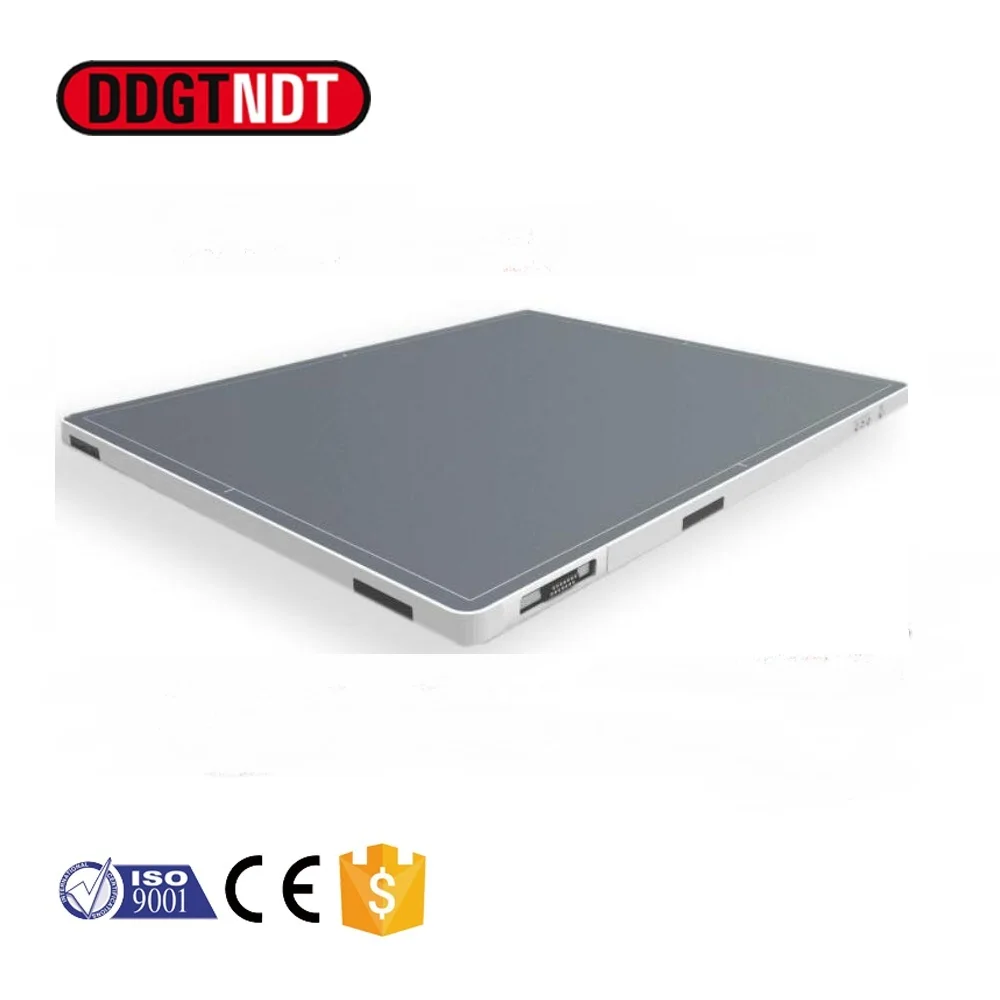

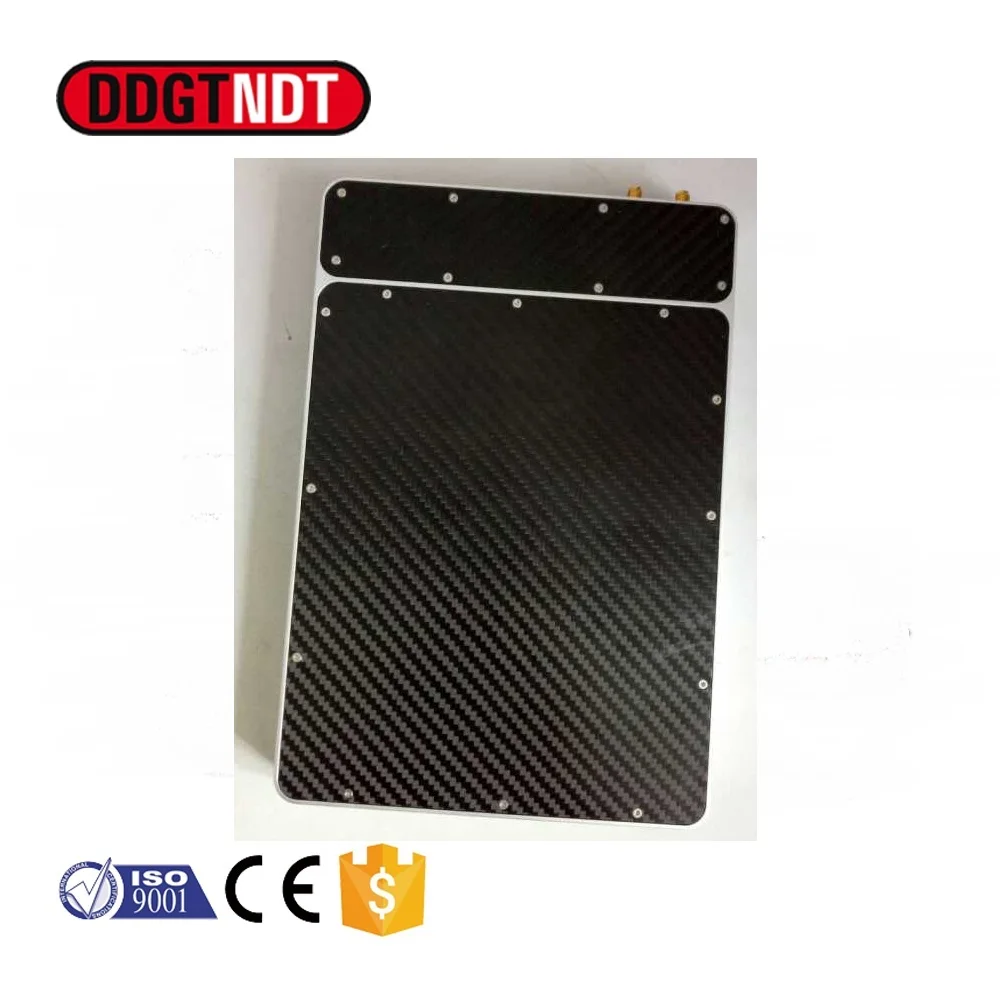

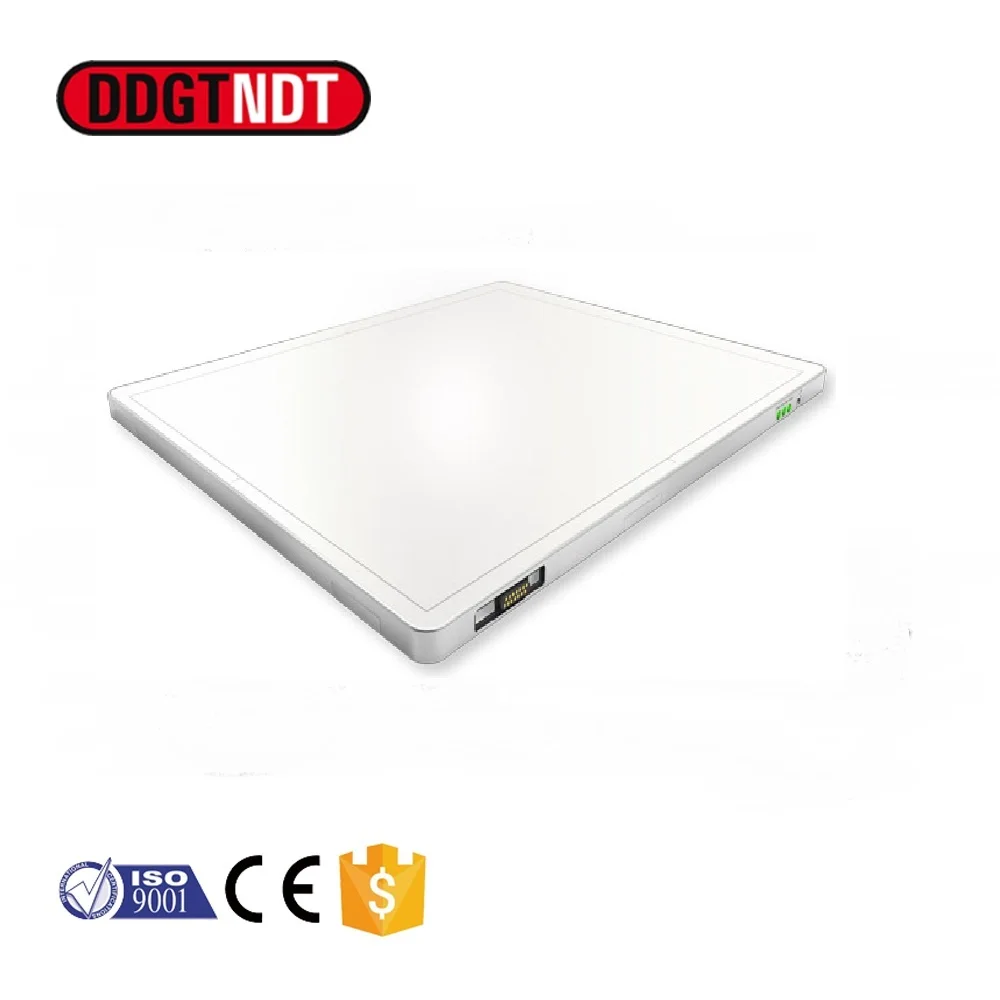

1717inch DR or CR digital x-ray system
Product Description
Product Parameter
Related Products
Series

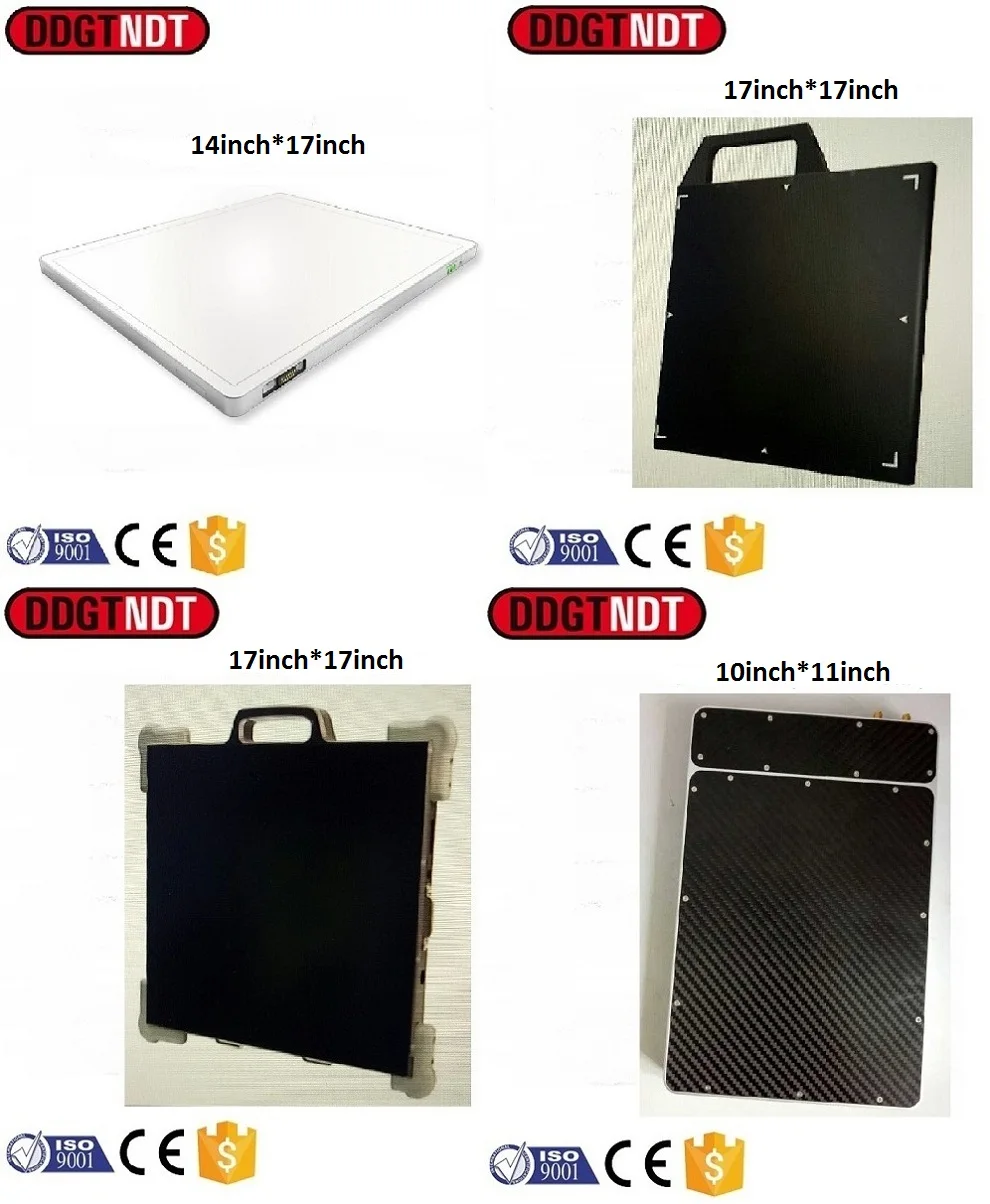

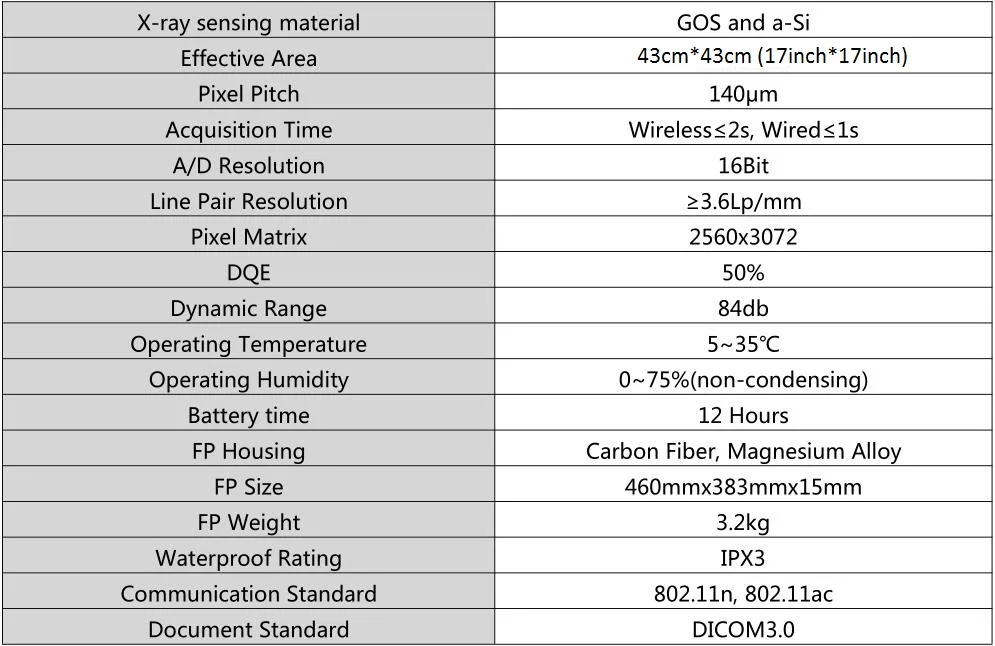

| Model | 14inch*17inch | 17inch*17inch | 10inch*11inch |
| X-ray sensing material | GOS and a-Si | - | - |
| Effective Area | 35cm*43cm (14*17inch) | 43cm*43cm (17inch*17inch) | 25cm*29cm (10inch*11inch) |
| Pixel Pitch | 140μm | - | - |
| Acquisition Time | Wireless≤2s, Wired≤1s | - | - |
| A/D Resolution | 16Bit | - | - |
| Line Pair Resolution | ≥3.6Lp/mm | - | - |
| Pixel Matrix | 2560x3072 | - | - |
| DQE | 50% | - | - |
| Dynamic Range | 84db | - | - |
| Operating Temperature | 5~35℃ | - | - |
| Operating Humidity | 0~75%(non-condensing) | - | - |
| Battery time | 12 Hours | - | - |
| FP Housing | Carbon Fiber, Magnesium Alloy | - | - |
| FP Size | 460mmx383mmx15mm | 38mm*46mm*15mm | 46mm*46mm*15mm |
| FP Weight | 3.2kg | - | - |
| Waterproof Rating | IPX3 | - | - |
| Communication Standard | 802.11n, 802.11ac | - | - |
| Document Standard | DICOM3.0 | - | - |
Packing
Packing List
| No. | Item | Qty. |
| 1 | 17*17 inch The Panel | 1 |
| 2 | The software | 1 |
| 3 | The computer | Not free |
Payment and Shipping
Company Information
Our company was founded in 1988, which is one of the well known companies specialized in Non-dectructive testing (NDT) equipments. After 20 years' development, we have accumulated abundant technical force and established a wealth of design and practical experience. We are a manufacturer and trading company. Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Our portable X-ray machines have the specifications from 100kV, 120kV, 160kV, 200kV, 220kV, 250kV, 300kV, 320kV to 350kV. Our portable machines have smaller size and lighter weight, and are more convenient for users to operate.
Our stationary X-ray machines have the specifications from 100kV, 160kV, 225kV, 300kV, 320kV, 350kV, 400kV, 420kV to 450kV. Our stationary machines have stronger penetrating power and also are more suitable for the online non-destructive testing. Our products are finely developed and manufactured by adopting high technologies of many countries and manufacturers. They can be widely used in many fields such as mechanism, electron, petroleum, chemical industry, electric power, bridges, boats and ships, vehicles. aviation, heating power, boilers, pressure vessels and war industries. Our sales network covers the whole world and we maintain good business relationship with more than 200 customers. We will serve the first-class technology, first-class products and first-class service for you.
Certificate
FAQ
1. The warranty period?
12 months.
2. If you could repair by yourself?
We could provide the free spare parts and guide for you.
3. The delivery term?
Express
4. The delivery time?
After receiveing payment, the testing needs 2 days. After deliverying, you will get it around 6 days
The contact details
The contact person: Mr. Frank Chen
Tel: +86-415-2883568
Fax: +86-415-2824917
Mobile: +86 15842587084
Skype: fchen011
Wechat: ct112611
Email: frank (at) ddgtndt.com ; frank.chen01 (at) hotmail.com
Website: //ddgt.en.alibaba.com
