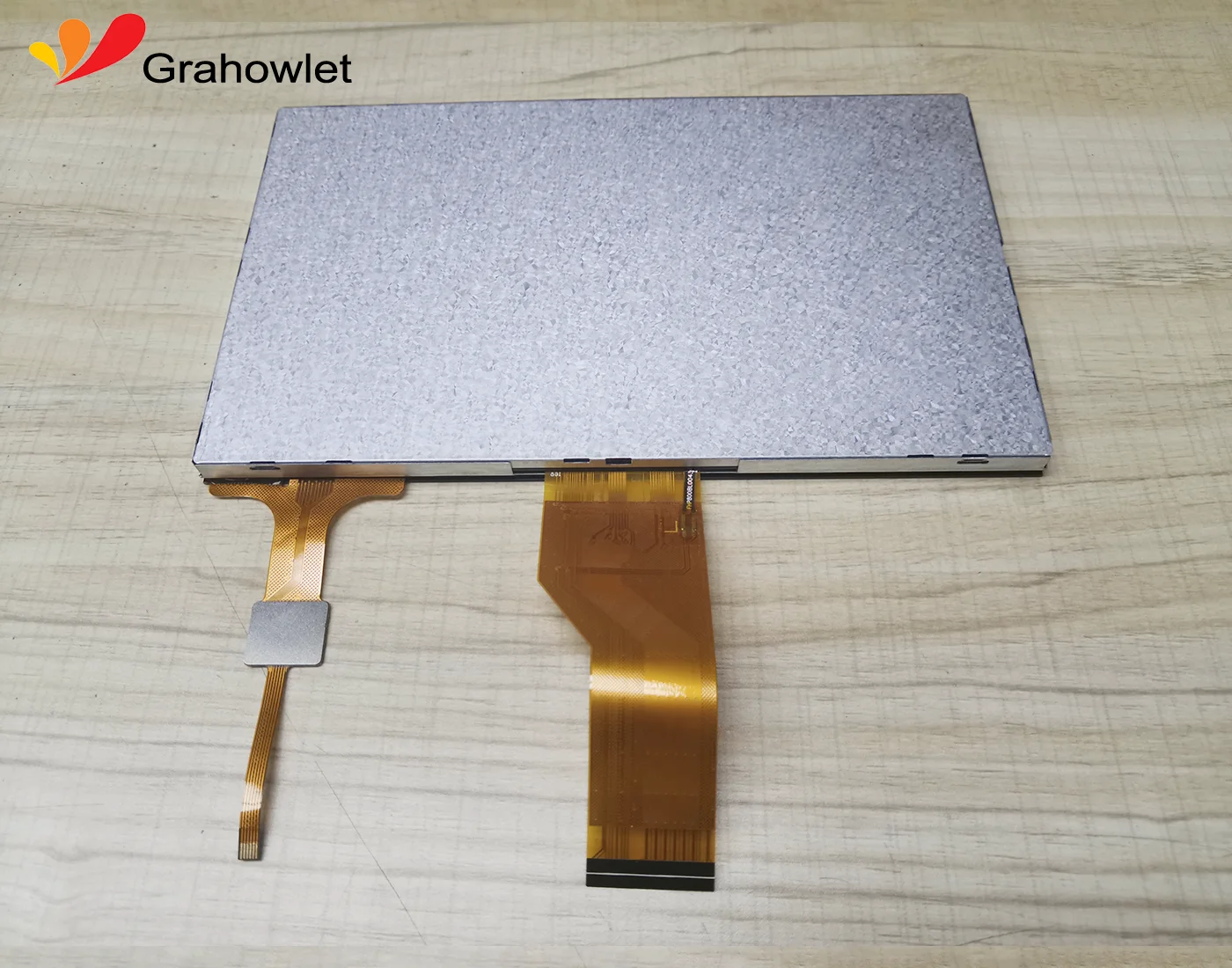

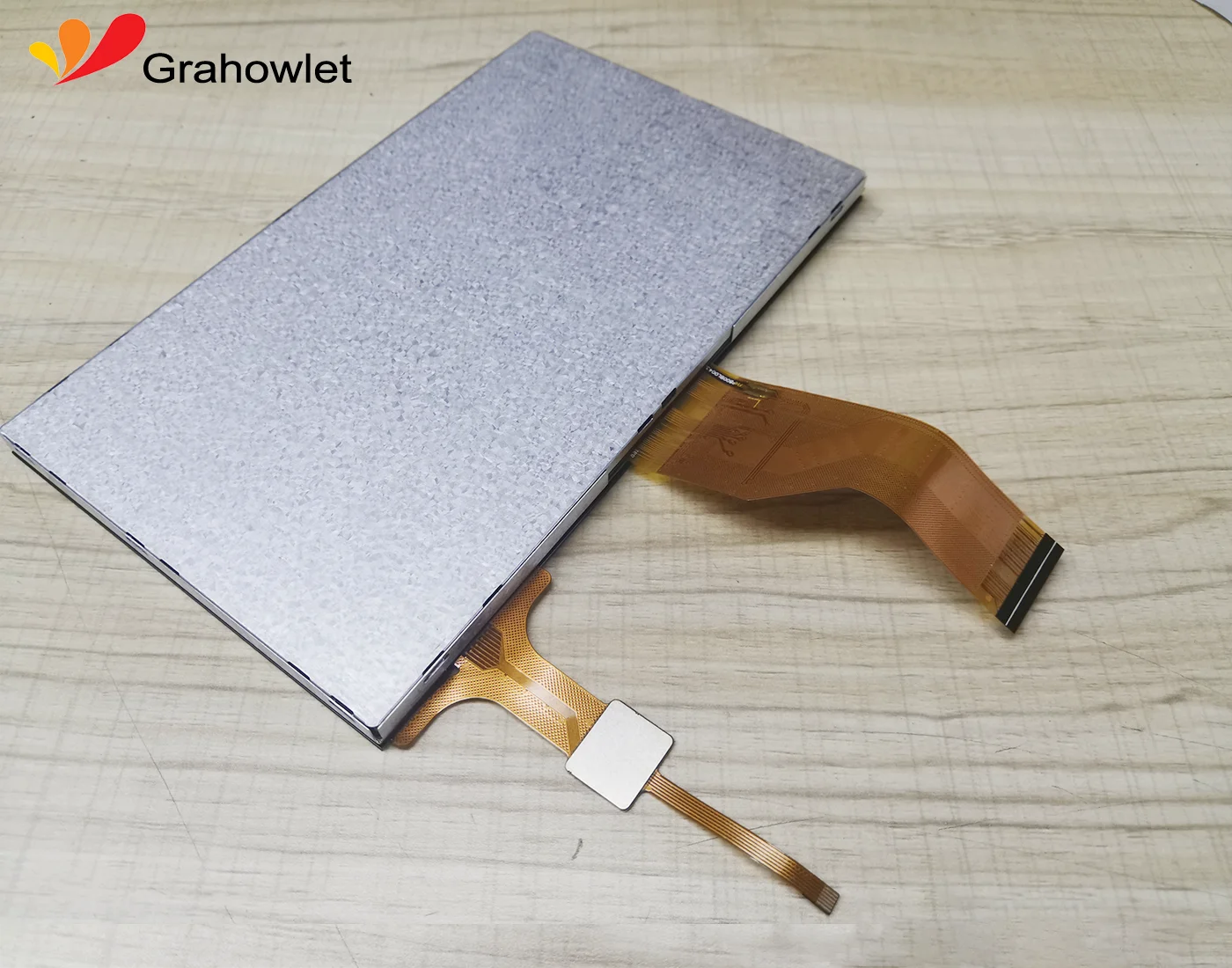

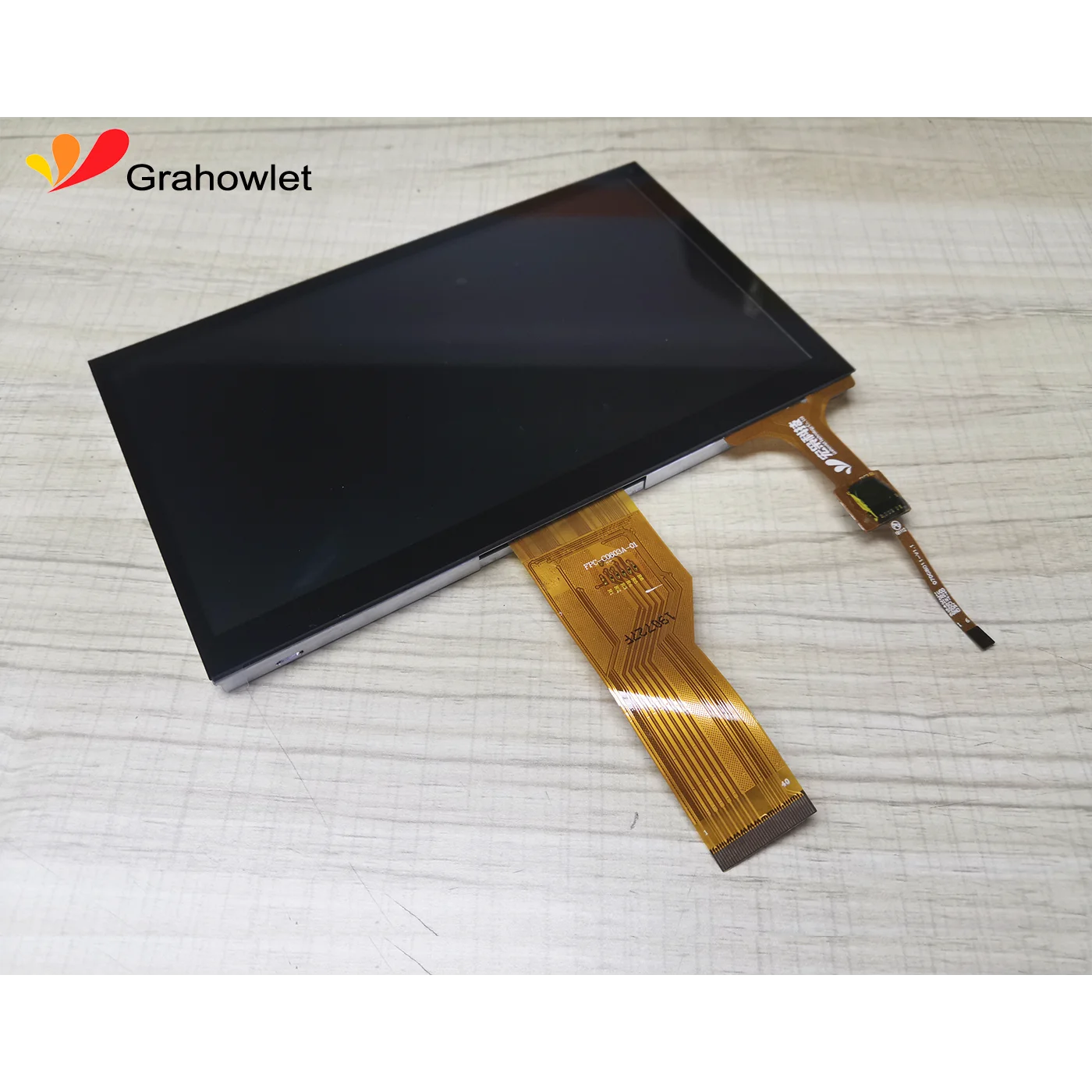

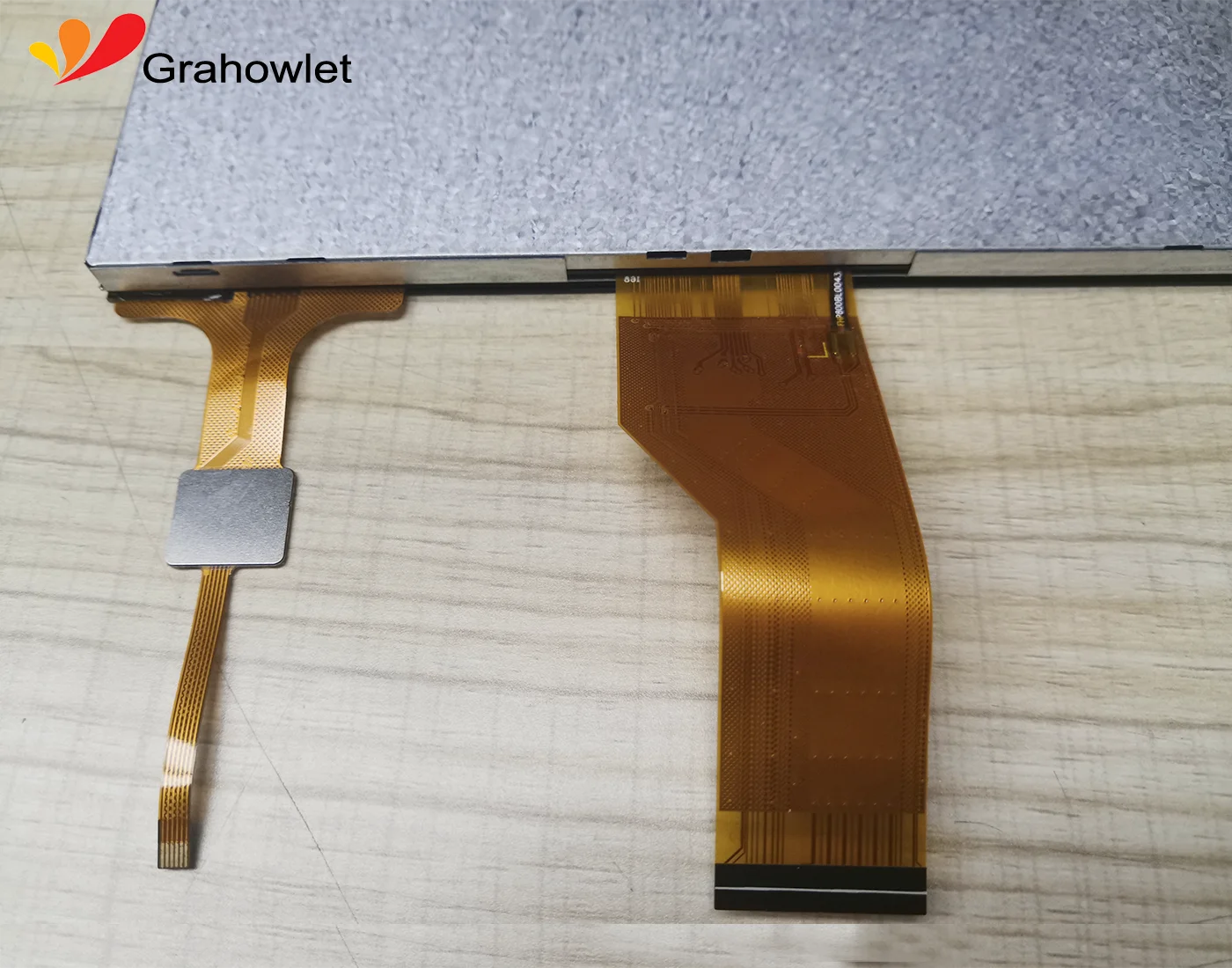

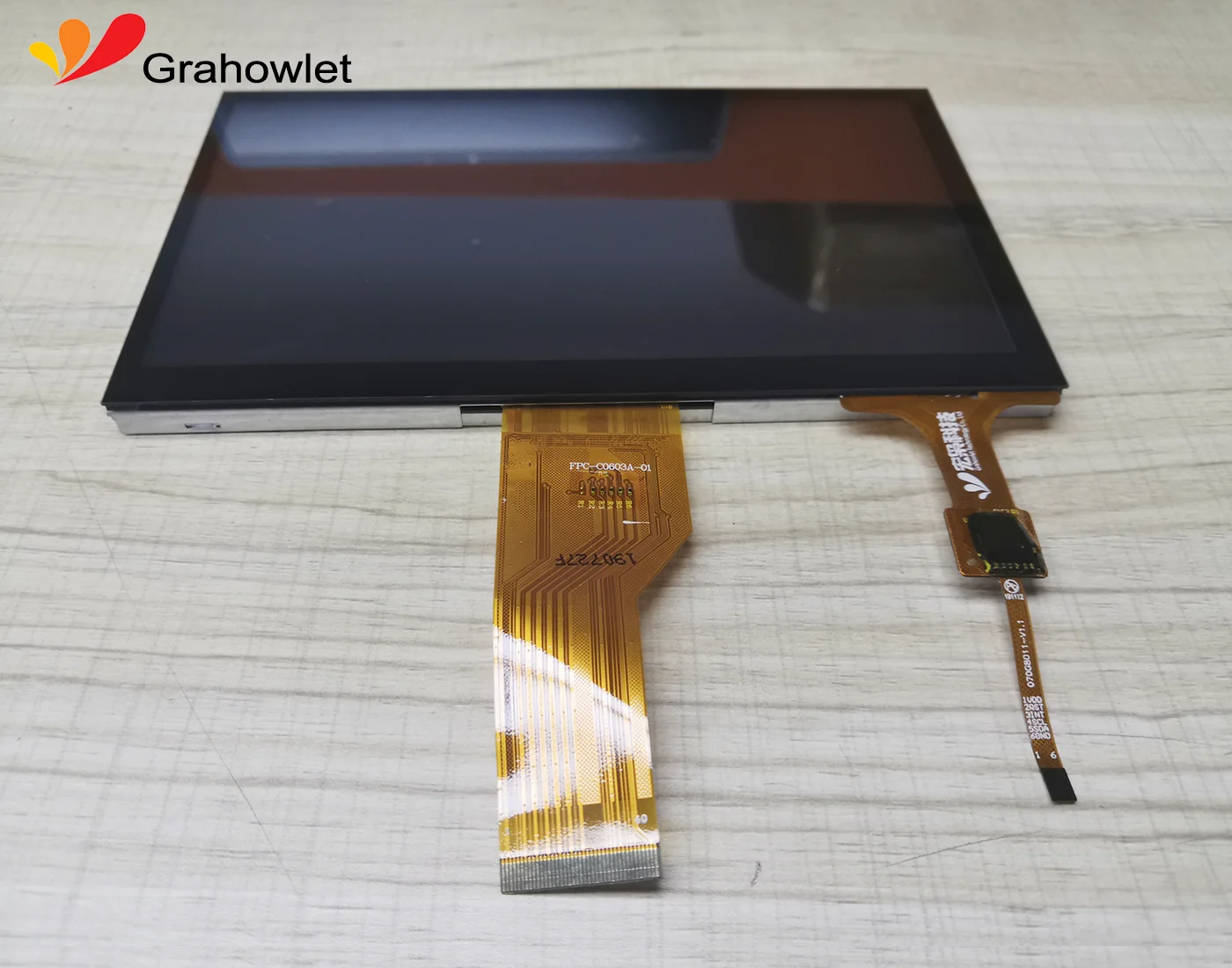

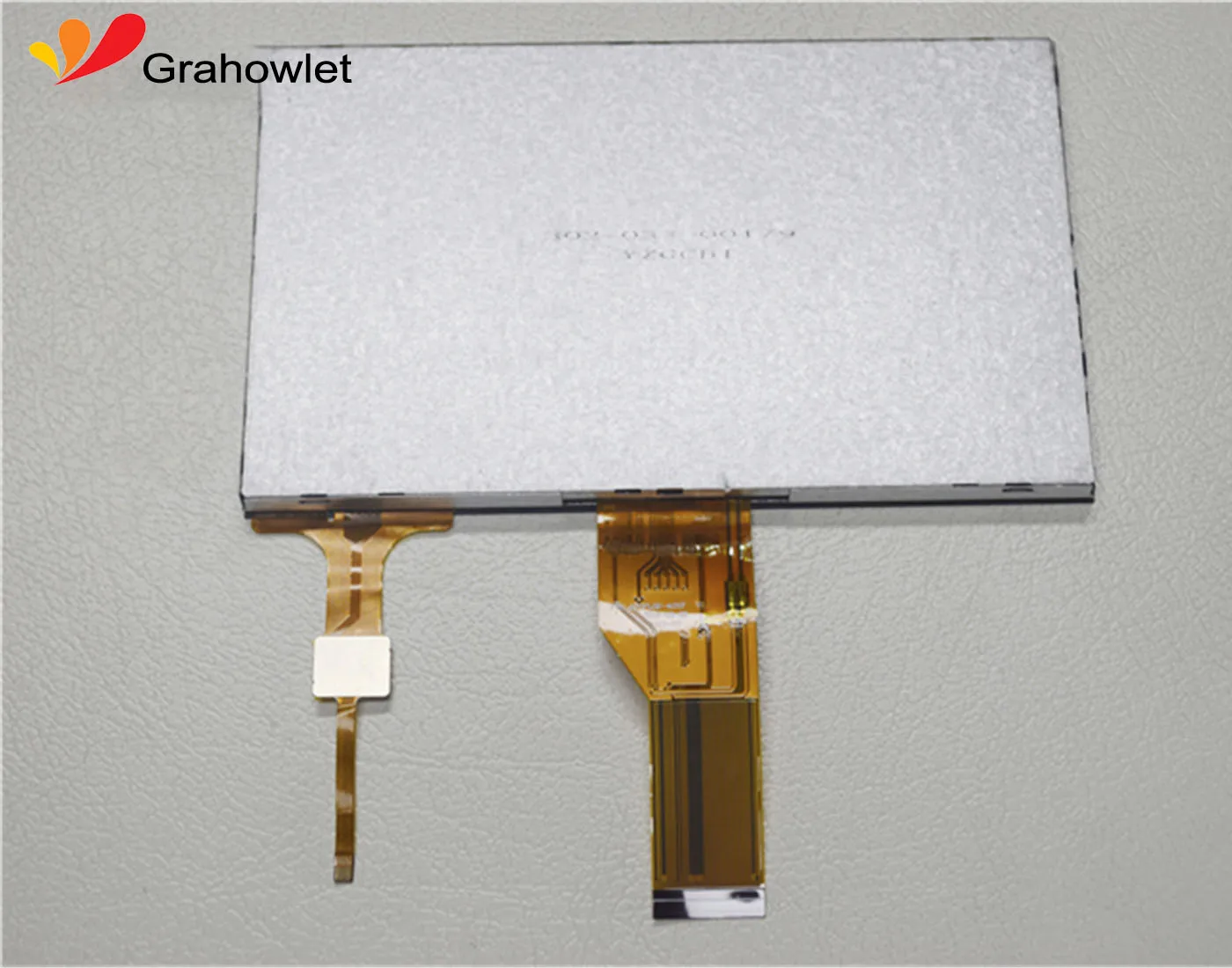

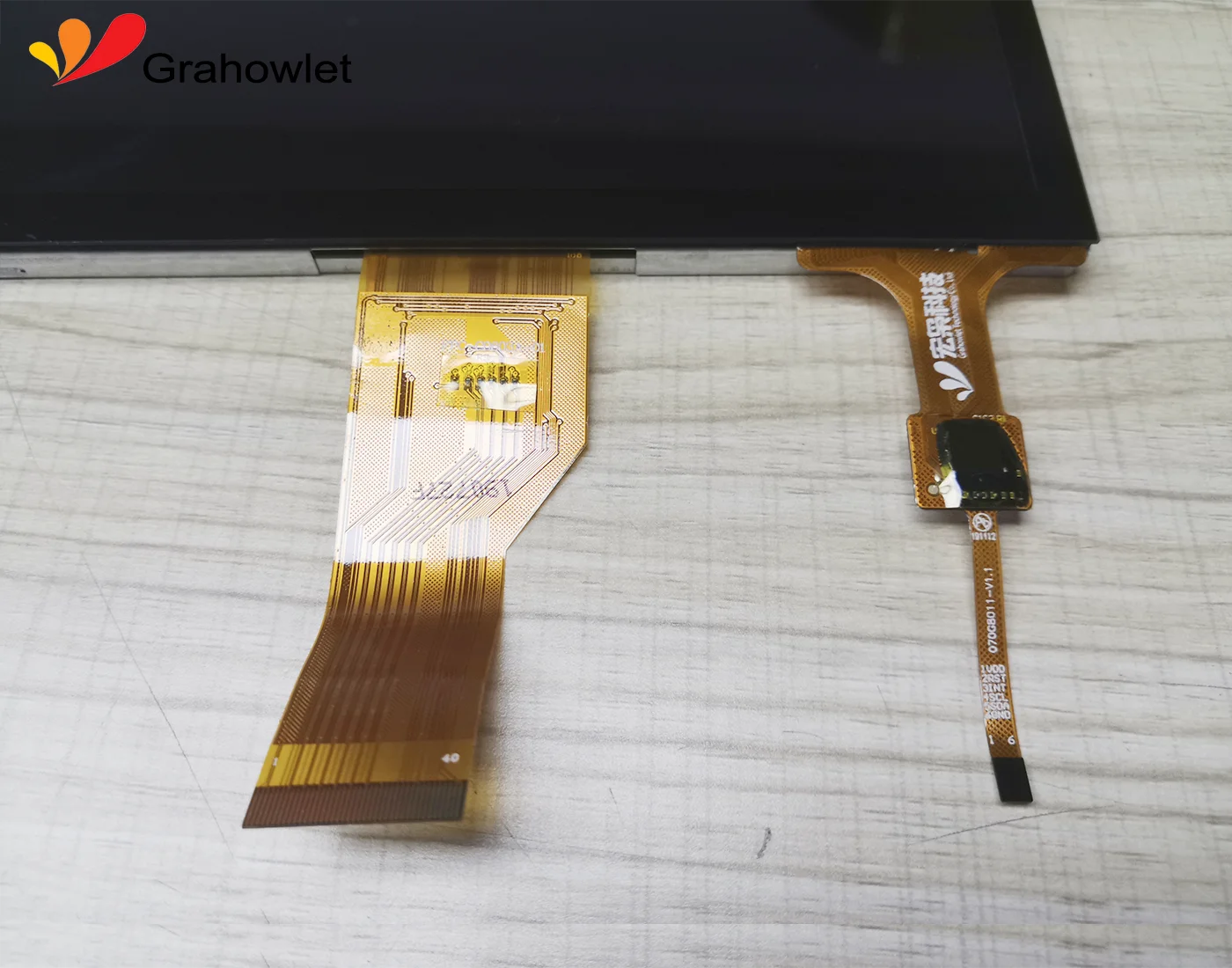

7 inch touch screen module with RGB 800x480 tft lcd display panel
- Category: >>>
- Supplier: Hangzhou Hongxiao Technology Co. Ltd.
Share on (60772708761):
Product Overview
Description
7 inch touch screen module with RGB 800x480 tft lcd display panel
Product Description
MODULE PRODUCT DETAILS
Model Number:HX0701702
Size:7.0 inch
Operating Temperature:-20℃ ~ 70℃
Outline Dimension:165.00x100.00x7.73 mm
Viewing Area:154.88(W)x86.72(H) mm
Active Area:154.08(W)x85.92(H) m
Support Systems:Windows/Android/Linux etc.
Size:7.0 inch
Operating Temperature:-20℃ ~ 70℃
Outline Dimension:165.00x100.00x7.73 mm
Viewing Area:154.88(W)x86.72(H) mm
Active Area:154.08(W)x85.92(H) m
Support Systems:Windows/Android/Linux etc.
Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:IIC/USB
Controller IC :Cypress
Surface Hardness:≥6H
Interface Type:IIC/USB
Controller IC :Cypress
Structure:Glass+Glass
Touch Points:1-10 Points
Power Supply Voltage:2.8V ~ 3.3V
Touch Points:1-10 Points
Power Supply Voltage:2.8V ~ 3.3V
TFT LCD DISPLAY
Resolution:800X480
Interface Type:RGB/HDMI/VGA
Luminance:300 cd/m²
Viewing Angle:70/70/50/70
Interface Type:RGB/HDMI/VGA
Luminance:300 cd/m²
Viewing Angle:70/70/50/70
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application

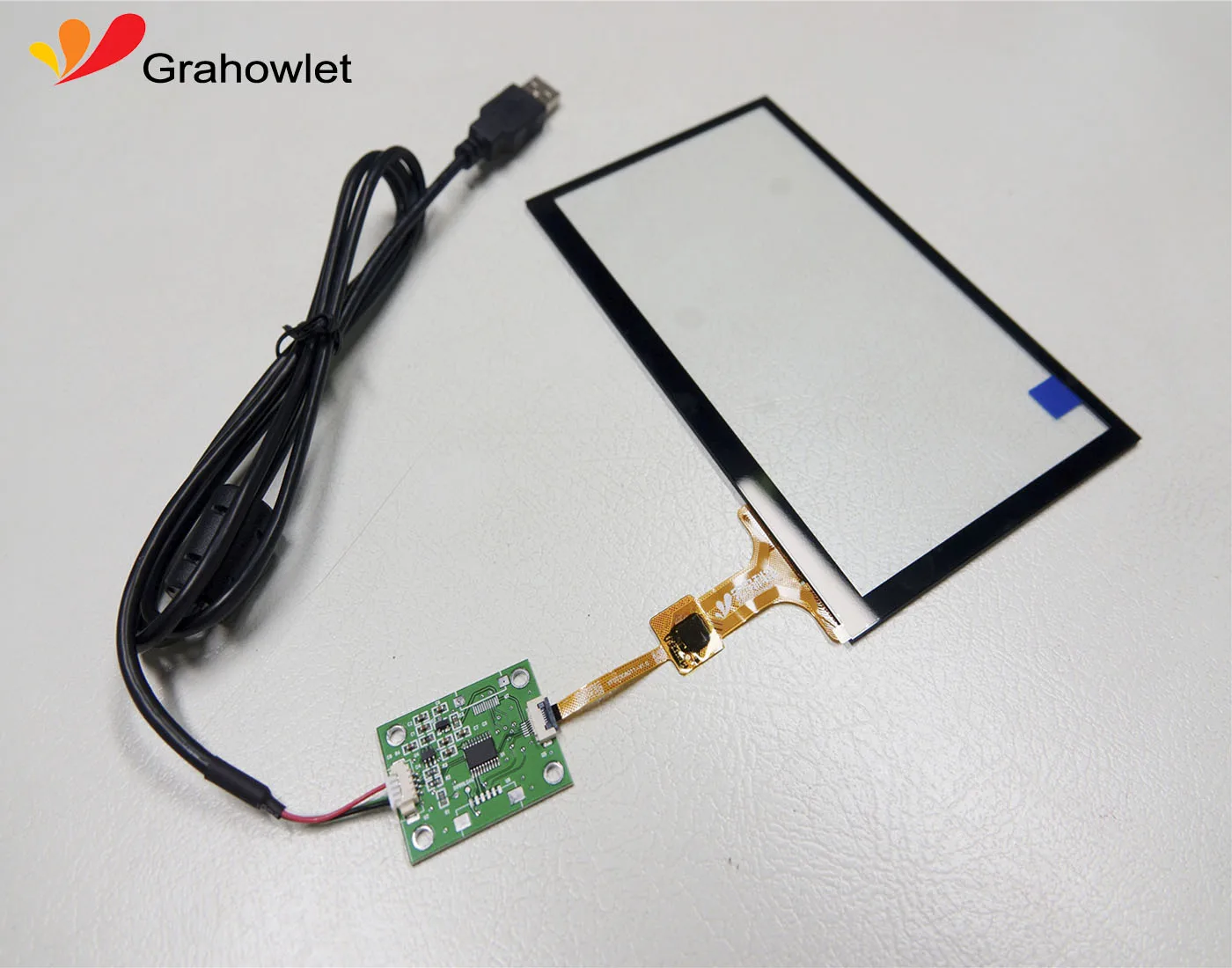

If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
