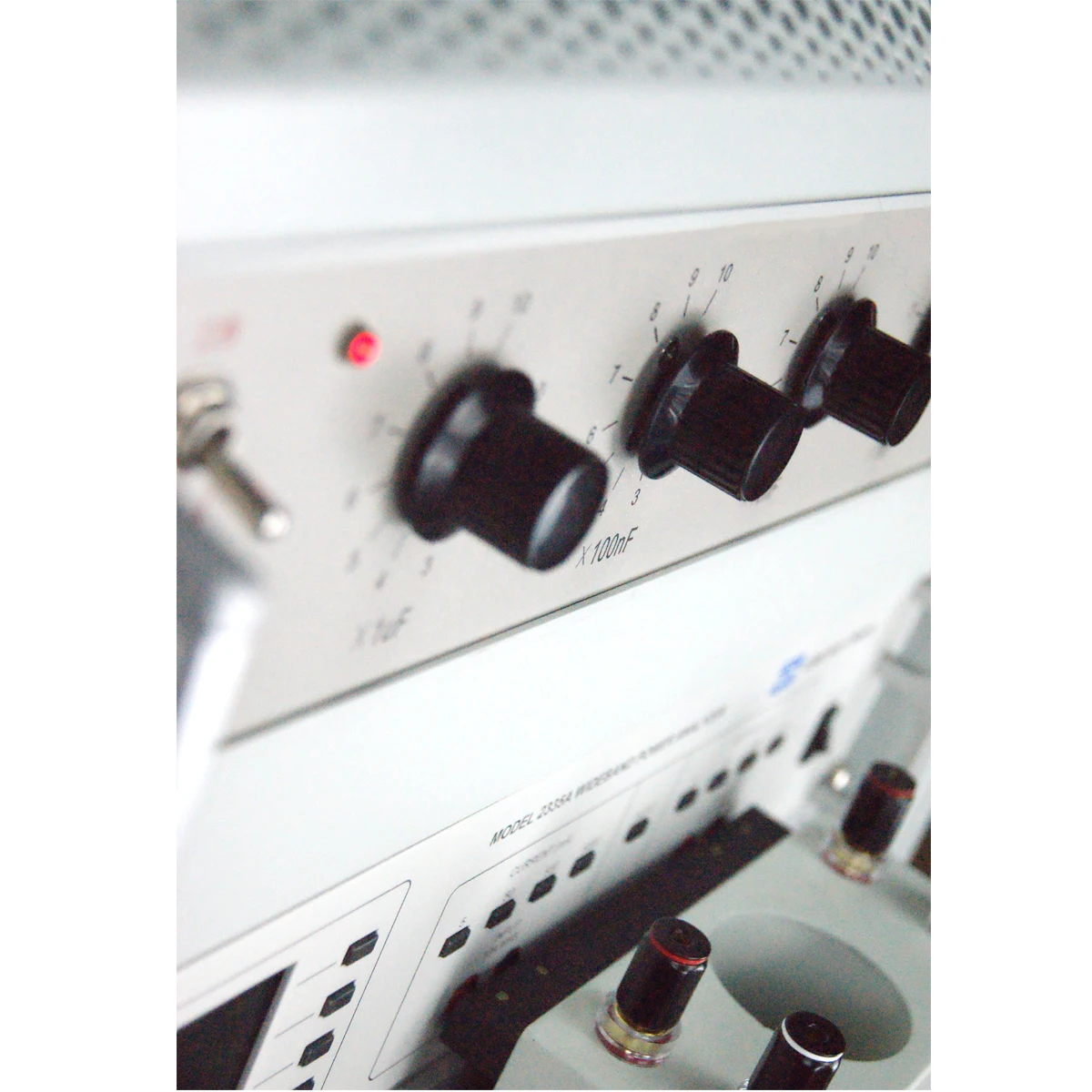

MATS 3010SA Hysteresisgraph iron loss detector

Product Overview

Description

Production Introduction

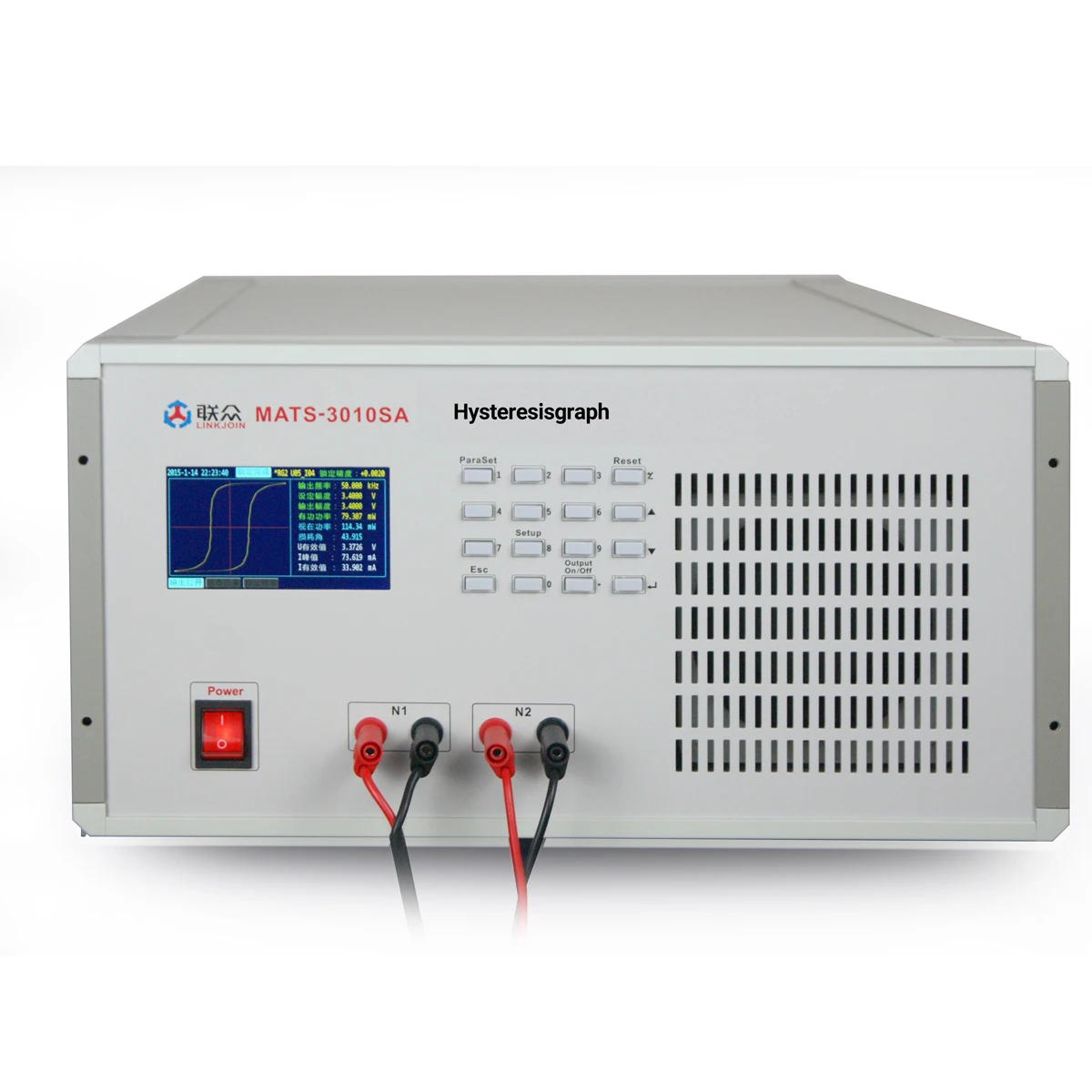

MATS-3010SA Hysteresisgraph is the special magnetic measurement instrument which is based on the technology of computer, software, A/D data acquisition and ARM embedded system.

MATS-3010SA Hysteresisgraph adopts digital waveform compensation and digital feedback technology which can accurately measure the AC parameters of soft magnets such as permalloy, amorphous /nanocrystalline and silicon steel under the frequency of 1kHz~200kHz, the measured parameters are total loss ratios Ps, magnetic polarization Jm, magnetic field strength Hm, excitating power Ss, amplitude permeability μa, AC magnetization curve and loss curve.



Main Features

(1) Use voltammery and DDA to measure dynamic hysteresis loop, and accurately measure μa, δ, Ps, Br and Hc.

(2) The third generation signal source technology makes it keep the relative high Signal to Noise Ratio when the primary output as low as 0.01V.

(3) With digital dynamic feedback treatment technology, the minimum measured secondary voltage signal can reach to 0.05Vrms.

(4) With full frequency range of fixed H measurement, the minimum resolution of primary excitation current is 0.01mA, which can measure the initial permeability ui and saturation magnetic induction Bs of soft ferrite.

(5) The digital programmed power supply has the function of change range automatically. It automatic select output range and sampling range according to test sample characteristics, which effectively improve the safety of instrument and the measurement accuracy.

(6) Newly design of the overall cooling channel of the chassis, which effectively improve the stability of continuous high-power measurement.

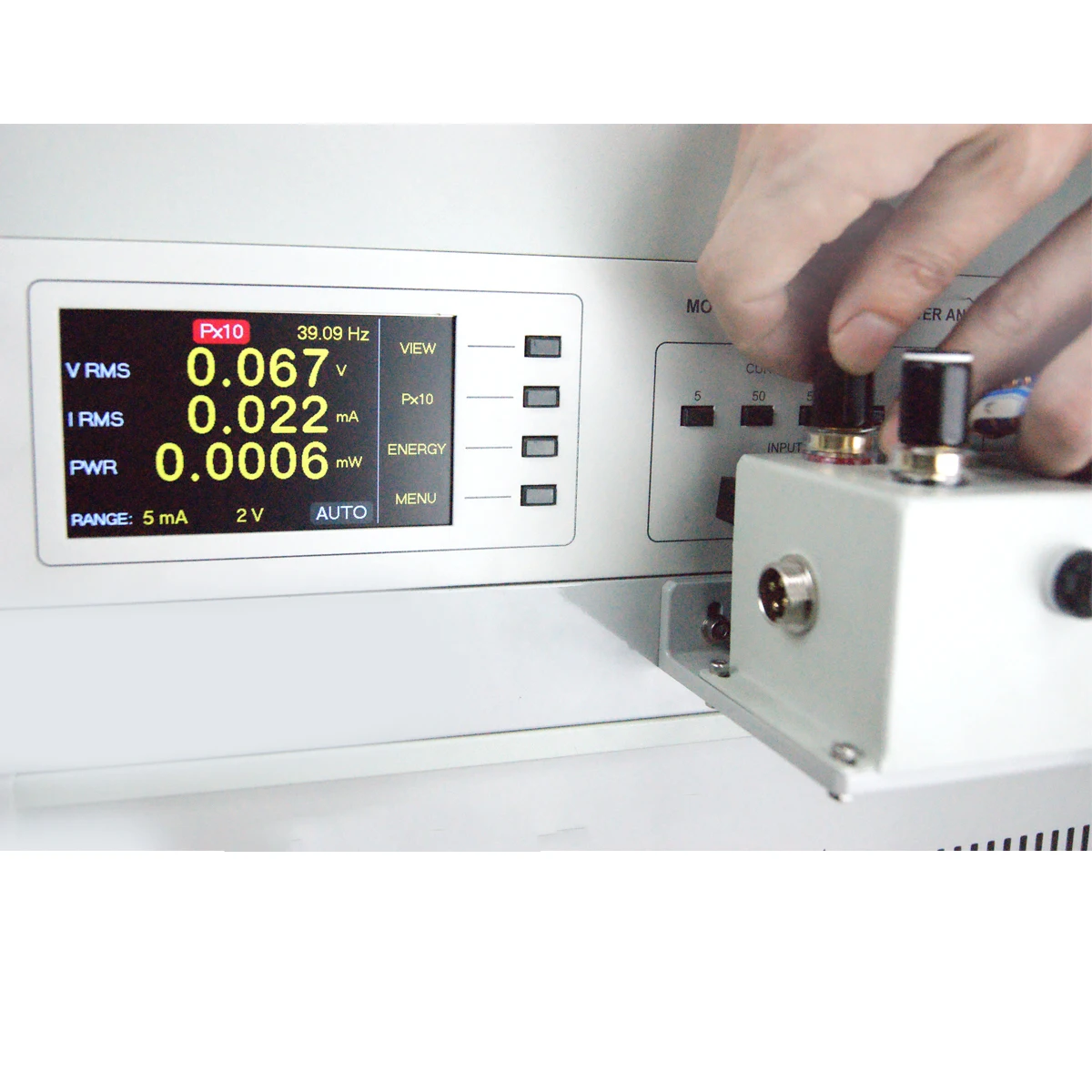

(7) 4.5 inch 854*480 high resolution IPS screen is embedded in the front panel, which displays the real voltage parameter and waveform state.

(8) It can automatically and constantly test 255 test points, each one costs about 30 seconds(related with samples); Fixed frequency, Fixed Bm or Fixed Hm modes are optional to get the AC magnetization curve and loss curve.



Technical Data

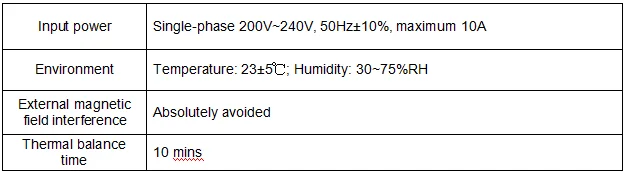

1. Working Environment

2. Measuring Range

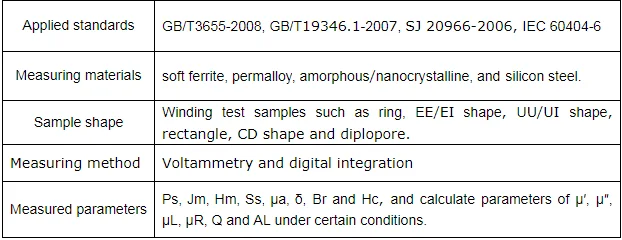

3. Instrument Parameters





4. System Parameters

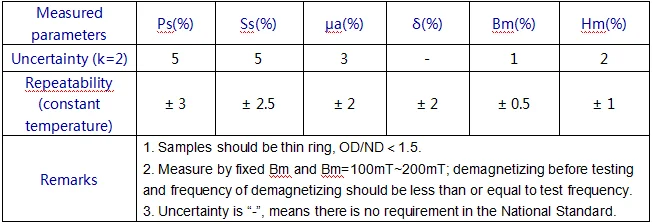

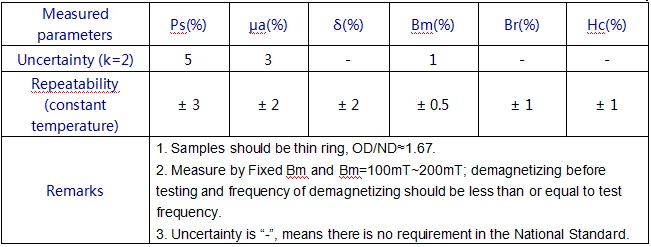

4.1 According to GB/T 3658-2008, test permalloy ring sample, technical data are as follows:

4.2 According to National Standard GB/T 19346-2003, test amorphous ring sample, technical data are as follows:

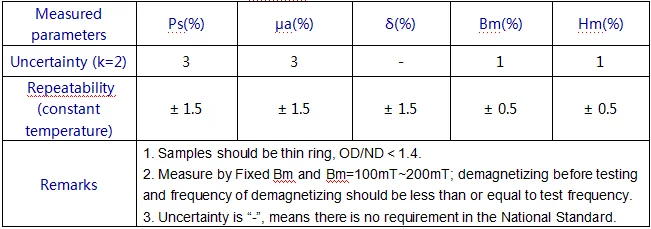

4.3 According to Military Standard SJ 20966-2006, test ferrite ring sample, technical data are as follows:

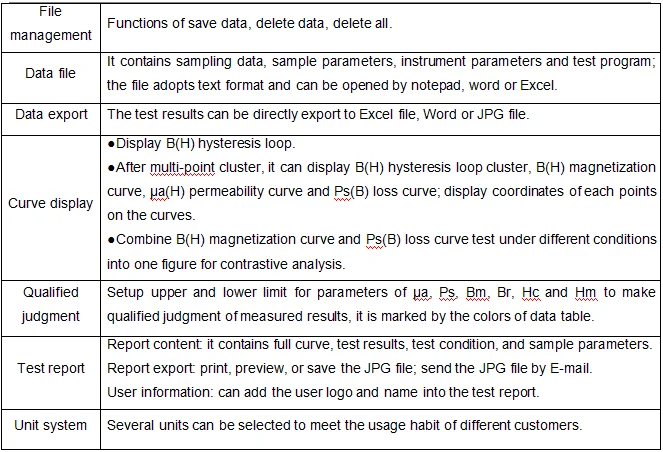

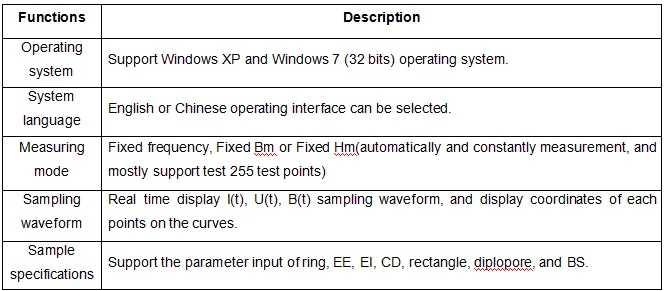

Software Function



Software Interface

1. Main Interface

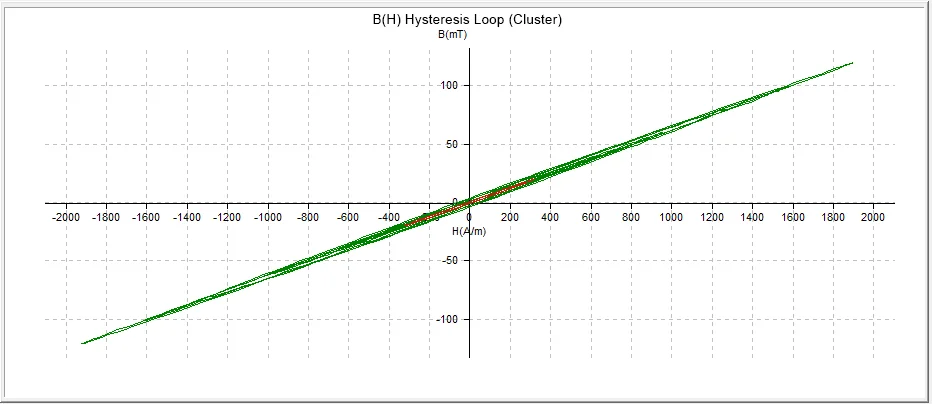

2. B(H) Hysteresis Loop (Cluster)

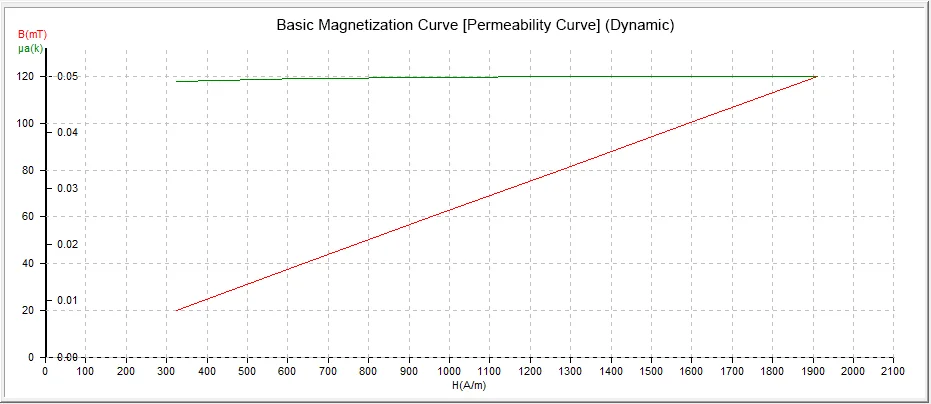

3. Basic Magnetization Curve [Permeability Curve] (Dynamic)

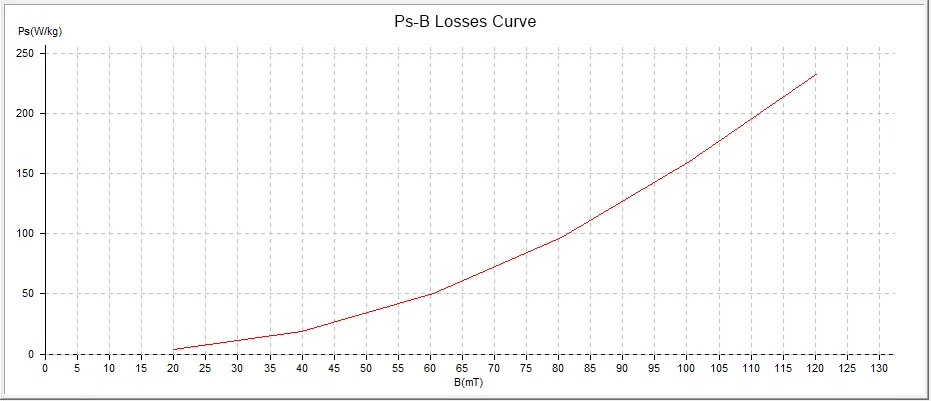

4. Ps-B Losses Curve

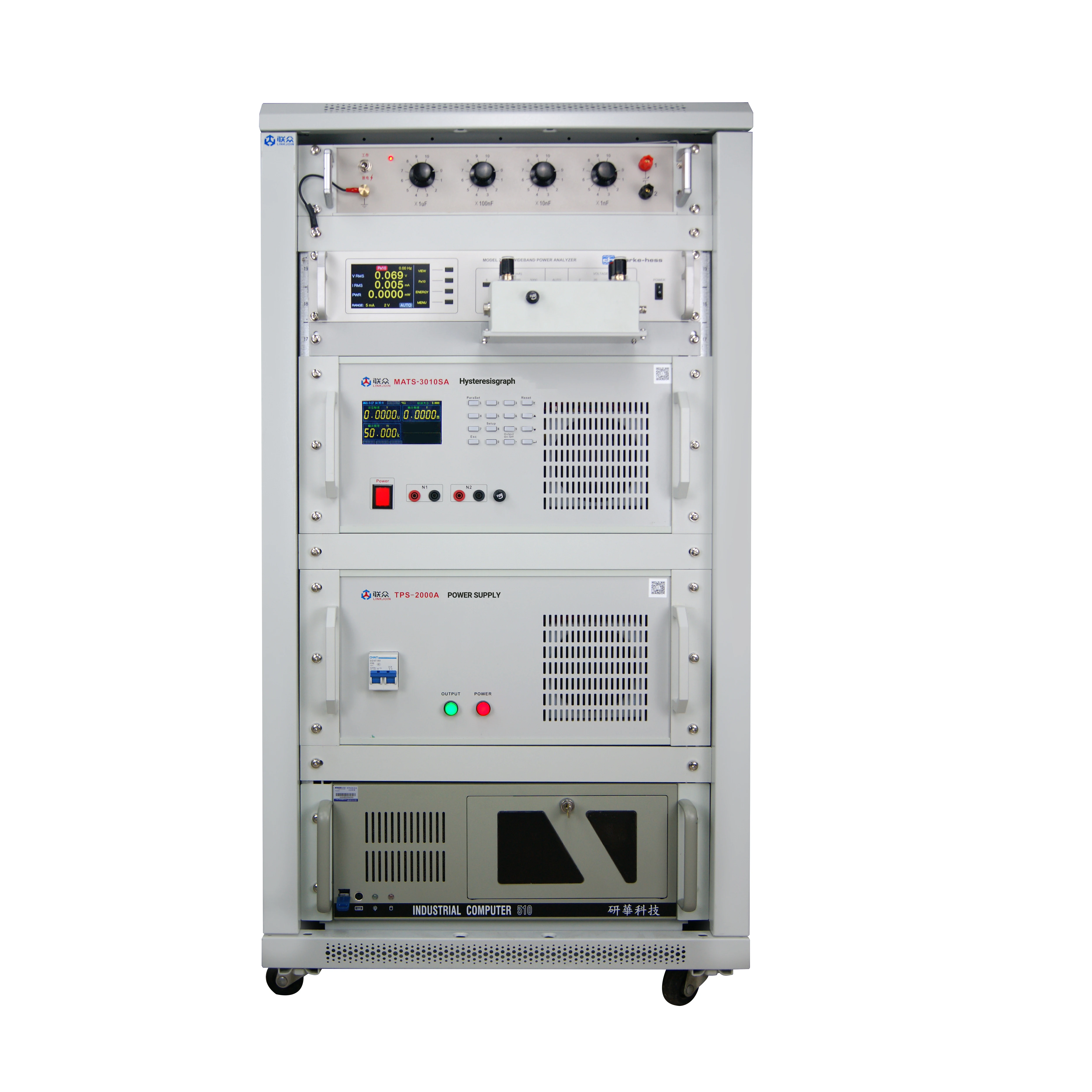

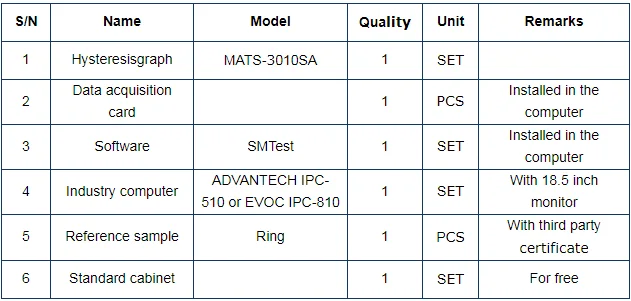

Standard Package

Remarks:

1. Above configuration is the reference for customers, final configuration in the contract shall prevail.

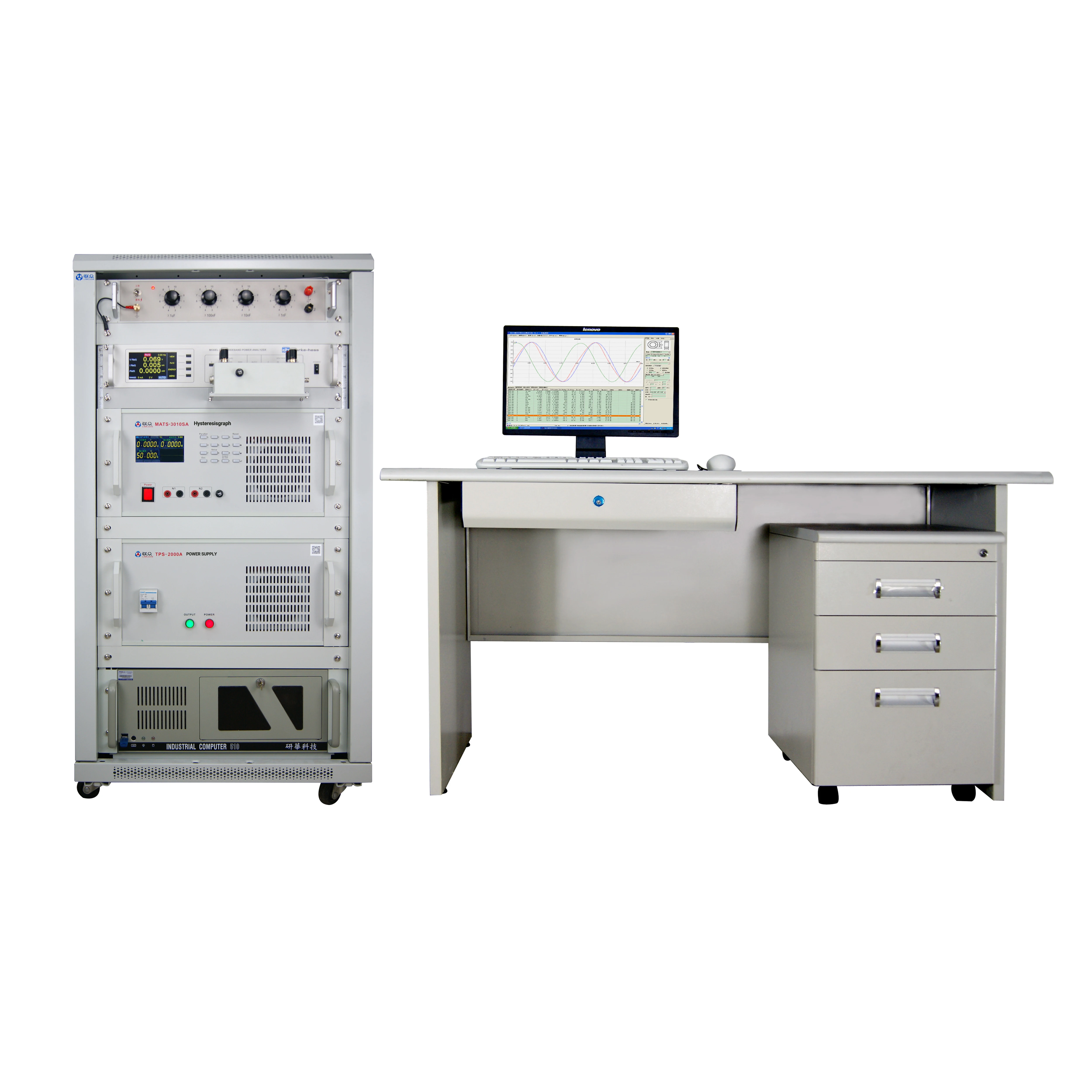

2. The desk in the picture is NOT included in the configuration.
