Factory price insulated solid nickel plated battery bus bar with epoxy powder
- Category: >>>
- Supplier: Zhejiang Rhi Electric Co. Ltd.
Share on (60772815154):
Product Overview
Description
Product Description

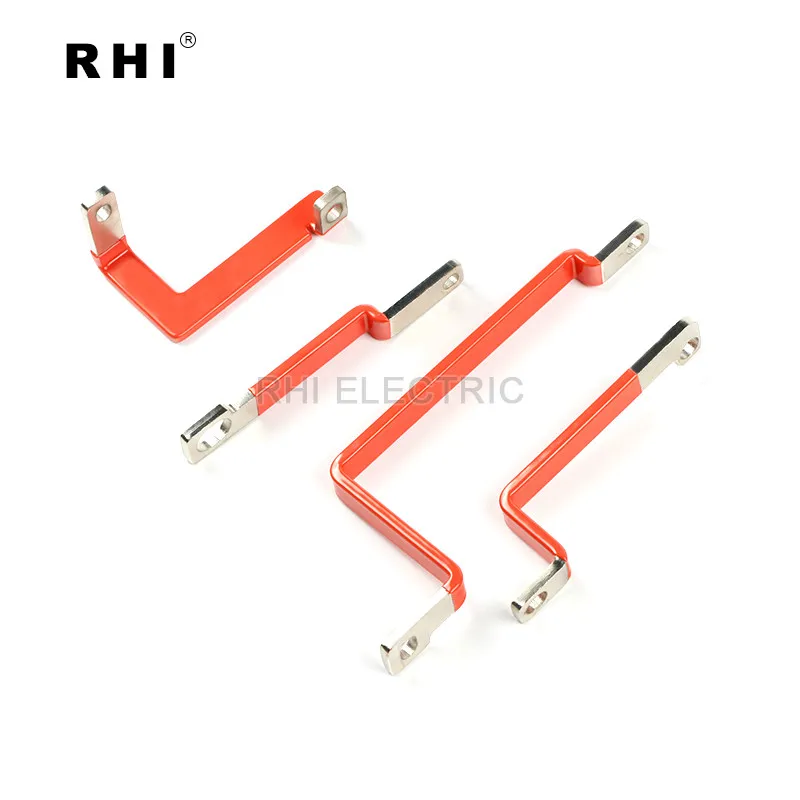

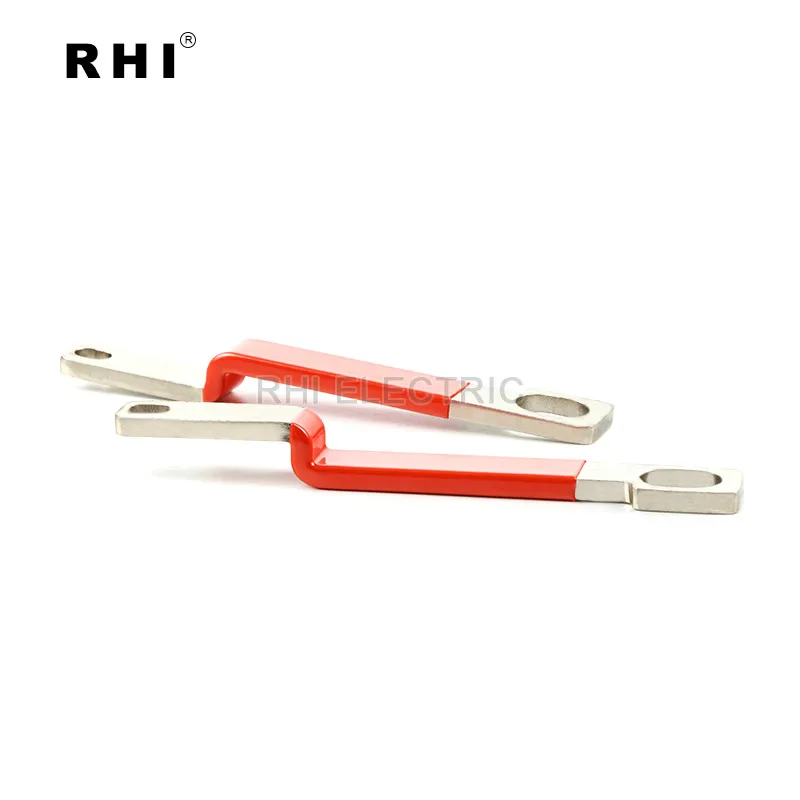

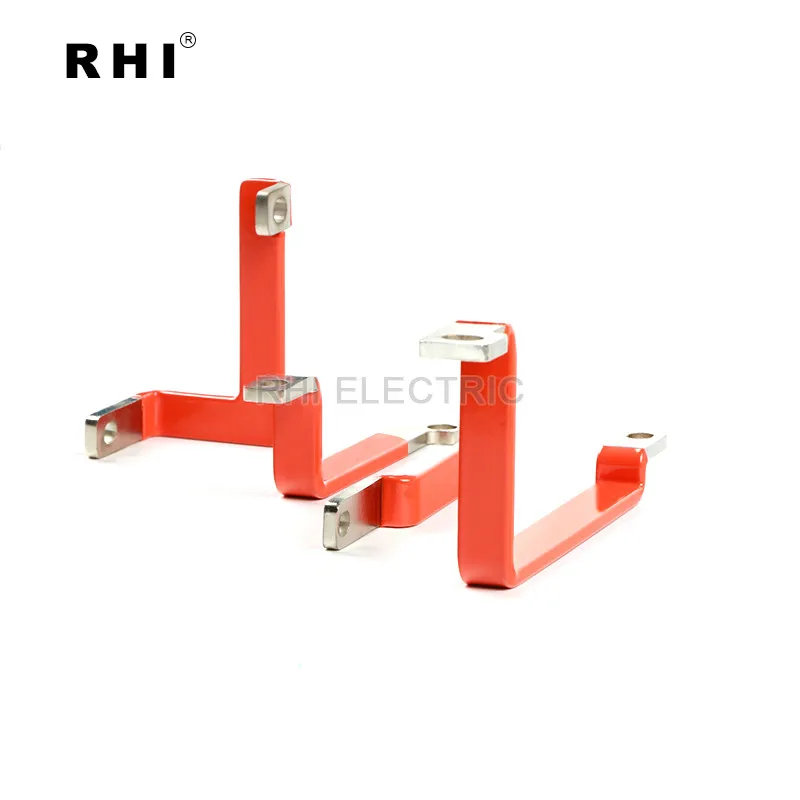

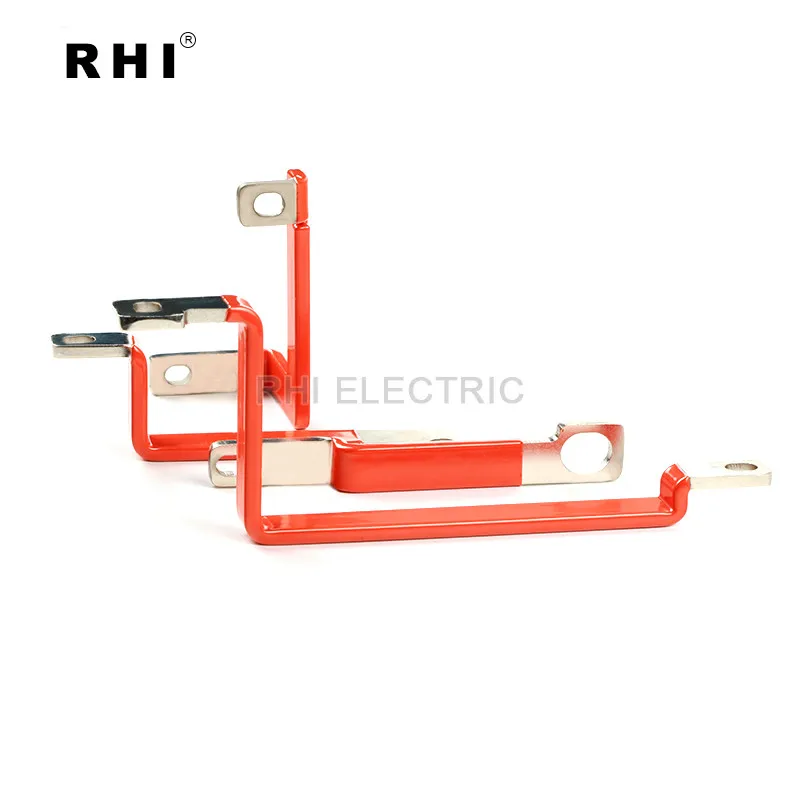

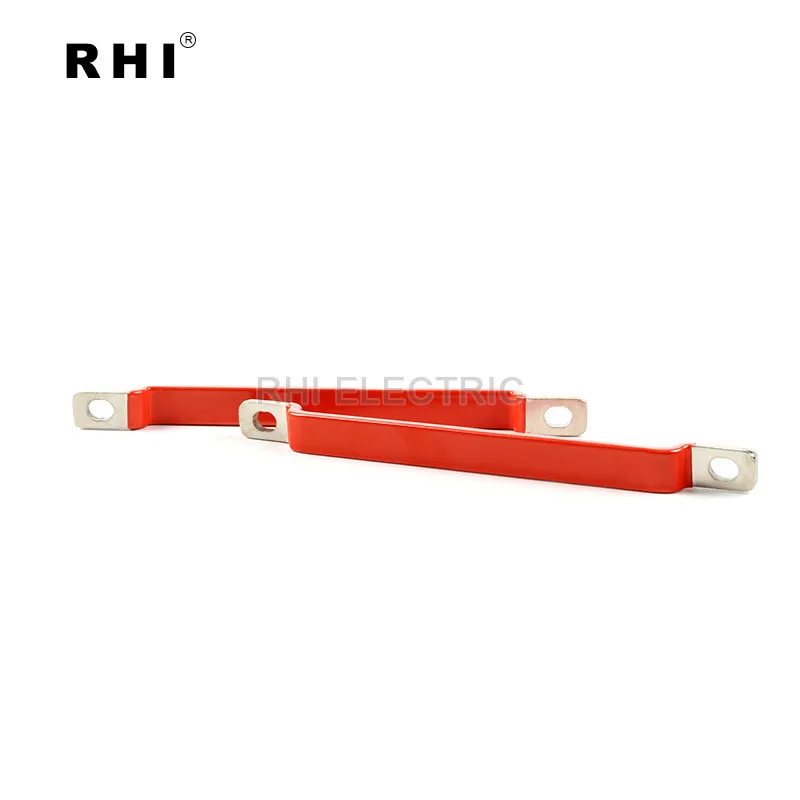

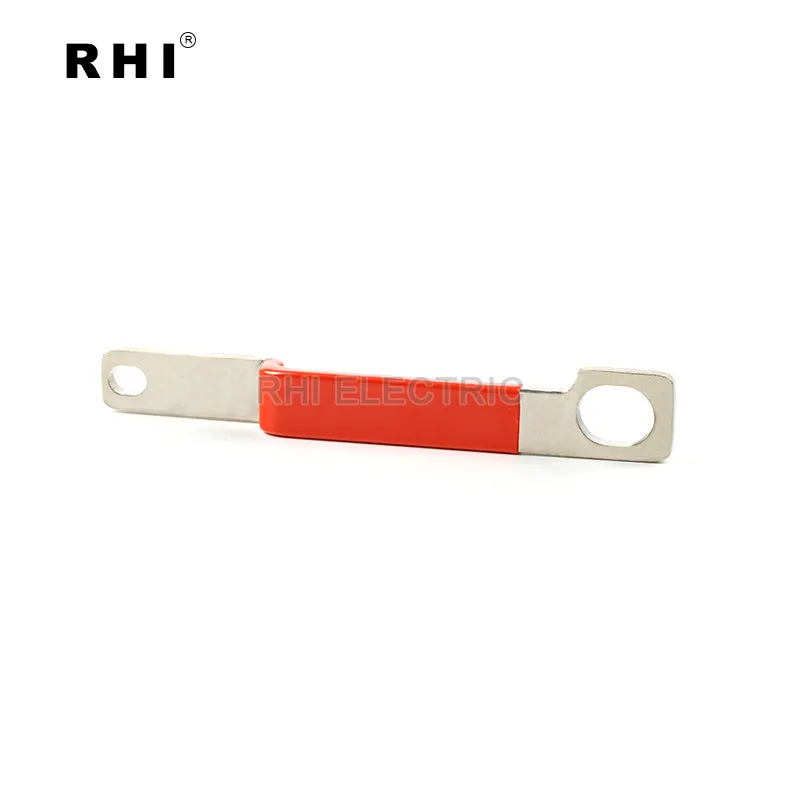

Factory price insulated solid nickel plated battery bus bar with epoxy powder
Battery bus bar is for high conductivity electrical power applications. Our busbar is designed to carry electrical power within cabinets and in external distribution assemblies. Due to the excellent conductivity of copper and aluminum,RHI insulated flexible bars are specified whenever an efficent and cost effective power connector is required.
The superior Ampacity of Electrical Busbars help achieve better thermal control in enclosed applications.Insulated flexible bars also improves the reliability of a power or electrical grounding connection by eliminating the need for a mechanical cable lug crimp.
| Material Standard | GB : T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customized |
| Resistance | 0.00001Ω |
| Conductivity | 57% |
| Insulation Material | PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times. |
| Insulation Performance | PE and PVC are good, PVC dipping is better than PE heat shrink tubes |
| Flame Retardant/Fire Resistance | UL94-V-0 or upon you request |
| Leakage Testing | PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA; In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA; Or upon your working voltage, we advise to choose better solution. |
| Surface Plating | Nickel, tin or silver plated etc Plating Thickness:Normally 3um to 12um or upon customers' request |
| Salt Spray Testing | In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest |
| Bending Testing | Bend 10000 times in 15 radian angle without breakage or fracture. |
| Temperature Rise Testing | Depend on flexible busbar cross-sectional area, We can offer all temperature rising test report before delivery if you request |
| Operating Temperature | -45 to +150 ºC |
| Copper Tensile Strength | ≥500N |
| Quote Time | Quotation sheet will be sent in 1-3 working days when receive your enqiury |
| Sample/Trial Order Delivery Time | In 5 -15 working days according to different bus bar structure and manufacture process |
| Quality Management Standard | Meet Auto Industry IATF 16949 |
| Eco-friendly Certificate | ROHS, REACH |
Application
New energy vehicle; Battery packs; Power supply room; Power distribution equipments;New energy storage;Switchboards;Panel boards; Low voltage distribution; High current & control equipment; Busway systems etc
Busbar tester
Testing Capabilities
| Test Programs | Tester | Standard | Test Result |
| Endurance test | Endurance meter | upon your request | √ |
| Release force test | Universal material testing machine | upon your request | √ |
| Loop resistance,contact resistance test | Loop resistance testing equipment | upon your request | √ |
| Temperature rising test | Temperature rising tester | GB/T14048.1-2000 | √ |
| Electric conductivity test | Conductivity tester | YS/T478-2005 | √ |
| Salt spray test | Salt spraying tester | GB/T2423.17-2008 | √ |
| Thermal ageing, heat vibration test | Air exchange aging test machine | upon your request | √ |
| Coating thickness test | X-ray coating thickness tester | upon your request | √ |
| Voltage drop test | Voltage drop tester | upon your request | √ |
Customer feedback
Our Services
1.Perfect management systems: Implement ISO9001 & IATF16949 and provide PPAP document.
2.Professional sales team:more than 6 year export experience and 24-hour service line to meet customer’s need.
3.Premium quality:test from raw material to packaging and many advanced testing equipments,like temperature tester,electrical conductivity tester.
4.High production efficiency and low cost :10 year experience of production and complete production chain.
5.Highly intelligent production workshop: robot production line and high-precision machines.
