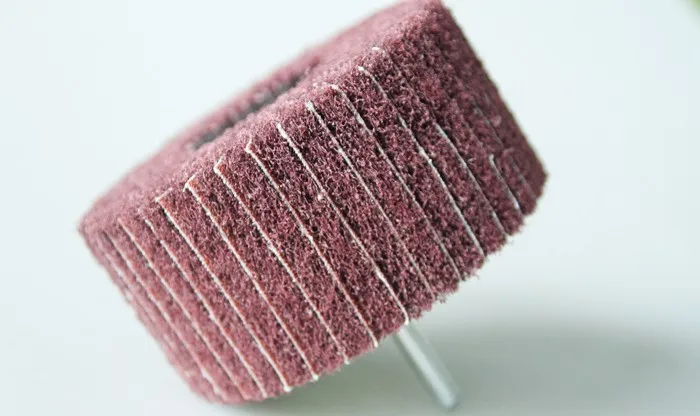

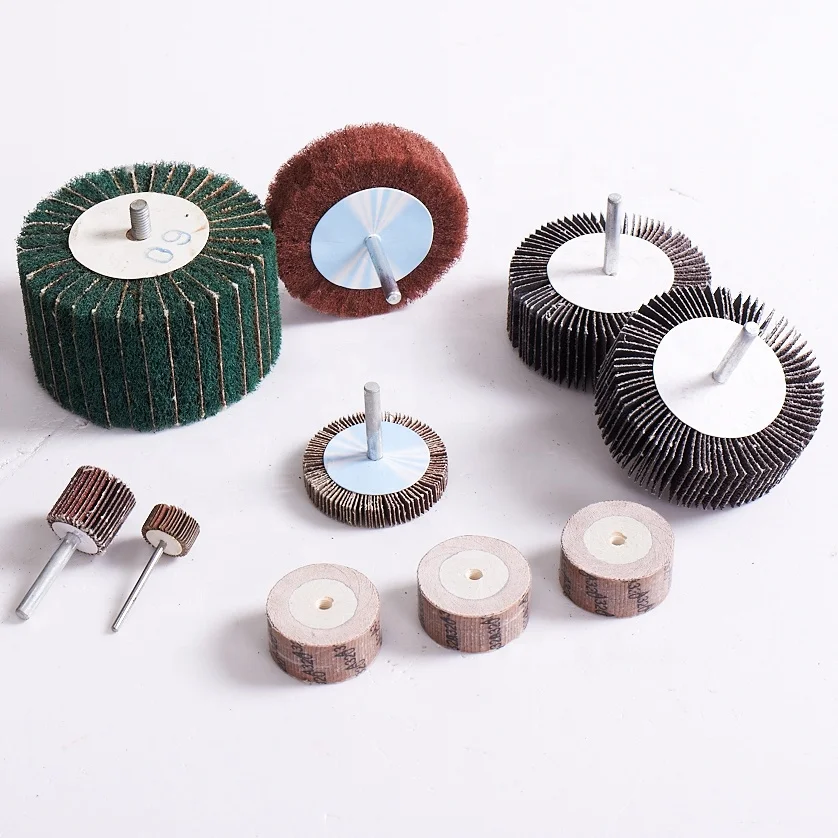

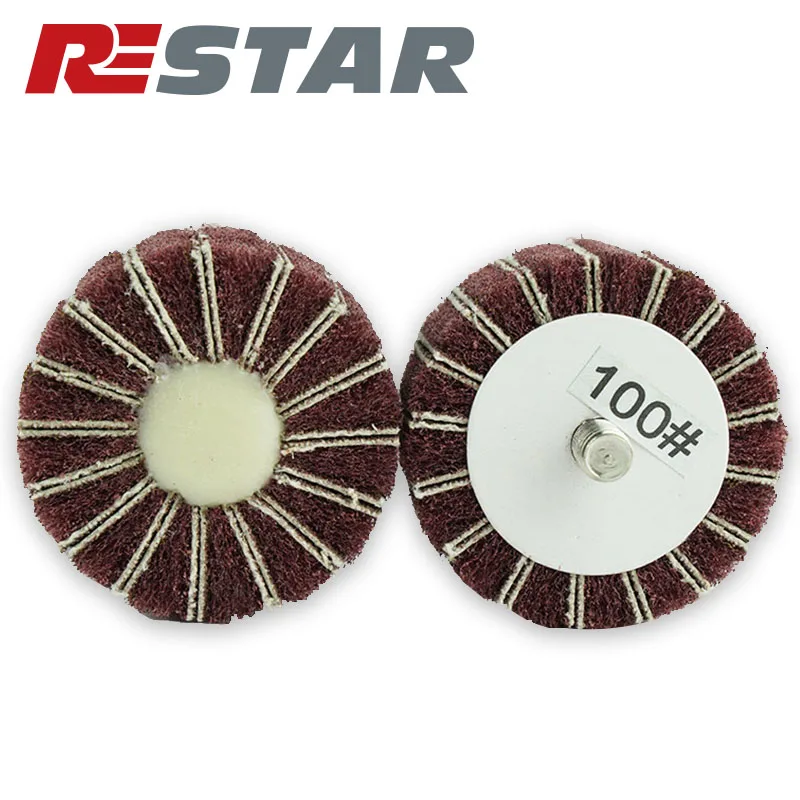

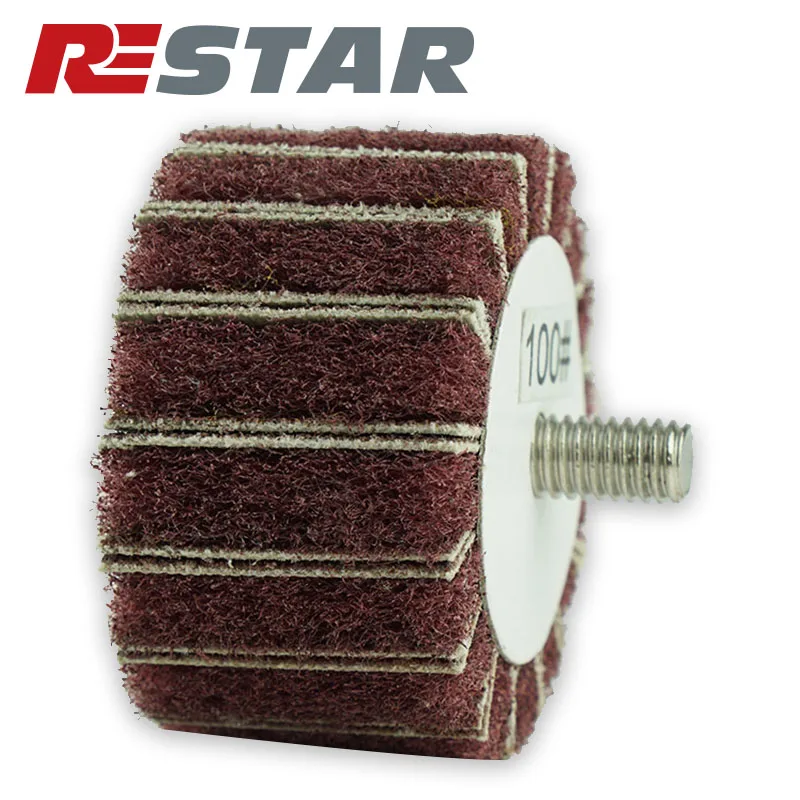

Interleaf Mounted Non Woven Abrasive Flap Wheel

<< Non - woven fiber and sand paper alternate in the proportion of 1:1
<< Adopting high strength and high temperature resistant glue
<< Evenly gluing
<< Good dynamic balancing
<< Low noise
<< Made of automatic flap disc making machine, beautiful appearance
Applications:
<< Applicable for complex surface, like polishing metallic inner wall, cleaning castings and welding, deburring, etc

<< Mainly used for the coarse, medium and fine grinding and polishing process of the metal, tank manufacturing, precision engineering, ss sink, locks, etc.

DIAMETER X HEIGHTX SHANK	MAX. SPEED	DIAMETER X HEIGHTX SHANK	MAX. SPEED
MM	ROUNDS/MINUTE	MM	ROUNDS/MINUTE
30x5x3	25500	50x30x6	15300
30x5x6	25500	60x15x6	12700
30x10x3	25500	60x20x6	12700
30x10x6	25500	60x30x6	12700
30x15x6	25500	60x40x6	12700
40x10x6	19100	60x50x6	12700
40x15x6	19100	80x15x6	9600
40x20x6	19100	80x20x6	9600
50x10x6	15300	80x30x6	9600
50x15x6	15300	80x40x6	9600
50x20x6	15300	80x50x6	9600

Model No.	Abrasive Flap Wheel with Shaft
Selling Point	Industrial Standard since 1993
Grinding Type	>>  Dry Using >> Wet Using
Application	>> Polishing  >> Stock Removal
Industries	>> Stainless Steel Tube Mills >> Stainless Steel / Aluminium Utensil Polishers >> Stainless Steel / Aluminium Utensil Polishers >> Aluminium Rims Maker
Characteristics	>> Clog FREE >> Achieve consistent surface finishing >> Long polishing lifespan >> Reduces BURN MARK on the articles by its own Air-Cooling action >> Easily to modify, so sanding along to CONCAVED (or CONVEXED)surface is available >> Reliable safety at high speed is obtained from careful measurement and adjustment for well-balance. >> Importance of good balanced flap wheels lead to longer operation life of polishing machines >> Specially reinforced inside of big flap wheel with back-up nets /Simple fixing and removing >> Does not require Skilled Worker to handle /Overall improve polishing costs

Detailed Information

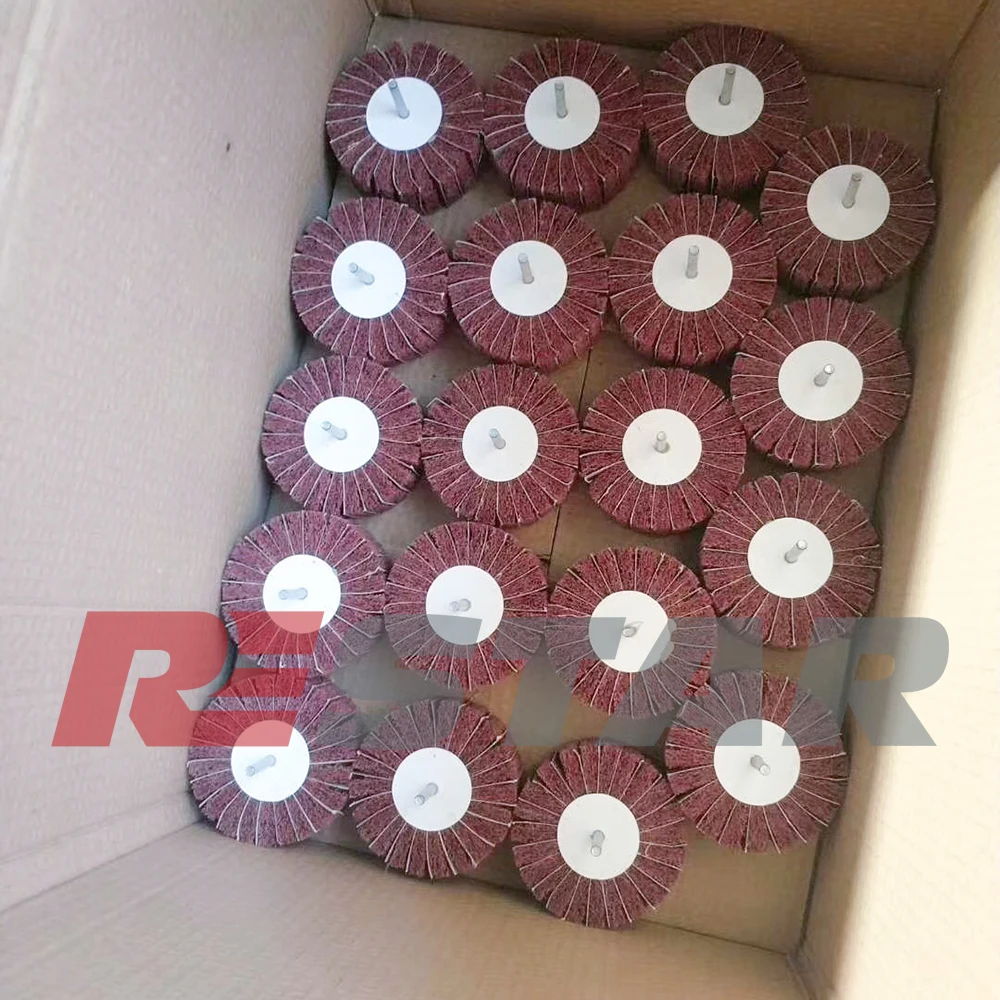

Packing & Delivery

Packaging
Size	29 (L) * 29 (W) * 49 (D)
G.W(Kgs)	23Kgs
Packing Details	The normal package is Standard carton(Size: L*W*H). Pack in the plastic plate,and load in containers
Lead Time	15 Days

Related Products

91.8% Response Rate

91.8% Response Rate

91.8% Response Rate

Other Products

Item Name	Customize Flap Wheel
Features	>>To cut abrasive cloth into similar shape with the workpiece >> Fixing with high strength glue and chuck. >> Grinding special workpiece directly & One step processing

Item Name	Wiredrawing Flap Wheel
Size Avaliable	OD100mmx100mm x Bore 19mm
Grit Range	P40-P320
Max Speed	3800 rpm
Applications	Widely applicable for wire drawing and fine grinding of  Bin,Kitchenware and Equipment Manufacturing

Item Name	Slashed Flap Wheel
Size Avaliable	OD 250mm x 50mm W
Max Speed	2300M/Min
Grit Range	P60-P800
Application	Widely applicable for grinding Curved Surface, Cambered Surface and Irregular Surface
