Product Overview
Description
High Temperature Laboratory Atmosphere Furnace Hydrogen Atmosphere Furnace For Gem Stone
It is designed for material systhesis under controlled inert gas atmosphere up to 1750C with better temperature uniformity.The furnace consists of high quality alumina fiber brick and high quality MoSi2 heating elements,It is an ideal tool for preparing new materials like Nano,Graphene and heating /sintering Gem stone, zirconia COCR Ti Alloy which requires heat treatment under inert gas or oxidizing gas.
Product Description
Vacuum Hydrogen Atmosphere Furnace Selection table:
| Model No. | Door open | Max. Temp (.C) | Internal size(mm) DXWXH | Volume (L) | Max. power (kw) | Power supply | Therm couple | Heat-up time(mins) |
| SA2-2-17TP | Side | 1700 | 100x100x100 | 1 | 2 | 220V | B type | 55 |
| SA2-3-17TP | Side | 1700 | 150x100x100 | 1.5 | 3 | 220V | B type | 55 |
| SA2-4-17TP | Side | 1700 | 200x150x150 | 4.5 | 4 | 220V | B type | 55 |
| SA2-9-17TP | Side | 1700 | 300x200x200 | 12 | 9 | 380V | B type | 55 |
| SA2-16-17TP | Side | 1700 | 400x300x300 | 36 | 16 | 380V | B type | 55 |
| Continuous operation temperature is 100.C below Max. temperature. Get One Offer (Click here) | ||||||||
1700.C Vacuum Hydrogen Atmosphere furance details specification:
| Item No. | SA2-3-18TP |
| Chamber size: | 150x100x100 mm, Capacity: 1 liter. Bigger size:200x150x150mm,300x200x200 are available. |
| Power: | 3000 W Max. ( power cord is included ) |
| Voltage: | AC 220V 50/60 Hz; |
| Max. Temperature : | 1700 °C for short time ; |
| Continuous Working Temperature: | 1600 °C Max. ; |
| Chamber Materials: | High quality Alumina ceramic fiber |
| Max. Heating Rate: | 0-30 °C /min,Suggest 10.C/min (under 1400.C);5.C/min (1400.C-1600.C) ; 2.C/min (>1600.C); Note: The lower the heating rate, the longer the life of the heating element. |
| Temperature Controller : | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation. |
| Temperature Accuracy : | +/- 1 °C; |
| Heating Elements : | High quality MoSi2 rod. |
| Thermocouple : | B type. |
| Max. vacuum: | -0.1 Mpa. |
| Atmosphere: | Helium (He), Neon(Ne), Argon(Ar), Krypton(Kr), Xenon(Xe), Radon(Rn), Oxygen(O2),Nitrogen (N2), Hydrogen(H2) . |
| Standard parts: | Vacuum pump 1pc,crucible tongs 1pc,high temperature gloves 1 pair,one user manual. |
| Optional parts: | Touch Screen contrl,Paperless recorder,Remote Communication Control System,Open the door Power off function. |
| Gas mixing system (optional) | 2/3/4/5 Float flowmeter gas control/MFC gas control system; With One mixing tank; flowmeter range: 0.03-0.3SLM,10-100SCCM,16-160ml/min,25-250cc/min optional; For precision gas control, you can choose digital mass flow Control system instaed of float-meter. SCCM 0~5,10,20,30,50,100,200,500 SLM 0~1, 2, 3, 5, 10,15, 20, 30 |
1. The MoSi2 heating element must not be used at low temperatures (400.C-700.C) for a long
time, otherwise the heating element may be damaged.
2. In order not to affect the service life of the instrument, we recommend the heating rate <10°C/min and cooling rate < 5°C/min.
3. The box furnace does not use vacuum sealing structure, so can not inlet flammable or explosive gas.
4. After using the furnace a certain period, there will be minor cracks in the
hearth/chamber. This is a normal phenomenon and will not affect the use.
At the same time, it can be repaired with an alumina coating.
5. Door block/Firebricks must be inserted before closing the furnace door.

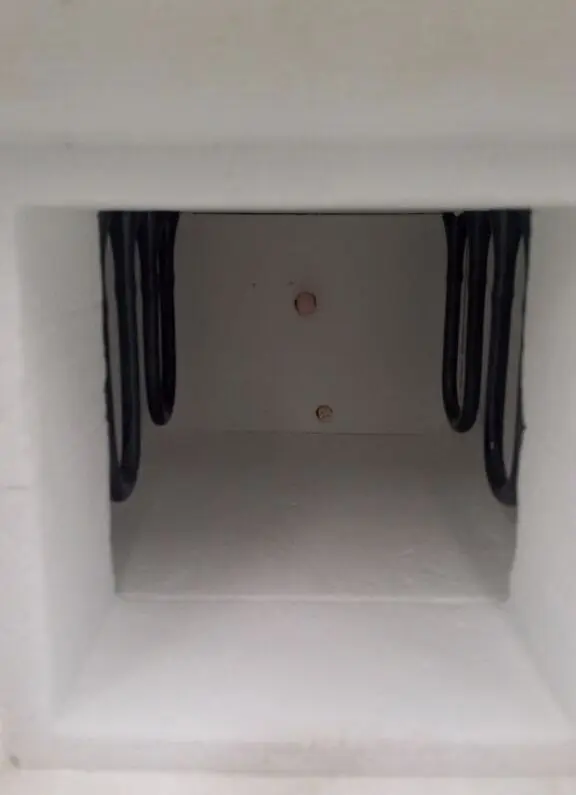

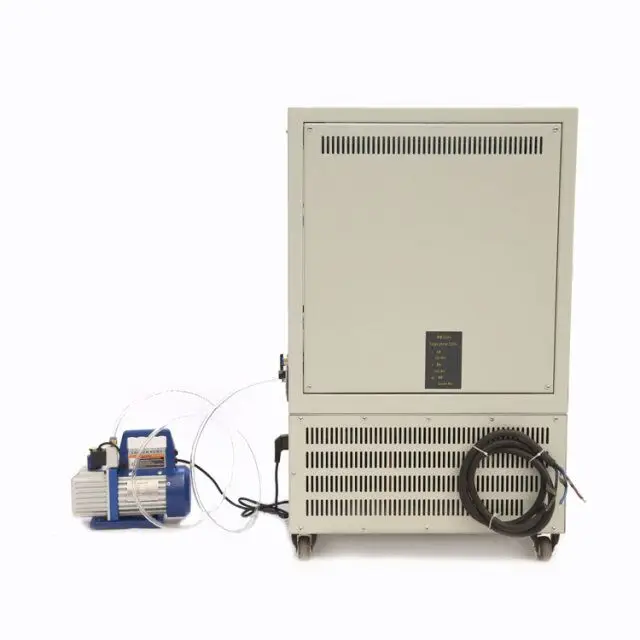

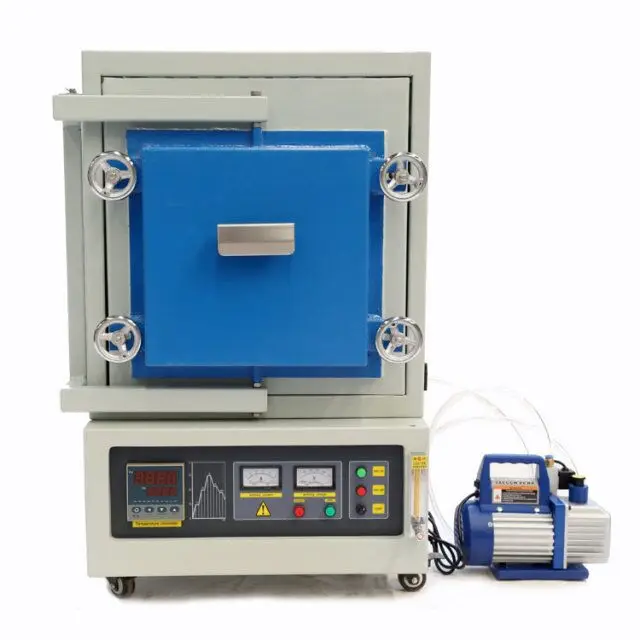

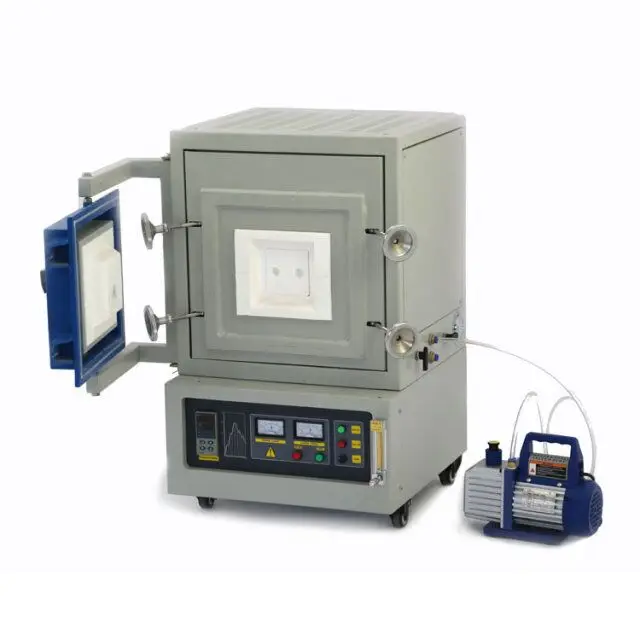

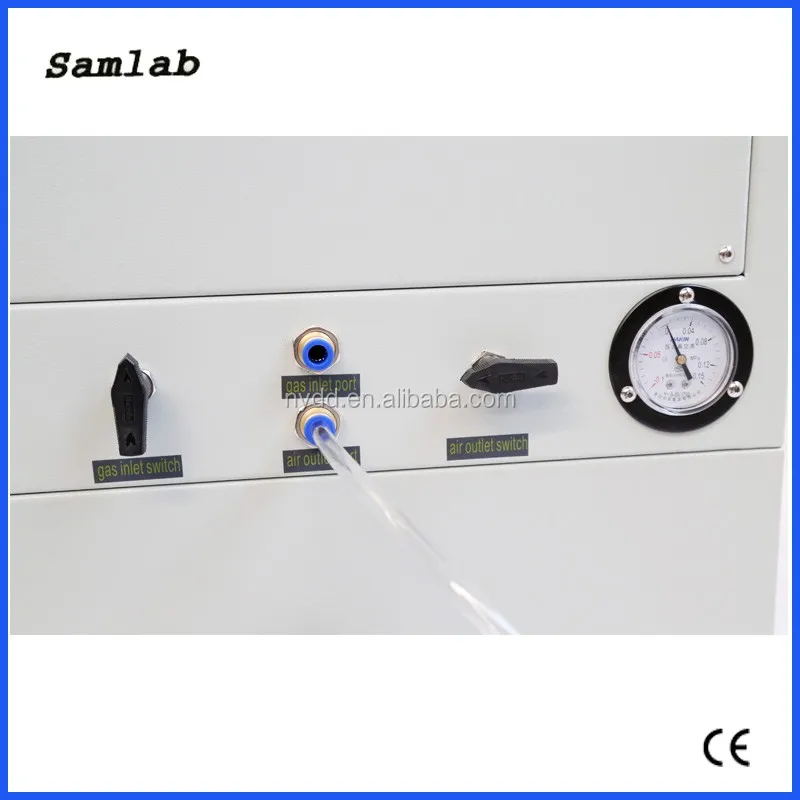

High Temperature Laboratory Atmosphere Furnace details picture:
 |  |
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
