10kw 15kw high frequency plastic embossing welding welding machine

Product Overview

Description

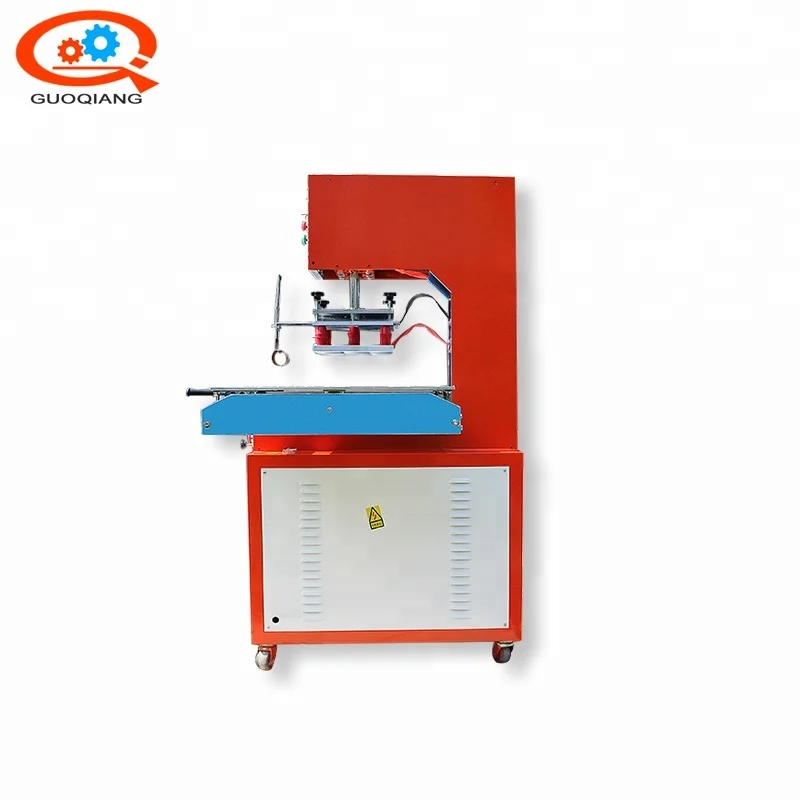

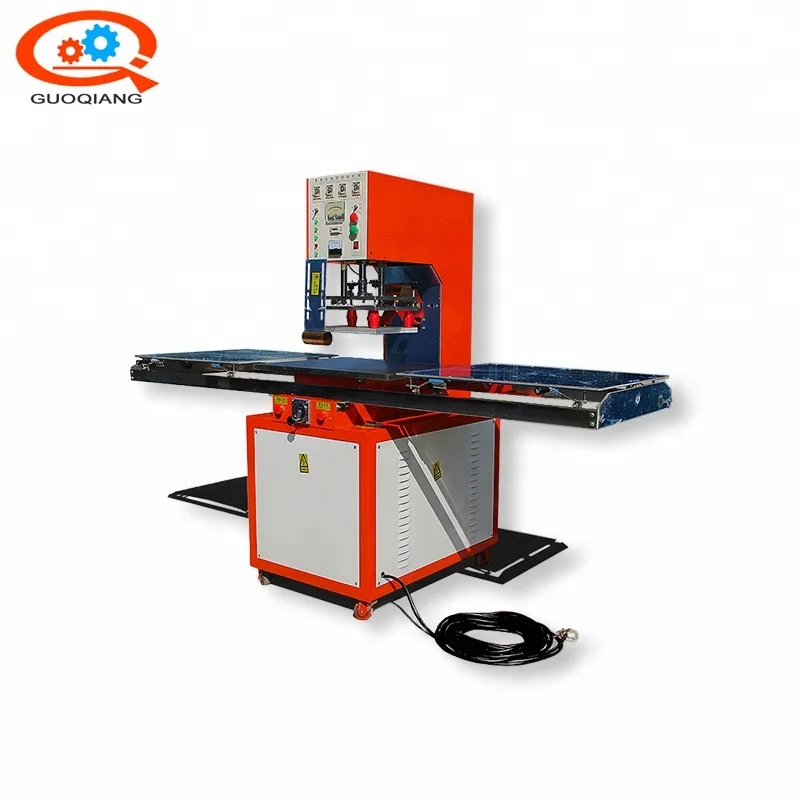

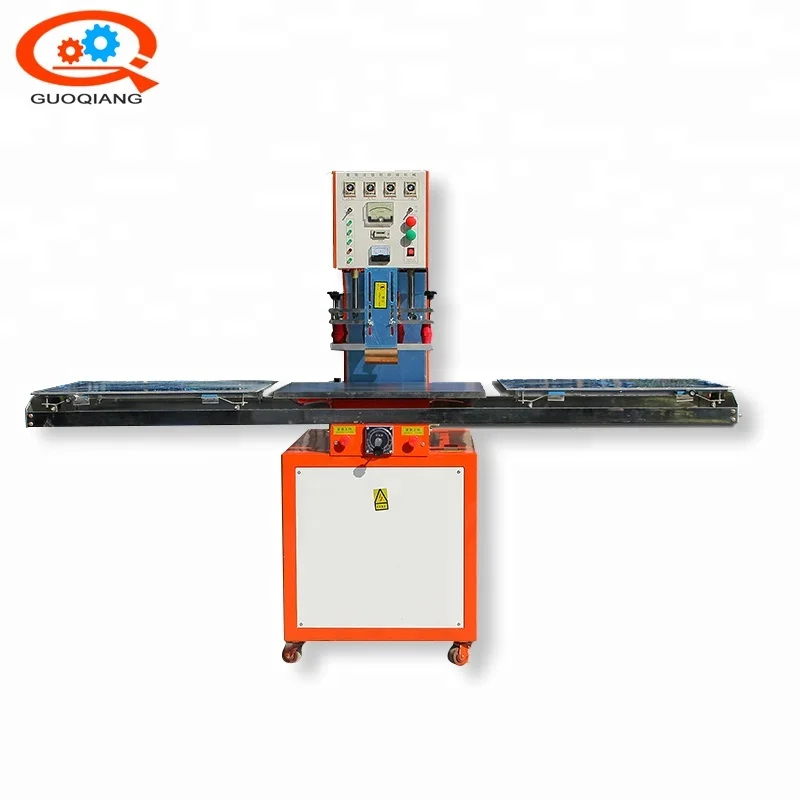

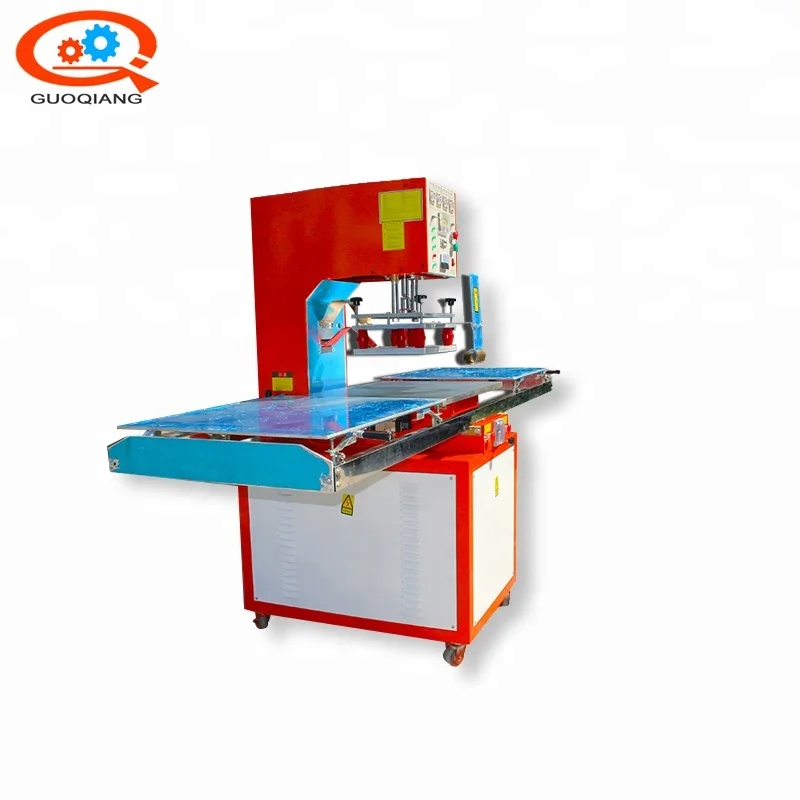

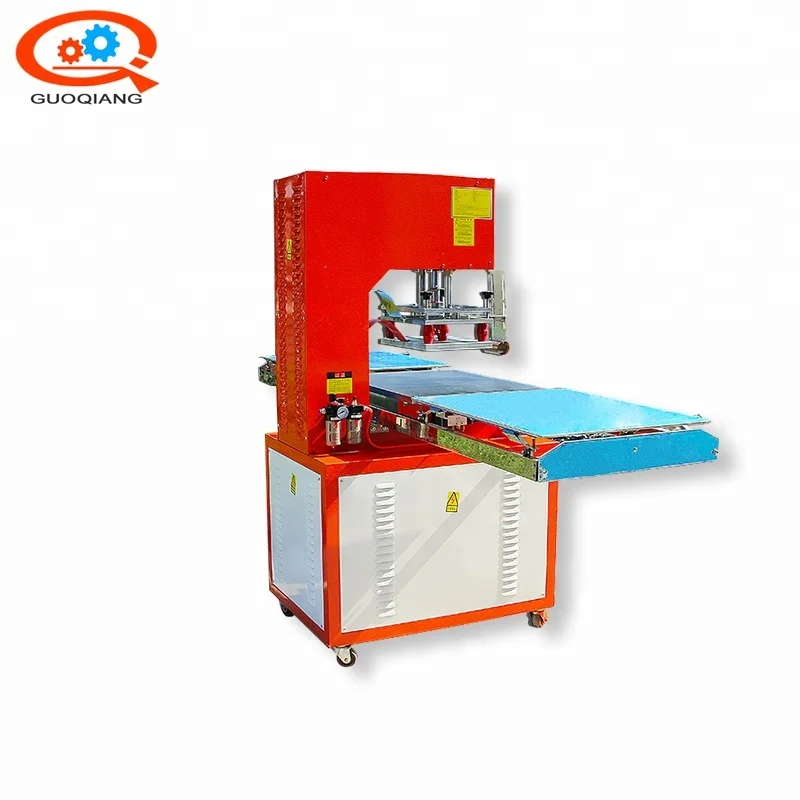

The machine double station shuttle HF welders with 8, 10, 15kW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.





•  Pneumatic or hydraulic welding press


• 1, 2, 3 or 4 HF welding heads operation


• Production speed 5-10 cycles/min


• Touch screen control panel with PLC


• High frequency generator integrated with press


• Fully automated HF weld cycles with adjustable rotating speed


• Precision (to 0.1mm) indexing rotary work table


• High pressure sealing with enhanced ram guidance


• Safety light curtains on all work stations





Model No	GCQ-W5KW	GCQ-W8KW	GCQ-W10KW
Voltage	AC220/380/400/415/440V 50/60HZ(Customized)
Output Power	5KW	8KW	10KW
Input Power	8KVA	10KVA	12KVA
HF Frequency	27.12MHZ ±0.6%
Oscillation Tube	8T85RB	8T85RB	8T85RB
Anti-spark Tube	NL-5557	NL-5557	NL-5557
Gap of Electrode	200mm	200mm	200mm
Size of upper electrode	200×400mm	300×500mm	400×600mm
Machine Size	2000×1080×1780	2000×1080×1780	2000×1080×1780
Machine Weight	400KG	420KG	450KG
