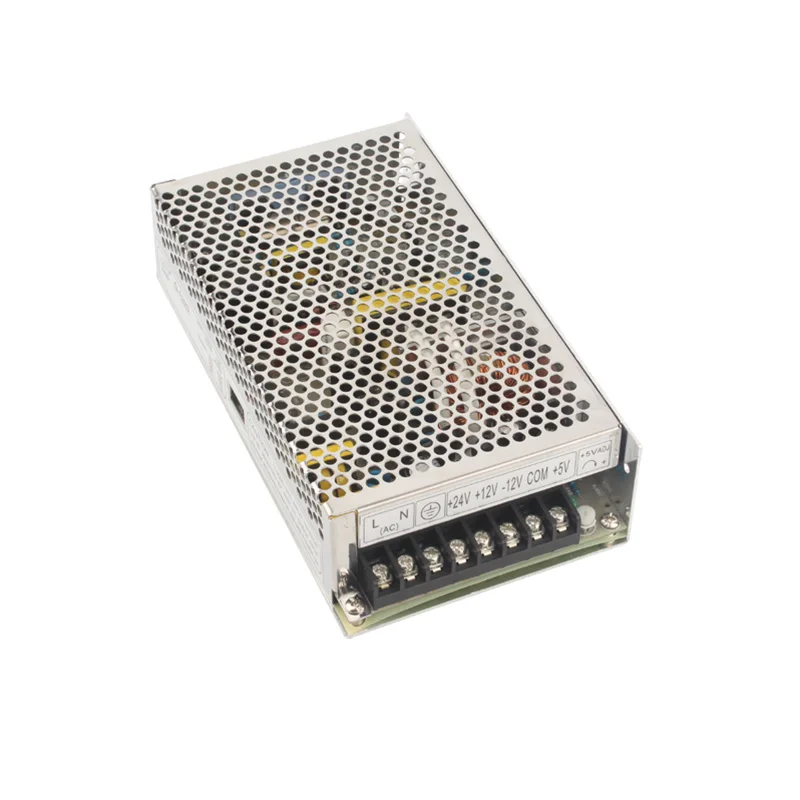

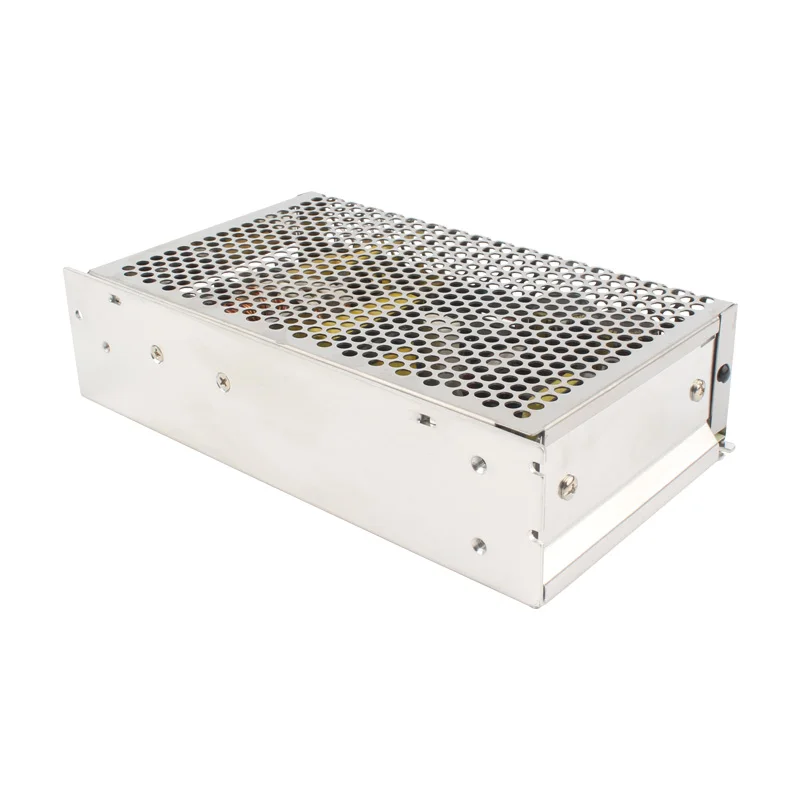

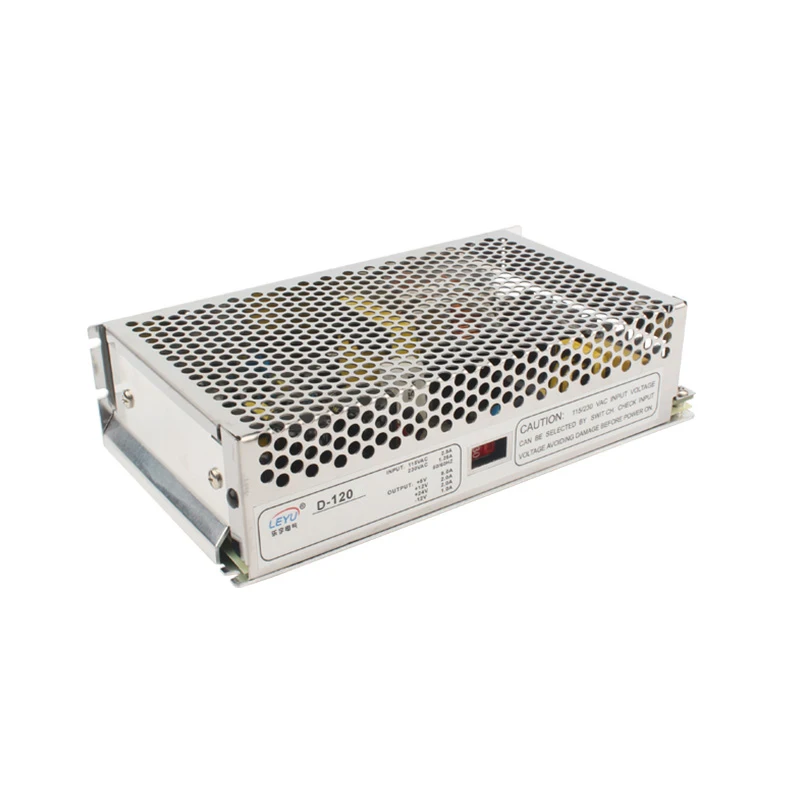

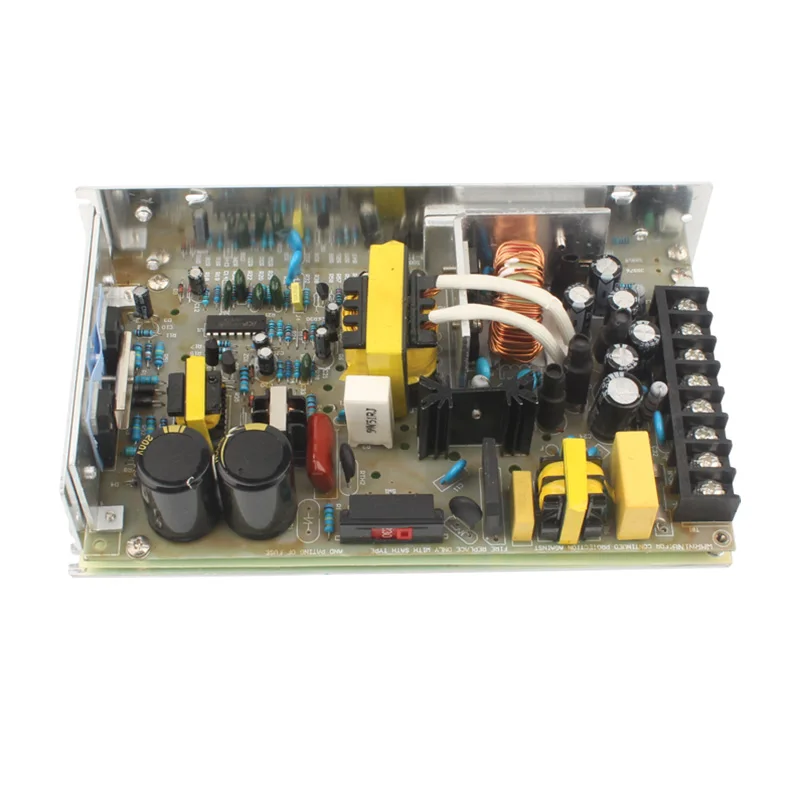

T 120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply
T-120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply
T-120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply
T-120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply
T-120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply
T-120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply
T-120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply

T 120D 110V 220V AC to DC 5V 12V 24VDC Triple Output 120W Switching Power Supply

Share on (60773032964):


Price:$11.84 - $15.34

Quantity:


Product Overview

Description



Product Description




Specification


SPECIFICATIONS
OUTPUT
Model
D-120A

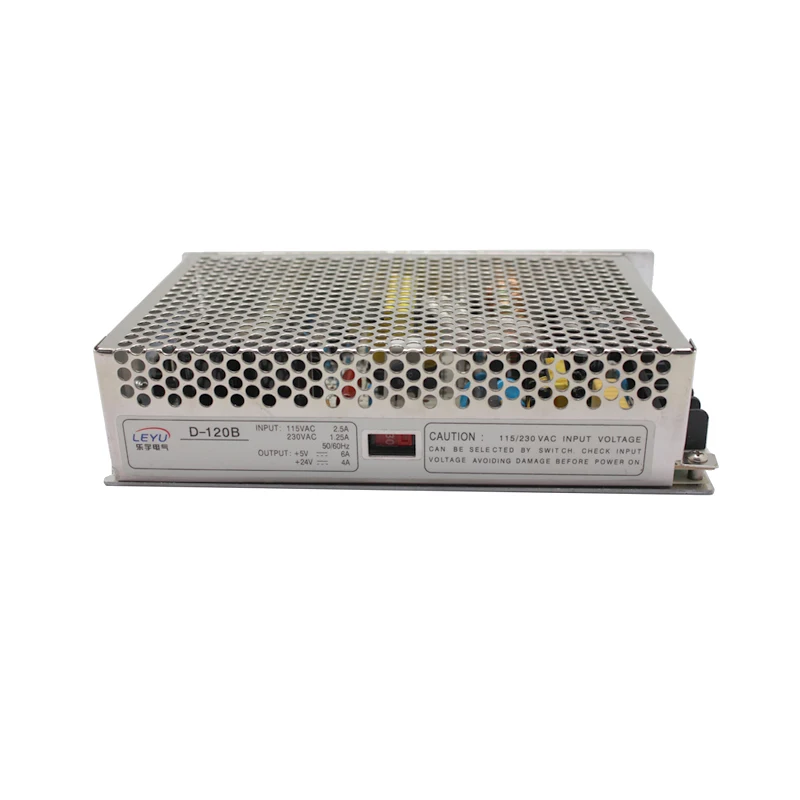

D-120B
D-120C
D-120D
Output number
CH1
CH2
CH1
CH2
CH1
CH2
CH1
CH2
DC Voltage
5V
12V
5V
24V
12V
24V
15V
-15V
Rated Current
12A
5A
6A
4A
5A
3A
4A
4A
Current Range
2-12A
0.5-5A
2-10A
0.4-4A
2-5A
0.4-3A
2-4A
0.4-4A
Rated Power
120W
126W
132W
120W
Ripple & Noise
60mVp-p
120mVp-p
60mVp-p
150mVp-p
60mVp-p
150mVp-p
60mVp-p
150mVp-p
Voltage Adj. Range
CH1: -5%,+10%
CH1: -5%,+10%
CH1: -5%,+10%
CH1: -5%,+10%
Voltage Tolerance
±2%
±6%
±2%
±7%
±2%
±7%
±2%
±7%
Setup,Rise,Hold Up Time
200ms,50ms,20ms at full load
Voltage Range
88~132VAC/176~264VAC selected by switch 47~63Hz; 248~370VDC
AC Current
2.5A/115V 1.25A/ 230V
Efficiency
78%
80%
80%
80%
Inrush Current
Cold start 35A/115V 30A/230V
Leakage Current
<3.5mA/240VAC
Over Load
105%~135%
Protection type: Shut down o/p voltage , re-power on to recover
Over Voltage
115%~135%
Protection type: Shut down o/p voltage , re-power on to recover
Working Temp., Humidity
-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity
-20℃~+85℃; 10%~95%RH
Temp. Coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Safety Standard
Design refer t o 1950,TUV EN60950
EMC Standard
Design refer to EN55022 (CISPR22), EN61000-3-2,-3，EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
Dimension
199*110*50mm(L*W*H)
Weight
0.77Kg
Packing
20pcs/16kg/carton
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
