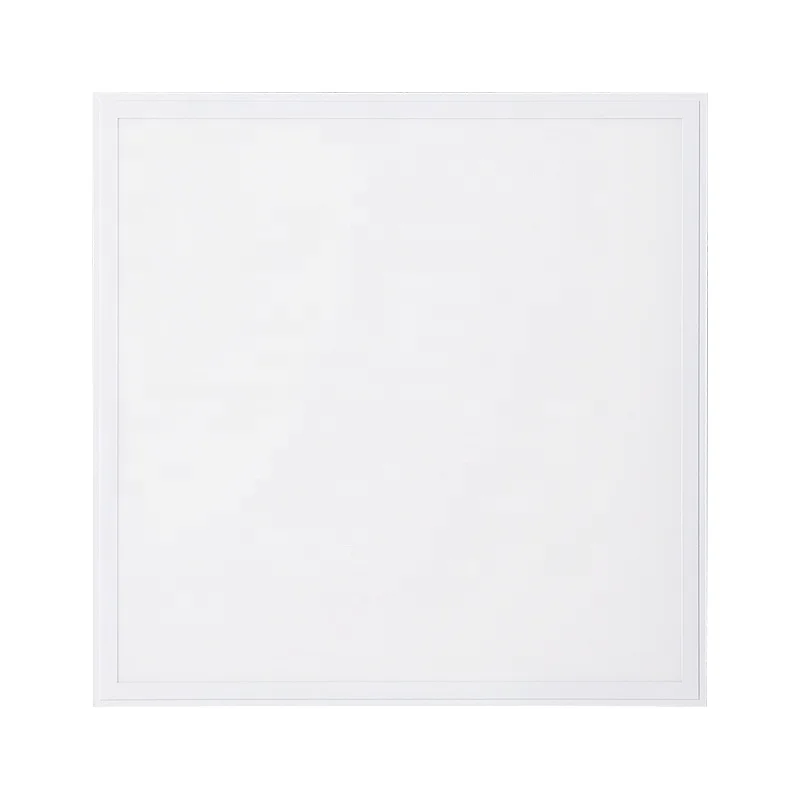

France UGR 19 Square LED Panel light Good for Eye Protection
- Category: LED Panel Light >>>
- Supplier: Jiaxing Juli Opto-Electronics Technology Co. Ltd.
Share on (60773036443):
Product Overview
Description
Product Description
| Model No. | JL6060-UGR | |||
| Size | 595x595 MM | 600x600 MM | 605x605MM | 620X620MM |
| Height | 8MM | 9MM | 10MM | |
| Wattage | 36W/40W | 48W/50W | 72W/80W | |
| LED Source | SMD 2835 | SMD4014 | ||
Input voltage | 85-265V AC 50/60HZ | |||
| Luminous Efficiency | 90lm/w | 100lm/w | 120lm/w+ | |
| Luminous Flux | 4000lm+ | |||
| CRI | 70 | 80 | 90 | |
| Color Temperature | WW 3000-3500K | NW4000-4500K | CW 5700-6500K | |
| Working Temperature | -22-55 Degree | |||
| LifeSpan | 50000Hrs | |||
| Frame type | one step | one step and four lines | ||
| Body Material | 6063 Aluminum (welded) | 6063Aluminum (casted ) | ||
| Light Guide Plate | PS2.5MM | PMMA 3.0MM | ||
| Diffuser | PP1.0 | Ps1.2 | ||
| Driver | Isolated or not | HighPF or not | Flicker free or not | |
| Accessory | Clamps included | |||
| Installation | Recessed | Surface Mounted | Suspended | |
| Package | Natural package | Color Package Customized Design | ||
| Application | Office/ShoppingMall | Meeting room / Residential lighting | Hospital |

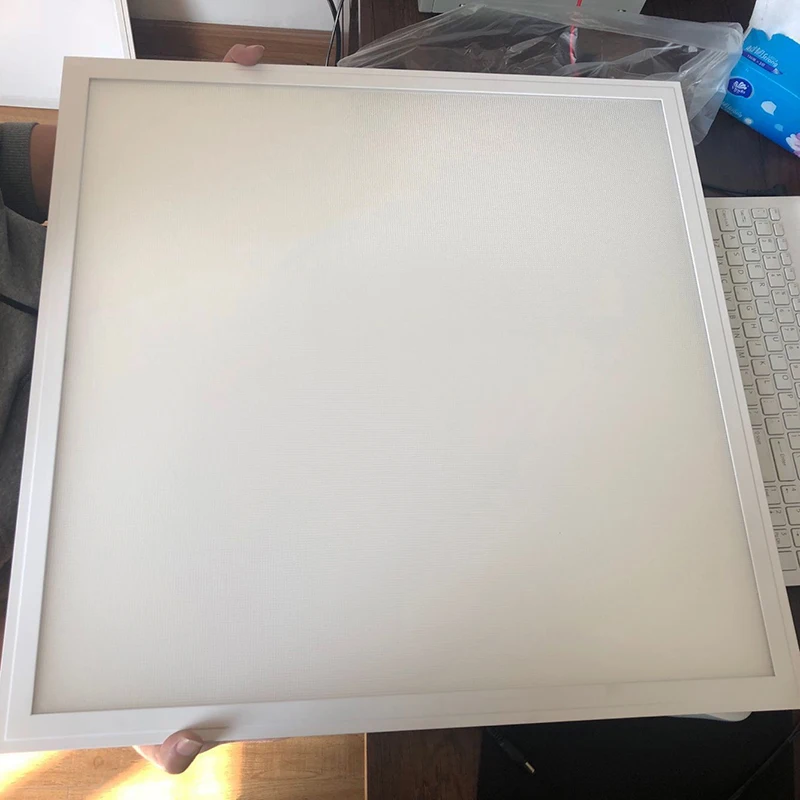

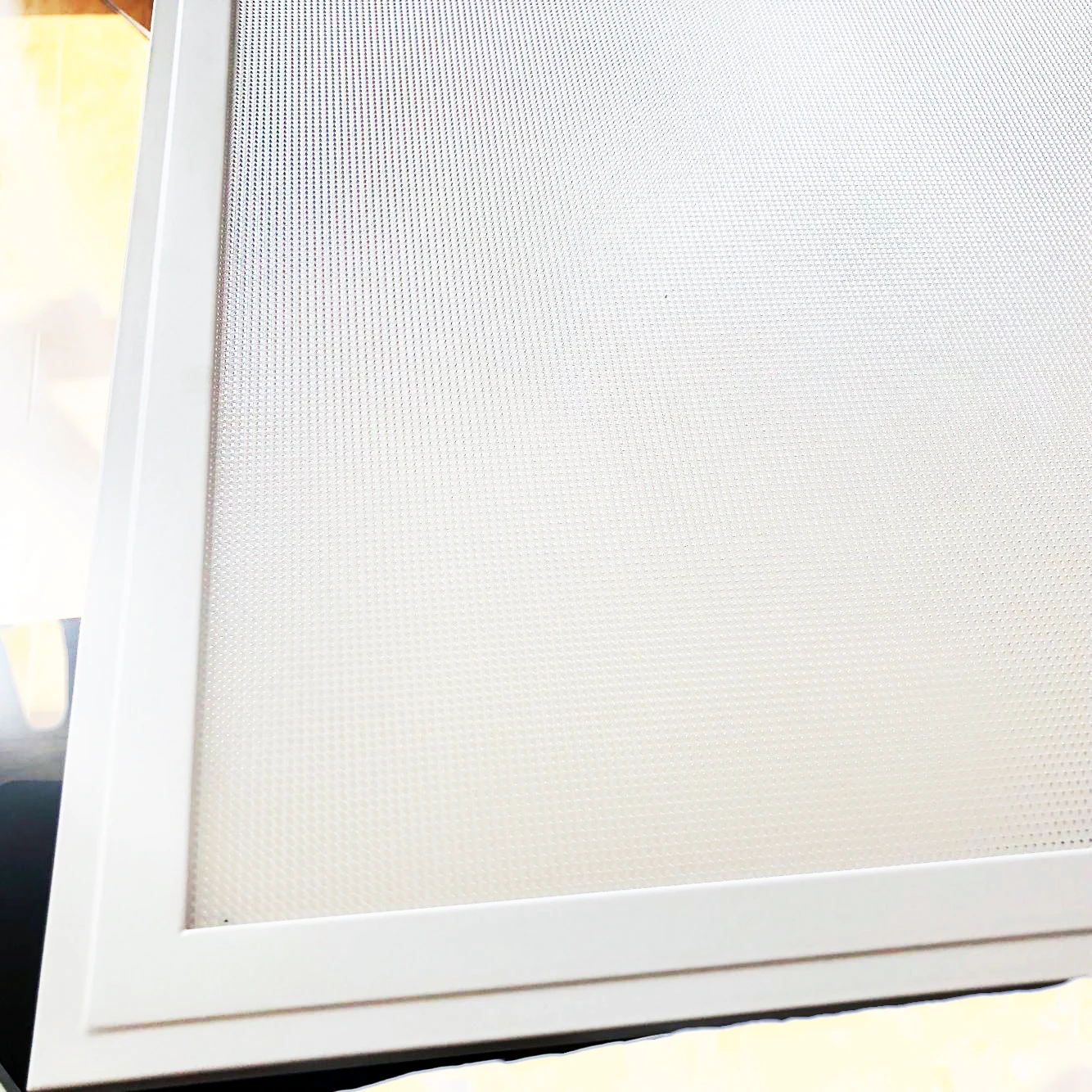

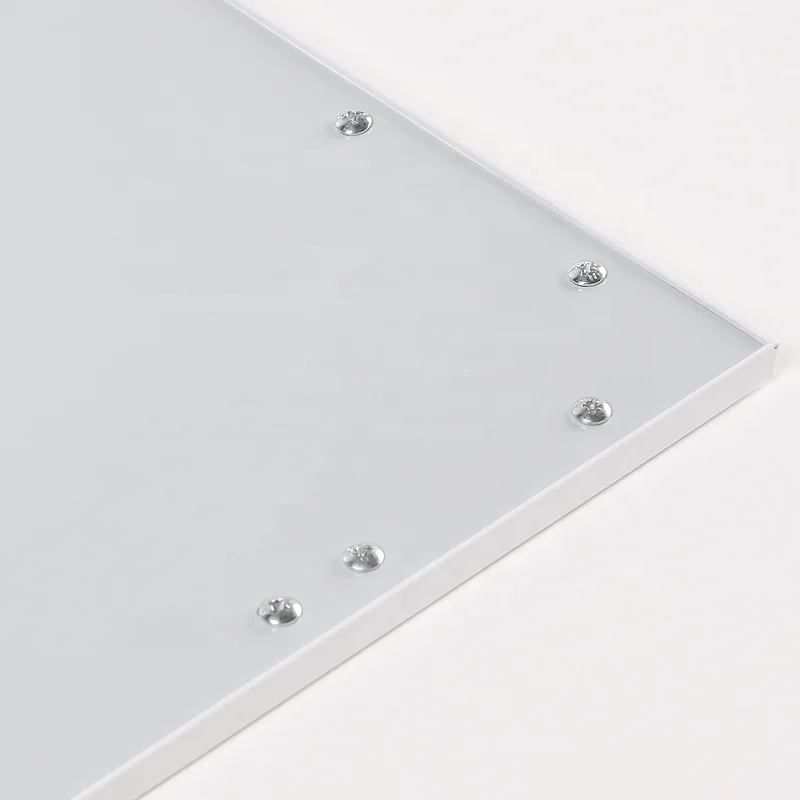

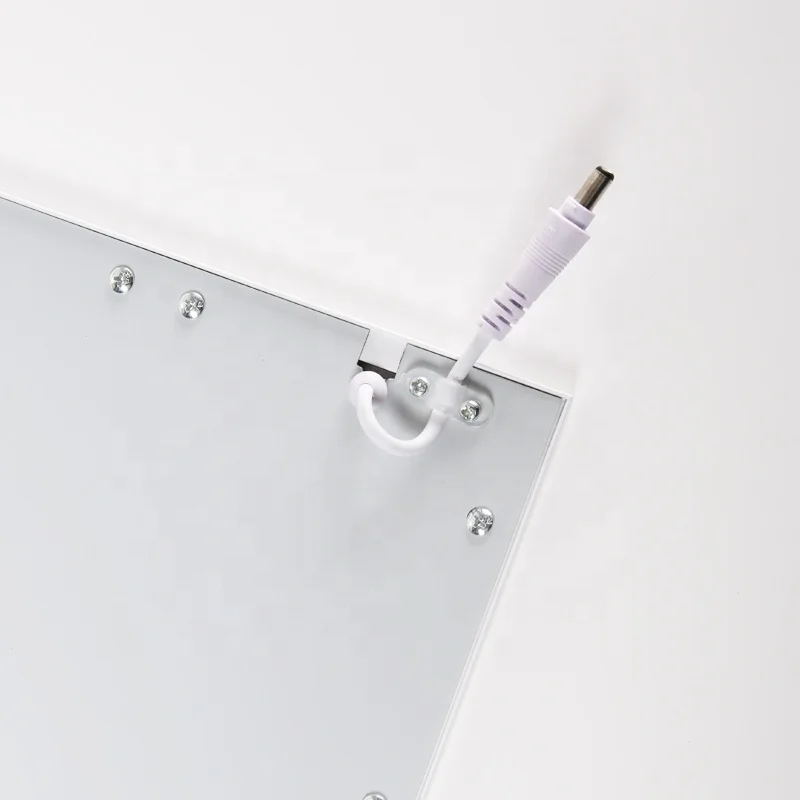

Detailed Product Photos:
Accessories
Installation
Packaging & Shipping
| Model No. | Master Carton size(MM) | Qty/CTN | ||
| JL-PL-595*595 | 660*240*680 | 6 | ||
| JL-PL-600*600 | ||||
| JL-PL-605*605 | ||||
| JL-PL-620*620 | ||||
| JL-PL-295*1195 | 1260*240*380 | 6 | ||
| JL-PL-300*1200 | ||||
FAQ
Q1: Are you a factory or trading agent ?
A: We are a terminal making enterprise of LED PANEL LIGHT Located in Jiaxing ,Zhejiang Province ,Welcome to visit our factory .
Q2:How can i get the free sample?
Regular model is free supplying ,please contact Jeffy to get .
A: Before place the sample order , had better confirm below parameter:
Model Of JL:
Size :
Wattage :
Input Voltage
Luminous Efficiency and Luminous Flux:
Driver: High PF or not , Flicker or not .Pass EMC Or not
LGP and Diffuser :
Special requst please advise in advance
Bulk goods order is same as this step to identify
Q3:What about the payment methods?
1. Pay on Alibaba by credit card without other charge
2. Traditional payment way
TT 30% in advance ,clear the balance before delivery
Q4: what is the lead time ?
A:As the general model, delivery in 7days after all clauses confirmed .The others are according the production condition , normally will be under control of 15days
Q5: what about the mini order quantity?
A:Trial order is available ,but without the personality design package .
