Semi automatic FRP vertical filament winding machine 10000MM DIAMETER
- Category: Textile Machinery >>>
- Supplier: Shijiazhuang JHR Import&Export Co. Ltd.
Share on (60773044099):
Product Overview
Description

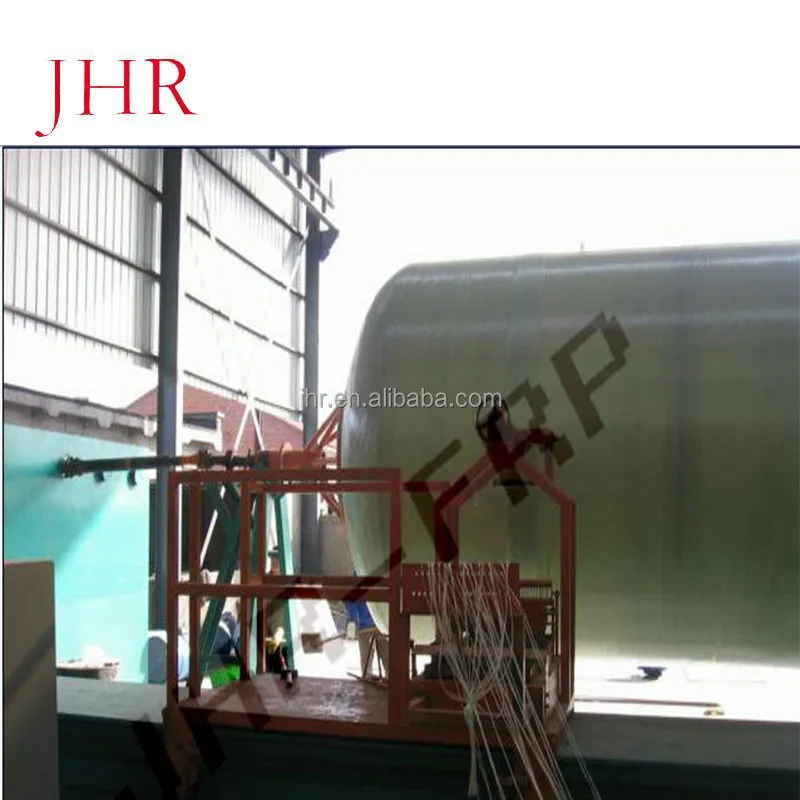

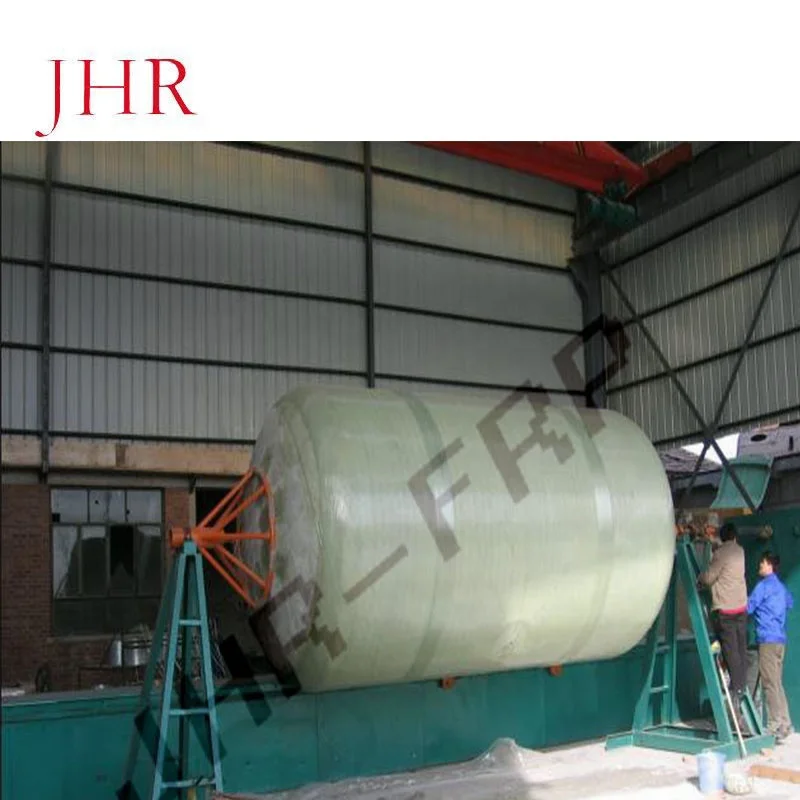

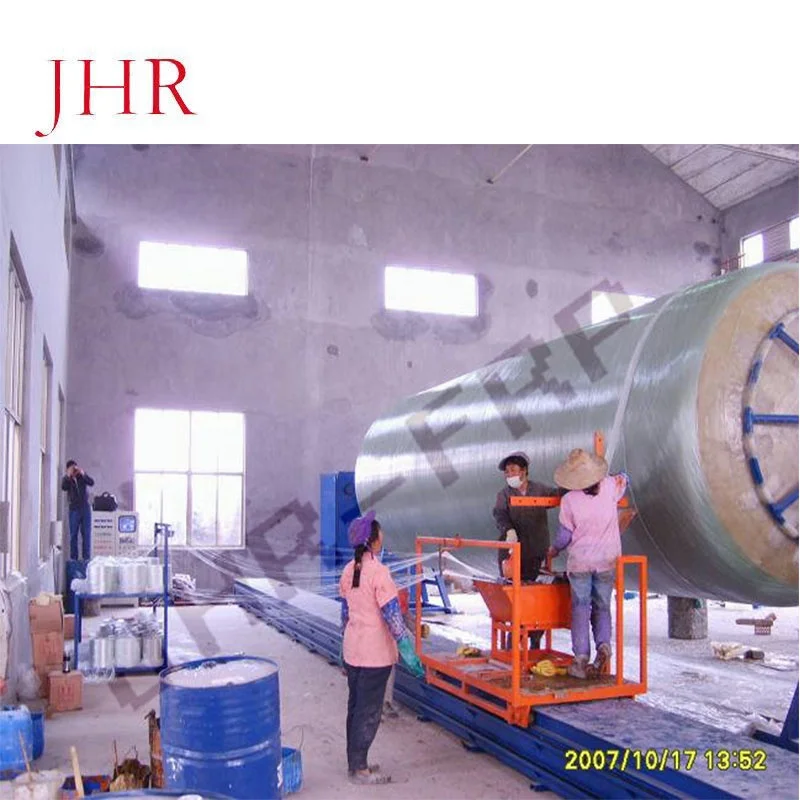

CNC automatic Frp vertical filament winding machine
Product Description
1.Used to produce and manufacture the FRP vertical winding molded vessels as well as the related winding molded products, such as FRP storage tank, fermentation tank, integral septic tank,large FRP chimney, FRP transportation tank, FRP tank for water treatment and etc.
2.This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient.
| Equipment No | FWWS-12000mm | ||
| Item Name | FRP vertical tank winding machine | ||
| Pipe diameter,ID, mm | Φ4000-Φ12000 | ||
| Product length,mm | ≤12000(max. 12000mm) | ||
| Winding angle | 45 º--70 º | ||
| Rotating speed of main shaft ,r/min | ≤18 | ||
| Transmission method | Pinion and rack | ||
| Control method | manual, semi- automati, cautomatic | ||
| Coordinate speed of vehicle ,m/min | 45 | ||
| Precision of lining up yarn ,mm | ±1 | ||
| Repositioning accuracy ,mm | 0.2 | ||
| Max speed of pulling yarn ,m/min | 90 | ||
| Max width of yarn tape ,mm | 200 | ||
| Winding type | Reciprocating cross, hoop direction | ||
| Winding roving capacity,each | 54 | ||
| Resin type | Unsaturated polyester, vinyl ester, etc. | ||
| Yarn framea kind of inner pulling yarn | Tension adjustable yarn frame of mechanical type | ||
| Impregnation groove,stainless steel | Roller impregnation or immersion impregnation | ||
| Production capacity ,kg/h | 2000 | ||
| Total installed capacity , kw | 18.5 | ||
Areas covered by production line length × width × heightm | 20×15×7 | ||

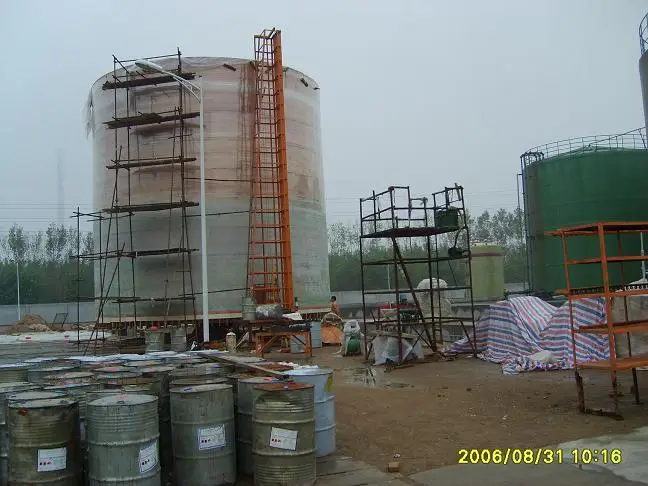

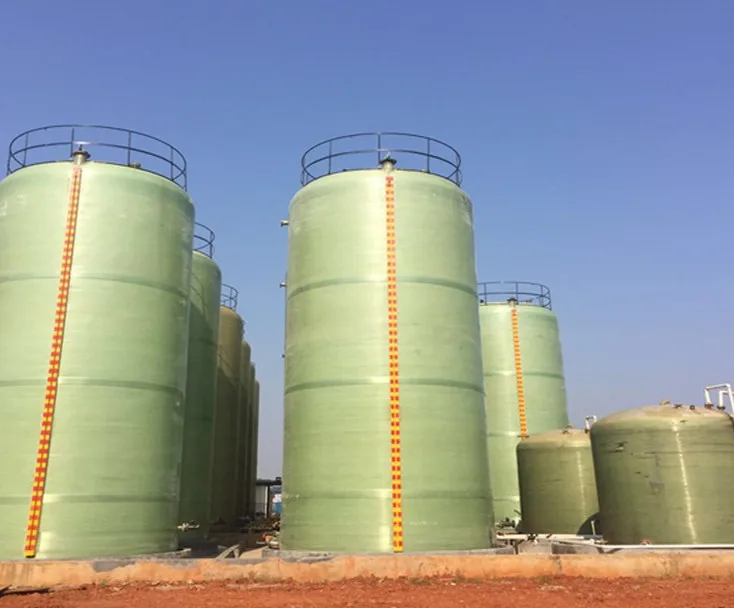

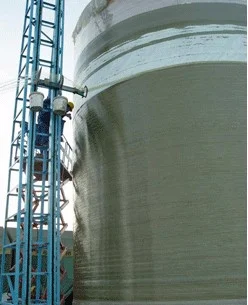

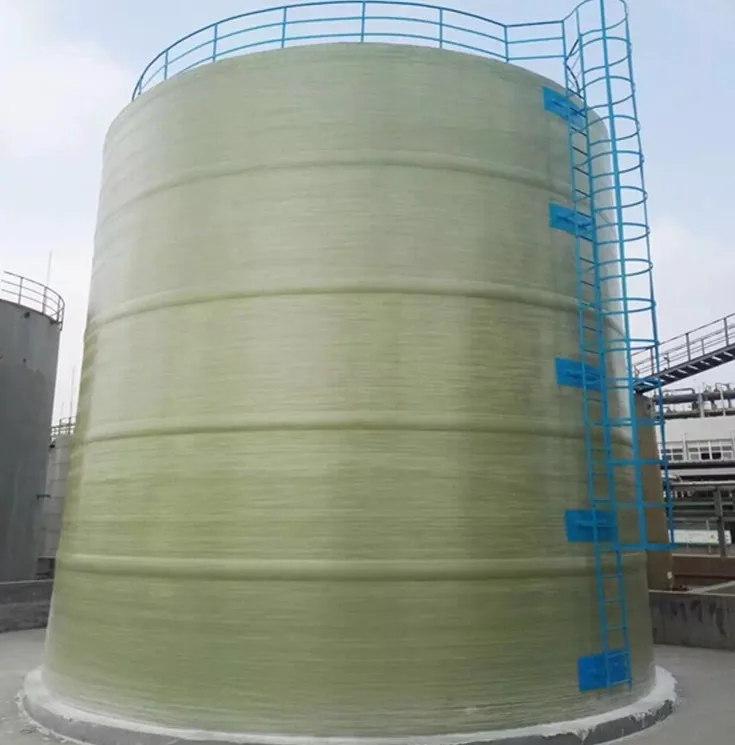

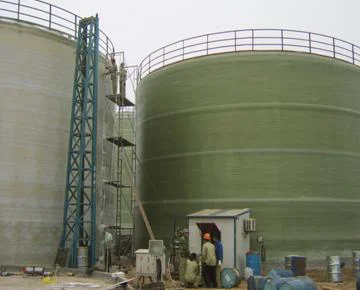

Be finished products by frp vertical tank filament winding machine
Company Information
Our Services
Researches and development team by knowing the importance of the FRP usage in industry and construction , have successfully conducting different researches and studies projects. At the present , it has several government- supported projects available .
Design and engineering services has been given idea from customers, and make out the thinhs you imaged. Specially developing on new machinary.
Installation and construction team is experienced with installation, commissioning and training service at cutomer’s factory. In this way, the customer is able to handle management of equipment themsleves soon.
Maintance service is applied when customer can’t solve problem themselves. Mainly at equipment, software, tools…etc.
Technical support is the most importance in production. as long as frp developing, new and advanced process, material, equipments appeared. We are giving the eyes on the world frp relatived news and supply customer advanced service.
