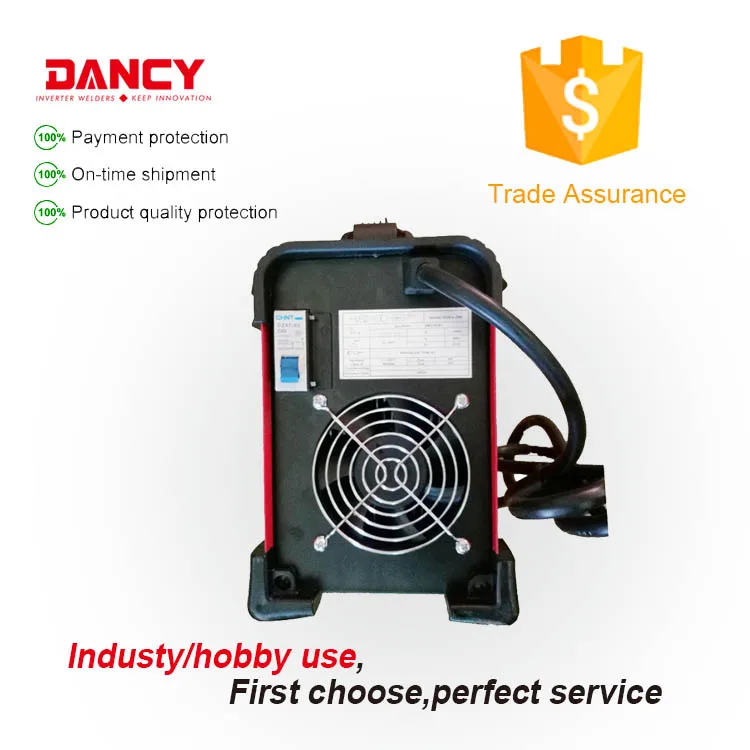

Professional heavy duty pulse arc inverter welder MMA200P
- Category: >>>
- Supplier: Yongkang Dancy Machine Co. LimitedYongkang Limited
Share on (60773053082):
Product Overview
Description
Product Description
Unparalleled Professional MMA device get welding similar to TIG process heavy duty pulse arc inverter welder
Why this welder take big profit to customers
- Newest technology: The MMA200P device is a welding machine designed for manual, electric welding of steel and other weldable metals using the MMA method. To obtain the best possible performance and reliability, the device is manufactured in accordance with the most demanding standards, which provides it with excellent welding parameters. It has a built-in system protecting against overheating, overloading, power inestability, as well as hot start, anti stick, arc force and VRD.
- WHO CAN USE: For those who build boats, trailers, tanks ,industrial purpose and hobby use.
- Competitive advantage: due to its unique features in MMA devices, is dedicated to welding with all types of welding electrodes, regardless of the type of coating (alkaline, acidic, cellulose, rutile, mixed),even difficult-to-run 6010. In addition, when welding steel - especially stainless steel - you can get the appearance and quality of the joint similar to a TIG weld..
MODEL | MMA200P |
Voltage | 220V+15% |
Power consumption max. | 8.7KW |
No-load Voltage | 75V+5V |
MMA welding current | 20-200A |
Rated input current | 29A |
Power factor | 0.8 |
Duty-cycle | 60% |
Insulation class | IP21S |
Protection class | F |
Weight | 6.2kg |
Big advantage | The MMA200P Puls device, due to its PULS function, unprecedented in MMA devices, is dedicated to welding stainless steels. The appearance and quality of the connection that can be obtained is similar to a weld made with the TIG method |
Main features
•1) Pulsed arc

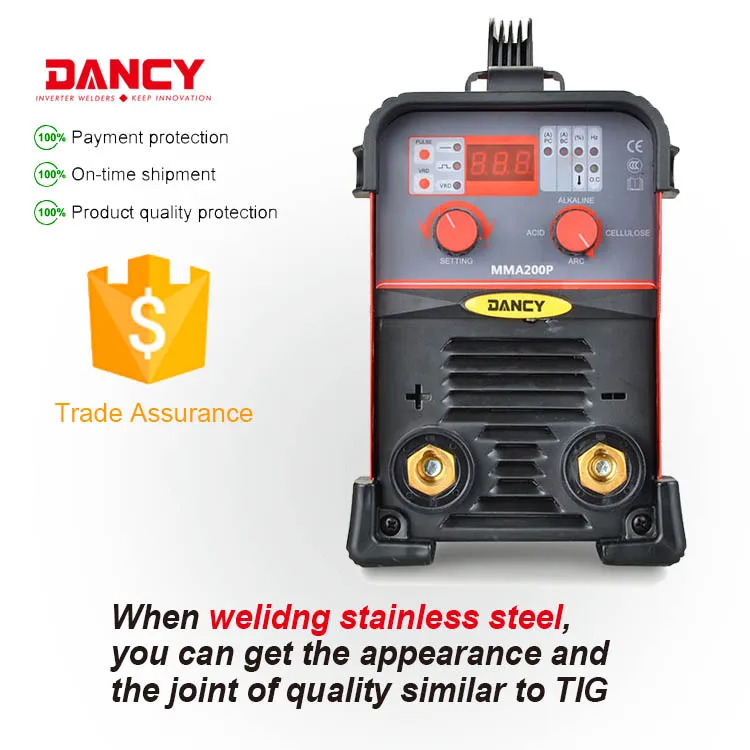

•2)When welding steel,specially stainless steel,you can get the appearance and quality of the joint similar to a TIG weld.
•3) Dedicated to welding with all types of welding electrodes, regardless of the type of coating (alkaline, acidic, cellulose, rutile, mixed)
•4)VRD Safety deivce (Voltage Reduction Device)
•5) Simple interface for easy operation,show all date directly with display
•6) Over current,over voltage,over hot protection
•7) Synergic Control - Set parameters with easy operation.
•8) Excellent arc stability in all welding positions and for a wide range of electrode types up to 5 mm electrodes, with large voltage reserves and automatic arc force control
•9) compatiable generator, wide voltage 155-270V
Have received many positive feedback.Get interest of this,please send us inquiry by click here
Detailed Images

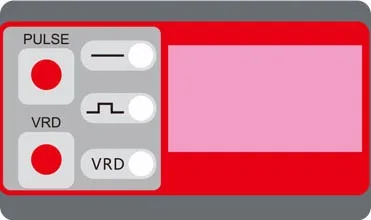

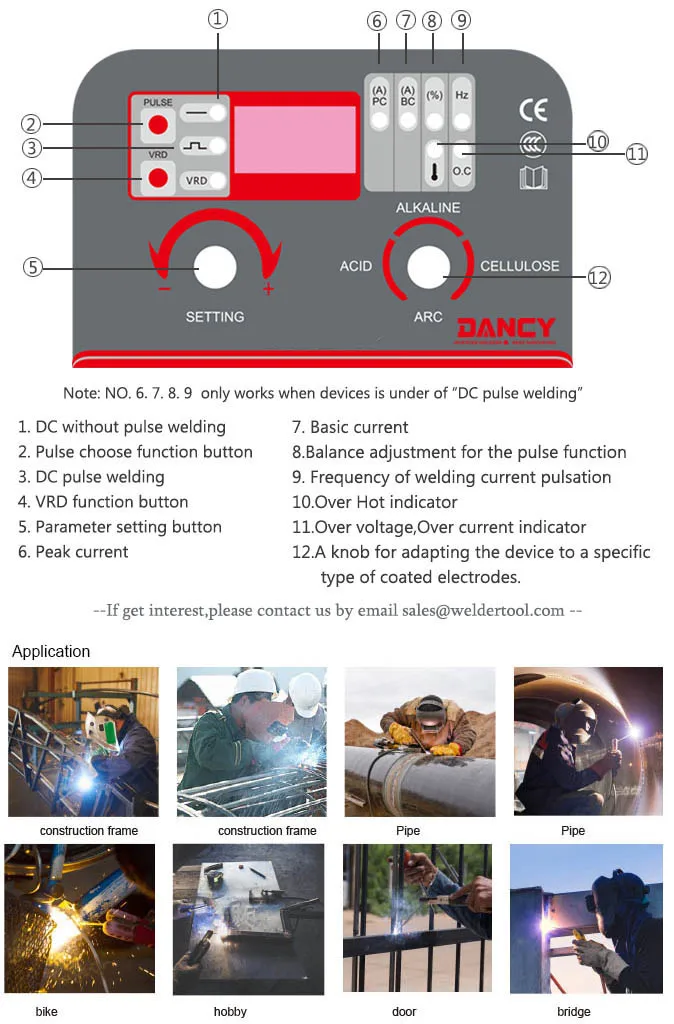

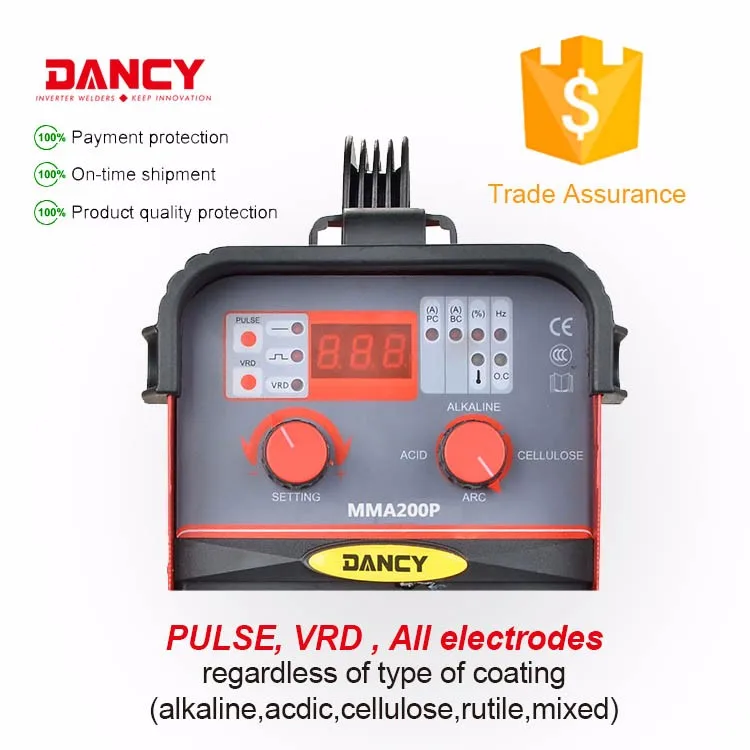

 | PULSE AND VRD Name: PULSE DC without pulse welding, or DC pulse welding
The VRD system provides additional security to the welder against electric shock, especially in an environment where there is an increased probability of electric shock, e.g. hot and humid environments |

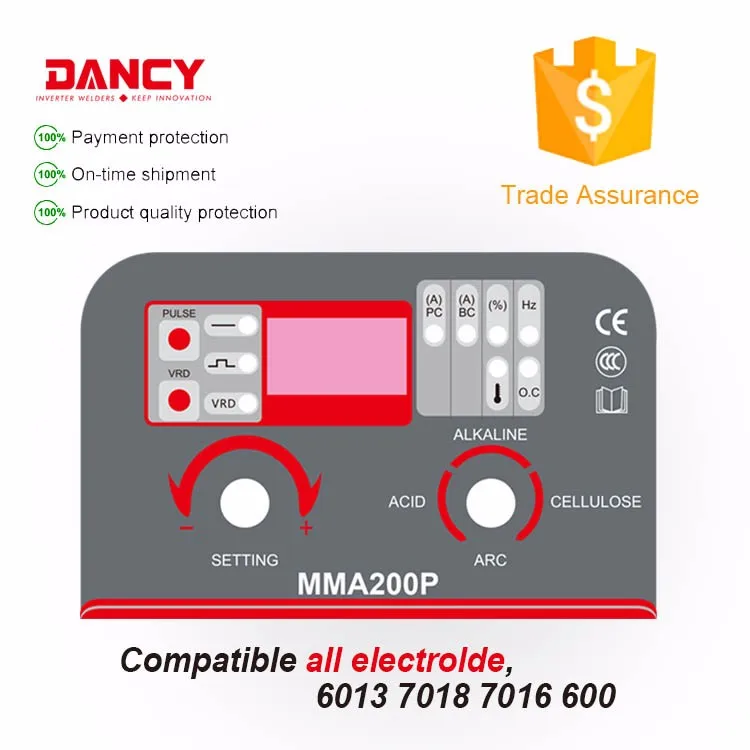

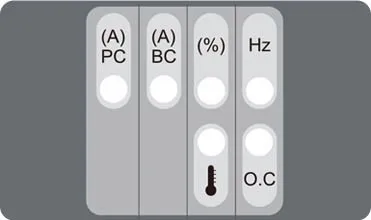

PC,BC,%,HZ Name: (A) PC- welding current or peak current. (%) - Balance adjustment for the pulse function Hz - adjustable frequency of welding current pulsation, regulation in the range of 0.5 - 6 [Hz]. |  |

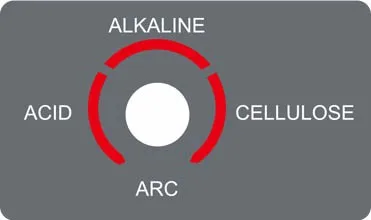

Main Features A knob for adapting the device to a specific type of coated electrodes. Turning the knob from the designation "Acid" to "Cellulose" changes the voltage |  |

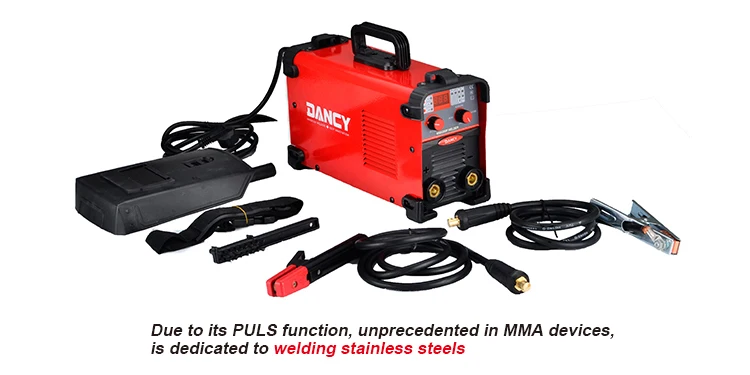

The MMA200P Puls device, due to its PULS function, unprecedented in MMA devices, is dedicated to welding stainless steels. The appearance and quality of the connection that can be obtained is similar to a weld made with the TIG method
If you are interested in any products up, click the blue word to know more details.
Packaging & Shipping
Packaging | |

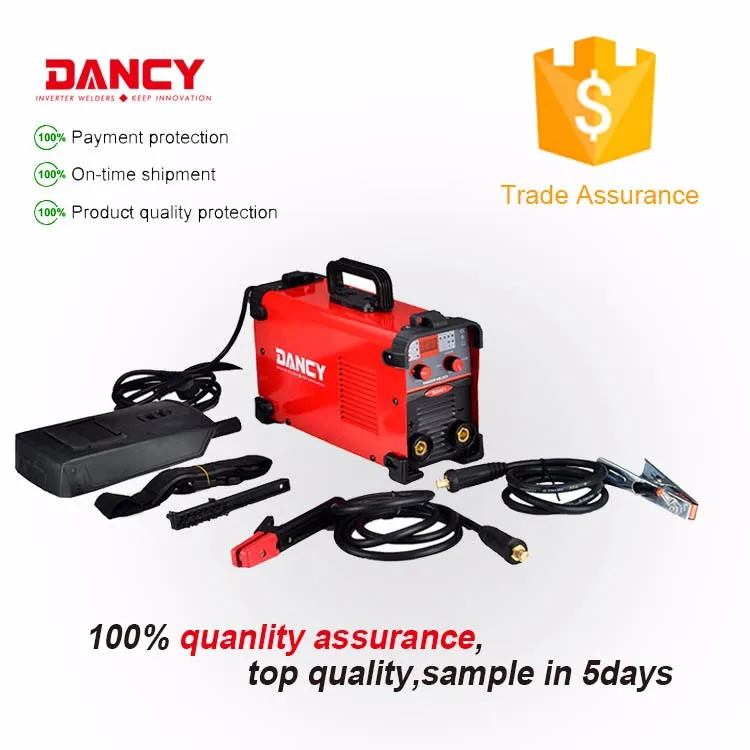

Packaging Details | 1. 300A electrode holder with 2m welding cable 5. Carton box size:45X44X27.5CM,2pcs/ carton |
HS CODE | 85159000.00 |
Shipping information | Carton SIZE:45X44X27.5CM Quantity: 2pcs/ carton Net weight/ gross weight: 6.2KGS/8.9KGS Loading quantity:520pcs/20 FT, 1250pcs/40HQ |
Delivery time | 25-35days for repeated order, 35-45 days for new order. sample delivered in 5days. |
Our Services
Please contact us for more products details and shipping information.
Well welding knowledge sellers understand your requirement fully and quickly,help you save money and time.
1 | Send inquired item with more details,like model number,target marketing,general quantity,special requirement |
2 | Our seller send quotation and product details,we discuss about technology,delivery time,warranty,machine box artwork,payment... |
3 | Our sales send proforma invoice for confirmation. |
4 | Customer make deposit and send us bank copy |
5 | We start to arrange production after receive of deposit or L/C. |
6 | All products (each of piece) are checked and test 100% by our experienced wokers |
7 | Customers make payment for balance ,our factory arrange shipment ... |
8 | Send note to customer when the goods arrive to buyer's destinaiton port.Customer send feedback about our quality and service,looking forward to long terms cooperation. |
A collection of frequently asked questions.
Questions are related to our products,company basis,service,delivery,warranty,etc
1.Are you a trader or manufacturer?
We are professional manufacturer and trading office together, supply inverter welding machines and its related supplies.Meanwhile,we source welding consumables and replacement parts upon customer inquire it.
2.Are you happy to work with small size customers?
Whenever you run a big business or own a small shop,you are welcome to contact us.Nearly 40% of our customers are new or run a small size business while first contact,they become better year after year.Now,we cooperate with together smoothly,win-win together! Any effort has its reward.
3.Why choose DANCY as our partner ?
3.Why choose DANCY as our partner ?
-SERVICE -R&D-HIGH QUALTITY-MANAGEMENT
You will know more about our factory by click "OUR ADVANGTAGE" to check
4.Are you competitive suppliers? How to distinguish supplier competitive or not? Can I have qualified products on affordable pric
• We are your golden supplier certified by ALIBABA company,trusted competitive supplier,offer excellent products with perfect service.
• We have our own excellent sales staff ,Senior engineers,skilled worker and advanced equipment,big warehouse and clean building.Big sales quantity and updated technical spread our administration cost,that help to reduce our cost.
5.Can you help to source products for me from other suppliers? Do you offer inspect service?
• Yes,of course.We can.
• If custoemr inquire it,our experienced purchasing staff and senior engineer are happy to offer a completed source and inspect service,guarantee a better source job.
6. What is Warranty?
Usually,we offer 24 months warranty for each shipment since the shipping date.
7.What is delivery time?
For first order of new customer, it is35-45 workdays.
For repeated order,it is 25-35workdays.It is negotiable
You will know more about our factory by click "OUR ADVANGTAGE" to check
4.Are you competitive suppliers? How to distinguish supplier competitive or not? Can I have qualified products on affordable pric
• We are your golden supplier certified by ALIBABA company,trusted competitive supplier,offer excellent products with perfect service.
• We have our own excellent sales staff ,Senior engineers,skilled worker and advanced equipment,big warehouse and clean building.Big sales quantity and updated technical spread our administration cost,that help to reduce our cost.
5.Can you help to source products for me from other suppliers? Do you offer inspect service?
• Yes,of course.We can.
• If custoemr inquire it,our experienced purchasing staff and senior engineer are happy to offer a completed source and inspect service,guarantee a better source job.
6. What is Warranty?
Usually,we offer 24 months warranty for each shipment since the shipping date.
7.What is delivery time?
For first order of new customer, it is35-45 workdays.
For repeated order,it is 25-35workdays.It is negotiable
Company Information

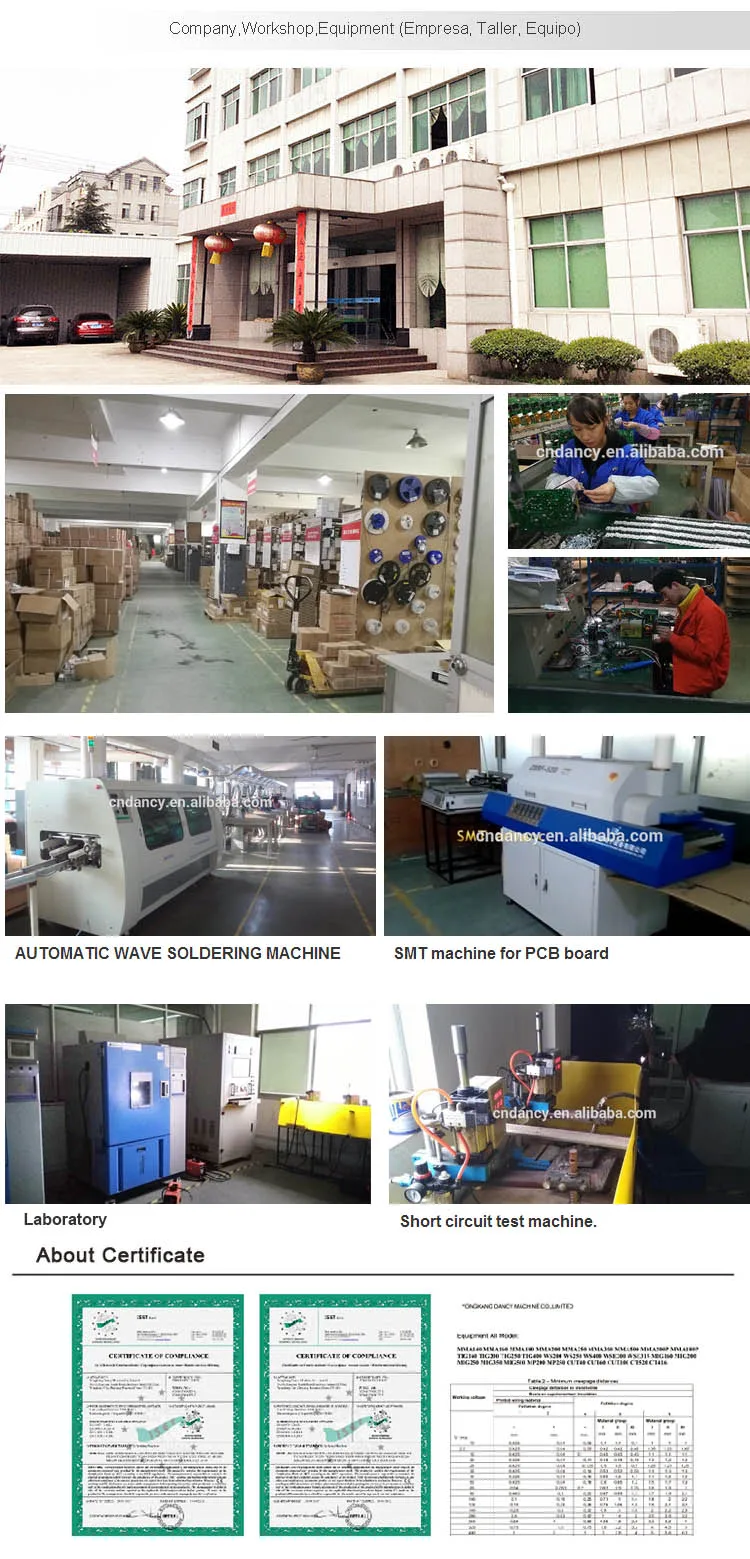

About our factory
