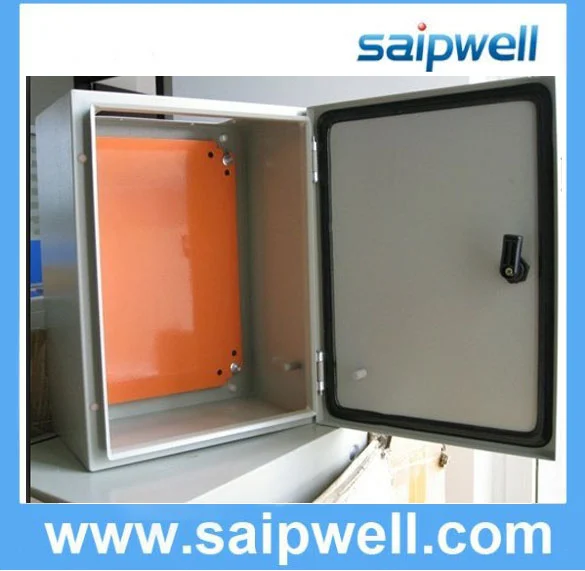

this enclosure is used to shield those components from externa lEMI/RFI interference.
are designed for housing electrical components in highly corrosive environments. They are designed for indoor or outdoor
use primarily to provide a degree of protection against corrosion, windblown dust and rain, splashing water,hose directed water and damage from external ice formation.
2. Finish
Cover and sides of body have a smooth #4 brushed finish.
Accessories See also Accessories.
Fast-Operating Clamp-Cover Junction Box Clamp
Panels for Junction Boxes
Terminal Block Kit Assembly for Junction Boxes Overview
Steel and Stainless Steel Window Kits Continuous
Hinge NEMA 4X boxes are provided standardin Type 304 stainlesssteel.
3. Thecnical Data:
Model
size (H*W*D ) mm
Model
size (H*W*D ) mm
SPT-202015
200
200
150
SPT-704020
700
400
200
SPT-252015
250
200
150
SPT-704030
700
400
300

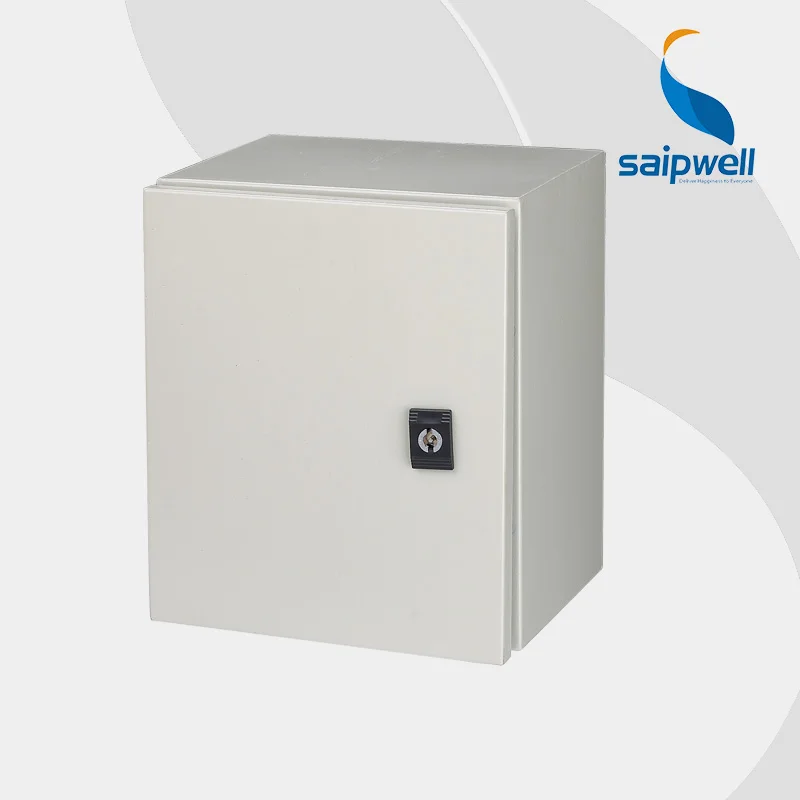

SPT-302015
300
200
150
SPT-806020
800
600
200
SPT-403020
400
300
200
SPT-806030
800
600
300
SPT-403025
400
300
250
SPT-10010025
1000
1000
250
SPT-504015
500
400
150
SPT1206020
1200
600

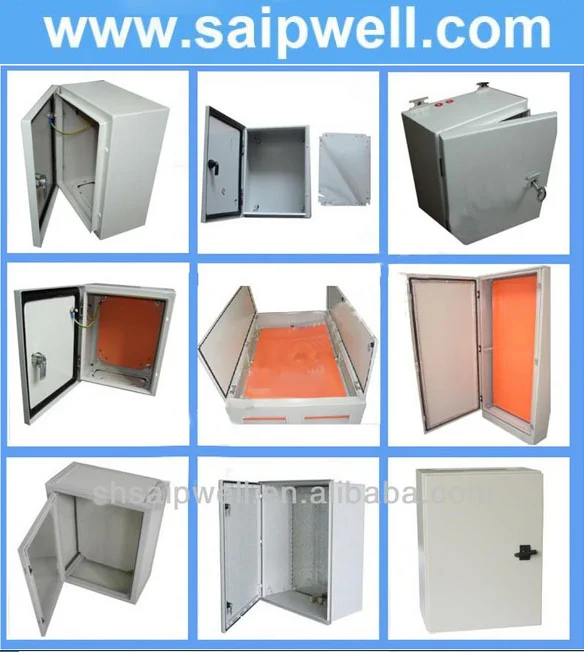

We have series of boxes in different size. Welcome to inquire me.
